Introdução
This manual provides detailed instructions for the safe and efficient operation, setup, and maintenance of your Einhell TC-PN 50 pneumatic stapler and nailer. Please read this manual thoroughly before using the tool to ensure proper function and safety. This 2-in-1 combination tool is designed for various renovation and repair tasks in workshops, homes, and garages.
Instruções de segurança
Ao utilizar ferramentas elétricas, observe sempre as precauções básicas de segurança para reduzir o risco de incêndio, choque elétrico e ferimentos. Guarde este manual para consultas futuras.
- Use proteção ocular: Use sempre óculos de segurança para se proteger contra detritos voadores.
- Use protetores auriculares: Use proteção auricular durante a operação.
- Use proteção para as mãos: Use gloves to protect hands.
- Desconecte o suprimento de ar: Always disconnect the air supply before making adjustments, clearing jams, or servicing the tool.
- Fixar a peça de trabalho: Certifique-se de que a peça esteja estável e segura antes de fixá-la.
- Pressão de operação: Não exceda a pressão máxima de operação especificada para a ferramenta.
- Mantenha-se afastado: Keep hands and body parts away from the firing area.
- Ventilação adequada: Usar em uma área bem ventilada.
Produto acimaview
Familiarize yourself with the components of your Einhell TC-PN 50.

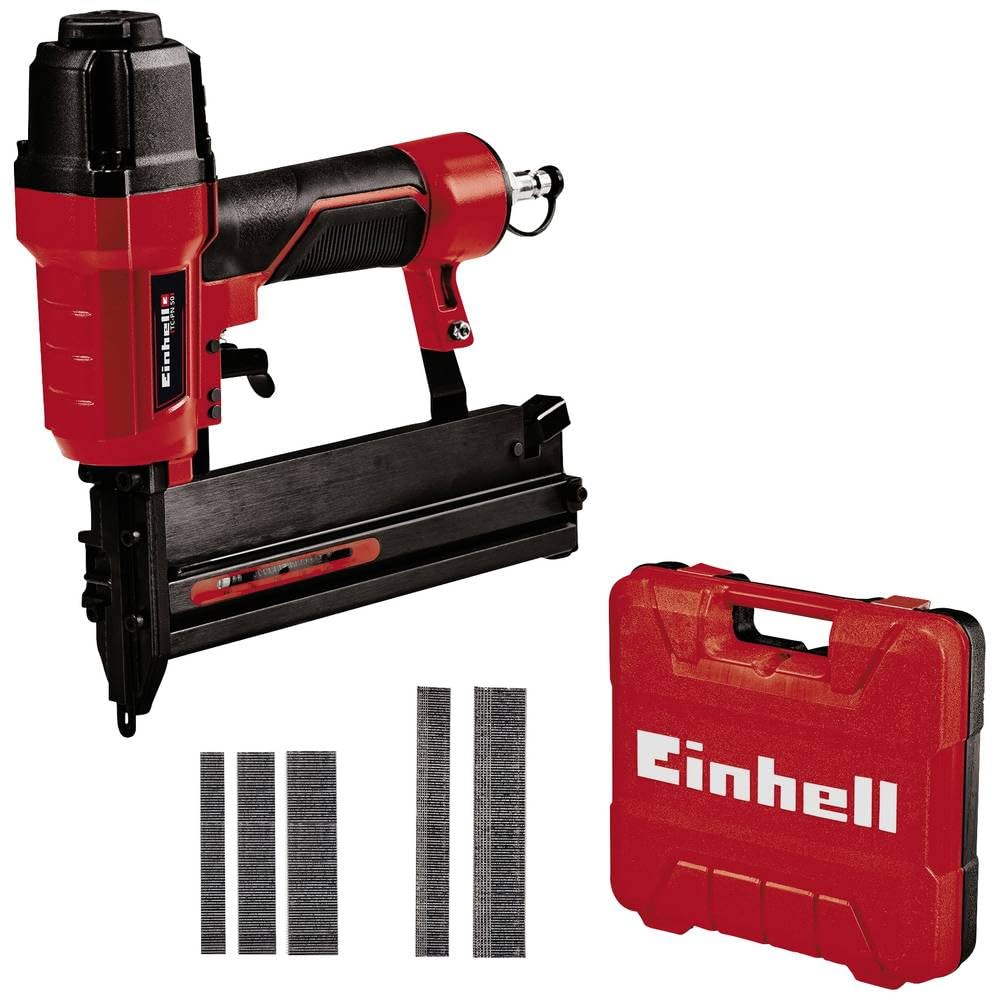

Figura 1: Principal view of the Einhell TC-PN 50 pneumatic stapler/nailer. The tool features a red and black housing, an ergonomic grip, and a magazine for fasteners. Staples and nails are visible on the wooden surface in the foreground.
- Entrada de ar: Connection point for the compressed air hose.
- Acionar: Ativa o mecanismo de fixação.
- Revista: Holds staples or nails. Features a level indicator.
- Roda de ajuste de profundidade: Allows precise setting of fastening depth.
- Safety Nose: Must be pressed against the workpiece for the tool to fire.
- Aderência antiderrapante: Projetado para um manuseio confortável e seguro.
Configurar
1. Connecting to Air Compressor
- Certifique-se de que seu compressor de ar esteja desligado e despressurizado.
- Connect a suitable air hose (minimum 9mm inner diameter for optimal performance) to the air inlet of the TC-PN 50.
- Set the air compressor's output pressure to the recommended operating pressure (refer to specifications).
- Ligue o compressor de ar.
2. Loading Staples or Nails
The tool uses both staples (13-40mm) and nails (15-50mm).
- Disconnect the air supply before loading fasteners.
- Locate the magazine release latch and open the magazine.
- Insert a strip of staples or nails into the magazine, ensuring they are oriented correctly.
- Feche bem o carregador até que ele se encaixe.
- Check the level indicator to confirm fasteners are loaded.
Figura 2: The Einhell TC-PN 50 pneumatic stapler/nailer shown with strips of staples and nails, illustrating the types of fasteners compatible with the tool. The magazine's level indicator is visible.
3. Adjusting Depth
Use the depth adjustment wheel to control how deep the fasteners are driven into the material.
- Turn the wheel clockwise to increase fastening depth.
- Turn the wheel counter-clockwise to decrease fastening depth.
- Always test the depth setting on a scrap piece of material before working on your final project.
Operacional
- Ensure all safety precautions are followed and the air supply is connected.
- Place the safety nose firmly against the workpiece where you intend to fasten. The safety nose must be fully depressed for the tool to fire.
- Squeeze the trigger to drive a staple or nail.
- Solte o gatilho e retire a ferramenta da peça de trabalho.
- Periodically check the fastener level indicator and reload as needed.
Observação: The anti-slip grip ensures comfortable and safe operation, even during extended use.
Manutenção
A manutenção regular garante a longevidade e o desempenho ideal da sua ferramenta.
- Lubrificação: Before each use, apply 2-3 drops of pneumatic tool oil into the air inlet. This lubricates internal components.
- Limpeza: Keep the tool clean and free from dust and debris. Use a dry cloth to wipe down the exterior. Do not use harsh chemicals.
- Filtro de ar: Regularly check and clean the air filter on your compressor to ensure clean air supply to the tool.
- Armazenar: Store the tool in its transport and storage case in a dry, secure location away from direct sunlight and extreme temperatures. Disconnect from air supply before storage.
Solução de problemas
Aqui estão soluções para problemas comuns que você pode encontrar:
| Problema | Possível causa | Solução |
|---|---|---|
| Ferramenta não dispara | No air supply, low air pressure, safety nose not depressed, empty magazine, jammed fastener. | Check air connection and pressure, ensure safety nose is fully pressed, reload fasteners, clear jam (disconnect air first). |
| Fasteners not driven deep enough | Low air pressure, depth adjustment too shallow, incorrect fastener length for material. | Increase air pressure, adjust depth wheel, use longer fasteners if necessary. |
| Fasteners driven too deep / damaging material | High air pressure, depth adjustment too deep. | Decrease air pressure, adjust depth wheel. |
| Tool leaks air | Loose connections, damaged O-rings/seals. | Tighten connections, inspect and replace damaged seals (consult service center if unsure). |
Especificações
| Número do modelo | 4137790 |
| Dimensões do produto (C x L x A) | 25.6 x 5.5 x 26 cm |
| Peso | 2.76 quilos |
| Material | Plástico |
| Capacidade do fixador | Full strip (approx. 100 fasteners) |
| Comprimento dos grampos | 13-40 milímetros |
| Comprimento das unhas | 15-50 milímetros |
| Recommended Air Hose Inner Diameter | 9 milímetros |
| Características especiais | 2-in-1 combination tool (stapler and nailer), depth adjustment, anti-slip grip, level indicator. |
Garantia e Suporte
For warranty information or technical support, please refer to the official Einhell webou entre em contato com o departamento de atendimento ao cliente. Guarde o comprovante de compra como prova de aquisição.
