VASAGLE ULET055B56 Nightstand User Manual

1. Introdução

This manual provides detailed instructions for the assembly, operation, and maintenance of your VASAGLE ULET055B56 Nightstand. Designed for versatility and modern aesthetics, this nightstand features a sturdy steel frame, a convenient drawer, and an open storage shelf.

Principais características:

• Resistente e estável: Constructed from high-quality particleboard and steel, supporting up to 88 lb (40 kg). Includes adjustable feet for stability on uneven surfaces.
• Montagem rápida e fácil: Simple structure with clearly labeled parts and comprehensive instructions for efficient setup.
• Estilo moderno: Ebony black panels and a steel frame integrate seamlessly with contemporary home decor.
• AmpEspaço de armazenamento: Features a spacious tabletop, a functional drawer, and an open storage shelf for organized access to essentials.
• Versátil: Suitable for use as a nightstand, end table, or side table in various rooms.

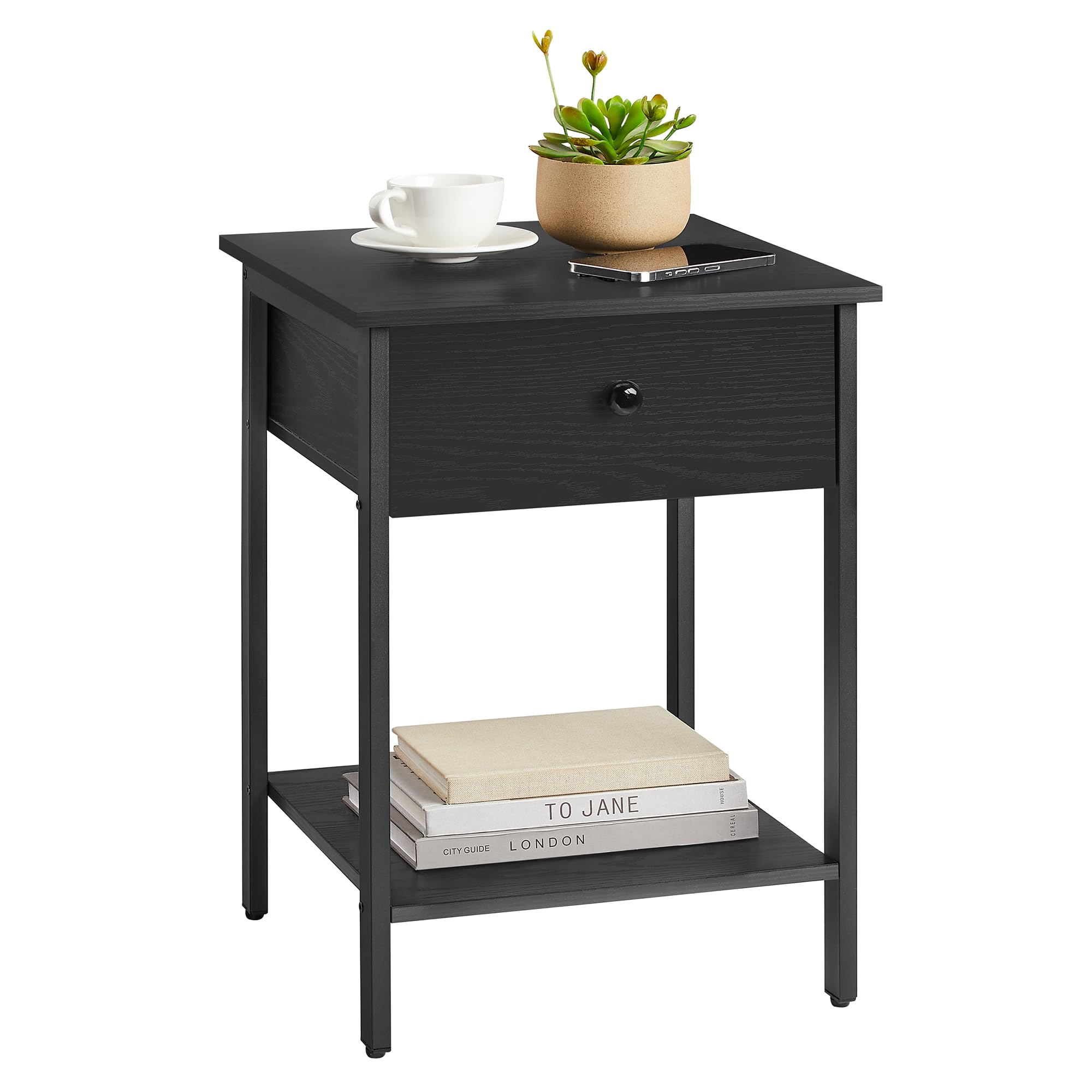

Image 1.1: VASAGLE ULET055B56 Nightstand in a bedroom setting.

2. Informações de segurança

Leia e compreenda todos os avisos de segurança antes da montagem e utilização. O não cumprimento destas instruções pode resultar em ferimentos ou danos ao produto.

• Do not overload the tabletop, drawer, or bottom shelf beyond their respective weight limits.
• Limites de peso: Tabletop: 44 lb (20 kg), Drawer: 22 lb (10 kg), Bottom Shelf: 22 lb (10 kg).
• Ensure the table is stable and level before use. Adjust the feet as necessary to prevent tipping or collapse.
• Mantenha peças pequenas e materiais de embalagem longe das crianças para evitar riscos de asfixia.
• Assemble the product on a soft, clean surface to avoid scratches.

3. Conteúdo da embalagem

Antes de iniciar a montagem, verifique se todos os componentes listados abaixo estão presentes e sem danos. Caso alguma peça esteja faltando ou danificada, entre em contato com o suporte ao cliente.

• 1 x Side Table (unassembled components)
• 1 x Assembly Kit (hardware and tools)
• 1 x Manual de Instruções

Imagem 3.1: Explodida view of nightstand components with labels.

Tools Recommended for Assembly: Screw Driver (an Allen wrench is typically included in the assembly kit).

4. Instruções de montagem

Follow these steps carefully to assemble your nightstand. It is recommended that one person performs the assembly.

1. Desembale e identifique as peças: Lay out all components on a clean, soft surface. Refer to the parts diagram (Image 3.1) and the included instruction manual to identify each piece. Ensure all hardware is present.
2. Monte a gaveta: Connect the drawer sides (e.g., parts E, F, G) to the drawer front (part I) and back (part H) using the provided screws and dowels. Ensure the drawer bottom slides into the grooves correctly. Attach the drawer knob.
3. Construir a estrutura: Attach the side panels (e.g., parts A, B, C) to the steel frame components (part K) as indicated in the manual. Pay attention to the orientation of pre-drilled holes.
4. Instalar prateleiras: Secure the bottom shelf (part J) and the drawer support structure to the frame.
5. Fixe o painel superior: Place the top panel (part D) onto the assembled frame and secure it with the appropriate fasteners.
6. Gaveta de inserção: Carefully slide the assembled drawer into its designated slot.
7. Fixar pés ajustáveis: Screw the adjustable feet into the bottom of the steel frame legs.
8. Verificação final: Ensure all screws are tightened, and the nightstand is stable. Adjust the feet as needed to level the table.

Image 4.1: Tightening screws during assembly.

Imagem 4.2: Example of detailed instructions.

5. Instruções de operação

Your VASAGLE ULET055B56 Nightstand is designed for simple and functional use.

• Utilizando a gaveta: The integrated drawer provides enclosed storage for personal items, keeping them dust-free and out of sight. Gently pull the knob to open and push to close. Avoid forcing the drawer if it feels stiff.
• Utilizing the Open Shelf: The bottom open shelf offers easy access storage for books, headphones, or decorative items.
• Ajustando para estabilidade: The nightstand is equipped with adjustable feet. If the table wobbles on an uneven floor, rotate the feet clockwise or counter-clockwise until the table is stable and level.

Image 5.1: Drawer for enclosed storage.

Image 5.2: Adjustable feet for leveling.

6. Manutenção e Cuidados

Os devidos cuidados prolongarão a vida útil e a beleza da sua mesa de cabeceira.

• Limpeza: Limpe as superfícies com um pano seco. Evite usar produtos químicos agressivos ou abrasivos, que podem danificar o acabamento.
• Derramamentos: Immediately wipe up any spills with a dry or slightly damp cloth to prevent staining or water damage.
• Calor e umidade: Evite colocar objetos quentes diretamente sobre a superfície. Use porta-copos para bebidas para evitar marcas de umidade.
• Luz solar: Keep the nightstand out of direct sunlight to prevent fading or discoloration over time.
• Verificações regulares: Periodically check and tighten all screws to ensure the nightstand remains stable.

Image 6.1: Cleaning the nightstand with a dry cloth.

7. Solução De Problemas

Caso encontre algum problema com sua mesa de cabeceira, consulte as seguintes soluções comuns:

• Mesa instável: If the nightstand is unstable, adjust the individual feet at the bottom of the legs until all four feet make firm contact with the floor and the table is level.
• Drawer Sticking/Hard to Open:
  1. Ensure the drawer is assembled correctly and all screws are tightened.
  2. Verifique se há alguma obstrução nas corrediças da gaveta.
  3. Verify that the drawer slides are properly aligned and not bent.
• Partes faltando: Se alguma peça estiver faltando ao abrir a caixa, não prossiga com a montagem. Entre em contato imediatamente com o suporte ao cliente para obter assistência.

8. Especificações

Image 8.1: Detailed dimensions of the nightstand.

9. Garantia e Suporte

For warranty information, product support, or to report missing/damaged parts, please contact VASAGLE customer service through the retailer where the product was purchased or visit the official VASAGLE website. Please have your model number (ULET055B56) and purchase details ready when contacting support.
