Introdução
Thank you for choosing the TONOR T30 Microphone Arm Stand. This manual provides detailed instructions for the proper setup, operation, and maintenance of your new microphone arm. Please read this manual carefully before use to ensure optimal performance and longevity of the product.
The TONOR T30 is designed for flexible microphone positioning, offering a wide range of motion and stable support for various microphones. Its heavy-duty construction and upgraded desk clamp ensure reliability and ease of use for recording, broadcasting, and other audio applications.
Conteúdo da embalagem
Verifique se todos os itens listados abaixo estão incluídos no seu pacote:
- 1 × Microphone Boom Arm
- 1 × Upgraded Desk Clamp
- 1 × Microphone Clip
- 1 × 3/8 inch to 5/8 inch Adapter
- 1 × Filtro Pop
- 1 × Sponge Cover
- 4 abraçadeiras de nylon
- 1 × Manual do usuário

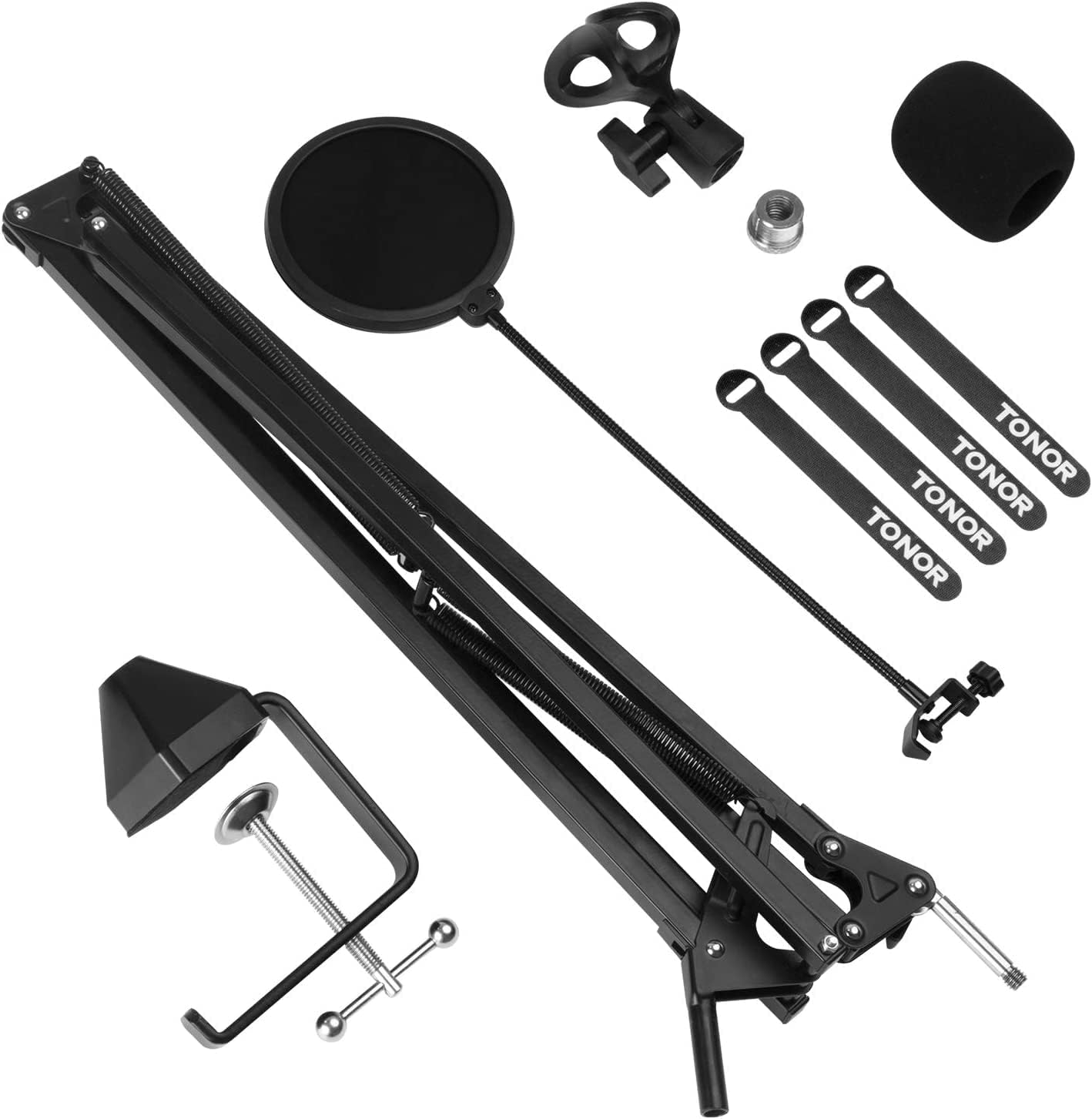

All components included in the TONOR T30 microphone arm stand package, including the boom arm, desk clamp, microphone clip, adapter, pop filter, sponge cover, and cable ties.
Instruções de configuração
- Install the Desk Clamp:
Attach the upgraded desk clamp to the edge of your desk. Ensure the desk thickness does not exceed 2.4 inches (60mm). Tighten the screw on the clamp firmly to secure it in place. The upgraded clamp offers a 4 times larger contact area for enhanced stability.
Comparison of the upgraded desk clamp with a larger contact area (38 cm²) versus the old clamp (9 cm²) highlighting improved stability.
- Attach the Boom Arm:
Insert the base of the microphone boom arm into the hole on the desk clamp. Adjust the arm's position and tighten the knob on the clamp to fix the arm's vertical orientation.
- Monte o microfone:
Screw the microphone clip onto the 3/8 inch thread at the end of the boom arm. If your microphone or shock mount requires a 5/8 inch thread, use the provided 3/8 inch to 5/8 inch adapter. Ensure the microphone is securely attached.

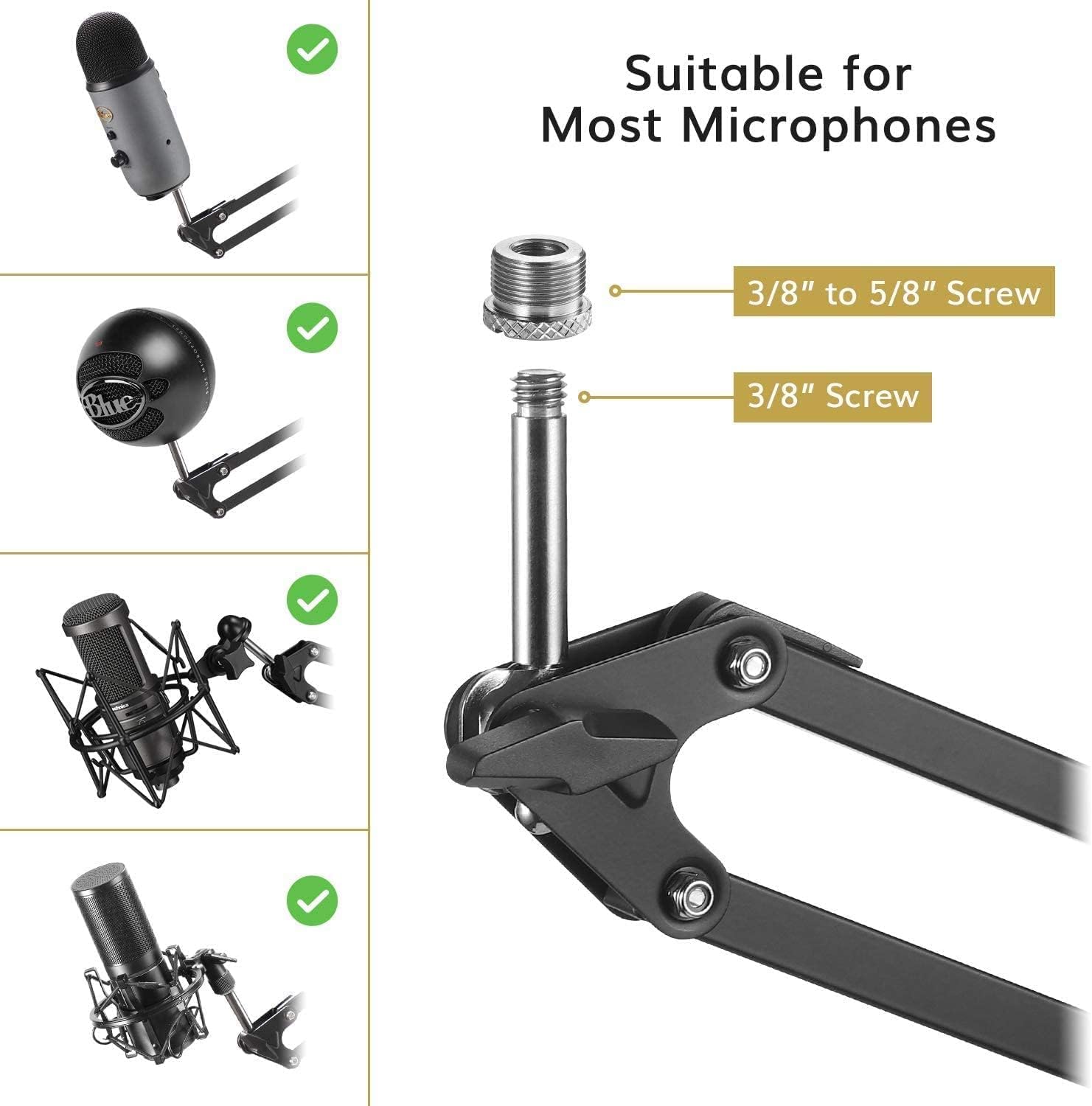

Image showing the 3/8 inch to 5/8 inch screw adapter and a 3/8 inch screw, demonstrating compatibility with various microphones like Blue Yeti and other popular models.
- Instale o filtro pop:
Attach the pop filter to the boom arm using its clamp. Position the pop filter approximately 2-3 inches (5-7 cm) in front of your microphone to reduce plosive sounds and protect the microphone from moisture.

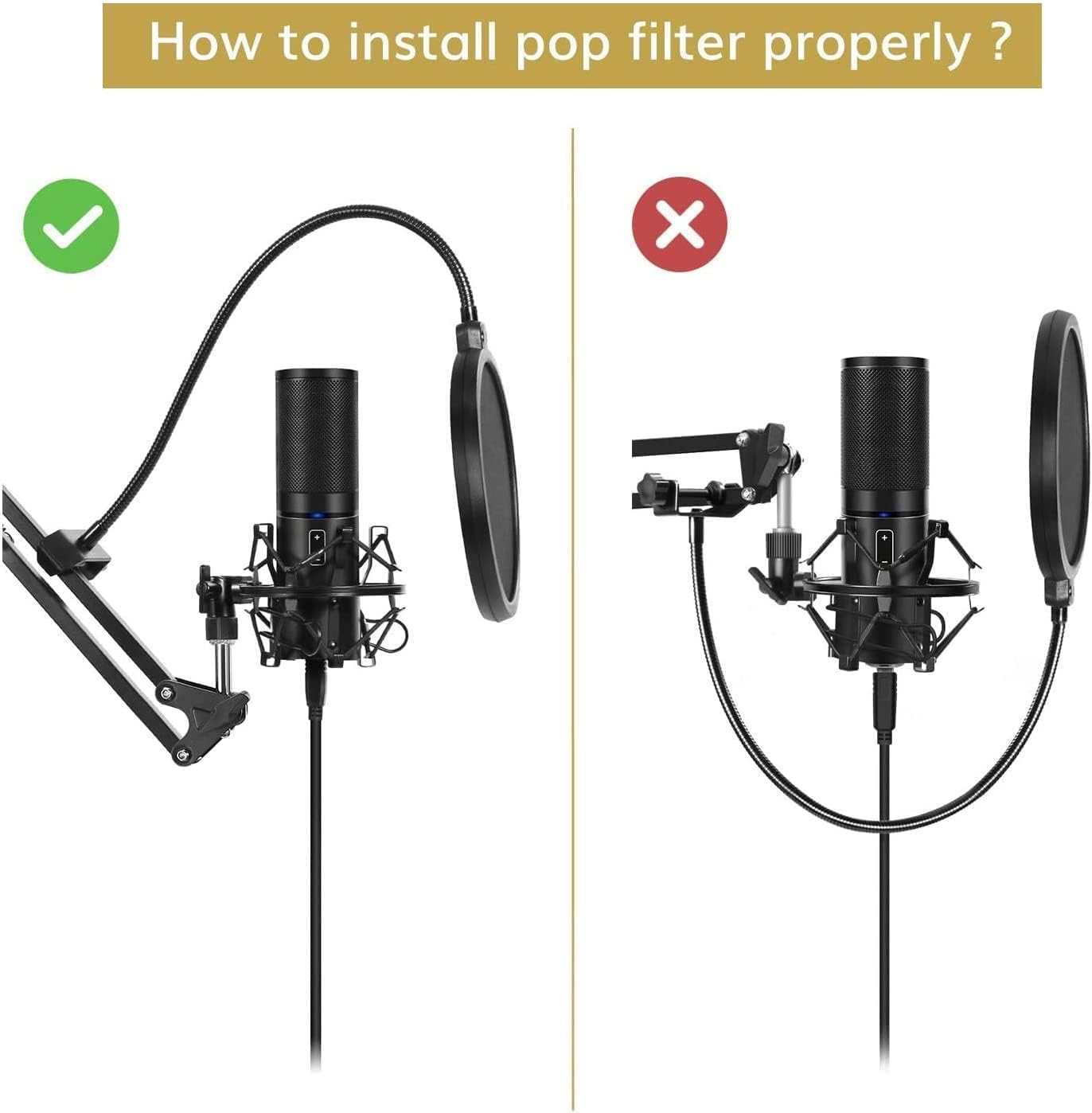

Diagram illustrating the correct and incorrect installation of a pop filter on a microphone arm, emphasizing proper placement for optimal sound.
- Gerenciamento de cabos:
Use the provided cable ties to neatly secure your microphone cable along the boom arm. This helps prevent tangles and maintains a clean setup.
Instruções de operação
The TONOR T30 microphone arm offers flexible adjustment for optimal microphone placement:
- Posição de ajuste: The arm provides a horizontal and vertical reach of up to 940mm and a full 360-degree rotation. Gently move the arm to your desired position.
- Securing the Arm: The arm is designed to hold its position once adjusted. For additional stability, ensure all connection points and knobs are tightened appropriately.
- Posicionamento ideal do microfone: Position your microphone to capture the best sound. Typically, this is 6-12 inches (15-30 cm) from your mouth, slightly off-axis to reduce plosives, even with the pop filter.
A person using the TONOR T30 microphone arm stand with a microphone attached, positioned over a desk with a laptop, illustrating typical usage.
Manutenção
To ensure the longevity and proper functioning of your TONOR T30 Microphone Arm Stand, follow these maintenance guidelines:
- Limpeza: Wipe the arm and clamp with a soft, dry cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners.
- Verifique as conexões: Periodically check all screws and knobs to ensure they are tight and secure. Loose connections can affect stability.
- Tensão da mola: The arm's internal springs are designed for durability. Avoid excessive force when adjusting to prevent damage.
Solução de problemas
If you encounter any issues with your TONOR T30 Microphone Arm Stand, refer to the following common problems and solutions:
- Problema: The microphone arm does not hold its position or sags.
Solução: Garantir que a mesa esteja limpaamp is securely tightened to the desk. Check the tension knobs on the arm's joints and tighten them if they are loose. The arm is designed to support microphones up to 4.4 lbs (2 kg). Exceeding this weight limit may cause sagging. - Problema: My microphone does not fit the arm's thread.
Solução: The arm comes with a 3/8 inch thread. If your microphone or shock mount has a 5/8 inch thread, use the included 3/8 inch to 5/8 inch adapter. - Problema: Poor sound quality or popping noises.
Solução: Ensure the pop filter is correctly installed and positioned 2-3 inches in front of the microphone. Adjust microphone distance from your mouth.
Especificações
| Marca | TONOR |
| Modelo | T30 |
| Cor | Preto |
| Material | Solid Metal Alloy |
| Estilo | Serviço Pesado |
| Tipo de base | Clamp |
| Tipo de acabamento | Revestimento em pó |
| Dimensões do item (CxLxA) | 54.8 x 16 x 9.7 cm |
| Altura Máxima | 54.8 centímetros |
| Microphone Holder Thread Size | 3/8 inch (with 5/8 inch adapter included) |
| Capacidade Máxima de Carga | 4.4 libras (2 kg) |
| Horizontal/Vertical Reach | 940 milímetros |
| Rotação | 360 graus |
Informações de garantia
TONOR products are designed for quality and reliability. This product comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package or visit the official TONOR website for specific warranty terms and conditions. Keep your purchase receipt as proof of purchase for any warranty claims.
Apoiar
For technical support, product inquiries, or assistance with your TONOR T30 Microphone Arm Stand, please contact TONOR customer service. You can find contact information on the official TONOR website ou através do revendedor onde você comprou o produto.
