WAVLINK DisplayLink Docking Station WL-UG69DK7 User Manual

1. Introdução

The WAVLINK 14-in-1 DisplayLink Docking Station (Model WL-UG69DK7) is designed to expand the connectivity of your laptop or computer, providing a versatile solution for multiple displays and peripherals. This docking station supports a wide range of devices and operating systems, enhancing your workspace efficiency.

It features dual 5K display outputs, multiple USB 3.0 ports, a Gigabit Ethernet port, and a 2-in-1 audio/microphone jack. Please note that this docking station does not support charging your host device.

Figura 1: Overview of the WAVLINK 14-in-1 DisplayLink Docking Station and its ports.

2. Configuração e instalação

2.1. Instalação do driver

Before connecting the docking station, it is crucial to install the DisplayLink driver for your operating system. This driver enables the docking station to function correctly and support multiple displays.

1. Acesse o site oficial do DisplayLink. weblocal (displaylink. com).
2. Navigate to the "Downloads" section.
3. Select the correct driver version for your operating system (Windows, macOS, Android, Ubuntu, Chrome OS).
4. Download and install the driver following the on-screen instructions.
5. Reinicie o computador se solicitado.

Figure 2: Steps for downloading and installing the DisplayLink driver.

2.2. Conexão Física

Follow these steps to connect your docking station and peripherals:

1. Connect the power adapter to the 20V DC IN port on the docking station and then to a power outlet.
2. Connect your monitors to the docking station using HDMI or DisplayPort cables. The docking station supports up to two 5K displays.
3. Connect your USB peripherals (keyboard, mouse, external hard drives, etc.) to the available USB 3.0 ports.
4. For a wired network connection, connect an Ethernet cable to the Gigabit Ethernet port on the docking station.
5. Connect your headphones or microphone to the 2-in-1 audio & microphone jack.
6. Finally, connect the docking station to your laptop using the provided USB-C to C or USB-C to A cable.

Figure 3: Docking station connected to a laptop and dual monitors.

3. Instruções de operação

3.1. Configuração da tela

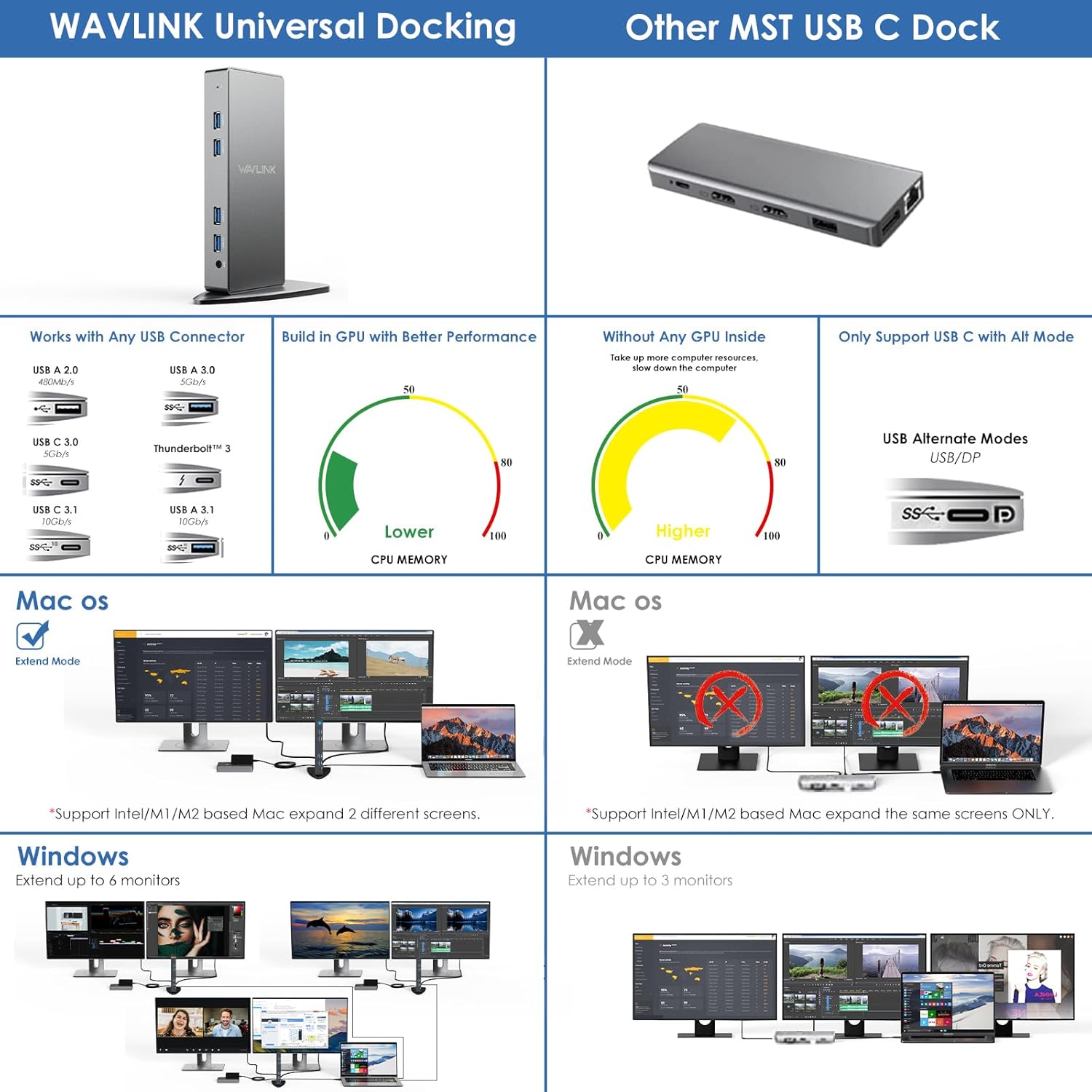

The docking station supports single or dual monitors with resolutions up to 5120x1440@60Hz. You can configure your displays in either Mirror Mode or Extend Mode through your operating system's display settings.

• Modo Espelho: Duplicates your primary display onto the external monitors.
• Modo de extensão: Expands your desktop across multiple screens, allowing for increased productivity.

Nota importante: In the same video stream group (Display 1: DP1+HDMI1 and Display 2: DP2+HDMI2), the DisplayPort and HDMI port cannot be used simultaneously. If both are connected, the DisplayPort will take priority.

Figure 4: Illustration of Mirror Mode and Extend Mode for display setup.

3.2. USB Data Transfer

The docking station features six USB-A 3.0 ports, supporting data transfer speeds of up to 5Gbps. This allows for rapid transfer of large files and efficient connection of various USB peripherals. One of these ports also supports BC1.2 fast charging (7.5W) for compatible devices.

Figure 5: Highlighting the ultra-fast data transfer speed of USB 3.0 ports.

3.3. Network and Audio

The Gigabit Ethernet port provides a stable and fast wired network connection (10/100/1000Mbps), ideal for streaming and online activities. The 2-in-1 audio & microphone jack allows for simultaneous audio output and voice input, supporting headsets with a single 4-pole connector.

Figure 6: Docking station with Gigabit RJ45 Ethernet and 2-in-1 audio/mic jack connections.

3.4. Additional Modes

• Modo de rotação: Supports screen rotation to adjust to different monitor orientations.
• Modo concha: Allows you to use your laptop with the lid closed while connected to external monitors, reducing power consumption and extending battery life.

Figure 7: Visual representation of Rotation Mode and Clamshell Mode functionality.

4. Especificações

5. Manutenção

• Keep the docking station in a dry, well-ventilated area.
• Evite expor o dispositivo a temperaturas extremas ou luz solar direta.
• Limpe a parte externa com um pano macio e seco. Não use produtos de limpeza líquidos ou aerossóis.
• Ensure all cables are securely connected to prevent signal loss or power interruptions.
• Regularly check for DisplayLink driver updates to ensure optimal performance and compatibility.

6. Solução De Problemas

• Sem saída de vídeo:
  • Certifique-se de que o driver DisplayLink esteja instalado e atualizado corretamente.
  • Verify all display cables (HDMI/DisplayPort) are securely connected to both the docking station and the monitors.
  • Check your computer's display settings to ensure the external monitors are detected and configured (Mirror or Extend mode).
  • Confirm the docking station is receiving power.
• Dispositivos USB não funcionam:
  • Ensure the docking station is properly connected to your host computer via the USB-C cable.
  • Try connecting the USB device directly to your computer to rule out device issues.
  • Test different USB ports on the docking station.
• Problemas de conectividade de rede:
  • Verifique se o cabo Ethernet está conectado firmemente tanto à estação de acoplamento quanto ao seu roteador/modem.
  • Verifique as configurações de rede do seu computador.
  • Ensure the network adapter for the docking station is enabled in your operating system.
• Problemas de áudio:
  • Check your computer's sound settings to ensure the docking station's audio output is selected as the default device.
  • Verify your headphones/speakers are properly connected to the 2-in-1 audio jack.
• Performance Issues (Lagging Display, Slow USB):
  • Ensure your computer meets the minimum system requirements for DisplayLink.
  • Feche aplicativos desnecessários para liberar recursos do sistema.
  • Update your computer's graphics drivers and operating system.

7. Garantia e Suporte

For warranty information and technical support, please refer to the documentation included with your product or visit the official WAVLINK website. You may also contact WAVLINK customer service directly for assistance with product setup, troubleshooting, or warranty claims.

Fabricante: WAVLINK
