VEVOR Single Folding Security Gate 51.57" H x 66" W Instruction Manual

1. Introdução

This manual provides essential instructions for the safe and effective installation, operation, and maintenance of your VEVOR Single Folding Security Gate. Please read this manual thoroughly before assembly and use, and retain it for future reference.

The VEVOR Single Folding Security Gate is designed to provide a robust and flexible barrier for various applications, including doorways, hallways, and receiving areas. Its accordion-style design allows for adjustable width and compact storage when not in use.

Image: VEVOR Single Folding Security Gate providing a sturdy division.

2. Recursos do Produto

• Construção durável: Constructed from heavy-duty 3/4" 14 gauge channel steel with a black powder-coated finish for enhanced durability and rust prevention.
• Design expansível: The single folding gate features a retractable width structure, expanding from 4" (collapsed) to 67" (expanded) with a height of 50".
• Flexible Rolling Casters: Equipped with rolling casters at the bottom that allow for 360-degree rotation, enabling smooth movement and easy positioning. Casters include a lock design to fix the gate in place.
• Mecanismo de travamento seguro: Features a padlock hasp for secure locking. A padlock with keys is included for immediate use.
• Aplicação versátil: Suitable for controlling access in various settings such as basements, garages, storefronts, and industrial areas, while maintaining visibility and air circulation.

Image: Sturdy steel construction details, highlighting 14 gauge channel steel and zinc-plated rivets.

Image: Flexible rolling casters with 360-degree rotation and locking mechanism.

3. Informações de segurança

Observe sempre as seguintes precauções de segurança para evitar ferimentos ou danos ao produto:

• Ensure the gate is securely mounted to a stable surface (e.g., cement or concrete walls) before use.
• Do not allow children to play with or climb on the gate.
• Regularly inspect the gate for any signs of wear, damage, or loose components. Do not use if damaged.
• Keep hands and fingers clear of moving parts when expanding or collapsing the gate.
• Always lock the gate with the provided padlock when it is in use to prevent unauthorized access.

4. Conteúdo da embalagem

Verifique se todos os itens listados abaixo estão incluídos em seu pacote:

• 1 x Folding Security Gate
• 1 x Padlock with Keys (3 keys included)
• 1 x Set of Mounting Tools (screws, anchors)

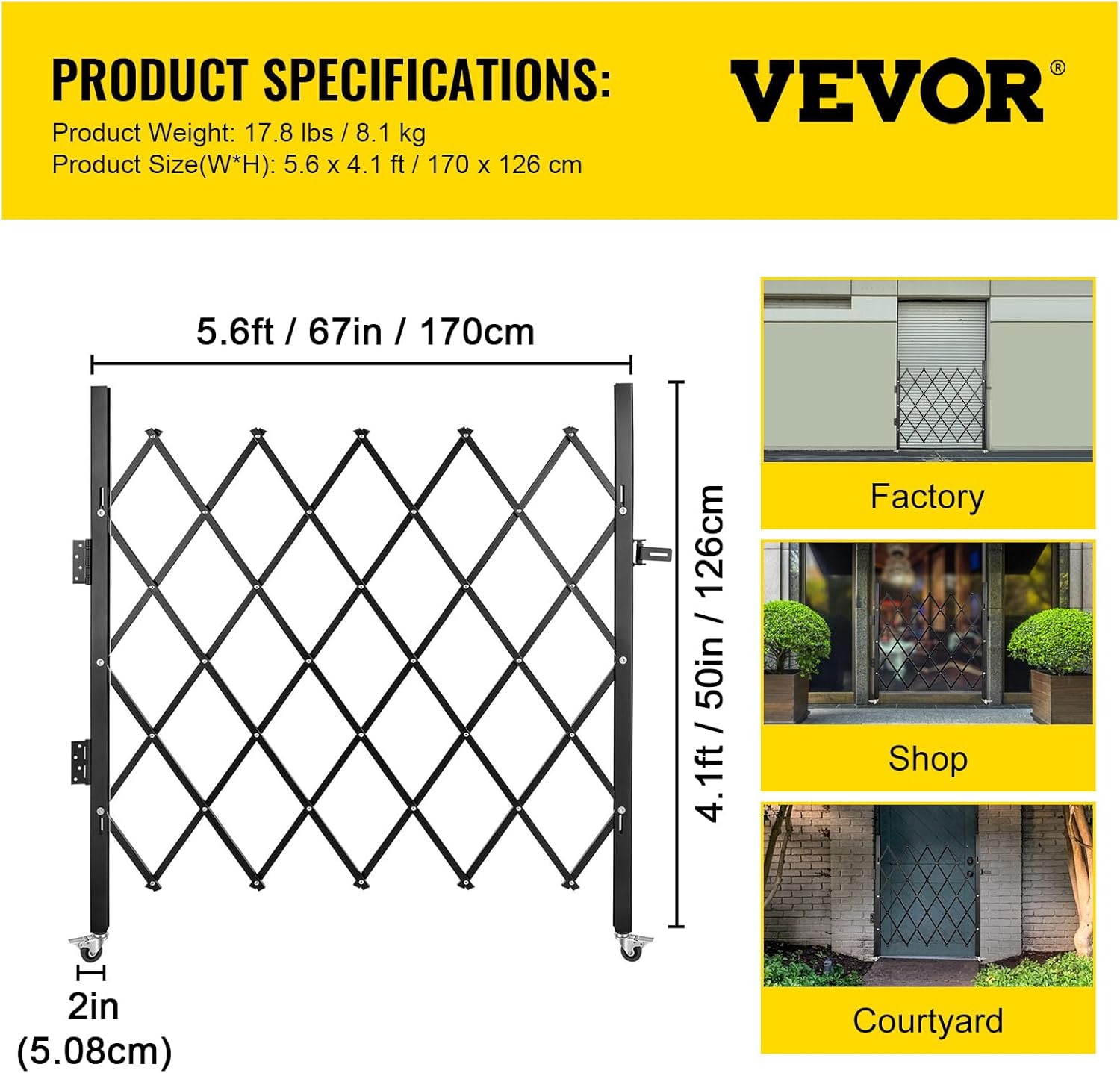

Image: Product specifications and typical application scenarios.

5. Configuração e instalação

The VEVOR Single Folding Security Gate is designed for straightforward installation. Follow these steps for proper mounting:

1. Posicionamento: Determine the desired location for your gate. Ensure the mounting surface is solid, such as a cement or concrete wall.
2. Marcação de furos: Hold the gate in its collapsed position against the wall where it will be mounted. Mark the positions for drilling the mounting holes through the pre-drilled holes on the gate's vertical frames.
3. Perfuração: Drill pilot holes at the marked locations. Use an appropriate drill bit size for the provided anchors and screws.
4. Montagem: Secure the gate to the wall using the provided screws and anchors. Ensure all screws are tightened firmly.
5. Teste: Once mounted, gently expand and collapse the gate to ensure smooth operation and secure attachment.

Image: Step-by-step guide for gate installation and locking.

6. Operação

Operating your VEVOR Single Folding Security Gate is simple:

• Expanding the Gate: Gently pull the gate outwards from its collapsed position. The accordion design allows it to expand smoothly to your desired width, up to 67 inches.
• Collapsing the Gate: Push the gate inwards from its expanded position. It will fold compactly to a width of 4 inches.
• Trancando o portão: Once the gate is in the desired position (expanded or collapsed), use the provided padlock and keys to secure it through the designated hasp.
• Using the Rolling Casters: The 360-degree rolling casters facilitate easy movement. To fix the gate in a specific position, engage the brake on the casters.

Image: Gate dimensions and demonstration of width adjustment.

7. Manutenção

To ensure the longevity and optimal performance of your security gate, perform the following maintenance tasks:

• Limpeza: Wipe the gate regularly with a damp cloth to remove dust and dirt. Avoid abrasive cleaners that may damage the powder-coated finish.
• Lubrificação: Periodically apply a silicone-based lubricant to the moving joints and casters to ensure smooth operation.
• Inspeção: Routinely check all rivets, screws, and mounting hardware for tightness. Tighten any loose fasteners immediately. Inspect the steel channels for any signs of bending or damage.
• Prevenção da ferrugem: While the gate has a powder-coated finish, prolonged exposure to harsh weather conditions may require additional rust-preventative measures, especially if the coating is scratched.

8. Solução De Problemas

If you encounter any issues with your VEVOR Single Folding Security Gate, refer to the following common problems and solutions:

9. Especificações

10. Garantia e Suporte

Para informações sobre garantia ou suporte técnico, consulte o site oficial da VEVOR. webou entre em contato diretamente com o serviço de atendimento ao cliente. Guarde o comprovante de compra como prova de aquisição.

Para obter mais ajuda, visite: www.vevor.com
