1. Introdução
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your FERM PSM1027 Corded Electric Precision Sander. Please read these instructions carefully before using the tool and keep them for future reference.
1.1 Informações de segurança
Always observe general safety regulations when working with power tools. This includes wearing appropriate personal protective equipment such as safety glasses, hearing protection, and a dust mask. Ensure your work area is clean, well-lit, and free from obstructions. Keep children and bystanders away from the operating area. Disconnect the tool from the power supply before making any adjustments, changing accessories, or performing maintenance.
1.2 Uso pretendido
The FERM PSM1027 Precision Sander is designed for sanding wood, plastic, metal, filler, and lacquered surfaces. It is intended for domestic and light professional use. Do not use the tool for purposes other than those specified in this manual.
2. Produto acabadoview
Familiarize yourself with the components of your precision sander before operation.

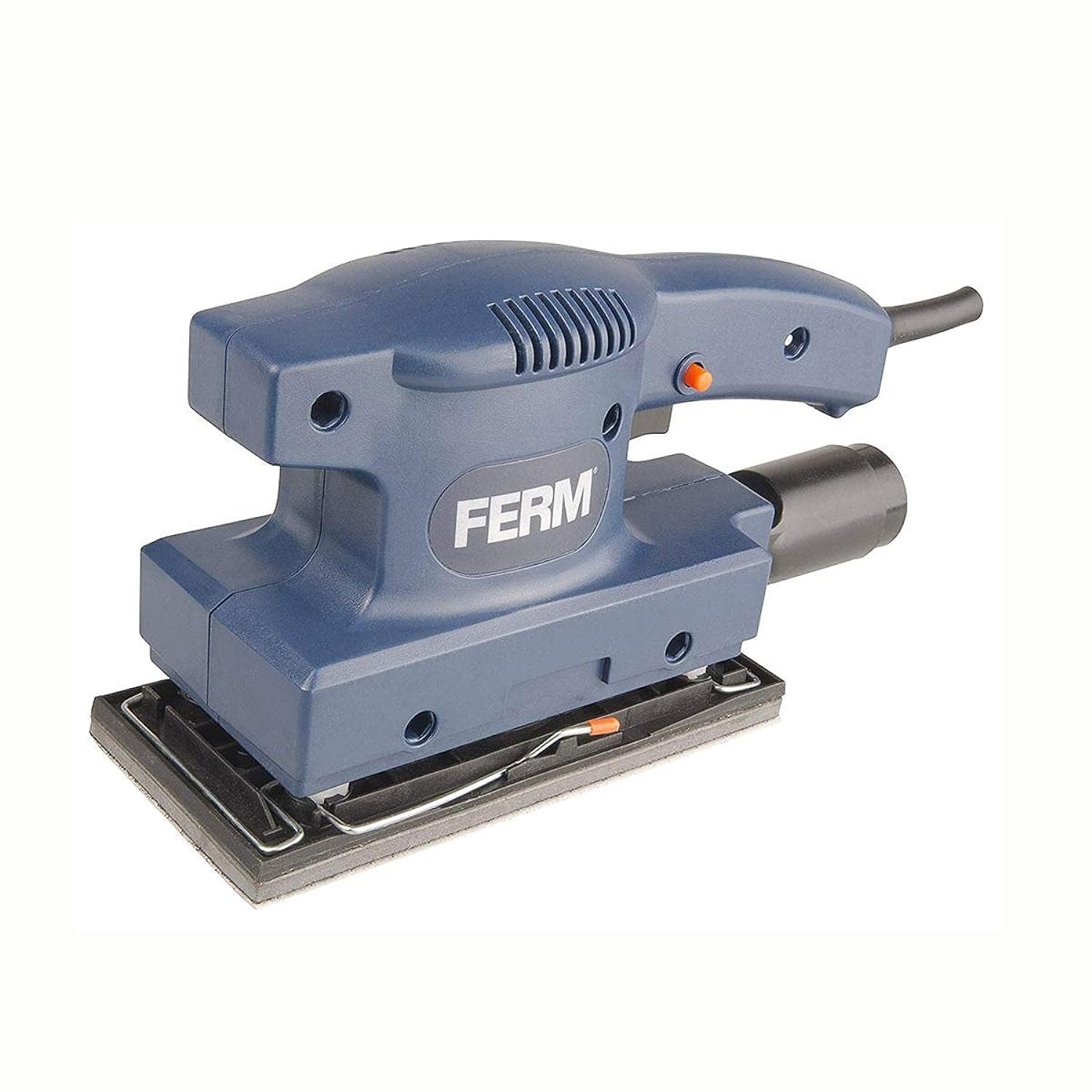

Figure 1: FERM PSM1027 Precision Sander. This image displays the overall design of the sander, highlighting its compact size and ergonomic grip. The sanding plate is visible at the front, and the power cord extends from the rear.
2.1 Componentes
- Interruptor de alimentação: Ativa e desativa a ferramenta.
- Placa de lixa: The base where sanding sheets are attached.
- Porta de coleta de poeira: For connecting a dust extraction system (if applicable).
- Aperto ergonômico: Projetado para um manuseio confortável.
- Cabo de alimentação: Connects the tool to the electrical supply.
3. Configuração
3.1 Fixação das Folhas de Lixa
- Certifique-se de que a lixadeira esteja desconectada da fonte de alimentação.
- Select the appropriate grit sanding sheet for your application.
- Align the sanding sheet with the sanding plate, ensuring any holes on the sheet match the dust extraction holes on the plate (if present).
- Press the sanding sheet firmly onto the sanding plate. The hook-and-loop fastening system will secure it in place.
3.2 Conectando à energia
Ligue o cabo de alimentação a uma tomada elétrica adequada. Certifique-se de que o volume esteja correto.tage matches the specifications of the tool.
4. Instruções de operação
4.1 Ligar/Desligar
- To turn the sander ON, press the power switch to the 'I' position.
- To turn the sander OFF, press the power switch to the 'O' position.
4.2 Técnicas de Lixamento
Hold the sander firmly with both hands (if applicable) or with a secure grip. Apply light, even pressure to the workpiece. Move the sander in smooth, overlapping strokes. Avoid applying excessive pressure, as this can reduce sanding efficiency and damage the workpiece or the tool. For best results, sand with the grain of the wood.
5. Manutenção
Regular maintenance ensures optimal performance and extends the lifespan of your tool. Always disconnect the sander from the power supply before performing any maintenance.
5.1 Limpeza
- Após cada utilização, limpe o corpo da ferramenta com um pano macio e seco.amp pano. Não use agentes de limpeza agressivos.
- Remove any dust buildup from the sanding plate and dust collection port. A brush or compressed air can be used for this purpose.
5.2 Sanding Sheet Replacement
Replace sanding sheets when they become worn or clogged. Simply peel off the old sheet and attach a new one as described in Section 3.1.
6. Solução De Problemas
Se você tiver problemas com sua lixadeira, consulte os problemas comuns e suas soluções a seguir.
| Problema | Possível causa | Solução |
|---|---|---|
| A lixadeira não liga. | Sem alimentação elétrica; interruptor de alimentação com defeito. | Check power cord connection and outlet. Ensure switch is in 'ON' position. If problem persists, contact service. |
| Desempenho de lixamento insatisfatório. | Worn or clogged sanding sheet; incorrect grit. | Replace sanding sheet. Use appropriate grit for the material. |
| Vibração ou ruído excessivo. | Loose sanding sheet; internal damage. | Ensure sanding sheet is securely attached. If noise/vibration continues, discontinue use and contact service. |
7. Especificações
Technical data for the FERM PSM1027 Precision Sander.
| Recurso | Detalhe |
|---|---|
| Número do modelo | FERM PSM1027 |
| Tipo | Precision Sander |
| Fonte de energia | Elétrico com fio |
| Fabricante | FERM |
| Peso do item | 11 grams (Note: This weight may refer to packaging or a component, not the full tool.) |
| Cor | Cinza |
| Pilhas necessárias | Não |
| ASIN | B0922RN7QM |
| Data da primeira disponibilidade | 8 de abril de 2021 |
8. Garantia e Suporte
For warranty information and customer support, please refer to the documentation included with your purchase or visit the official FERM webGuarde seu comprovante de compra para eventuais solicitações de garantia.
If you require technical assistance or have questions not covered in this manual, please contact FERM customer service.
