Twinkly Flex 6.5ft LED Tube: Instruction Manual

1. Introdução

The Twinkly Flex 6.5ft LED Tube is a flexible, app-controlled RGB LED light tube designed for customizable indoor lighting. It offers a wide range of colors and effects, and can be integrated with smart home systems like Alexa and Google Home.

2. O que está na caixa

Verifique se todos os componentes estão presentes:

• Twinkly Flex 6.5ft LED Tube
• Controlador Inteligente
• Power Adapter (Type A plug)
• Mounting Kit (includes clips and templates)

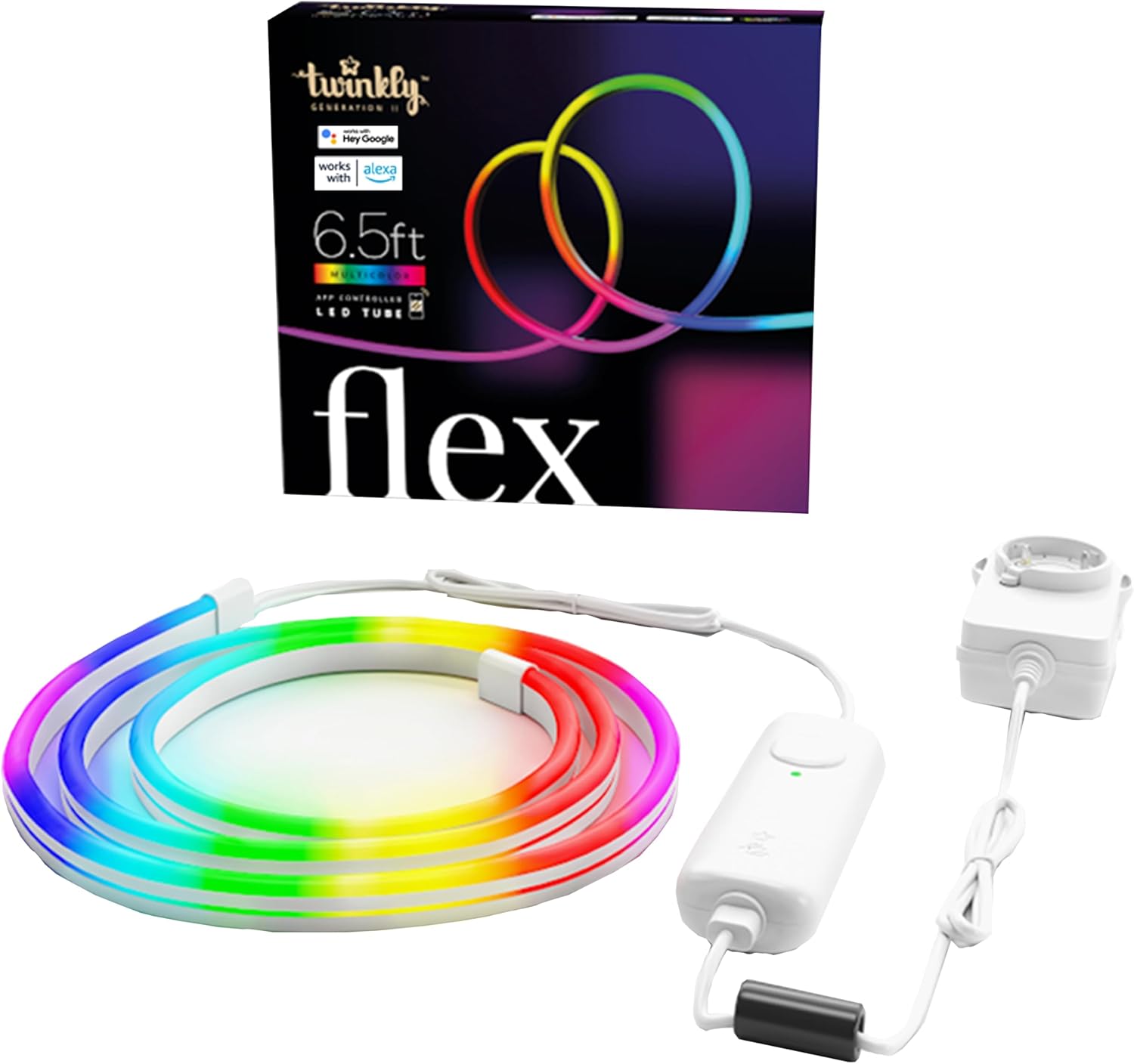

Image: Twinkly Flex LED Tube, smart controller, and power adapter.

3. Instruções de configuração

3.1 Instalação Física

1. Planeje seu design: Before mounting, decide on the desired shape or pattern for your Twinkly Flex. The tube is flexible but requires mounting clips to hold its shape on a surface.
2. Use Templates (Optional): The included mounting kit may contain templates to assist in creating specific designs. Position the template on your desired surface.
3. Clipes de montagem: Secure the mounting clips to the surface using the provided screws or adhesive. Ensure the clips are spaced appropriately to support the desired shape of the LED tube. The kit includes various clips for different angles (e.g., 90-degree and 180-degree mounts).
4. Inserir tubo de LED: Carefully press the Twinkly Flex LED tube into the mounted clips, following your planned design.
5. Conecte a energia: Connect the LED tube to the smart controller, and then connect the smart controller to the power adapter. Plug the power adapter into a suitable electrical outlet.

Image: A user installing the flexible LED tube onto a wall using mounting clips.

3.2 Instalação e conexão do aplicativo

1. Download the Twinkly App: Download the official Twinkly app from the App Store (iOS) or Google Play Store (Android).
2. Criar uma conta: Abra o aplicativo e siga as instruções na tela para criar uma nova conta de usuário ou faça login, caso já possua uma.
3. Adicionar dispositivo: Select "Add Device" or similar option within the app. Choose "Twinkly Flex" from the list of available devices.
4. Conecte-se via Bluetooth/Wi-Fi: The app will guide you through connecting the Twinkly Flex via Bluetooth for initial setup, then to your local Wi-Fi network (2.4GHz recommended).
5. Map Lights: Once connected, the app will prompt you to "Map Lights." This feature uses your phone's camera to understand the physical layout of your Twinkly Flex, enabling precise and dynamic lighting effects. Follow the in-app instructions for accurate mapping.

Image: The Twinkly app interface displaying color options for mood creation.

Image: The Twinkly app demonstrating the light mapping feature for advanced effects.

4. Operação

4.1 Basic Controls (Smart Controller)

• Ligar/desligar: Press the button on the smart controller once to turn the lights on. To turn off, you must use the Twinkly app or a connected smart home assistant.
• Efeitos do ciclo: Press the button repeatedly to cycle through pre-set lighting effects.

4.2 Twinkly App Features

• Seleção de cores: Choose from over 16 million colors to customize your lighting.
• Effects & Animations: Apply pre-set effects, create custom animations using the FX Wizard, or download new effects from the online gallery.
• Controle de brilho: Ajuste o nível de brilho das luzes.
• Temporizadores: Set schedules for the lights to turn on and off automatically.
• Agrupamento: Group multiple Twinkly devices virtually for synchronized scenes and multi-object decorations.

Image: The Twinkly app displaying a wide range of color palettes and effects.

4.3 Integração com Casa Inteligente

The Twinkly Flex is compatible with various smart home ecosystems:

• Amazon Alexa: Enable the Twinkly skill in the Alexa app to control your lights with voice commands (e.g., "Alexa, turn on Twinkly").
• Página inicial do Google: Link your Twinkly account in the Google Home app to use voice commands (e.g., "Hey Google, set Twinkly to blue").
• Razer Chroma RGB & OMEN Light Studio: Integrate for enhanced gaming lighting experiences.

Image: Twinkly Flex lights responding to an Alexa voice command.

Image: Twinkly Flex lights enhancing a gaming setup with Razer Chroma RGB integration.

4.4 Music Sync (Optional Accessory)

For a synchronized audio-visual experience, the Twinkly Music dongle (sold separately) can be paired with the Twinkly Flex. This accessory allows the lights to react to ambient sounds and music.

Image: Twinkly Flex lights displaying effects synchronized with music.

5. Manutenção

• Limpeza: Gently wipe the LED tube with a soft, dry cloth. Do not use harsh chemicals or abrasive cleaners.
• Resistência à água: The Twinkly Flex is designed for indoor use and is not water-resistant. Avoid exposure to water or high humidity environments.
• Armazenar: When not in use, store the Twinkly Flex in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Solução De Problemas

7. Especificações

• Número do modelo: TWFL200STW-WUS
• Comprimento: 6.5 pés (2 metros)
• Tipo de fonte de luz: LIDERADO
• Cor da luz: Multicolor (RGB, 16M+ colors)
• Fonte de energia: Elétrico com fio
• O quetage: 5 watts
• Método de controle: App Control (Wi-Fi & Bluetooth)
• Compatibilidade com casa inteligente: Amazon Alexa, Google Home, Razer Chroma RGB, OMEN Light Studio
• Uso interno/externo: Interior
• Material: Plástico
• Peso do item: 1.8 libras
• Formato de Plug: Tipo A
• Etiqueta de eficiência energética da UE: Alta Eficiência

8. Garantia e suporte

For warranty information and technical support, please refer to the official Twinkly webou entre em contato com o serviço de atendimento ao cliente. Guarde o comprovante de compra para eventuais solicitações de garantia.

Suporte online: Visita www.twinkly.com Para perguntas frequentes, guias de solução de problemas e informações de contato.
