1. Introdução
Obrigado pela compra.asing the FRIGIDAIRE EFRW1225 Wine and Beverage Cooler. This manual provides important information regarding the installation, operation, and maintenance of your appliance. Please read it thoroughly before use and retain it for future reference.
This compact cooler is designed for efficient storage of up to 12 standard wine bottles or 26 beverage cans, featuring an adjustable electronic temperature control and a stylish curved glass door.
2. Informações de segurança
AVISO: Para reduzir o risco de incêndio, choque elétrico ou ferimentos, siga estas precauções básicas:
- Leia todas as instruções antes de usar o aparelho.
- Não toque em superfícies frias imediatamente após ligar o aparelho na tomada.
- Certifique-se de que o aparelho esteja devidamente aterrado.
- Não utilize cabos ou plugues danificados.
- Desligue o aparelho da tomada antes de limpá-lo ou realizar qualquer manutenção.
- Mantenha as aberturas de ventilação livres de obstruções.
- Não armazene substâncias explosivas, como latas de aerossol com propulsores inflamáveis, neste aparelho.
- Este aparelho não se destina ao uso por pessoas (incluindo crianças) com capacidades físicas, sensoriais ou mentais reduzidas, ou com falta de experiência e conhecimento, a menos que tenham recebido supervisão ou instruções sobre o uso do aparelho de uma pessoa responsável pela sua segurança.
3. Conteúdo da embalagem
Verifique se todos os itens estão presentes na embalagem:
- FRIGIDAIRE EFRW1225 Wine and Beverage Cooler Unit
- Prateleiras removíveis
- DC Car Cord (for 12V vehicle power outlets)
- Manual de instruções
Image: The FRIGIDAIRE EFRW1225 cooler shown with its included DC car cord, illustrating the product and a key accessory.
4. Recursos do Produto
The FRIGIDAIRE EFRW1225 is designed with convenience and efficiency in mind:
- Armazenamento versátil: Accommodates up to 12 standard wine bottles or 26 beverage cans. Features an innovative design allowing for standing or vertical storage.
- Design compacto: Ideal for small spaces, with dimensions of 20.2"D x 25.2"W x 10"H.
- Porta de vidro curvo: Esteticamente agradávelasing design with a clear view de conteúdos.
- Blue Interior Light: Illuminates the interior when the door is opened, enhancing visibility.
- Adjustable Electronic Temperature Control: Set your desired temperature between 46°F and 64°F (8°C to 18°C). Options for Celsius and Fahrenheit display.
- Operação ultra silenciosa: Equipped with an advanced cooling system that minimizes vibration and noise, preventing disturbance of bottle sediments.
- DC Rated: Includes a car cord for use with 12V vehicle power outlets, offering portability.

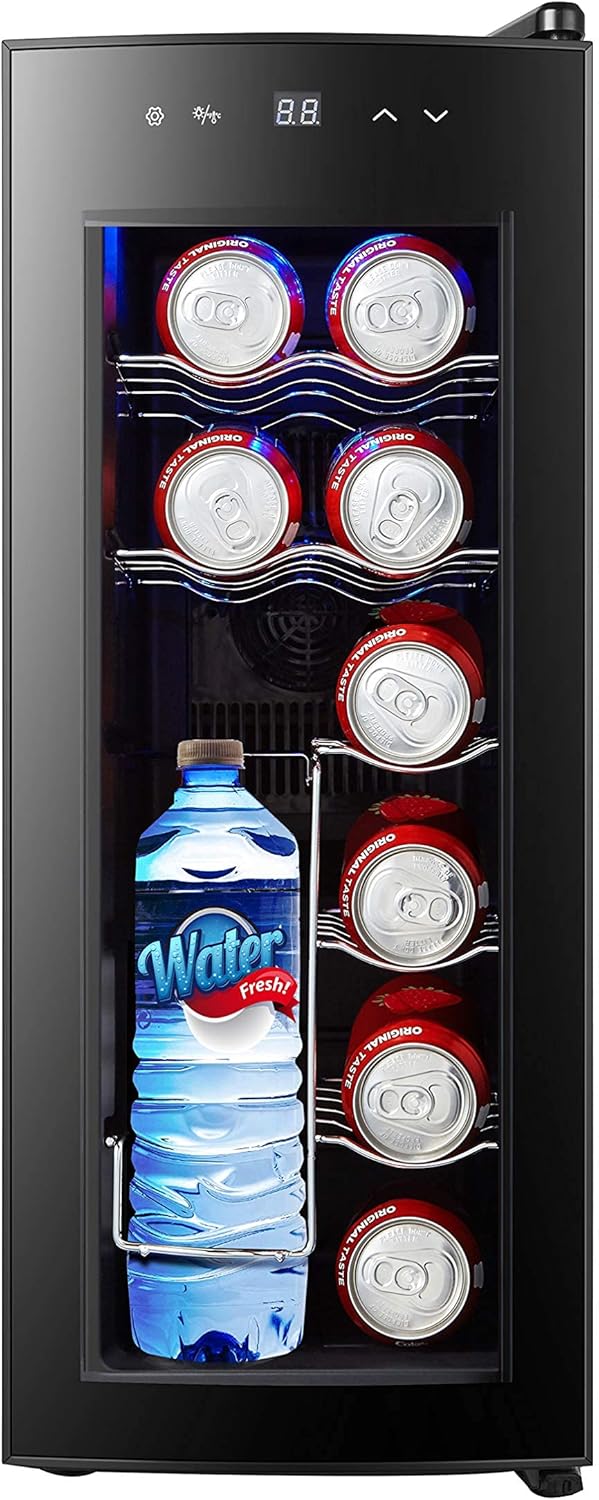

Image: The interior of the FRIGIDAIRE EFRW1225 cooler, demonstrating its capacity for various beverages like cans and a large water bottle.
5. Configuração e instalação
- Desembalagem: Carefully remove all packaging materials. Inspect the cooler for any shipping damage. Report any damage to your retailer immediately.
- Colocação: Choose a location that is flat, stable, and strong enough to support the cooler when fully loaded. Ensure adequate ventilation around the unit. Allow at least 4 inches (10 cm) of space on the back and sides for proper air circulation. Avoid direct sunlight or heat sources.
- Nivelamento: The cooler should be level for optimal performance. Adjust the leveling feet at the bottom of the unit if necessary.
- Limpeza Inicial: Before first use, clean the interior and exterior of the cooler with a soft cloth and mild detergent. Rinse thoroughly and dry.
- Conexão de energia: Connect the cooler to a suitable power outlet. For AC power, use a standard 110-120V AC outlet. For DC power, use the provided car cord to connect to a 12V vehicle power outlet. Allow the unit to stand upright for at least 2 hours before plugging it in to allow refrigerating fluids to settle.
6. Instruções de operação
6.1. Ligar / desligar
Plug the unit into a suitable power source. The cooler will automatically begin cooling. To turn off, unplug the unit.
6.2. Controle de temperatura
The cooler features an electronic temperature control panel, typically located on the top front of the unit. Use the up and down arrows to adjust the desired temperature. The temperature range is 46°F to 64°F (8°C to 18°C).
- Temperatura de ajuste: Press the 'Set' button (if available) or simply use the up/down arrows to change the displayed temperature. The display will flash while setting and then return to the current internal temperature.
- Exibição de temperatura: The display shows the current internal temperature. You can switch between Celsius and Fahrenheit display options using the dedicated button (if available) or by holding a combination of buttons as indicated on the control panel.
6.3. Carregando Bebidas
Arrange bottles or cans on the removable shelves. Ensure proper air circulation by not overfilling the cooler. The innovative design allows for both horizontal and vertical storage of bottles or cans.
6.4. Luz interna
The blue interior light automatically activates when the curved glass door is opened, providing visibility of the contents.
7. Manutenção
7.1. Limpeza
- Exterior: Wipe the exterior surfaces with a soft cloth and mild detergent. Dry thoroughly.
- Interior: Clean the interior with a solution of mild detergent and warm water. For stubborn odors, a solution of baking soda and water can be used. Rinse and dry thoroughly.
- Vedação da porta: Limpe regularmente a borracha de vedação da porta para garantir uma vedação perfeita.
- Prateleiras: Removable shelves can be washed with warm soapy water.
CUIDADO: Always unplug the cooler before cleaning. Do not use abrasive cleaners, scouring pads, or harsh chemicals as they can damage surfaces.
7.2. Descongelamento
This appliance is designed to minimize frost buildup. If frost accumulates, unplug the unit and allow it to defrost naturally. Wipe away melted ice with a soft cloth.
7.3. Armazenamento
If the cooler will not be used for an extended period, unplug it, clean it thoroughly, and leave the door slightly ajar to prevent odors and mold growth.
8. Solução De Problemas
| Problema | Possível causa | Solução |
|---|---|---|
| O refrigerador não funciona | Não há energia na unidade. | Check if the power cord is securely plugged into the outlet. Check the circuit breaker or fuse. |
| O refrigerador não está frio o suficiente | Temperature setting is too high. Door is not closed properly. Excessive door opening. Poor ventilation. | Adjust temperature to a lower setting. Ensure door is fully closed. Minimize door openings. Ensure adequate space around the unit for air circulation. |
| Ruído excessivo | Unit is not level. Objects touching the back or sides. | Adjust leveling feet. Move unit away from walls or other objects. |
| A porta não fecha corretamente | Unit is not level. Door gasket is dirty or damaged. Shelves are improperly placed. | Level the unit. Clean or replace door gasket. Re-position shelves. |
9. Especificações
| Recurso | Detalhe |
|---|---|
| Número do modelo | EFRW1225 |
| Capacidade | 12 Wine Bottles / 26 Beverage Cans (1 Cubic Foot) |
| Faixa de temperatura | 46°F - 64°F (8°C - 18°C) |
| Entrada de energia | AC 110-120V / DC 12V (Car Cord Included) |
| Dimensões do produto (P x L x A) | 20.2 x 25.2 x 10 polegadas |
| Peso do item | 30 libras |
| Material da porta | Vidro |
| Tipo de instalação | Conecte-se |
10. Garantia e Suporte
This product is offered as an Amazon Renewed item. Amazon Renewed products are professionally inspected and tested to work and look like new. If you are not satisfied with your purchase, renewed products are eligible for replacement or refund under the Amazon Renewed Guarantee.
For specific warranty details, replacement, or refund inquiries, please refer to the Amazon Renewed Guarantee terms and conditions or contact Amazon customer support directly.
For technical assistance or further questions regarding the operation and maintenance of your FRIGIDAIRE EFRW1225 Wine and Beverage Cooler, please contact the manufacturer's customer service or refer to their official website para recursos de suporte.
