VENTS-US OV1 250-10 Inch Through-the-wall Exhaust Fan Instruction Manual

1. Introdução

This manual provides instructions for the safe and efficient installation, operation, and maintenance of the VENTS-US OV1 250-10 Inch Through-the-wall Exhaust Fan. Please read these instructions thoroughly before installation and use, and retain for future reference.

2. Informações de segurança

Always observe basic safety precautions when installing, operating, or maintaining electrical appliances to reduce the risk of fire, electric shock, and injury to persons.

• Desconecte a energia antes de fazer manutenção ou limpeza.
• Garanta um aterramento adequado para evitar choque elétrico.
• Não opere nenhum ventilador com o cabo ou plugue danificado.
• Não utilize esta ventoinha com nenhum dispositivo de controle de velocidade de estado sólido, a menos que tenha sido especificamente projetada para isso.
• A instalação deve ser realizada por um eletricista qualificado, em conformidade com todos os códigos elétricos locais e nacionais.
• Keep fingers and foreign objects away from the fan blades and grille during operation.

3. Recursos do Produto

• Designed for direct air exhaust through walls.
• Axial through-the-wall fan with a 10 5/16-inch diameter.
• Suitable for ventilation in parking garages, agricultural facilities, stores, greenhouses, warehouses, and manufacturing plants.
• Features an asynchronous motor on ball bearings for smooth operation.
• Equipped with thermal protection for enhanced safety.
• The fan body is constructed from steel with a polymeric coating.
• Impeller is made of aluminum for quiet and balanced performance.

4. Especificações

5. Configuração e instalação

The VENTS-US OV1 250 fan is designed for through-the-wall installation. Proper installation is crucial for optimal performance and safety. It is recommended that installation be performed by a qualified professional.

5.1 Verificações de pré-instalação

• Verify that the power supply matches the fan's specifications (120V/60Hz).
• Ensure the mounting surface is structurally sound and can support the fan's weight.
• Confirm adequate clearance around the installation area for airflow and maintenance.

5.2 Etapas de Instalação (Geral)

1. Prepare a abertura: Create a circular opening in the wall with the appropriate diameter (approximately 10 5/16 inches) to accommodate the fan's duct.
2. Monte o ventilador: Secure the fan's mounting plate to the wall using appropriate fasteners. Ensure the fan is level and securely attached.
3. Conexão elétrica: Connect the fan to the electrical supply. This must be done by a qualified electrician following all local and national electrical codes. Ensure proper grounding.
4. Operação de teste: After installation, briefly power on the fan to ensure it operates correctly and quietly.

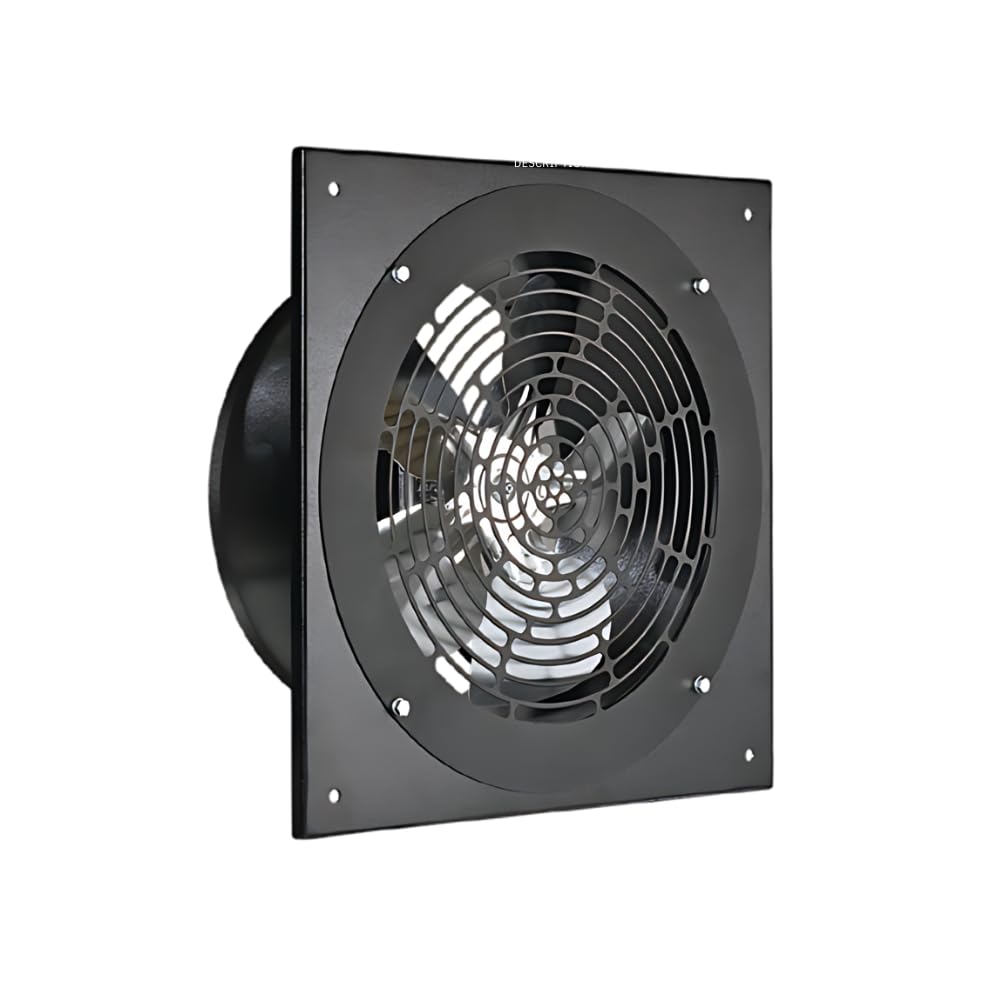

Figura 1: Frente view of the VENTS-US OV1 250 exhaust fan. This image shows the protective grille and the overall square frame design of the fan.

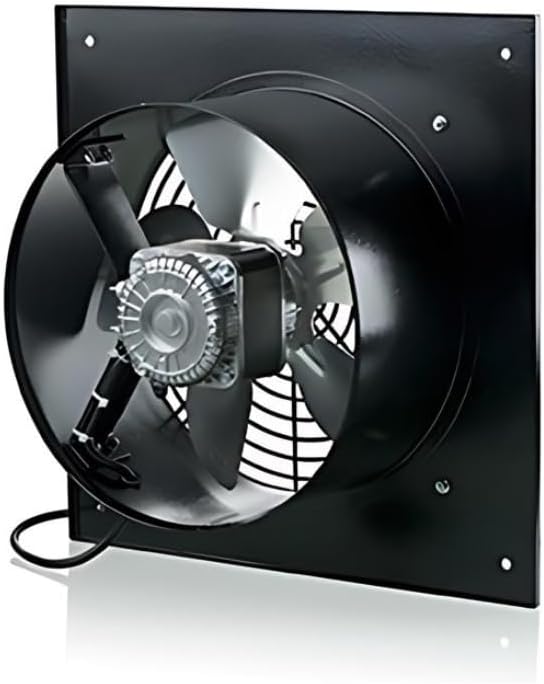

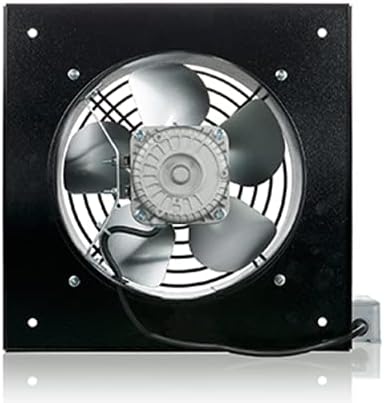

Figura 2: Traseira view of the VENTS-US OV1 250 exhaust fan. This image highlights the motor assembly, fan blades, and the electrical connection box at the bottom.

Figure 3: Dimensional drawing of the VENTS-US OV1 250 exhaust fan. This diagram provides key measurements for installation, including the overall width (B), duct diameter (D), and depth (L).

Figure 4: Table of dimensions for VENTS OV1 series models. This table lists various measurements (D, D1, D2, d, L) for OV1 200, OV1 250, and OV1 315 models, aiding in selecting the correct size and planning installation.

6. Instruções de operação

The VENTS-US OV1 250 fan is designed for straightforward operation. Once properly installed and connected to power, the fan can be activated via its designated switch (e.g., push button, wall switch, or app control if applicable).

• Ligar/desligar: Use the connected switch to turn the fan on or off.
• Direção do fluxo de ar: Ensure the fan is installed to exhaust air in the desired direction. The OV1 series is specifically for direct air exhaust.
• Operação contínua: This fan is built for environments requiring constant performance.

7. Manutenção

Regular maintenance ensures the longevity and efficient operation of your VENTS-US OV1 250 exhaust fan.

7.1 Limpeza

• Freqüência: Inspect and clean the fan blades and grille periodically, depending on the operating environment and dust accumulation.
• Procedimento:
  1. Desconecte a energia: Always turn off and disconnect power to the fan before cleaning.
  2. Remover grade: Carefully remove any protective grilles or covers.
  3. Clean Blades and Housing: Use a soft cloth or brush to remove dust and debris from the fan blades and interior housing. For stubborn dirt, a mild detergent solution can be used, ensuring no liquid enters the motor or electrical components.
  4. Remontar: Once clean and dry, reattach the grilles and covers securely.

7.2 Inspeção

• Verifique periodicamente se há sinais de desgaste, danos ou conexões soltas.
• Durante o funcionamento, fique atento a ruídos incomuns, que podem indicar um problema.

8. Solução De Problemas

If you encounter issues with your VENTS-US OV1 250 fan, refer to the following common troubleshooting steps:

For issues not resolved by these steps, please contact VENTS-US customer support.

9. Garantia e Suporte

For warranty information and customer support, please refer to the documentation included with your purchase or visit the official VENTS-US website. Guarde o recibo de compra para reclamações de garantia.
