Manual de Instruções do Gazebo Rígido MELLCOM 10'x13'

1. Introdução

Thank you for choosing the MELLCOM 10'x13' Hardtop Gazebo. This manual provides essential information for the safe assembly, operation, and maintenance of your new gazebo. Please read these instructions thoroughly before beginning assembly and retain them for future reference.

Um fimview of the MELLCOM 10'x13' Hardtop Gazebo, showcasing its design with curtains drawn back, set in an outdoor patio environment during the evening.

2. Informações de segurança

Your safety is paramount. Adhere to all warnings and instructions to prevent injury or damage to the product.

• Integridade Estrutural: Please check the snow and wind capabilities of the gazebo. Ensure proper anchoring to the ground to prevent movement or collapse during adverse weather conditions.
• Conjunto: Carefully check the instructions and all accessories before and during assembly. It is recommended that multiple individuals assist with assembly due to the size and weight of components.
• Aviso de temperatura: Be aware of potential heating under sunlight. The product may heat quickly under direct sun exposure and reach high temperatures, which depends directly on sunlight intensity. Exercise caution when touching metal surfaces.
• Seleção do Site: Escolha uma superfície plana e estável para a instalação. Evite colocar o gazebo sob fios elétricos ou perto de chamas.
• Inspeção regular: Periodically inspect all bolts, nuts, and connections to ensure they remain tight and secure.

3. Recursos do Produto

The MELLCOM Hardtop Gazebo is designed with durability and user comfort in mind, incorporating several key features:

• Telhado duplo em aço galvanizado: The roof is constructed from galvanized steel, offering weatherproof, fade-resistant, and rust-resistant properties. It is designed to cool down the interior and block 99% of UV rays. The hardtop is engineered to withstand up to five inches of snow and Force 8 winds.
• Ventilated Double Tops Design: Features a double-top design that allows wind to pass through, tolerating high summer temperatures and providing ample shade. Top netting helps keep out insects and dust.
• Rustproof Aluminum Frame: Equipped with 4" x 4" powder-coated triangular aluminum frames and pre-drilled bases, ensuring stability, durability, and adaptability to various ground conditions.
• Integrated Netting & Curtains: Includes removable zippered double-layer waterproof curtains and netting for privacy, ventilation, and protection from insects. A double-track system allows for easy sliding of each layer.
• Ganchos para acessórios: Sturdy hooks are provided for hanging lights and fans, enhancing the outdoor experience.
• Water Drainage System: A unique drainage system directs rainwater from the roof edge into leakage holes and then to the ground, minimizing issues during wet weather and extending the gazebo's service life.

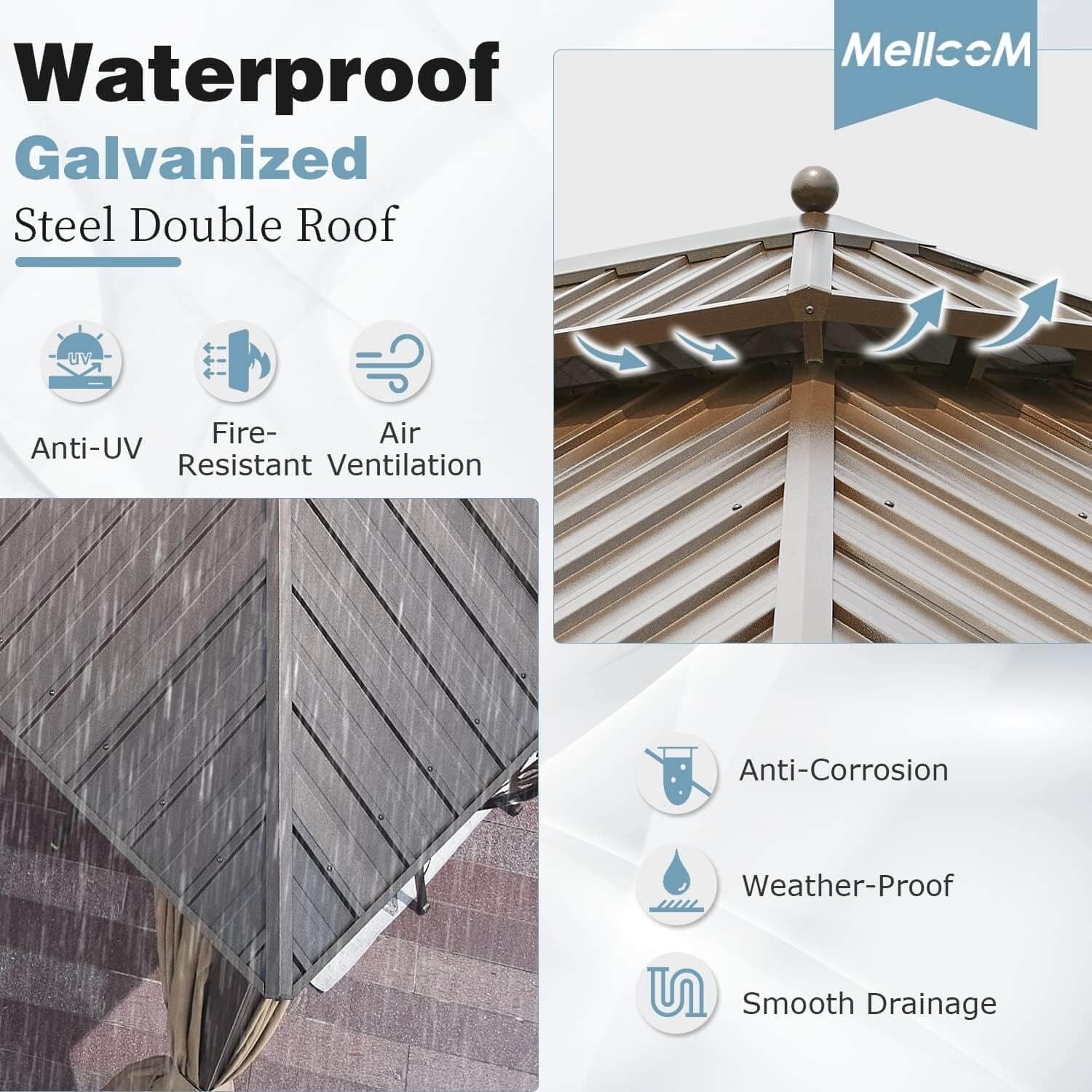

Detalhado view of the galvanized steel double roof, highlighting its anti-UV, fire-resistant, and air ventilation properties, along with anti-corrosion, weather-proof, and smooth drainage characteristics.

This image displays the rustproof aluminum frame of the gazebo, featuring a triangular design for enhanced stability, durable aluminum frame components, and sturdy anchoring plates.

4. Componentes Sobreview

The MELLCOM 10'x13' Hardtop Gazebo consists of several main components:

• Estrutura de alumínio: Includes posts, beams, and connectors forming the primary structure.
• Galvanized Steel Roof Panels: Individual panels that form the double-layer roof.
• Cortinas e redes: Fabric panels for privacy and insect protection, with a double-track system.
• Hardware: Bolts, screws, washers, and anchoring plates for secure assembly.

A detailed parts list with corresponding labels and quantities is included in the packaging. Please verify all components are present and undamaged before starting assembly.

This image illustrates the robust 4.0"x4.0" column size of the MELLCOM gazebo compared to smaller columns from other designs, emphasizing stability and wind resistance.

5. Configuração e montagem

Assembly of the MELLCOM Hardtop Gazebo requires careful attention to detail and typically involves multiple individuals. Follow the step-by-step diagrams provided in your packaged manual.

5.1. Preparação

• Seleção do Site: Choose a flat, level area for installation. Ensure adequate clearance around the gazebo.
• Ferramentas necessárias: Gather necessary tools, which typically include a screw gun, wrenches, and at least two 6-foot step ladders.
• Desembale e inspecione: Carefully unpack all boxes. Verify all parts against the included parts list. Inspect for any bent or damaged components; contact customer service if issues are found.

5.2. Etapas de Montagem (Geral)view)

1. Montagem da estrutura de base: Connect the base rails and posts according to the diagrams. Ensure all connections are secure but do not fully tighten bolts until the entire frame is assembled.
2. Upper Frame Assembly: Attach the upper beams and roof support structure to the posts. This step often requires multiple people and ladders.
3. Instalação de painéis de telhado: Install the galvanized steel roof panels. This is often the most challenging part, requiring careful alignment and feeding panels into side slots. Patience and teamwork are crucial.
4. Fixação de cortinas e redes: Install the double-track system and hang the curtains and netting.
5. Aperto e ancoragem finais: Once the entire structure is assembled and aligned, fully tighten all bolts. Securely anchor the gazebo to the ground using the pre-drilled bases and appropriate anchoring hardware for your surface type.

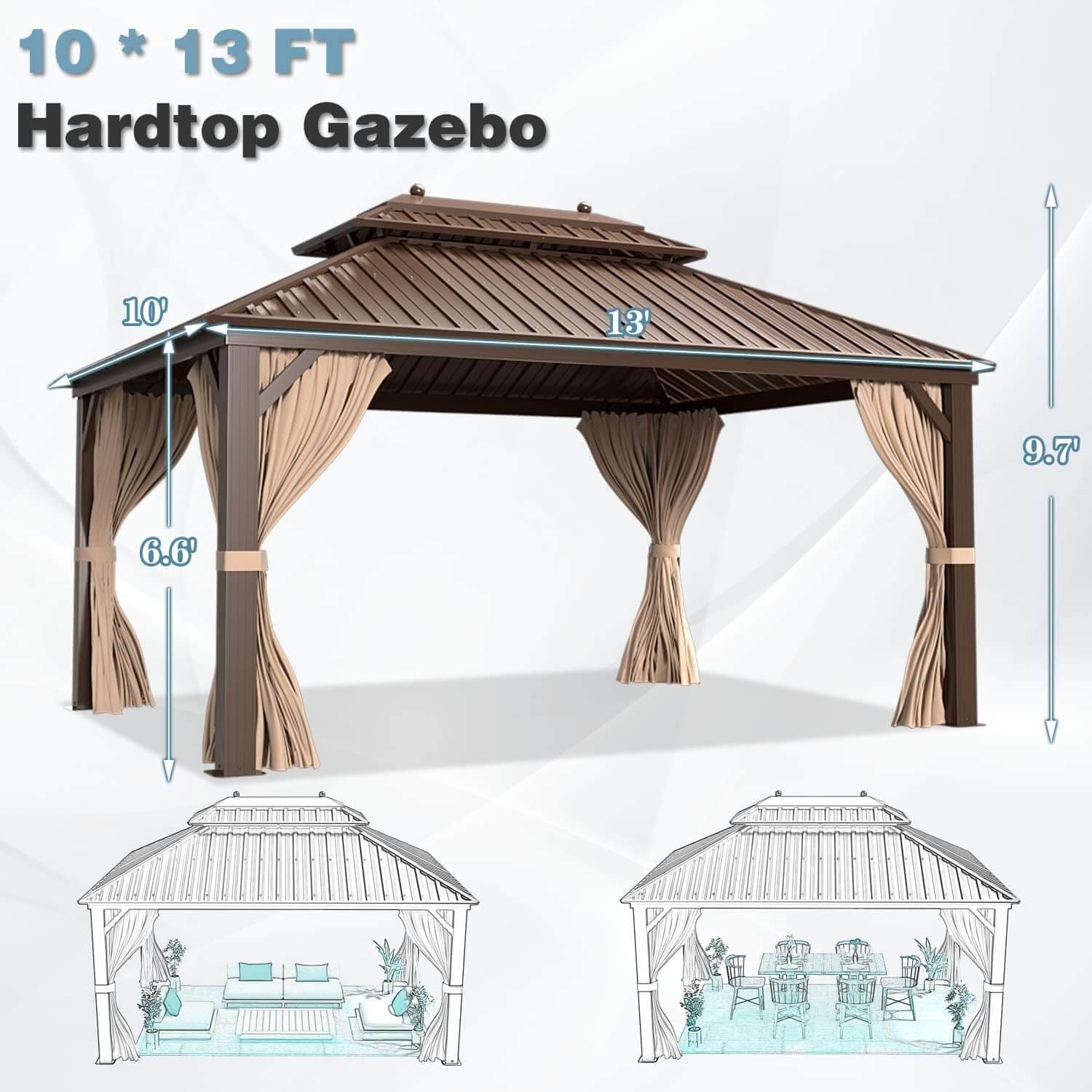

A diagram illustrating the overall dimensions of the 10'x13' hardtop gazebo, including height, length, and width, along with conceptual layouts for furniture arrangements.

6. Instruções de operação

Using your MELLCOM Hardtop Gazebo is straightforward, focusing on adjusting the curtains and utilizing the integrated features.

• Cortinas e redes: The gazebo features a double-track system. You can slide the insect netting and privacy curtains independently. Use the zippers to fully close them for privacy or insect protection. The two-in-one Velcro ties allow for easy storage when curtains are drawn back.
• Ganchos para acessórios: Utilize the sturdy top hooks to hang outdoor lights, fans, or other decorative items to personalize your gazebo space. Ensure any hung items do not exceed the weight capacity of the hooks.
• Ventilação: The double-top roof design naturally promotes airflow. For additional ventilation, keep the curtains and netting open as desired.

This image highlights user-friendly details such as top hooks for hanging lights and fans, two-in-one Velcro straps for curtain storage, and insect-resistant top nets for comfort.

7. Manutenção

Regular maintenance will extend the life and appearance of your MELLCOM Hardtop Gazebo.

• Limpando a moldura: Limpe a estrutura de alumínio com uma solução de água e sabão neutro. Enxágue bem com água limpa e seque com um pano macio. Evite produtos de limpeza abrasivos ou químicos agressivos.
• Limpeza do telhado: The galvanized steel roof can be cleaned with a soft brush or cloth and mild soapy water. Rinse well to prevent soap residue buildup.
• Cortinas e redes: The fabric curtains and netting can be spot cleaned with mild soap and water. For deeper cleaning, they may be removed and hand washed or machine washed on a gentle cycle, following care instructions on the fabric tags. Ensure they are completely dry before reattaching to prevent mildew.
• Verificação de hardware: Periodically check all bolts, nuts, and anchoring points. Tighten any loose connections to maintain structural integrity.
• Preparação para o inverno: While the roof is designed to withstand snow, it is advisable to clear heavy snow accumulation to prevent excessive stress on the structure. In areas with extreme winter conditions, consider disassembling and storing the fabric components.

A split image showing the gazebo's performance in different seasons, illustrating its high-quality galvanized steel roof holding up to 5 inches of snow and the pre-drilled aluminum frame withstanding winds up to 50 MPH.

8. Solução De Problemas

Esta seção aborda problemas comuns que você pode encontrar com seu gazebo.

• Vazamentos de água: If you notice minor leaks, especially after heavy rain, inspect the roof panels for proper alignment and ensure all screws are tightened. Small gaps can sometimes be sealed with outdoor-grade silicone sealant.
• Instabilidade/Oscilação: Ensure the gazebo is properly anchored to a solid, level surface. Check all frame connections and tighten any loose bolts. Uneven ground can contribute to instability.
• Difficulty Sliding Curtains/Netting: Inspect the tracks for any obstructions or debris. Ensure the fabric is not snagged or twisted. Clean the tracks if necessary.
• Peças em falta ou danificadas: If you discover missing or damaged parts during assembly, refer to the parts list in your manual and contact MELLCOM customer service for assistance.

9. Especificações

10. Vídeos oficiais do produto

Nenhum vídeo específico URLs with 'Seller' as creator type were provided in the product data. Please refer to the product page for any available instructional videos.

11. Garantia e Suporte

For warranty information, specific product support, or to order replacement parts, please contact MELLCOM customer service directly. Refer to the contact information provided with your purchase documentation or visit the official MELLCOM website.
