1. Introdução
The Kipcush E1 White Noise Bluetooth Transmitter is a portable device designed to provide a relaxing audio environment. It features 20 high-fidelity soothing sounds and a timer function to help users fall asleep faster and stay asleep longer. This device is specifically designed for use with Bluetooth-enabled earphones, such as Apple AirPods.
Image: Kipcush E1 device highlighting its Hi-Fi Lossless Sound capabilities and DAC audio decoder chip.
2. Instruções importantes de segurança
- Never drop or insert any objects into openings of the device.
- This device should not be used near water, such as in bathtubs, swimming pools, faucets, or basins.
- Disconnect the power supply of the device when it is unused for an extended period of time or when moving the machine.
- Utilize este dispositivo somente para o uso pretendido, conforme descrito neste manual.
- Never operate this device if it has damaged cord, cable, or housing.
- Do not use this product if you have a pacemaker or other medical device that may be affected by electromagnetic radiation.
- Mantenha este produto fora do alcance de crianças.
- Do not use this product while sleeping to avoid the risk of overheating.
- Charge the battery only with the provided charger to avoid the risk of electric shock.
- Do not use this product if the battery is damaged or leaking.
- Este produto não é um brinquedo e não se destina ao uso por crianças.
- Always follow the manufacturer's instructions for safe use and storage.
3. Conteúdo da embalagem
- Kipcush E1 White Noise Bluetooth Transmitter x1
- Cabo de carregamento USB tipo C x1
- Manual do usuário x1
4. Produto acabadoview
Controles e Indicadores
Imagem: Topo view of the Kipcush E1 device displaying its control buttons and indicators.
- Botão EMPARELHAR: Inicia o modo de emparelhamento Bluetooth.
- Botão liga / desliga: Liga ou desliga o dispositivo.
- Volume Up (+) / Next Track Button: Increases volume or skips to the next sound.
- Volume Down (-) / Previous Track Button: Decreases volume or goes to the previous sound.
- Botão Reproduzir/Pausar: Plays or pauses the current sound.
- Botão do temporizador: Activates or adjusts the sleep timer.
- Indicador Bluetooth: Mostra o status da conexão Bluetooth.
- Indicador de tempo: Shows timer status.
- Indicador de Nível da Bateria: Displays current battery charge.
- USB Type-C Jack: Para carregar o dispositivo.
5. Configuração
5.1 Carregando o dispositivo
Before first use, fully charge your Kipcush E1 using the provided USB Type-C cable. Connect the cable to the device's Type-C jack and a compatible USB power source. The battery level indicator will show charging status.
5.2 Ligar/Desligar
To power on the device, press and hold the Power On/Off button until the power/pairing indicator flashes blue three times. To power off, repeat the process.
5.3 Emparelhamento Bluetooth
The Kipcush E1 is designed to connect with Bluetooth audio devices, primarily Apple earphones. Follow these steps to pair your device:
- Turn on your Bluetooth headphone device (e.g., Apple AirPods) and ensure it is in pairing mode. This is usually found on your earphone's charging case.
- With the E1 transmitter powered on, press and hold the PAR button until the Bluetooth indicator blinks blue, indicating it is in 'ready to pair' mode.
- Briefly press and hold both the PAR button on the E1 and the pairing button on your headphone device until the Bluetooth light on the E1 stays solid blue.
- Once successfully paired, you will hear a sound confirming the connection. The E1 will automatically connect to this device in the future.

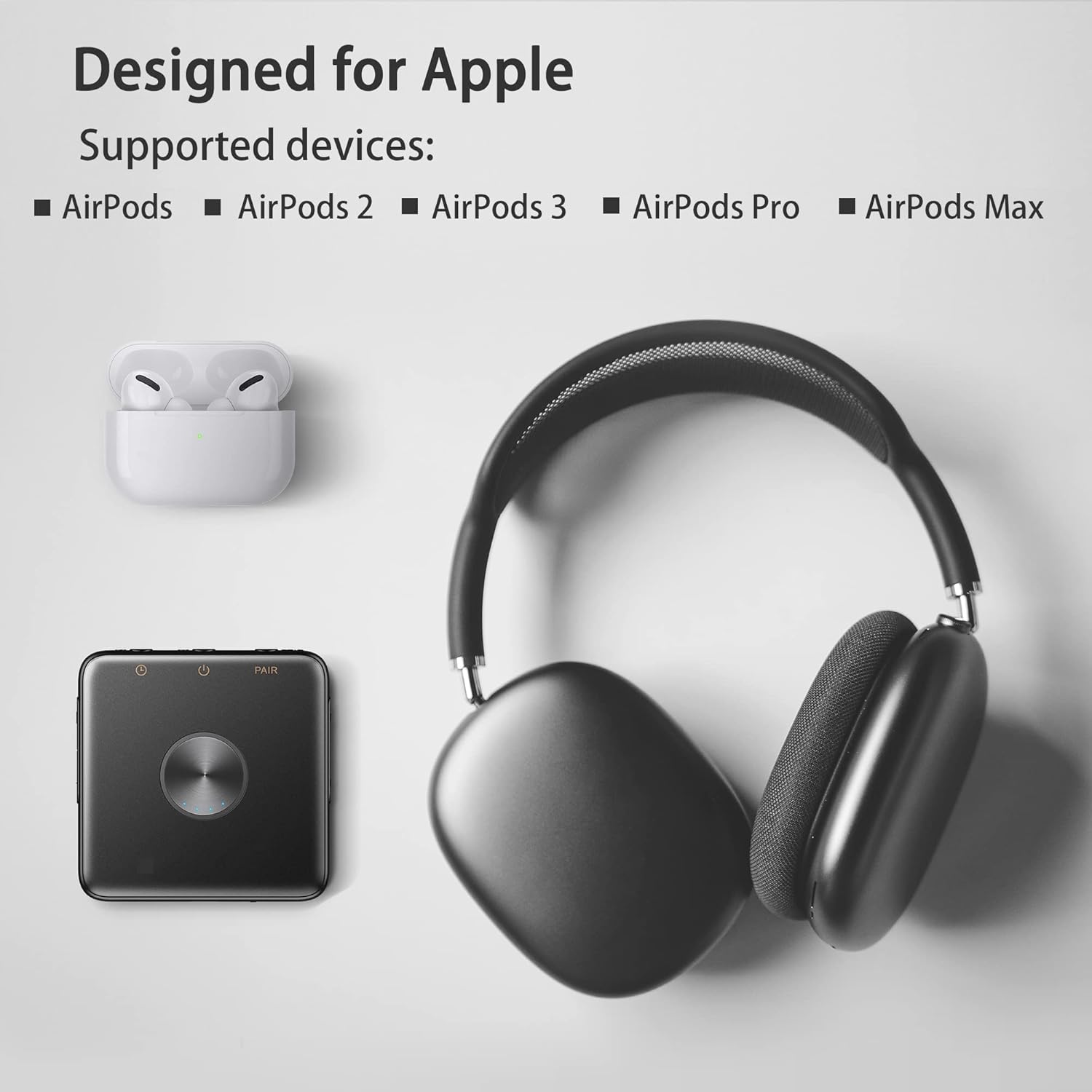

Image: Kipcush E1 shown with various Apple AirPods models, indicating compatibility.
Video: Demonstration of the Kipcush E1 Bluetooth Transmitter pairing process with Apple earphones.
6. Operando o dispositivo
6.1 Seleção de som
The Kipcush E1 offers 20 high-fidelity soothing sounds, including white noise, fan noises, natural sounds, and water stream sounds. Use the Aumentar volume (+) / Próxima faixa button to skip to the next sound, and the Diminuir o volume (-) / faixa anterior button to go to the previous sound.

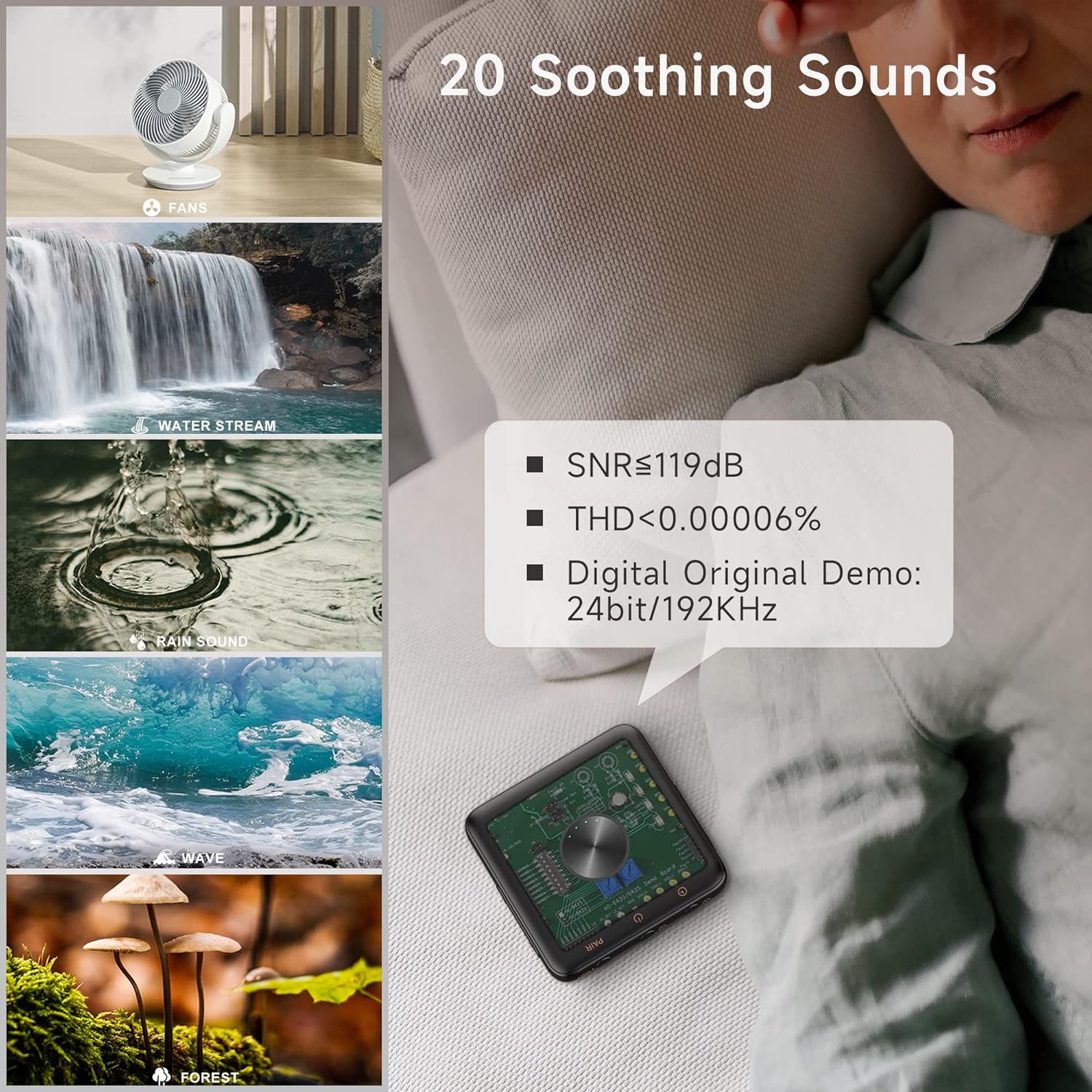

Image: Visual representation of the 20 soothing sounds available on the Kipcush E1, including natural and fan noises.
6.2 Controle de volume
Ajuste o volume usando o Aumentar volume (+) e Volume baixo (-) buttons. The device has up to 32 volume level settings.
6.3 Tocar / Pausar
Pressione o Reproduzir/Pausar button to start or stop the current sound.
6.4 Função do temporizador
The Kipcush E1 includes timer functions at 15, 30, 60, 90, and 120-minute intervals. Tap the Temporizador button to cycle through the available timer settings. The timing indicator will turn green when a timer is successfully set. To turn off the timer, press the Temporizador button until the timing indicator turns off.
7. Manutenção
- Limpe o dispositivo com um pano macio e seco. Não utilize produtos de limpeza abrasivos ou solventes.
- Guarde o dispositivo em local fresco e seco, longe da luz solar direta e de temperaturas extremas.
- Ensure the USB Type-C port is free from dust and debris.
8. Solução De Problemas
| Problema | Solução |
|---|---|
| O dispositivo não liga. | Ensure the device is fully charged. Press and hold the Power On/Off button for a few seconds. |
| Cannot pair with Bluetooth earphones. | Ensure both the E1 and your earphones are in pairing mode. Make sure your earphones are not connected to another device. Re-enter pairing mode on both devices if necessary. |
| Sem som ou volume muito baixo. | Check the volume level on both the E1 and your connected earphones. Ensure the devices are properly paired. |
| A qualidade do som é ruim. | Ensure the E1 is within range of your Bluetooth earphones. Avoid obstacles that may interfere with the signal. |
| A função de temporizador não está funcionando. | Ensure the Timer button is pressed correctly to select a duration. The timing indicator should light up green. |
9. Especificações
| Recurso | Detalhe |
|---|---|
| Modelo | E1 |
| Entrada Tipo C | 5V = 1.5A |
| Capacidade da bateria | 1000mAh |
| Dimensões do produto | 70 x 70 mm |
| Typical Bluetooth Transmit Power | 2dBm |
| Faixa de temperatura de operação | -10°C a 45°C |
| Faixa de temperatura de armazenamento | -30°C a 45°C |
| Peso do item | 50 gramas |
| Material | Plástico |
10. Garantia e Suporte
Garantia
We strive to build our products with the highest attention to detail and craftsmanship. However, sometimes there are occurrences of defects, and we understand this. As such, we are happy to offer a one-year hassle-free warranty on all our devices as we continue and strive to make amazing products.
Apoiar
Please contact us if you have any questions regarding this product or require assistance. Refer to the product packaging or the official Kipcush website para informações de contato.
