Swiss Pro+ 13-Piece Food Processor SP-FOOD600.8B Instruction Manual

1. Introdução

Thank you for choosing the Swiss Pro+ 13-Piece Food Processor. This versatile kitchen appliance is designed to simplify your food preparation tasks with its powerful 600W motor and a variety of attachments. Please read this manual carefully before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.

2. Instruções importantes de segurança

• Certifique-se sempre de que o aparelho esteja desconectado da tomada antes de montá-lo, desmontá-lo ou limpá-lo.
• Keep hands and utensils away from moving blades or discs while operating the food processor. Never push food with your hands. Always use the provided food pusher.
• Blades are sharp. Handle with extreme care when assembling, disassembling, and cleaning.
• Do not immerse the motor base in water or any other liquid. Wipe with a damp pano.
• Este aparelho não se destina ao uso por pessoas com capacidades físicas, sensoriais ou mentais reduzidas, ou com falta de experiência e conhecimento, a menos que tenham recebido supervisão ou instruções sobre o uso do aparelho por uma pessoa responsável por sua segurança.
• As crianças devem ser supervisionadas para garantir que não brinquem com o aparelho.
• Não opere nenhum aparelho com o cabo ou plugue danificado, ou após o aparelho apresentar mau funcionamento ou ter sido danificado de qualquer forma.
• Ensure the lid is securely locked in place before operating the appliance. The safety lock mechanism prevents operation if not properly assembled.
• Do not overload the food processor. Refer to the operating instructions for maximum capacities.
• Place the appliance on a stable, flat, and dry surface. The non-slip rubber feet provide stability during use.

3. Componentes do produto

Your Swiss Pro+ Food Processor comes with the following components:

1. Motor Base (with control knob and non-slip feet)
2. 1.2 Liter Plastic Processing Bowl
3. Lid with Feeding Chute and Safety Lock
4. Empurrador de alimentos
5. Lâmina de corte de aço inoxidável
6. Julian Blade
7. Lâmina Cortadora
8. Disco Emulsificante
9. Misturador de massa
10. Acessório Espremedor de Cítricos
11. Acessório picador
12. Cake Cutter
13. Metal Slicer

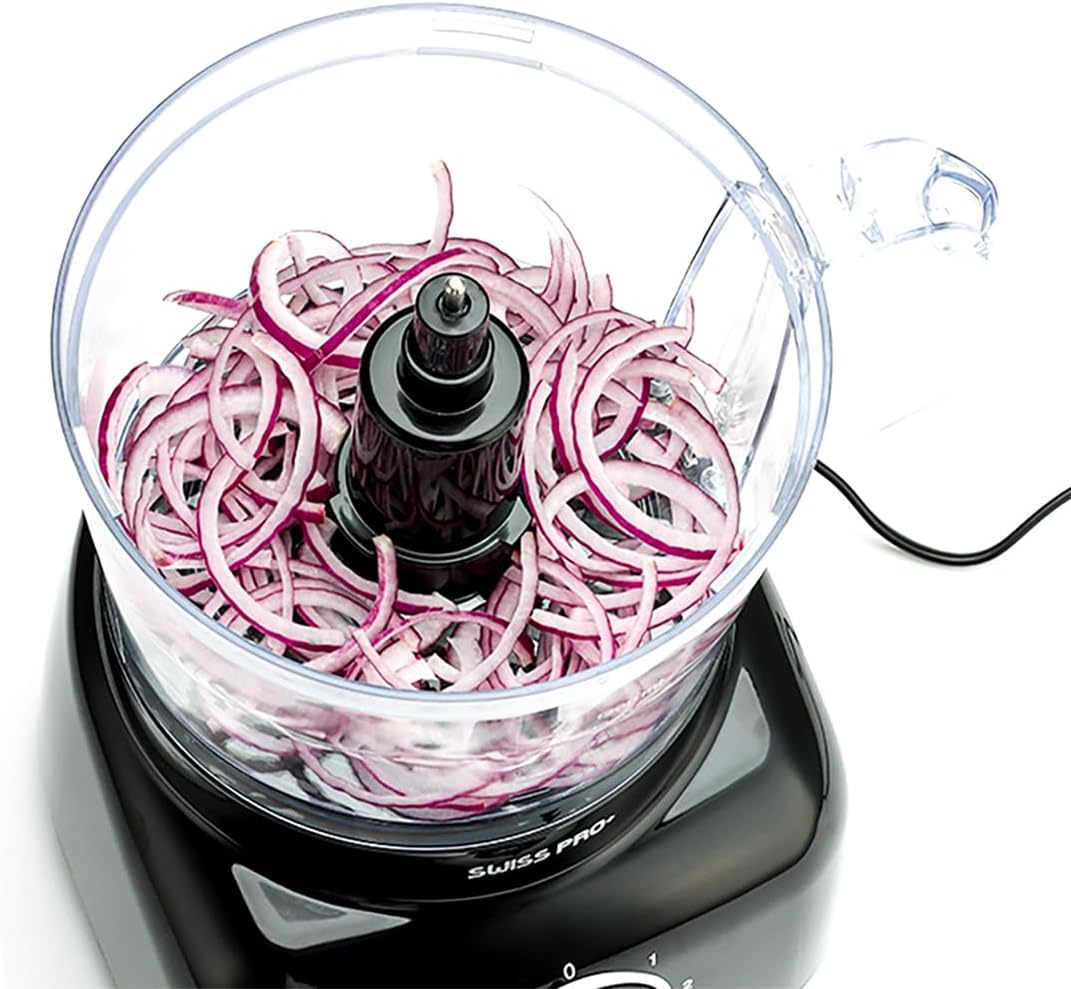

Image: The main food processor unit with the processing bowl and chopped red onions, illustrating the chopping blade in action.

4. Configuração e montagem

Follow these steps to assemble your food processor:

1. Coloque a base do motor sobre uma superfície limpa, seca e estável.
2. Align the processing bowl with the motor base and twist clockwise until it locks securely into place.
3. Carefully select the desired attachment (e.g., chopping blade, slicer disc) and place it onto the central shaft inside the bowl. Ensure it sits firmly.
4. Place the lid onto the processing bowl, aligning the tab on the lid with the slot on the bowl handle. Twist clockwise until the lid locks into place. You will hear a click, and the safety lock will engage.
5. Insert the food pusher into the feeding chute on the lid.

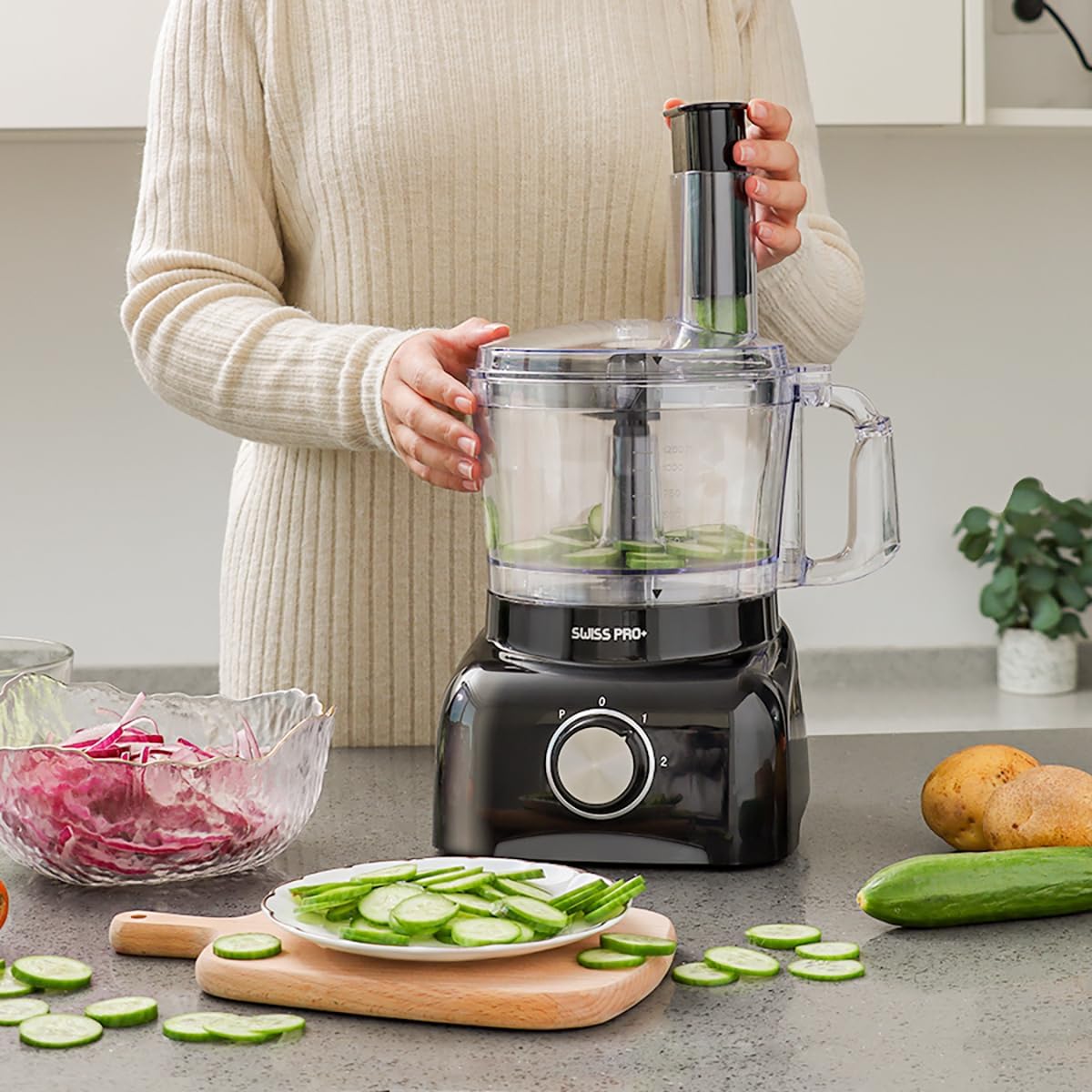

Image: A user assembling the food processor and preparing to slice cucumbers, demonstrating the setup process.

5. Instruções de operação

Once assembled, plug the appliance into a suitable power outlet. The control knob has three settings: 0 (Off), 1 (Low Speed), 2 (High Speed), and P (Pulse).

Operação geral:

1. Prepare ingredients by cutting them into appropriate sizes to fit the feeding chute.
2. Place ingredients into the processing bowl or feeding chute, depending on the attachment used.
3. Select the desired speed (1 or 2) or use the Pulse (P) function for short bursts of power.
4. For continuous operation, turn the knob to 1 or 2. For intermittent processing, turn and hold the knob at 'P' and release when done.
5. When processing is complete, turn the knob to '0' and unplug the appliance.
6. Wait for all moving parts to stop before removing the lid and bowl.

Utilizando anexos específicos:

• Lâmina de corte: Ideal for chopping vegetables, nuts, and making purees. Place ingredients directly into the bowl. Use speed 1 or Pulse.
• Slicer/Julienne Blades: For slicing or julienning vegetables and fruits. Place the blade onto the shaft, secure the lid, then feed ingredients through the chute using the food pusher. Use speed 2.
• Emulsifying Disc: For whipping cream, egg whites, or making mayonnaise. Place the disc, add ingredients, and use speed 2.
• Dough Mixer: For light doughs. Place the attachment, add ingredients, and use speed 1 or Pulse.
• Citrus Juicer: Assemble the juicer attachment. Place half a citrus fruit onto the reamer and press down gently while the motor is running (speed 1).

Image: A carrot being inserted into the feeding chute of the food processor, demonstrating how to use slicing/julienning attachments.

Image: The food processor containing chopped tomatoes, illustrating the result of processing with the chopping blade.

6. Limpeza e Manutenção

A limpeza adequada garante a longevidade e a higiene do seu processador de alimentos.

1. Desligue sempre o aparelho da tomada antes de limpá-lo.
2. Disassemble all removable parts: lid, bowl, and attachments.
3. Lavagem à mão: All removable parts (bowl, lid, blades, attachments) should be hand washed in warm, soapy water. Rinse thoroughly and dry immediately. Be extremely careful when handling sharp blades.
4. Base do motor: Limpe a base do motor com anúncioamp cloth. Never immerse it in water or place it under running water.
5. Para remover resíduos de alimentos persistentes, deixe as peças de molho em água morna com sabão antes de limpar.
6. Store the food processor and its attachments in a dry place.

Image: A user carefully removing chopped red onions from the processing bowl, indicating the completion of a task and readiness for cleaning.

7. Solução De Problemas

Se você tiver problemas com seu processador de alimentos, consulte os problemas comuns e suas soluções a seguir:

8. Especificações

9. Garantia e Suporte

For warranty information or technical support, please refer to the warranty card included with your product or contact Swiss Pro+ customer service through their official website ou loja onde o produto foi adquirido. Guarde o comprovante de compra para eventuais solicitações de garantia.
