OUBANG Ares Elite PS4 Controller Instruction Manual

1. Produto acabadoview

The OUBANG Ares Elite PS4 Controller is a versatile wireless gamepad designed for an enhanced gaming experience across multiple platforms. It features advanced functionalities such as a Turbo function, programmable back paddles, dual motor vibration, and motion sensing.

Imagem: Frente view of the OUBANG Ares Elite PS4 Controller, highlighting its ergonomic design and button layout.

2. Compatibilidade

This controller is compatible with a wide range of gaming platforms, including:

• PlayStation 4 (PS4, PS4 Slim, PS4 Pro)
• PlayStation 5 (PS5 - for PS4 games only)
• PC (Windows 7/8/10)
• Vapor
• iOS
• Andróide

Image: Visual representation of the OUBANG Ares controller's compatibility with PS4, PS5, iOS/Android, PC/Windows, and Steam platforms.

3. Configuração e conexão

3.1 Conexão inicial

To connect the OUBANG Ares controller wirelessly via Bluetooth:

1. Certifique-se de que o controlador esteja carregado.
2. Turn on your gaming console or device.
3. Press and hold the PS button and Share button simultaneously on the controller until the light bar flashes.
4. On your device, navigate to Bluetooth settings and select "Wireless Controller" to pair.

3.2 Carregando o controlador

The controller features a 1200mAh battery and charges via a Type-C interface. Connect the provided Type-C cable to the controller and a power source (e.g., console, PC, USB wall adapter). The LED indicator will show charging status.

4. Instruções de operação

4.1 Controles Básicos

The OUBANG Ares controller features standard PlayStation button layouts, including action buttons (Triangle, Circle, Cross, Square), D-pad, L1/R1 bumpers, L2/R2 triggers, and dual analog sticks. It also includes a clickable multitouch touchpad and a 3.5mm audio jack for headsets.

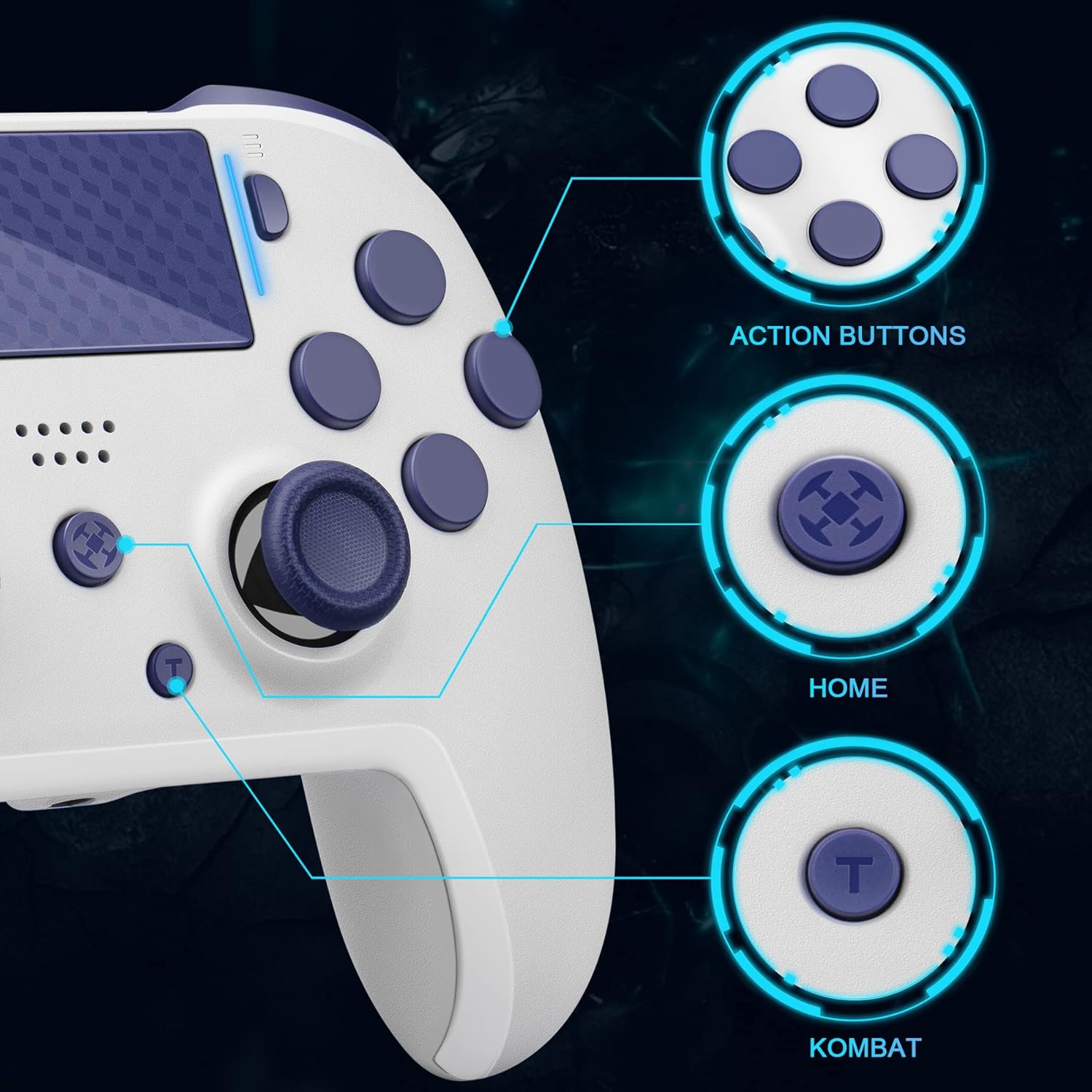

Imagem: Close-up view of the OUBANG Ares controller's face buttons, home button, and turbo button, with callouts for Action Buttons, Home, and Kombat (Turbo).

Image: Detailed diagram of the controller's features including Touchpad + LED Indicator, LB & LT, Turbo button, Programmable Paddles, Audio Jack, and overall size dimensions.

4.2 Função Turbo

The Turbo function allows for rapid, continuous input of a selected button. This can be set to various speeds for tactical advantages in games.

1. Ativar o Turbo: Long press the "Turbo" button and the target function button (e.g., X, O, Square, Triangle) together for over 2 seconds. The RGB light will flash white 8 times to indicate successful setting.
2. Ajustando a velocidade do turbo: While Turbo is active, press the "Turbo" button and a D-pad direction button simultaneously to cycle through speeds:
   • Turbo + D-pad Up: 50Hz (Fastest Speed) - RGB flashes blue.
   • Turbo + D-pad Right: 25Hz - RGB flashes green.
   • Turbo + D-pad Down: 12.5Hz - RGB flashes red.
   • Turbo + D-pad Left: 7Hz (Slowest Speed) - RGB flashes white.

   Note: Ensure the Turbo function is open before adjusting speed.

3. Cancelando o Turbo: Repeat the "Setting Turbo" steps. Long press the "Turbo" button and the target function button together for over 2 seconds. The Turbo function will be canceled.

Image: Visual guide on setting and canceling the Turbo function, and adjusting its speed using the D-pad combinations.

4.3 Programmable Back Paddles (M1/M2)

The controller features two multifunctional mappable back paddles (M1 and M2) that can be programmed to duplicate any of the 12 primary buttons (Triangle, Circle, Cross, Square, L1, R1, L2, R2, L3, R3, D-pad Up, D-pad Down, D-pad Left, D-pad Right).

1. Entering Mapping Mode: Press and hold the "Turbo" button and the M1 or M2 paddle simultaneously for 2 seconds. The RGB light will turn green, indicating the controller is ready for mapping.
2. Atribuir um botão: While in mapping mode (RGB green), press the desired primary button you wish to map (e.g., X button). Then, press the "Turbo" button to confirm. The RGB light will turn red, indicating successful mapping.
3. Canceling Mapping: To clear a mapped paddle, press and hold the "Turbo" button and the M1 or M2 paddle simultaneously for 2 seconds. The RGB light will flash green, then red, confirming the mapping has been canceled.

Imagem: Parte inferior view of the OUBANG Ares controller, highlighting the two programmable back paddles (M1 and M2) and the buttons that can be mapped to them.

5. Recursos e melhorias

• Vibração com motor duplo: Provides realistic haptic feedback for an immersive gaming experience.
• Sensor de movimento: Supports motion-sensing gameplay in compatible titles.
• 360° Analogue Sticks: Designed for accurate and precise control without dead zones or drift.
• Refined Triggers: Enhanced L2/R2 triggers for responsive input.
• Clickable Touchpad: A fully functional multitouch touchpad for navigation and interaction.

Image: Illustrates the dual motor vibration and motion sensor features, enhancing realistic game feeling.

Image: Highlights the accurate joystick for precise aiming and control in games.

6. Especificações

Image: Comparison table highlighting the upgraded features of the Elite Version (Ares) versus a normal version, including Turbo Function, Programmable Paddles, Touch Pad, Analog Sticks, Playing Time, Battery Capacity, Bluetooth Connection, and Charging Port.

7. Manutenção

To ensure the longevity and optimal performance of your OUBANG Ares controller:

• Mantenha o controle limpo, passando um pano macio e seco.
• Evite expor o controlador a temperaturas extremas, umidade ou luz solar direta.
• Guarde o controle em um local seguro para evitar danos físicos.
• Não tente desmontar o controlador, pois isso pode anular a garantia.

8. Solução De Problemas

If you encounter issues with your OUBANG Ares controller, try the following steps:

• Controlador não conecta: Ensure the controller is charged. Try re-pairing the controller via your device's Bluetooth settings.
• Atraso de entrada ou desconexão: Ensure there are no obstructions between the controller and the device. Move closer to the device. Check for interference from other wireless devices.
• Botões não respondem: Ensure the controller is properly connected. Try resetting the controller (if a reset button is available, typically a small pinhole on the back).
• Turbo/Mapping issues: Review the specific instructions in sections 4.2 and 4.3 to ensure correct setup procedures.

For further assistance, please contact OUBANG customer support.

9. Garantia e Suporte

OUBANG products come with a standard manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions. For technical support, warranty claims, or any other inquiries, please contact OUBANG Customer Service.

E-mail de Atendimento ao Cliente: gamepad@oubang.com

OUBANG Official Website: Visit OUBANG Store on Amazon
