Introdução
This manual provides comprehensive instructions for the installation, operation, and maintenance of your Goeco 12 Inch Square Flush Mount LED Ceiling Light. Please read this manual thoroughly before installation and retain it for future reference.
Figure 1: Goeco 12 Inch Square Flush Mount LED Ceiling Light in a living room setting.
Produto acimaview
The Goeco 12 Inch Square Flush Mount LED Ceiling Light is designed for modern interiors, offering efficient and comfortable lighting. Its ultra-slim profile and minimalist design make it suitable for various rooms, especially those with low ceilings.
Principais características:
- Design ultrafino: Only 0.98 inches thick, ideal for low-ceiling rooms.
- Eficiência energética: 24W LED equivalent to 240W incandescent, saving over 80% on electricity costs.
- Iluminação confortável: 2400LM, 6500K daylight white light, flicker-free, with high CRI (80+).
- Ampla aplicação: Suitable for 107-160 ft² areas, including bedrooms, living rooms, kitchens, bathrooms, and hallways.
- Fácil instalação: Comes with a complete mounting kit for effortless setup.
- Durável: Sealed design prevents dust and insects, ensuring a long service life of up to 30,000 hours.
Figura 2: Dimensões e especificações principais do produto.
Figure 3: Benefits of the ultra-thin and completely sealed design.
O que está na caixa
Ao abrir a embalagem, verifique se todos os componentes estão presentes e sem danos:
- Goeco 12 Inch Square Flush Mount LED Ceiling Light (1 unit)
- Shade (pre-installed)
- Manual de Instruções (este documento)
- Acessórios de montagem (parafusos, buchas, conectores de fios)
Video 1: Unboxing the Goeco Ultra Slim Flush Mount Ceiling Light. This video demonstrates the contents of the package, including the light fixture and mounting accessories.
Especificações
| Recurso | Especificação |
|---|---|
| Marca | Goeco |
| Nome do modelo | SDXDD (FX-US020SFD-W) |
| Dimensões | 11.81"C x 11.81"L x 0.98"A |
| O quetage | 24 Watts |
| Brilho | 2400 Lúmens |
| Temperatura de cor | 6500 Kelvin (Daylight Cool White) |
| Índice de reprodução de cor (CRI) | 80.00+ |
| Tipo de fonte de luz | LIDERADO |
| Material | Acrilonitrila Butadieno Estireno (ABS) |
| Tipo de instalação | Montagem embutida |
| Volumetage | 110 Volts (CA) |
| Vida média | 30,000 horas |
| Recurso especial | Impermeável |
Guia de instalação
WARNING: To avoid electric shock, always turn off the power at the main circuit breaker before beginning any electrical installation.
-
Step 1: Fix the base to the ceiling.
Ensure the power is off. Attach the mounting base plate securely to the ceiling junction box using the provided screws. The base is suitable for 1.95-5.11 inch junction boxes.

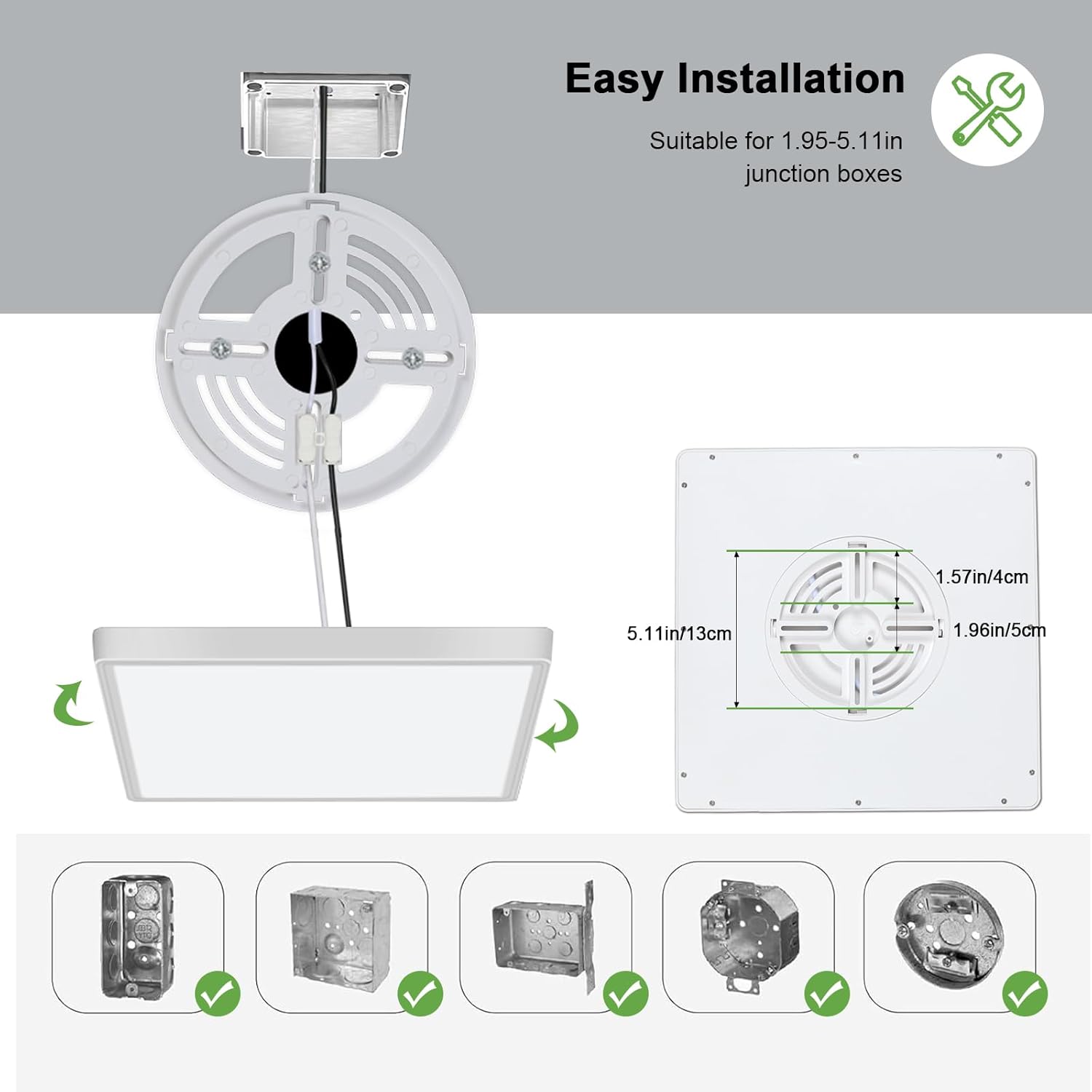

Figure 4: Fixing the mounting base to the ceiling.
-
Etapa 2: conecte os fios.
Connect the light fixture's wires to the corresponding household wires using the provided wire nuts. Typically, black to black (live), white to white (neutral). This fixture does not require a ground wire.
-
Step 3: Insert the light into the base plate.
Carefully align the light fixture with the mounting base and twist or push it into place until it clicks securely. Ensure all wires are tucked safely inside the junction box.
-
Step 4: Installation is completed.
Once the light is securely attached, restore power at the circuit breaker and test the light.
Figure 5: Visual step-by-step installation instructions.
Video 2: Installation process of the Goeco Ultra Slim Flush Mount Ceiling Light. This video provides a visual guide to the installation steps.
Instruções de operação
The Goeco LED Ceiling Light operates via a standard wall switch. There are no complex controls or dimming features built into this model.
- Ligar/Desligar: Use o interruptor de parede existente para ligar ou desligar a luminária.
- Saída de luz: The light provides a consistent 2400LM of 6500K daylight cool white light.
Figure 6: The ceiling light providing bright illumination in a bedroom.
Figura 7: Examples of suitable application areas for the ceiling light.
Manutenção
The Goeco LED Ceiling Light is designed for minimal maintenance due to its sealed construction and long-life LED components.
- Limpeza: Para limpar a luminária, certifique-se de que a energia esteja desligada. Use um pano macio, seco ou levemente úmido.amp pano. Não utilize produtos de limpeza abrasivos ou solventes, pois podem danificar o acabamento.
- Substituição de lâmpada: The LED light source is integrated and not user-replaceable. The expected lifespan is 30,000 hours.
- Design selado: The completely sealed design helps prevent dust and insects from entering the fixture, reducing the need for internal cleaning.
Solução de problemas
If you encounter any issues with your Goeco LED Ceiling Light, please refer to the following common problems and solutions:
| Problema | Possível causa | Solução |
|---|---|---|
| A luz não acende. | No power to the fixture, loose wiring, faulty switch. | Check circuit breaker. Ensure wires are securely connected. Test the wall switch. |
| A luz pisca ou escurece. | Loose wiring, incompatible dimmer switch (this light is not dimmable). | Check wire connections. Ensure a standard ON/OFF switch is used, not a dimmer. |
| A luz não é tão forte quanto o esperado. | Dust accumulation on the diffuser, incorrect room size. | Clean the diffuser. Verify the room size is within the recommended 107-160 ft² range. |
Se o problema persistir após tentar essas soluções, entre em contato com o suporte ao cliente da Goeco.
Garantia e Suporte
The Goeco 12 Inch Square Flush Mount LED Ceiling Light comes with a Garantia de 2 ano a partir da data da compra. Esta garantia cobre defeitos em materiais e mão de obra sob uso normal.
For warranty claims, technical support, or any other inquiries, please contact Goeco customer service through the retailer where you purchased the product or visit the official Goeco store on Amazon:
Visit the Goeco Store on Amazon
Guarde o comprovante de compra como prova de aquisição para fins de garantia.
