Introdução
Thank you for choosing the Amazon Basics Single Door Deep Freezer. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.
This deep freezer is designed for storing frozen food and ice cream, offering a capacity of 94 liters. It features high cooling retention and is suitable for various environments including homes, shops, and offices.
Instruções importantes de segurança
WARNING: Refrigerant R600a is highly flammable. Only skilled and authorized technicians must service this product to prevent hazards.
- Ensure the appliance is placed on a stable, level surface away from direct sunlight, heat sources, and moisture.
- Maintain adequate ventilation around the freezer. Do not block ventilation openings.
- Não armazene substâncias explosivas, como latas de aerossol com propulsores inflamáveis, neste aparelho.
- Não use aparelhos elétricos dentro dos compartimentos de armazenamento de alimentos, a menos que sejam do tipo recomendado pelo fabricante.
- Desligue o congelador da tomada antes de limpá-lo ou realizar qualquer manutenção.
- Keep children away from packaging materials to prevent suffocation.
- Se o cabo de alimentação estiver danificado, ele deverá ser substituído pelo fabricante, seu agente de serviço ou pessoa igualmente qualificada para evitar riscos.
O que está na caixa
Ao desembalar, verifique se todos os seguintes itens estão presentes:
- Amazon Basics Single Door Deep Freezer Unit
- Cesta de armazenamento
- Manual do usuário (este documento)
- Raspador de gelo
- Partição
- Chaves de bloqueio
Configuração e instalação
1. Desembalagem
Remova cuidadosamente todos os materiais de embalagem. Inspecione o congelador para verificar se houve algum dano durante o transporte. Informe imediatamente o vendedor sobre qualquer dano.
2. Localização
This is a freestanding appliance. Place the freezer on a firm, level floor. Ensure there is sufficient space around the unit for proper ventilation. A minimum of 10 cm (4 inches) clearance should be maintained on all sides, especially at the back and sides where the condenser is located.

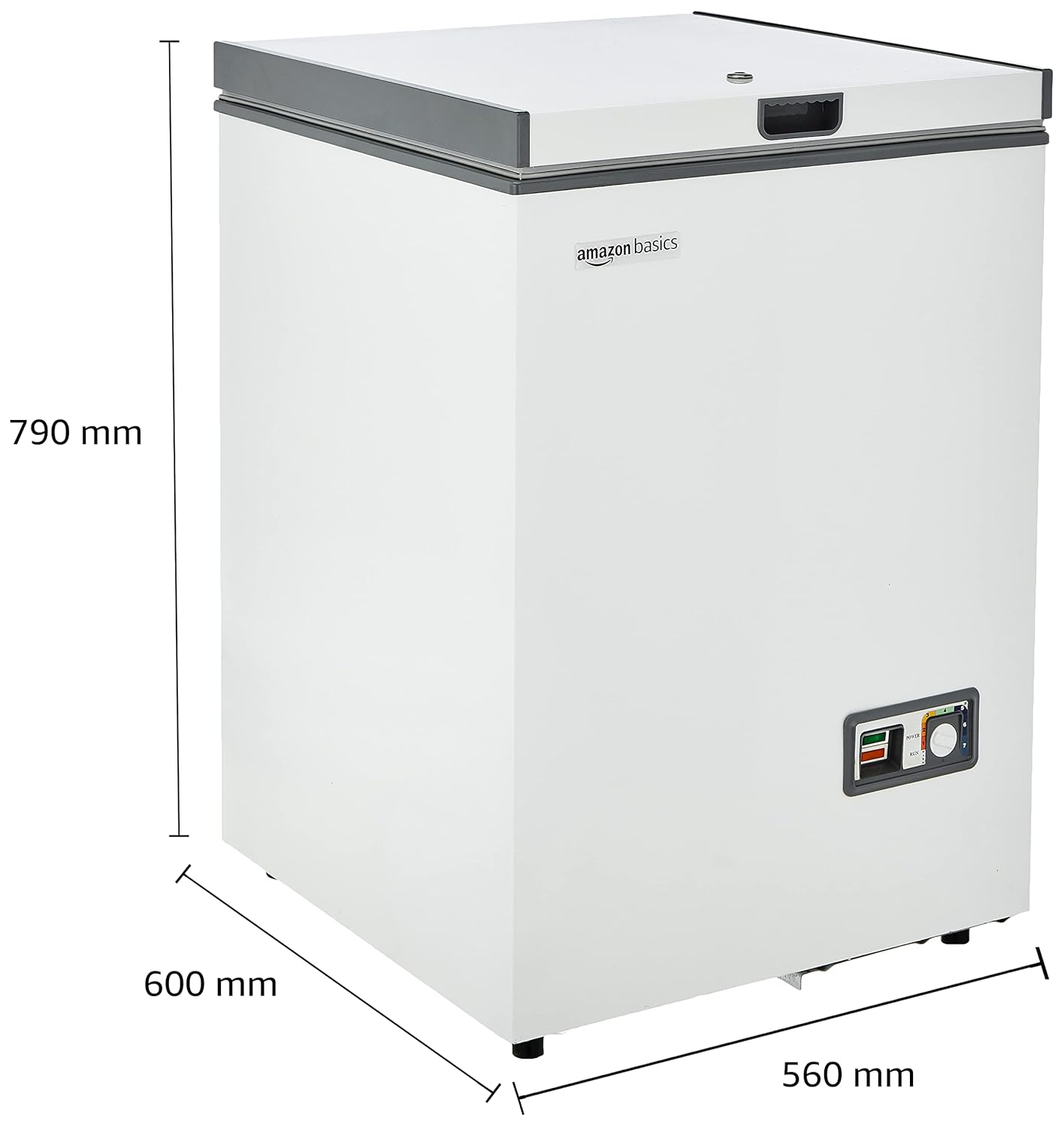

Imagem: Frente view of the deep freezer with its dimensions (790mm height, 600mm depth, 560mm width) clearly marked. This illustrates the physical size for placement planning.
Image: The deep freezer positioned next to a person, indicating its height of 33 inches (84 cm) relative to an average adult. This helps visualize the appliance's size in a practical setting.
3. Conexão elétrica
The freezer operates stabilizer-free within a voltage range of 190V to 260V at 50 Hz. Plug the appliance into a dedicated, properly grounded electrical outlet. Do not use extension cords or multiple outlet adapters.
Imagem: Traseira view of the deep freezer, highlighting the power cord connection point and the product specification label. This shows where the power cable exits the unit.
4. Operação inicial
After placement and connection, allow the freezer to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, let the freezer run empty for 2-3 hours to reach its operating temperature before loading food.
Instruções de operação
1. Controle de temperatura
The freezer is equipped with a temperature control dial located on the front panel. Rotate the dial to adjust the internal temperature. Settings typically range from 'Warm' (1) to 'Coldest' (7 or *). For general freezing, a setting between 4 and 5 is usually sufficient to maintain temperatures between -18°C and -9°C.
Imagem: Uma imagem detalhada view of the control panel on the front of the deep freezer. It shows the 'POWER' and 'RUN' indicator lights, and the rotary temperature control dial with settings from 1 (Warm) to 7 (Coldest), including a snowflake symbol for maximum cold.
2. Luzes indicadoras
- POTÊNCIA (Luz Verde): Illuminates when the freezer is connected to power.
- RUN (Red Light): Illuminates when the compressor is actively running to cool the freezer. It will cycle on and off as needed to maintain the set temperature.
3. Carregando Alimentos
Do not overload the freezer. Allow space for air circulation around items for efficient freezing. For best results, freeze small quantities of fresh food at a time. The included basket and partition can help organize contents.
4. Fechadura e chave
The freezer comes with a lock and key for securing its contents, which is particularly useful in commercial or shared environments.
Image: A close-up of the lock key provided with the deep freezer, showing its simple design for securing the lid.
5. High Cooling Retention
This freezer is designed to maintain high-cooling conditions (-18°C to -9°C) for an extended duration of 15 to 20 hours even without electricity, helping to preserve food during power outage.
Cuidados e Manutenção
1. Limpeza
- Desligue sempre o congelador da tomada antes de limpá-lo.
- Limpe o interior com um pano macio dampLimpe com uma solução de detergente suave. Enxágue com água limpa e seque bem.
- Limpe o exterior com um pano macio, damp pano. Evite produtos de limpeza abrasivos ou solventes.
- Periodically clean the condenser coils at the back of the unit using a soft brush or vacuum cleaner to ensure efficient operation.
2. Descongelamento
Frost buildup on the interior walls can reduce cooling efficiency. Defrost the freezer when the frost layer reaches about 5-10 mm (0.2-0.4 inches) thick.
- Desligue o congelador da tomada e retire todos os alimentos. Guarde os alimentos congelados em outro congelador ou em um recipiente térmico.
- Leave the lid open to allow frost to melt naturally. You can use the provided ice scraper to gently remove frost, but do not use sharp metal objects.
- Place towels at the bottom to absorb water, or use the drain plug if available.
- Após o descongelamento, limpe e seque bem o interior antes de ligá-lo novamente e colocar os alimentos.
3. Power Outages
Em caso de falta de energiatage, keep the freezer lid closed to maintain the internal temperature for as long as possible. The high cooling retention feature will help keep food frozen for 15 to 20 hours.
Solução de problemas
Antes de entrar em contato com o suporte ao cliente, verifique os seguintes problemas comuns:
| Problema | Possível causa | Solução |
|---|---|---|
| Freezer não funciona | Sem fonte de alimentação Plugue não inserido corretamente Blown fuse/tripped circuit breaker | Verifique a tomada Ensure plug is firmly in socket Check household fuse/circuit breaker |
| O congelador não está suficientemente frio. | Temperature setting too high (warm) Tampa não fechada corretamente Acúmulo excessivo de gelo Too much warm food added Ventilação deficiente | Adjust temperature dial to a colder setting Ensure lid is sealed Descongele o freezer Allow time for freezer to cool new items Ensure adequate clearance around the unit |
| Ruído excessivo | Freezer não nivelado Contact with wall/other objects Operação normal do compressor | Ajuste os pés niveladores Move freezer away from obstructions Algum ruído operacional é normal. |
| Water on floor (defrosting) | Drain plug not sealed umidade excessiva | Ensure drain plug is securely closed Wipe up water and ensure proper ventilation |
Se o problema persistir após verificar esses pontos, entre em contato com o suporte ao cliente.
Especificações do produto
| Recurso | Especificação |
|---|---|
| Marca | Noções básicas sobre a Amazon |
| Modelo | V100 |
| Capacidade | 94 litros |
| Tipo de instalação | Freestanding |
| Cor | White with Grey fittings |
| Peso do item | 29 kg (29000 gramas) |
| Dimensões do produto (CxLxA) | 60 x 56 x 79 centímetros |
| Volumetage Alcance | 190V - 260V, 50 Hz (Stabilizer-free operation) |
| Refrigerante | R600a (ecológico) |
| Cooling Retention | 15 to 20 hours (without electricity) |
| Faixa de temperatura | -18°C a -9°C |
| Componentes incluídos | Basket, Manual, Scraper, Partition, Lock Keys |
Informações de garantia
Your Amazon Basics Single Door Deep Freezer comes with:
- Garantia completa de 1 ano a partir da data da compra.
- An additional 3 years warranty on the compressor.
Please retain your purchase receipt as proof of purchase for warranty claims. The warranty covers manufacturing defects under normal use conditions.
Suporte ao cliente
For any queries, service requests, or warranty claims, please contact Amazon Basics customer support:
- Número gratuito: 1800-419-0416
- E-mail: amazonbrands@blubirch.com
- Horas de trabalho: 10 AM to 6 PM (IST)
When contacting support, please have your product model (V100) and purchase details ready.
