FOHERE Juicer Machine User Manual

1. Instruções importantes de segurança

Please read all instructions carefully before using the FOHERE Juicer Machine. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• Always ensure the juicer is properly assembled and the safety locking arm is engaged before operation.
• Do not operate the juicer with a damaged cord or plug. If the appliance malfunctions or has been damaged in any manner, discontinue use and contact customer service.
• Mantenha as mãos e os utensílios fora da calha de alimentação durante o funcionamento para evitar ferimentos. Utilize o empurrador de alimentos fornecido.
• Não mergulhe a base do motor em água ou outros líquidos.
• Desligue o espremedor da tomada quando não estiver em uso, antes de montar ou desmontar peças e antes de limpá-lo.
• Este aparelho é somente para uso doméstico. Não use ao ar livre.
• The juicer is equipped with engine overheating protection. If the motor overheats, the unit will automatically shut off. Allow it to cool down before resuming operation.

2. Produto acabadoview e Componentes

Familiarize yourself with the parts of your FOHERE Juicer Machine.

Image: The FOHERE Juicer Machine, showing its main body, juice spout, pulp collector, and a juice cup filled with fresh juice, alongside various fruits like oranges, lemons, and kiwis.

• Empurrador de alimentos: Utilizado para guiar frutas e vegetais até a calha de alimentação.
• Rampa de alimentação: Wide opening for inserting whole or large pieces of produce.
• Tampa Transparente: Covers the juicing mechanism.
• Cesto de filtro em aço inoxidável: Contains the cutting blade and fine mesh filter for juice extraction.
• Suporte para filtro: Holds the filter basket in place.
• Base do motor: Contém um potente motor de 400 W e um botão de controle.
• Braço de travamento de segurança: Secures the lid and filter holder to the motor base.
• Bico de suco: Por onde escorre o suco extraído.
• Pulp Collector: Detachable container for collecting discarded pulp.
• Juice Jug: Container for collecting fresh juice.

3. Montagem e configuração

Siga estes passos para montar seu espremedor de frutas antes do primeiro uso.

1. Etapa 1: Place the filter holder inside the main unit's motor base.



   Image: A six-panel image illustrating the assembly process. Panel 1 shows fitting the filter holder into the juicer base.

2. Etapa 2: Place the stainless steel filter basket inside the filter holder, ensuring it is securely seated.

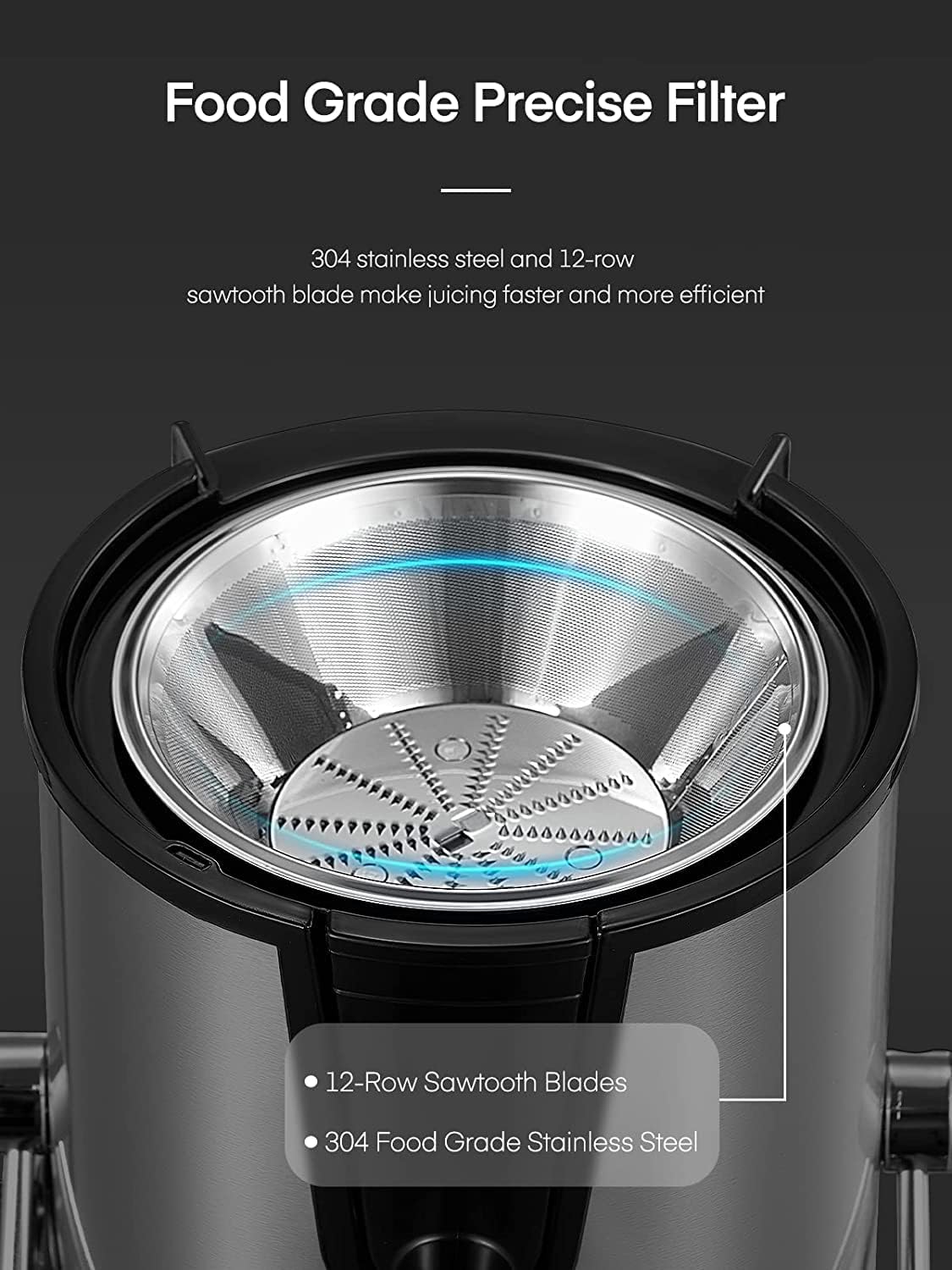

   Imagem: Um close-up view of the juicer's internal filter, highlighting its 304 stainless steel construction and 12-row sawtooth blades for efficient juicing.

   Image: Panel 2 of the assembly image shows placing the stainless steel filter inside the filter holder.

3. Etapa 3: Attach the transparent lid onto the top of the filter holder and motor base.



   Image: Panel 3 of the assembly image shows attaching the transparent lid.

4. Etapa 4: Raise the safety locking arm up and locate it into the two grooves on the transparent lid. Ensure it clicks into place, indicating the juicer is securely locked.



   Image: A split image showing a close-up of the safe lock arm engaging and an illustration of the internal motor with overheat protection.

   Image: Panel 4 of the assembly image shows raising the safety locking arm.

5. Etapa 5: Place the juice jug under the juice spout and the pulp collector at the back of the unit.



   Imagem: Vista aérea view of the FOHERE Juicer Machine, clearly labeling the "Pulp Collector" and "Juice Jug" components. Below, examples of juice and pulp recipes are displayed.

   Image: Panel 5 of the assembly image shows placing the juice jug under the spout.

4. Instruções de operação

Learn how to effectively use your FOHERE Juicer Machine for optimal results.

4.1 Preparando os ingredientes

• Lave bem todas as frutas e verduras.
• The 3-inch wide feed chute can accommodate whole fruits and vegetables, reducing prep time. For very large items, cut them into smaller pieces that fit comfortably.
• Remove large seeds (e.g., from peaches, mangoes) and hard pits.
• For citrus fruits, peel them before juicing as the rind can impart a bitter taste.
• Para verduras folhosas, enrole-as formando uma bola bem apertada antes de inserir.

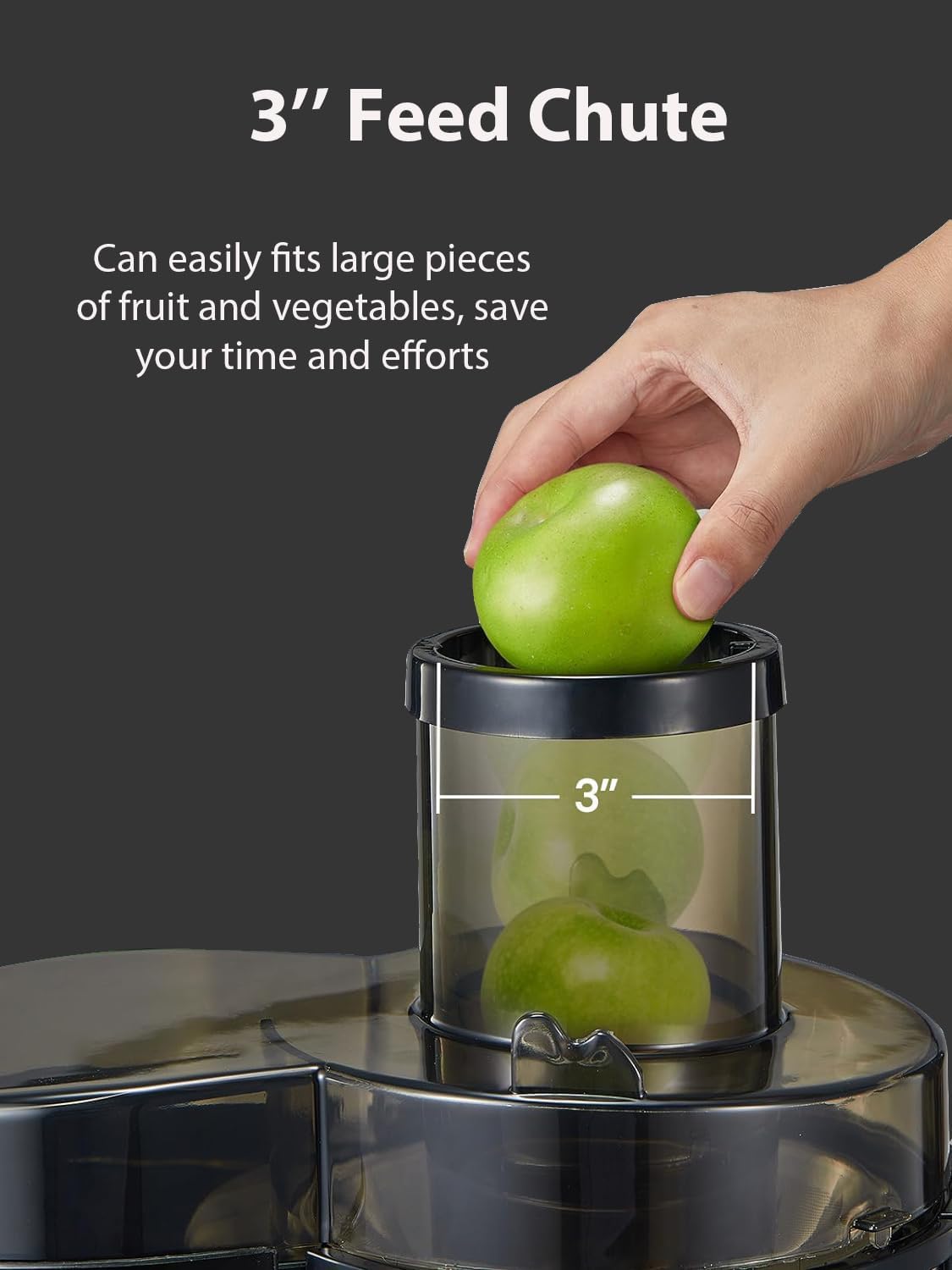

Image: A hand demonstrating how a whole green apple easily fits into the juicer's 3-inch wide feed chute, illustrating its time-saving design.

4.2 Processo de Extração de Suco

1. Ensure the juicer is properly assembled and plugged into a grounded electrical outlet.
2. Select the appropriate speed setting using the control dial:
   • "1" (Velocidade baixa): Ideal for soft fruits and vegetables such as oranges, kiwis, grapes, tomatoes, and leafy greens. (12000 to 15000 RPM)
   • "2" (Alta Velocidade): Suitable for hard fruits and vegetables like apples, carrots, celery, beets, and ginger. (15000 to 18000 RPM)
   • "P" (Pulse Function): Provides maximum speed instantly for short bursts, useful for tough ingredients or clearing blockages.

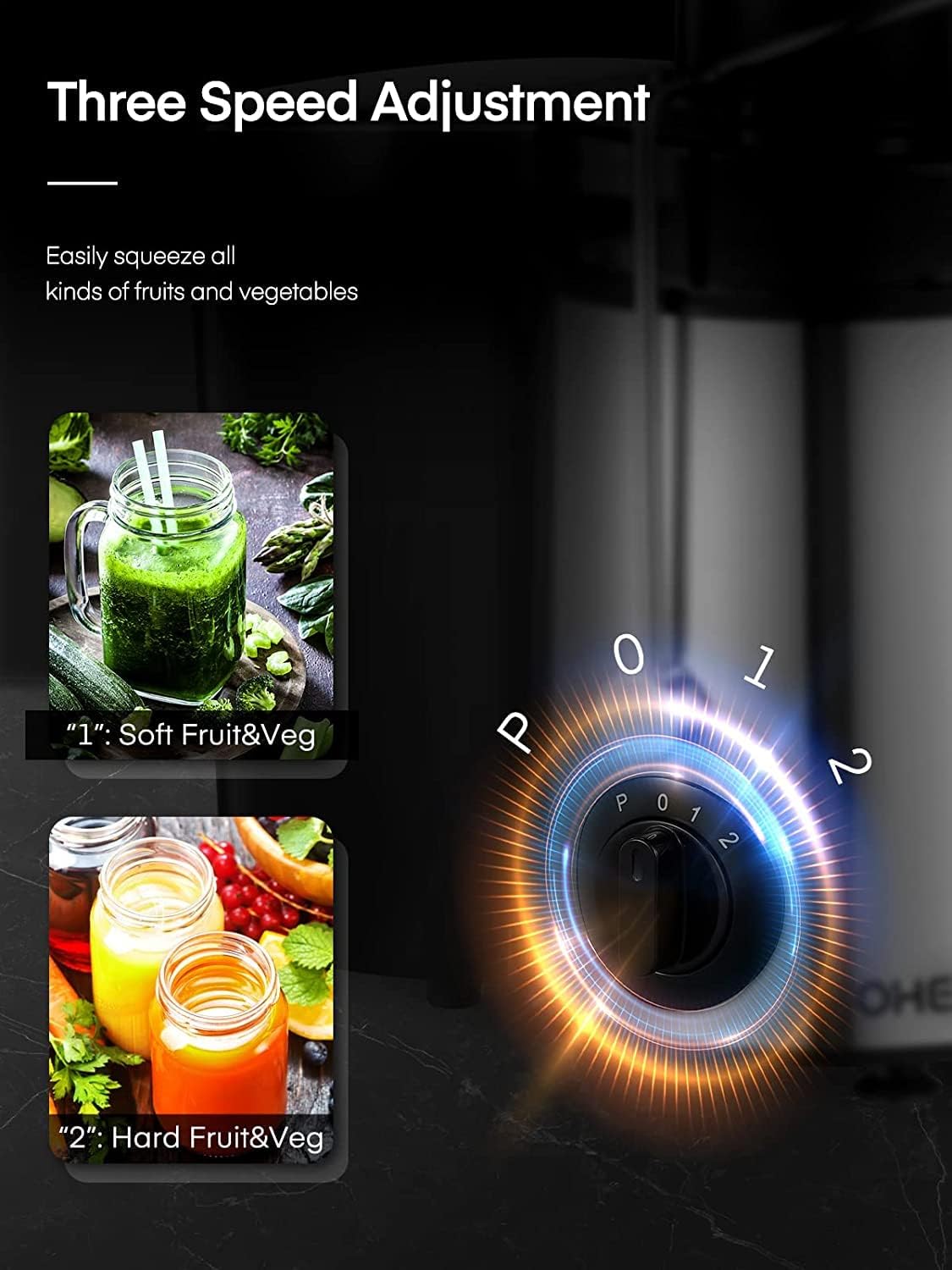

   Image: A close-up of the juicer's control dial, showing the "P" (Pulse), "0" (Off), "1" (Soft Fruit & Veg), and "2" (Hard Fruit & Veg) settings. Accompanying images illustrate examples of produce for each speed.



   Image: A visual guide comparing the "Soft Speed" (12000-15000 RPM) recommended for fruits like oranges, strawberries, and kiwis, and the "Hard Speed" (15000-18000 RPM) for apples, carrots, and celery.

3. Turn the dial to the desired speed setting (1 or 2).
4. Gradually feed the prepared ingredients into the feed chute using the food pusher. Apply gentle, even pressure. Do not force ingredients down.
5. Allow the juicer to process the ingredients completely. Juice will flow into the juice jug, and pulp will collect in the pulp collector.
6. Once juicing is complete, turn the dial to "0" (Off) and unplug the appliance.

4.3 Juice Yield and Benefits

The FOHERE Juicer Machine is designed for high juice extraction, retaining more nutrients.

Image: A visual comparison demonstrating the FOHERE Juicer's superior juice yield (80%) compared to other juicers (55%), highlighting its efficiency.

Image: A chart illustrating the juicing rates for different fruits and vegetables with the FOHERE Juicer, showing high percentages for orange (72.7%), tomato (76.6%), apple (75.8%), and carrot (69.8%).

Freshly made juice can be stored in a bottle for later consumption, allowing you to enjoy nutritious juice anytime.

Image: Three bottles filled with different colored homemade fresh juices (green, orange, and red) positioned next to the FOHERE Juicer Machine, emphasizing the convenience of storing fresh juice.

5. Limpeza e Manutenção

A limpeza regular garante a longevidade e a higiene do seu extrator de sucos.

1. Desmontagem: Unplug the juicer. Disassemble all removable parts: food pusher, lid, filter basket, filter holder, pulp collector, and juice jug.

2. Lavagem: Após o uso, enxágue todas as peças removíveis em água corrente imediatamente para evitar que a polpa seque e grude.

3. Lavagem:

   • Most disassembled small parts are dishwasher safe. Place them on the top rack of your dishwasher.
   • Alternatively, wash parts by hand using warm, soapy water and a non-abrasive brush for the filter basket to remove all pulp residue.


   Image: A split image demonstrating cleaning methods: the top panel shows disassembled juicer parts placed in a dishwasher, while the bottom panel illustrates manual cleaning of the filter under running water, emphasizing ease of cleaning.

4. Base do motor: Limpe a base do motor com anúncioamp pano. Nunca mergulhe a base do motor em água.

5. Secagem e armazenamento: Certifique-se de que todas as peças estejam completamente secas antes de remontar ou guardar o espremedor. Guarde em local limpo e seco.

6. Solução De Problemas

Problemas comuns e suas soluções.

7. Especificações do produto

8. Garantia e Suporte

Information regarding warranty and customer support was not available in the provided product data. Please refer to the product packaging or the manufacturer's official website for detailed warranty terms and contact information for customer service.

For general inquiries or assistance, you may visit the FOHERE Store on Amazon: FOHERE Store.
