1. Introdução
The NiTHO HEXAGON Wireless RGB Controller is designed for an enhanced gaming experience across multiple platforms. This manual provides detailed instructions for setting up, operating, customizing, and maintaining your controller. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.
Figure 1: NiTHO HEXAGON Wireless RGB Controller showcasingraças ao seu design ergonômico.
2. O que está na caixa
Verifique se todos os componentes estão presentes na embalagem:
- NiTHO HEXAGON Wireless RGB Controller (Gamepad)
- Cabo de carregamento USB
- Manual de instruções
- Customizable Parts (D-pads, Thumbsticks, Triggers)
3. Compatibilidade
The NiTHO HEXAGON Wireless RGB Controller offers broad compatibility:
- PlayStation 4 (PS4): Fully compatible.
- PlayStation 5 (PS5): Compatible only when playing PlayStation 4 games.
- PC (Windows): Compatible via wireless connection.
- Dispositivos Android: Compatible via wireless connection.
- Dispositivos iOS: Compatible via wireless connection.
Figure 2: Visual representation of the controller's multi-platform compatibility.
4. Configuração e conexão
4.1 Initial Pairing (Wireless)
- Certifique-se de que o controle remoto esteja suficientemente carregado.
- For PS4/PS5 (PS4 games): Connect the controller to the console using the provided USB cable. Press the PS button on the controller. Once paired, you can disconnect the cable for wireless use.
- For PC/Android/iOS: Activate Bluetooth on your device. Put the controller into pairing mode (refer to device-specific instructions, usually holding a combination of buttons like PS + Share). Select "NiTHO HEXAGON Controller" from the available Bluetooth devices.
4.2 conexão com fio
Connect the controller directly to your console or PC using the USB charging cable. The controller will function as a wired device and charge simultaneously.
5. Operando o Controlador
5.1 Controles Básicos
The controller features standard gamepad buttons, analog sticks, and triggers. Refer to your game's instructions for specific button mappings.
5.2 Funcionalidade do touchpad
The integrated multi-touch and clickable touchpad functions as a navigation and input device in compatible PS4 games.
Figure 3: Demonstrating the use of the controller's multi-touch pad.
5.3 Motion Sensing and Vibration
The built-in 6-axis motion sensor (accelerometer and gyroscope) detects the controller's movement, tilt, and rotation, providing immersive gameplay. The lightweight vibration system offers realistic feedback during gameplay.
Figure 4: Illustration of the controller's 6-axis motion sensing capability.
Figure 5: Controller in use, highlighting the vibration mode for realistic feedback.
5.4 Recursos de áudio
The controller includes a built-in speaker for in-game audio cues and a stereo headset jack for connecting headphones or a headset for private audio and voice chat.
6. Personalização
The NiTHO HEXAGON controller offers customizable components to suit your gaming style:
- Detachable L2/R2 Trigger Sets: Swap out the triggers for different tactile feedback.
- Two Types of D-pads: Choose the D-pad that best fits your preference for directional input.
- Three Styles of Thumbsticks: Select from various thumbstick shapes for optimal grip and control.
To change a component, gently pull the existing part off and align the new part with the slot, then push it firmly into place until it clicks.
Figura 6: Overview of the customizable parts for the controller, including analog sticks, triggers, and D-pad.
7. Efeitos de iluminação RGB
The hexagonal grip features integrated RGB lighting with multiple modes and colors:
- 4 modos de iluminação: Rainbow, Carousel, Breathe, Fixed.
- 8 opções de cores: Cycle through various colors to match your preference.
Press the dedicated RGB button (location may vary, refer to controller diagram if available) to cycle through the lighting modes and colors.

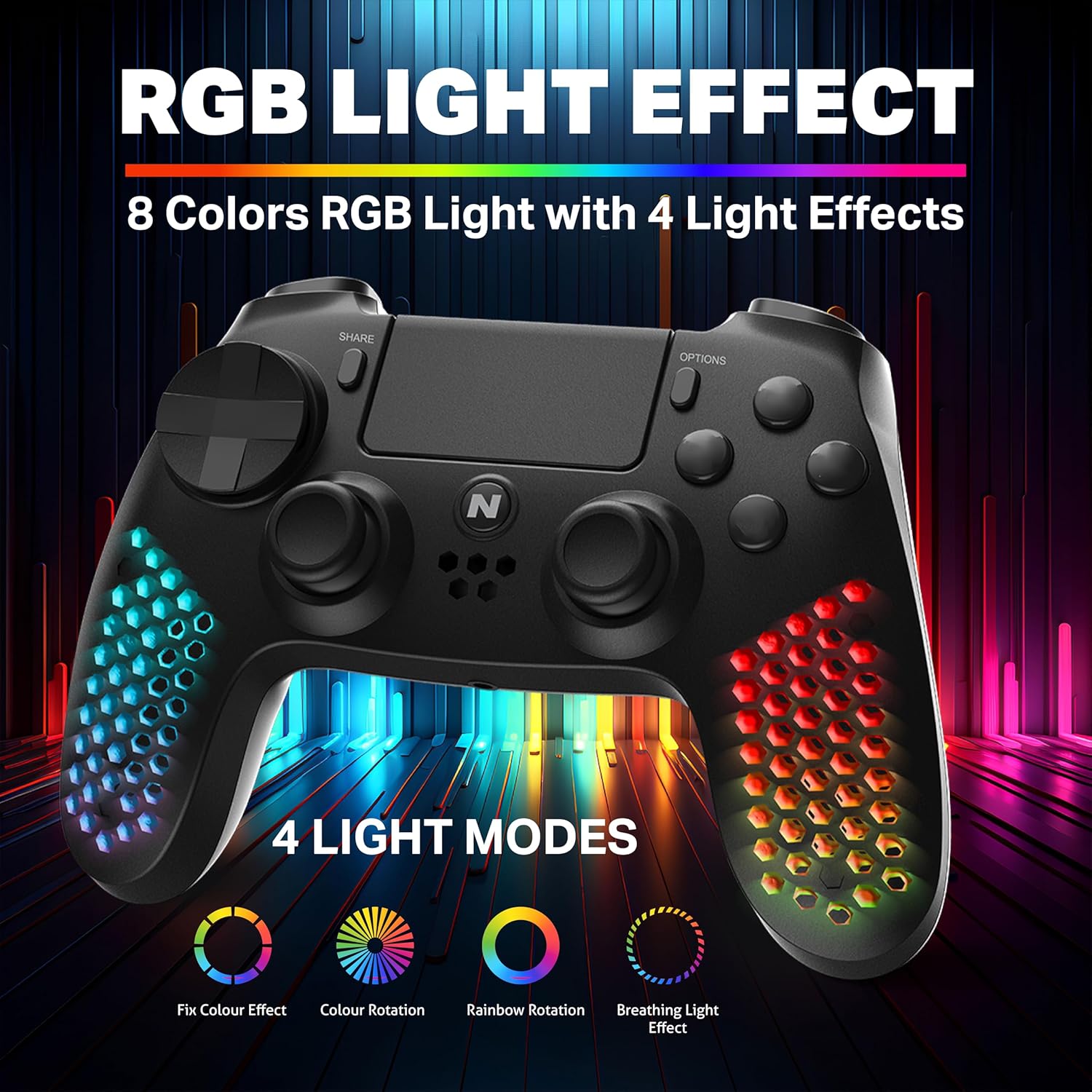

Figura 7: O controlador mostradoasing its RGB light effects with different modes and colors.
8. Carregando o controlador
The controller is equipped with a high-capacity built-in rechargeable battery, providing up to 9 hours of playtime on a single charge.
8.1 Procedimento de cobrança
- Connect the provided USB charging cable to the USB-C port on the controller.
- Plug the other end of the USB cable into your console, PC, or any standard USB charger.
- The front LED indicator on the controller will show the charging status. It will typically change color or pattern to indicate charging and full charge.
Figure 8: The controller connected for charging, highlighting its large battery capacity.
9. Manutenção
- Mantenha o controle limpo, passando um pano macio e seco.
- Evite expor o controlador a temperaturas extremas, umidade ou luz solar direta.
- Não tente desmontar o controlador, pois isso pode anular a garantia.
- Guarde o controle em um local seguro quando não estiver em uso para evitar danos.
10. Solução De Problemas
| Problema | Solução possível |
|---|---|
| O controle não liga. | Certifique-se de que o controle esteja totalmente carregado. Conecte-o a uma fonte de energia usando o cabo USB. |
| Controller does not pair wirelessly. | Ensure the controller is in pairing mode. Check your device's Bluetooth settings. Try re-pairing by connecting with a USB cable first. |
| Atraso na resposta dos comandos ou botões que não respondem. | Ensure the controller is fully charged. Move closer to the console/device to reduce interference. Try a wired connection to rule out wireless issues. |
| As luzes RGB não estão funcionando. | Press the RGB button to cycle through modes. Ensure the controller is powered on. |
11. Especificações
| Recurso | Detalhe |
|---|---|
| Número do modelo | MLT-EXAG-K |
| Dimensões do produto (CxLxA) | 17.5 x 7.5 x 12 centímetros |
| Peso do item | 270 g |
| Tipo de Bateria | 1 pilha C (incluída) |
| País de origem | China |
| Fabricante | MTM Industrial Ltd. |
| Conectividade | Wireless (Bluetooth), USB-C Wired |
| Características especiais | RGB LED Lights, Vibration, 6-Axis Motion Sensor, Touchpad, Detachable Triggers, Interchangeable D-Pad & Thumbsticks, Built-in Speaker, Stereo Headset Jack |
12. Informações de garantia
The NiTHO HEXAGON Wireless RGB Controller is covered by a Garantia limitada de 1 ano from the date of purchase. This warranty protects against defects in materials and workmanship.
A garantia não cobre danos resultantes de:
- Uso indevido
- Acidentes
- Modificações não autorizadas
O comprovante de compra é necessário para todas as reivindicações de garantia.
13. Suporte
If you encounter any issues or have questions regarding your NiTHO HEXAGON Wireless RGB Controller, please contact our customer support team:
- E-mail: suporte@nitho.com
We are committed to providing excellent customer service and will assist you in resolving any product-related concerns.
