Topsung K10 Rechargeable Walkie Talkies Instruction Manual

1. Produto acabadoview

The Topsung K10 Rechargeable Walkie Talkies are designed for reliable and clear communication across various environments. These two-way radios feature a robust build, long-lasting rechargeable batteries, and essential functions like NOAA weather alerts and iVOX hands-free operation. They are suitable for family use, outdoor activities, and professional settings requiring consistent communication.

Imagem 1: Frente view of the Topsung K10 Walkie Talkie, highlighting its compact design and display.

2. O que está na caixa

Your Topsung K10 package includes everything needed for immediate use and convenient charging:

• 6 x Rechargeable Walkie Talkies
• 6 baterias de polímero de lítio
• 6 x Earphones with Mic
• 6 x Adjustable Lanyards
• 2 x USB Charging Cables (each charges 3 devices)
• 2 x USB Wall Adapters
• 1 x Manual do Usuário
• 1 x caixa de armazenamento

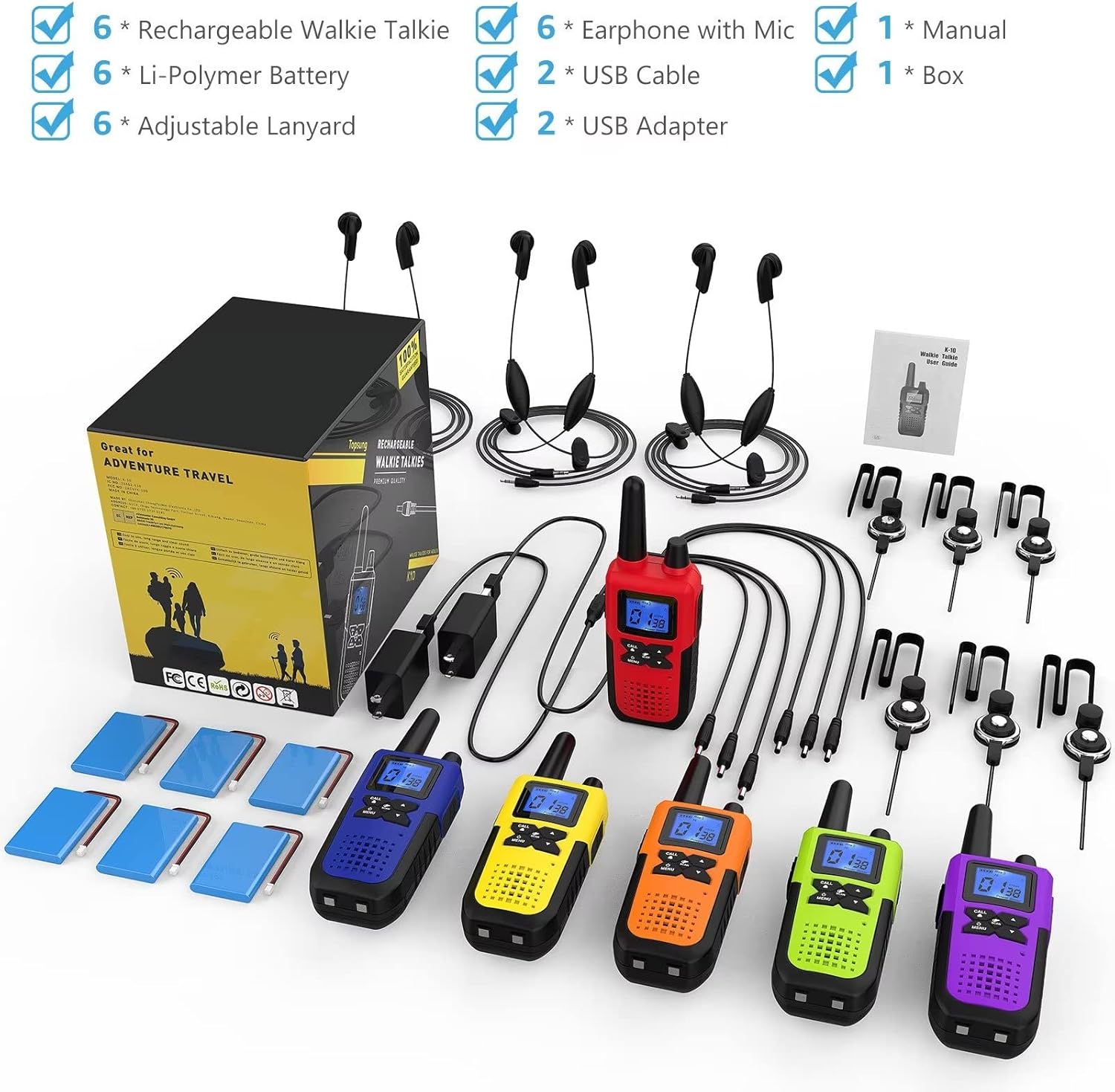

Image 2: All components included in the Topsung K10 Walkie Talkie 6-pack, neatly arranged.

3. Guia de configuração

3.1. Instalação da bateria

To install the rechargeable battery:

1. Remove the belt clip by pulling the latch upwards and sliding the clip off.
2. Open the battery compartment cover on the back of the walkie talkie.
3. Connect the battery's small white connector to the corresponding port inside the compartment. Ensure correct orientation (a small line on the connector aligns with the port).
4. Carefully place the battery into the compartment, ensuring the wires are not pinched.
5. Recoloque a tampa do compartimento da bateria e fixe novamente o clipe de cinto.

Video 1: Demonstrates how to remove the belt clip, open the battery compartment, connect the battery, and close the compartment.

3.2. Carregando as baterias

The walkie talkies come with dual USB charging cables, allowing you to charge up to three units simultaneously per cable. Each cable connects to a USB wall adapter.

1. Connect the USB charging cable to the USB wall adapter.
2. Conecte o adaptador de parede a uma tomada elétrica.
3. Insert the small charging plugs from the cable into the charging ports on the side of each walkie talkie.
4. A full charge typically takes approximately 3 hours and provides up to 48 hours of battery life.

Video 2: Illustrates the charging process for multiple walkie talkies using the provided dual USB charging cables and wall adapters.

3.3. Attaching Lanyards and Earpieces

For convenience and hands-free operation:

• Corda: Thread the thin loop of the lanyard through the small hole located at the top-rear of the walkie talkie, near the antenna. Secure the lanyard by passing the larger end through the loop.
• Earpiece with Mic: Plug the earpiece connector into the 2.5mm earpiece jack located on the side of the walkie talkie, beneath the protective cover. The integrated microphone allows for hands-free communication.

4. Instruções de operação

4.1. Ligar/desligar

To power on or off, press and hold the 'MENU/Power' button located at the bottom of the keypad until the LCD screen illuminates or turns off.

4.2. Ajustando o Volume

Rotate the volume knob located at the top of the walkie talkie, next to the antenna, to increase or decrease the listening volume.

4.3. Selecionando Canais e Códigos de Privacidade

The K10 walkie talkies offer 22 FRS channels, each with 121 privacy codes (38 CTCSS codes and 83 DCS codes) for secure communication.

1. Press the 'MENU' button once to enter channel selection mode. The channel number will flash.
2. Use the 'UP' or 'DOWN' arrow buttons to select your desired channel (1-22).
3. Press 'MENU' again to enter privacy code selection mode. The privacy code will flash.
4. Use the 'UP' or 'DOWN' arrow buttons to select your desired privacy code (0-121).
5. Press 'MENU' a third time or wait a few seconds for the setting to be saved. All walkie talkies intended to communicate must be on the same channel and privacy code.

4.4. Comunicação Push-to-Talk (PTT)

Para transmitir sua voz:

1. Press and hold the 'PTT' button located on the left side of the walkie talkie.
2. Speak clearly into the microphone (located at the bottom-front of the device or on the earpiece mic).
3. Release the 'PTT' button when you are finished speaking to allow others to respond.

Video 3: Demonstrates basic operation including PTT, channel selection, and keypad lock.

4.5. Bloqueio do teclado

To prevent accidental changes to your settings, you can lock the keypad:

• Press and hold the 'CALL/LOCK' button for approximately 2 seconds until a key icon appears on the LCD screen.
• To unlock, press and hold the 'CALL/LOCK' button again for 2 seconds until the key icon disappears.

4.6. Alertas meteorológicos da NOAA

Stay informed about weather conditions:

• Press and hold the 'NOAA/SCAN' button to activate NOAA weather scan. The walkie talkie will scan for available weather channels and alerts.
• Press the 'NOAA/SCAN' button again to exit weather mode.

Image 3: The Topsung K10 Walkie Talkie displaying NOAA weather service functionality.

4.7. iVOX Hands-Free Operation

The iVOX feature allows for voice-activated transmission without pressing the PTT button. This is ideal for activities where your hands are occupied.

1. Press the 'MENU' button multiple times until the iVOX icon appears and flashes on the LCD screen.
2. Use the 'UP' or 'DOWN' arrow buttons to select the desired iVOX sensitivity level (1-3, with 3 being the most sensitive).
3. Press 'MENU' again or wait for the setting to be saved. When iVOX is active, the walkie talkie will automatically transmit when it detects your voice.

5. Características

The Topsung K10 Walkie Talkies are equipped with a range of features to enhance your communication experience:

• Voz HD: Ensures crystal-clear audio quality.
• Bloqueio do teclado: Impede alterações acidentais de configuração.
• Antiskid Design & Drop-Protection: Durable construction for outdoor use.
• Economia de energia automática: Prolonga a duração da bateria durante períodos de inatividade.
• Auto Squelch System: Automatically mutes weak signals or unwanted noise.
• Auto Scan FRS Channels: Encontra canais ativos rapidamente.
• Auto Low Battery Alert: Notifies you when the battery is running low.
• Auto Memory Function: Remembers your last settings.
• Robust Material (ABS): High-quality, impact-resistant casing.
• Voice Activated (iVOX): Hands-free communication.
• Belt Clip with Lanyard Hole: Multiple carrying options.
• Tela LCD grande com retroiluminação: Easy readability in various lighting conditions.
• One-to-One/Many Communication: Versatile communication modes.
• Bateria recarregável de 1800mAh: Provides extended usage time.
• 22 FRS Channels with 121 Privacy Codes: Wide range of communication options with enhanced privacy.
• 10 Call Tones / Keypad Tone / Talk Confirmation Tone: Customizable alerts.
• Compatibilidade: Can be compatible with most brands' FRS 2-way radios.
• Várias opções de carregamento: Can be charged by USB charger, PC, car charger, or power bank.
• NOAA All Hazards Weather Channels and Alerts: Informações meteorológicas em tempo real.

Image 4: Individuals using Topsung K10 Walkie Talkies during a hiking trip, demonstrating outdoor usability.

6. Especificações

7. Manutenção

To ensure the longevity and optimal performance of your Topsung K10 Walkie Talkies:

• Limpeza: Use um pano macio e macioamp cloth to clean the exterior of the walkie talkie. Avoid using harsh chemicals or abrasive cleaners.
• Cuidados com a bateria: Fully charge batteries before first use. For long-term storage, charge batteries to about 50% and store in a cool, dry place. Avoid overcharging or completely draining the battery frequently.
• Armazenar: Store the walkie talkies in a dry environment, away from extreme temperatures and direct sunlight.
• Resistência à água: While rated IP65 waterproof, avoid submerging the device in water for extended periods. Ensure all port covers are securely closed when exposed to moisture.

8. Solução De Problemas

If you encounter issues with your Topsung K10 Walkie Talkies, try the following:

• Sem energia: Certifique-se de que a bateria esteja corretamente instalada e totalmente carregada.
• Não consigo comunicar: Verify that all units are on the same channel and privacy code. Check the volume level. Ensure the PTT button is fully pressed during transmission.
• Qualidade de áudio ruim/Estática: Move closer to the other communicating unit. Check for obstructions (e.g., buildings, dense foliage). Ensure the antenna is not obstructed. Adjust the squelch level if available (refer to advanced menu settings in the full user guide).
• Curto alcance: Range can be significantly affected by terrain, weather, and electromagnetic interference. Try moving to an open area.
• Teclado não responde: Check if the keypad lock is activated (key icon on display). Unlock it by pressing and holding the 'CALL/LOCK' button.

For further assistance, please refer to the full user guide or contact Topsung customer support.

9. Garantia e Suporte

Specific warranty details are not provided in the available product information. Please refer to the warranty card included in your product packaging or visit the official Topsung webAcesse o site para obter as informações mais atualizadas sobre a garantia e os contatos de suporte ao cliente.

For technical support, troubleshooting, or service inquiries, please contact Topsung customer service through the channels provided in your product documentation.
