Introdução
Thank you for choosing the VCM Arila XL Vertical Wall Shelf. This manual provides essential information for the safe assembly, installation, and proper use of your new wall cabinet. Please read these instructions carefully before beginning assembly and retain them for future reference.

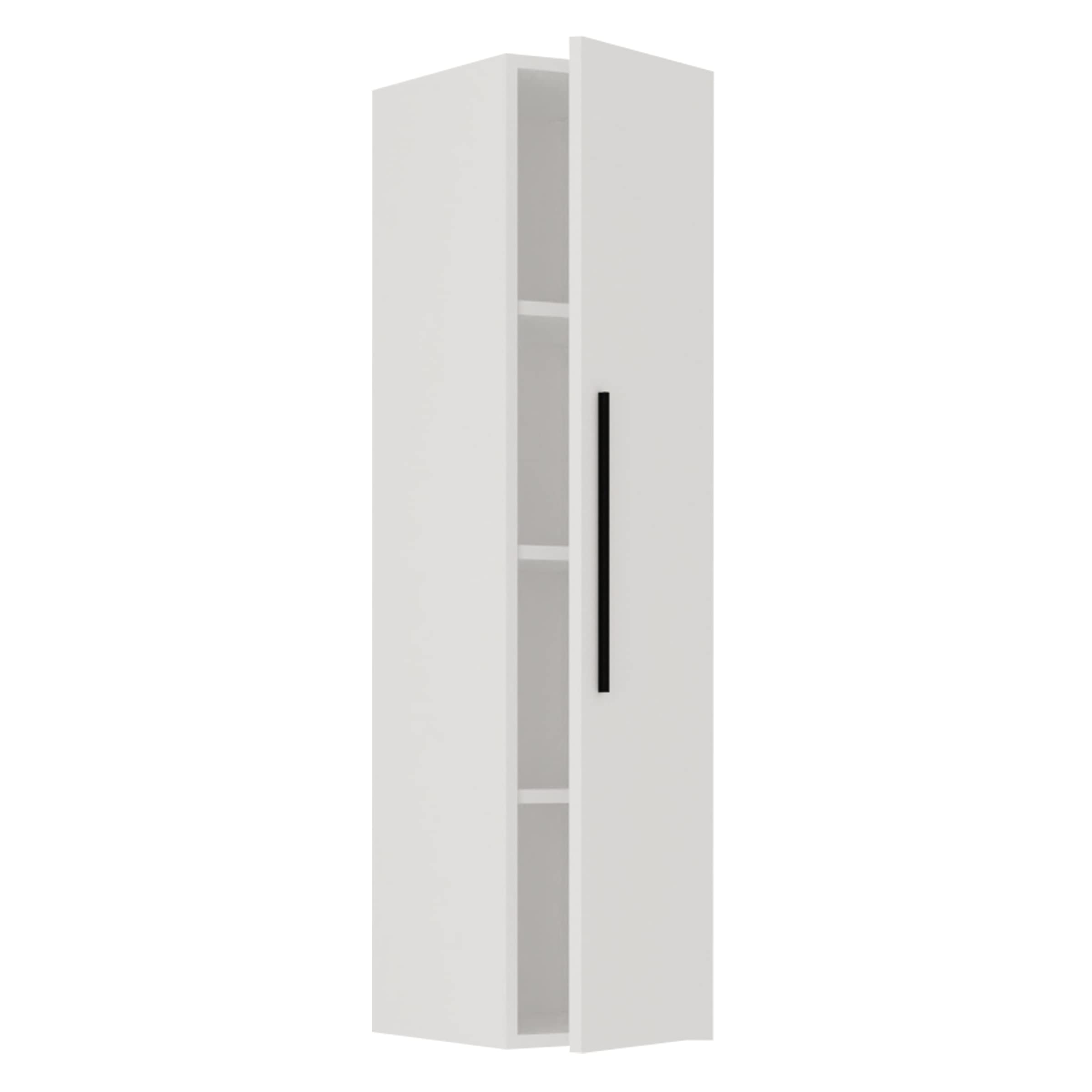

Image 1: Assembled VCM Arila XL Vertical Wall Shelf in white. This image shows the complete wall shelf with its clean, modern design and a single vertical handle on the door.
Informações de segurança
- Siga sempre as instruções de montagem com precisão. A montagem incorreta pode causar instabilidade e possíveis ferimentos.
- Ensure all screws and fasteners are securely tightened. Periodically check and re-tighten if necessary.
- Mount the shelf to a sturdy wall using appropriate hardware for your wall type (e.g., concrete, drywall, wood studs). If unsure, consult a professional.
- Do not overload the shelf. Distribute weight evenly across compartments.
- Mantenha peças pequenas e materiais de embalagem longe das crianças para evitar riscos de asfixia.
- Este produto é destinado somente para uso interno.
Conteúdo da embalagem
Antes da montagem, verifique se todos os componentes estão presentes e sem danos. Caso alguma peça esteja faltando ou danificada, entre em contato com o suporte ao cliente.
- VCM Arila XL Wall Shelf components (wooden panels)
- Assembly hardware (screws, dowels, connectors, handle)
- Wall mounting hardware (screws, wall plugs)
- Simple assembly instructions (this document)
Configuração e montagem
Assembly requires basic tools such as a screwdriver and a drill for wall mounting. It is recommended to have two people for assembly and installation.
Montagem passo a passo:
- Desembale e identifique as peças: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Identify each panel and hardware piece using the provided diagrams.
- Monte a estrutura principal: Connect the side panels to the top and bottom panels using the provided screws and connectors. Ensure all connections are tight and the frame is square.
- Instalar prateleiras internas: Insert the internal shelves into the designated slots or attach them with the provided hardware. Ensure they are level and secure.
- Fixe o painel traseiro: Secure the back panel to the assembled frame using small nails or screws. This adds stability to the cabinet.
- Install the Door and Handle: Attach the door hinges to the cabinet frame and the door panel. Mount the handle to the door. Adjust hinges for proper door alignment and smooth operation.
Montagem na parede:
- Escolha a localização: Select a suitable wall location, ensuring it is free from electrical wires or plumbing.
- Marque os pontos de perfuração: Hold the assembled cabinet against the wall at the desired height. Mark the positions for the wall mounting brackets/holes.
- Furos de perfuração: Faça furos nas posições marcadas usando uma broca adequada para o tipo de parede. Insira buchas, se necessário.
- Fixar à parede: Carefully lift the cabinet and align the mounting holes with the drilled holes. Secure the cabinet to the wall using the provided wall mounting screws. Ensure it is level and firmly attached.
Image 2: Technical diagram of the VCM Arila XL Vertical Wall Shelf showing its dimensions: 1150mm height, 300mm width, and 300mm depth. This diagram provides a visual reference for the cabinet's size and structure.
Operação e Utilização
The VCM Arila XL Vertical Wall Shelf is designed for organizing and displaying various items such as books, CDs, DVDs, decorative objects, and collectibles. It features four spacious compartments behind a single door.
- Carregando: Distribute the weight of items evenly across the shelves to maintain stability. Avoid placing excessively heavy items on a single shelf or compartment.
- Operação da porta: Open and close the door gently to prevent wear and tear on the hinges.
- Colocação: Ensure the shelf is not exposed to direct sunlight or extreme temperature changes, which can affect the wood material.
Manutenção
Regular maintenance will help preserve the appearance and longevity of your VCM Arila XL Wall Shelf.
- Limpeza: Limpe as superfícies com um pano macio, damp pano. Evite usar produtos de limpeza abrasivos, produtos químicos agressivos ou umidade excessiva, pois podem danificar o acabamento.
- Pó: Limpe regularmente com um pano seco e macio.
- Verificação de hardware: Verifique periodicamente todos os parafusos e conexões para garantir que permaneçam apertados. Reaperte-os, se necessário, para manter a estabilidade.
- Derramamentos: Limpe imediatamente qualquer líquido derramado para evitar manchas ou danos à madeira.
Solução de problemas
| Problema | Possível causa | Solução |
|---|---|---|
| A prateleira parece bamba ou instável. | Parafusos soltos ou fixação inadequada na parede. | Check and tighten all assembly screws. Ensure wall mounting hardware is securely fastened and appropriate for your wall type. |
| A porta não fecha corretamente | As dobradiças estão desalinhadas ou soltas. | Adjust the hinge screws to align the door. Tighten any loose hinge screws. |
| Scratches or marks on the surface | Impact from objects or abrasive cleaning. | Use furniture polish or touch-up pens for minor scratches. Avoid abrasive materials during cleaning. |
Especificações
- Modelo: VCM Arila XL
- Número do modelo: VCM918876
- Marca: VCM
- Dimensões (A x L x P): 115 cm x 30 cm x 30 cm (aproximadamente 45.3 x 11.8 x 11.8 polegadas)
- Peso: 17 kg (aproximadamente 37.5 libras)
- Material: Madeira
- Cor: Branco
- Número de compartimentos: 4
- Tipo de montagem: Montagem na parede
- Componentes incluídos: Product, assembly material, simple assembly instructions
- País de origem: Ucrânia
Garantia e Suporte
VCM Morgenthaler GmbH provides support for its products. For any questions regarding assembly, missing parts, or product defects, please contact our customer service.
- Disponibilidade de peças de reposição: Spare parts are available in the EU for a period of 2 years from the date of purchase.
- Contato do fabricante:
VCM Morgenthaler GmbH
Ersteiner Straße 12
D-79346 Endingen
E-mail: amazon@vcm-gruppe.de
Telefone: +49764290789310
