SENIX CS4QL-L1 18-inch 49cc Gas Chainsaw User Manual

1. Informações importantes de segurança

Operating a chainsaw can be dangerous if proper safety precautions are not followed. Always read and understand this manual completely before operating the SENIX CS4QL-L1 chainsaw. Failure to follow all instructions may result in serious injury or death.

• Equipamento de Proteção Individual (EPI): Always wear appropriate safety gear, including a helmet, eye protection, hearing protection, heavy-duty gloves, chainsaw protective pants or chaps, and steel-toed boots.
• Segurança da Área de Trabalho: Ensure the work area is clear of bystanders, children, and pets. Maintain a firm footing and balance. Do not operate the chainsaw in wet conditions or in the presence of flammable liquids or gases.
• Prevenção de Subornos: Be aware of kickback, which can occur when the moving chain at the tip of the guide bar contacts an object, or when the wood closes in and pinches the saw chain in the cut. Always use two hands to operate the chainsaw and maintain a firm grip.
• Manuseio de combustível: Handle fuel with extreme care. It is highly flammable. Always refuel outdoors in a well-ventilated area, away from sparks or open flames. Allow the engine to cool before refueling.
• Manutenção: Regularly inspect and maintain your chainsaw. Ensure the chain is sharp and properly tensioned. Check all nuts, bolts, and screws for tightness.
• Armazenar: Store the chainsaw in a dry, secure location, out of reach of children. Always protect the guide bar and chain with the scabbard when storing or transporting.

WARNING: To reduce the risk of injury, the user must read the instruction manual.

2. Produto acabadoview

The SENIX CS4QL-L1 is an 18-inch 49cc gas-powered chainsaw designed for heavy-duty wood cutting and tree trimming tasks. Featuring patented 4QL Technology, this chainsaw offers strong power with low vibration, reduced emissions, and eliminates the need for mixing gas and oil.

Principais características:

• Alto desempenho: 18-inch bar and chain capable of cutting tree limbs and firewood up to 36 inches in diameter.
• Powerful Low-Emission Engine: 49cc 4QL 4-Cycle full crank engine provides robust power with low vibration, low emissions, and low fuel consumption.
• Easy-to-Use 4QL Technology: No mixing of gas and oil required. Provides all-directional use, keeping the motor lubricated in any direction without stalls or oil leaks.
• Lubrificador Automático: Ensures continuous lubrication for the bar and chain, maintaining optimal condition.
• Leve e manobrável: The 4QL engine design is compact and lightweight for comfortable operation, featuring a loop handle for 360° use.
• Tool-Assisted Tensioning: For quick and easy chain adjustment.
• Dual Safety Design: Includes a chain brake and dual grip for enhanced user safety.

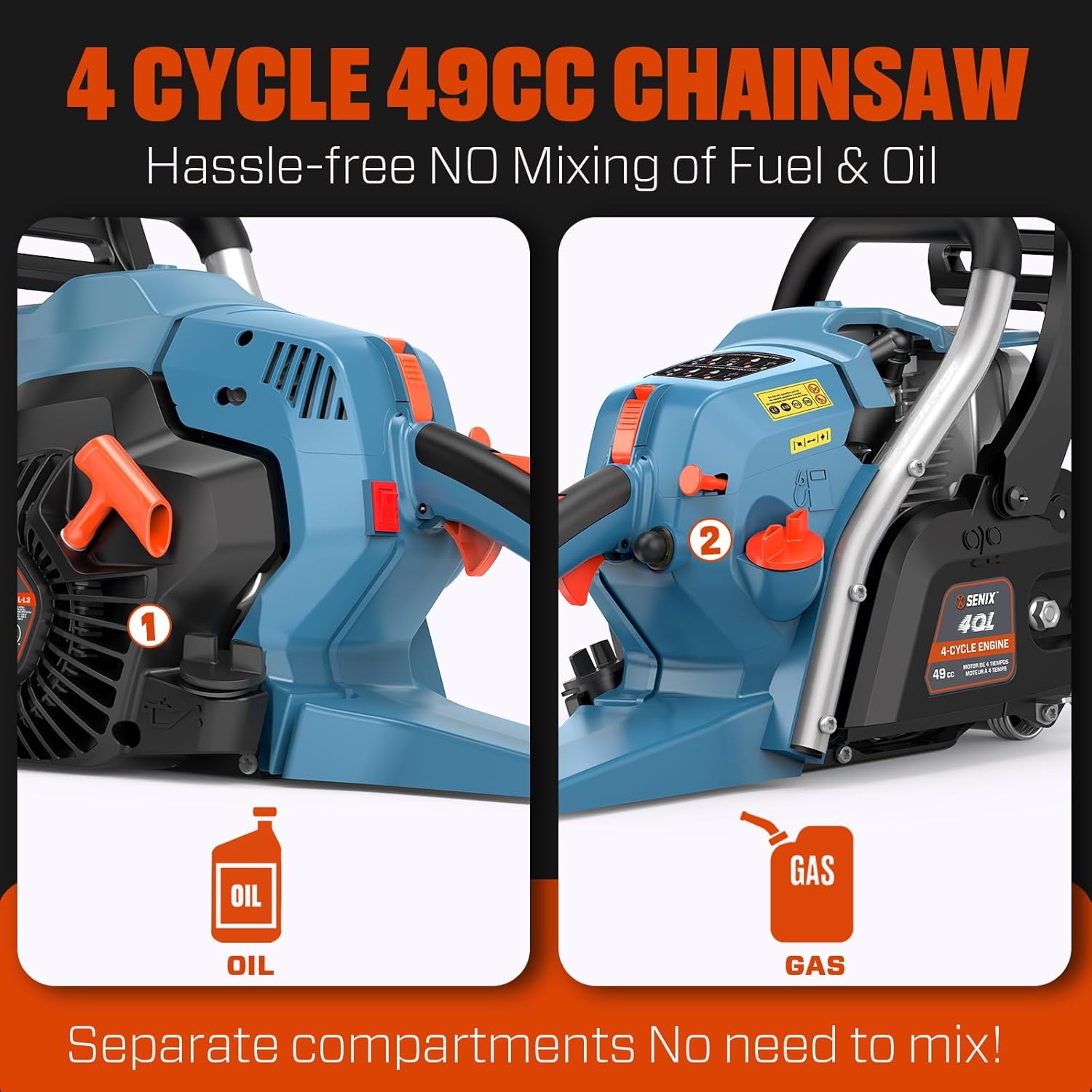

Image: The SENIX 4-Cycle 49cc Chainsaw highlights its separate oil and gas compartments, eliminating the need for fuel mixing.

Imagem: Acimaview of key features such as Patented 4QL Technology, 49cc engine, auto oiling, and side-mounted tensioner.

3. O que está incluído

Your SENIX CS4QL-L1 18-inch Gas Chainsaw package includes the following components:

• SENIX CS4QL-L1 Gas Chainsaw (1 unit)
• Barra e corrente de 18 polegadas
• Bar and Chain Cover (Scabbard)
• Chave Torx
• Scrench Tool
• 3.38 oz bottle of 4-cycle engine oil
• Manual de instruções

Image: The SENIX 18-inch 49cc Gas Chainsaw with its bar and chain, ready for assembly.

4. Configuração e Montagem

Follow these steps to safely assemble and prepare your chainsaw for operation. Always wear protective gloves during assembly.

4.1 Desembalagem

1. Abra a caixa do produto com cuidado.
2. Remove the chainsaw, bar and chain cover, tool kit, and instruction manual from the packaging.
3. Inspect all components for any damage. If any parts are damaged or missing, contact SENIX customer service.

Video: Unpacking the SENIX CS4QL-L1 Chainsaw and its components.

4.2 Instalação de Corrente e Barra

Refer to the video below for a visual guide on installing the chain and bar. Ensure you wear protective gloves throughout this process.

1. Using the provided scrench tool, remove the two screws securing the chain cover. Remove the chain cover.
2. Install the guide bar onto the studs, ensuring it sits correctly over the drive sprocket.
3. Carefully place the chain around the drive sprocket and guide bar. Ensure the cutting edges of the chain teeth are facing the correct direction (refer to the directional arrow on the guide bar).
4. Reinstall the chain cover and loosely tighten the two screws.
5. Adjust the chain tension using the side-mounted tensioner screw. The chain should be snug against the guide bar but still able to be pulled freely by hand. Lift the tip of the guide bar slightly while tightening the tensioner screw.
6. Once the tension is correct, fully tighten the two chain cover screws.

Video: Detailed instructions on how to install the chain and guide bar for the CS4QL-L1 and CS4QL-L3 chainsaws.

4.3 Adicionando Óleo do Motor

The SENIX 4QL engine requires 4-cycle engine oil. Do NOT mix with gasoline.

1. Place the chainsaw on a flat, bare surface.
2. Unscrew the engine oil cap.
3. Carefully pour 100ml of the provided 4-cycle engine oil into the engine oil tank. Do not overfill.
4. Replace the engine oil cap and hand tighten securely.

Image: Visual representation of the chainsaw's specifications, including oil tank capacity.

4.4 Adição de Combustível

The SENIX 4QL engine uses straight gasoline. Do NOT mix with oil.

1. Ensure the engine is cool before adding fuel.
2. Desaparafuse a tampa do combustível.
3. Carefully pour fresh, unleaded gasoline into the fuel tank, avoiding spillage.
4. Immediately replace the fuel cap and hand tighten.
5. Wipe up any fuel spillage immediately with a clean cloth.

4.5 Adding Bar & Chain Oil

The automatic oiler system requires bar and chain oil for proper lubrication of the guide bar and chain.

1. Unscrew the bar and chain oil cap.
2. Fill the chain oil tank with appropriate bar and chain oil.
3. Replace the bar and chain oil cap and hand tighten securely.

Image: The automatic oiler system provides continuous lubrication to the bar and chain.

5. Instruções de operação

This section details the procedures for starting and stopping your SENIX chainsaw.

5.1 Starting a Cold Engine

If the engine is cold or has not been run for several hours, follow these steps:

1. Coloque a motosserra sobre uma superfície plana e estável.
2. Press the primer bulb 10 times until fuel is visible in the primer bulb and fuel line.
3. Pull the choke knob all the way out to the FULL CHOKE position.
4. Hold the product firmly on the top handle and insert your foot into the rear handle safeguard for stability.
5. Pull the starter rope up to 5 times until the engine briefly fires or attempts to start.
6. Push the choke knob in. The choke is now in the Run position.
7. Rapidly pull the starter rope until the engine starts. If the engine does not start, squeeze the trigger to take the choke off and follow the warm start procedure.
8. Allow the engine to warm up for a few moments before beginning operation.

Video: Demonstrates the steps for starting a cold engine on the SENIX chainsaw.

5.2 Starting a Warm Engine

If the engine is warm or has been recently run, follow these steps:

1. Coloque a motosserra sobre uma superfície plana e estável.
2. Press the primer bulb 5 times until fuel is visible in the primer bulb and fuel line.
3. Pull the choke knob all the way out to the FULL CHOKE position.
4. Push the choke knob in. The choke is now in the Run position.
5. Rapidly pull the starter rope until the engine starts. If the engine does not start, squeeze the trigger to take the choke off.

Video: Demonstrates the steps for starting a warm engine on the SENIX chainsaw.

5.3 Desligando

Para desligar o motor:

1. Solte o gatilho do acelerador.
2. Press the engine stop switch to the 'OFF' position.

Video: Shows how to properly shut down the SENIX chainsaw using the stop button.

6. Manutenção

Regular maintenance is crucial for the longevity and safe operation of your chainsaw. Always ensure the engine is off and cool before performing any maintenance.

• Afiação de corrente: A sharp chain is essential for safe and efficient cutting. Sharpen the chain regularly or replace it when dull.
• Tensão da corrente: Check chain tension before each use and adjust as needed. A loose chain can derail and cause injury.
• Manutenção da barra guia: Limpe regularmente a ranhura da barra guia e os orifícios de lubrificação. Vire a barra guia periodicamente para garantir um desgaste uniforme.
• Filtro de ar: Clean the air filter frequently, especially when working in dusty conditions. A clogged air filter can reduce engine performance.
• Vela de ignição: Inspecione a vela de ignição periodicamente. Limpe-a ou substitua-a se estiver suja ou gasta.
• Limpeza geral: Keep the chainsaw clean from sawdust, debris, and oil residue.

7. Solução De Problemas

This section provides solutions for common issues you might encounter with your chainsaw.

If you encounter issues not listed here or if the suggested solutions do not resolve the problem, please contact SENIX customer support.

8. Especificações

9. Garantia e suporte

The SENIX CS4QL-L1 18-inch Gas Chainsaw is covered by a Garantia limitada de 2 ano a partir da data da compra. Esta garantia cobre defeitos em materiais e mão de obra sob uso normal.

For warranty claims, technical assistance, or to purchase replacement parts, please contact SENIX customer support through their official website ou as informações de contato fornecidas na embalagem do seu produto.

Guarde seu comprovante de compra para validação da garantia.
