DROK 5V to 12V Step Up Converter Instruction Manual

Introdução

The DROK 5V to 12V Step Up Converter is a robust and waterproof DC-DC boost converter designed to efficiently convert an input voltage range of 5-11V DC to a stable 12V DC output. This device is engineered for reliability in various demanding environments, featuring a durable aluminum shell for enhanced heat dissipation and protection against environmental factors. It is suitable for a wide array of applications, including automotive systems, solar power setups, and industrial equipment.

Especificações

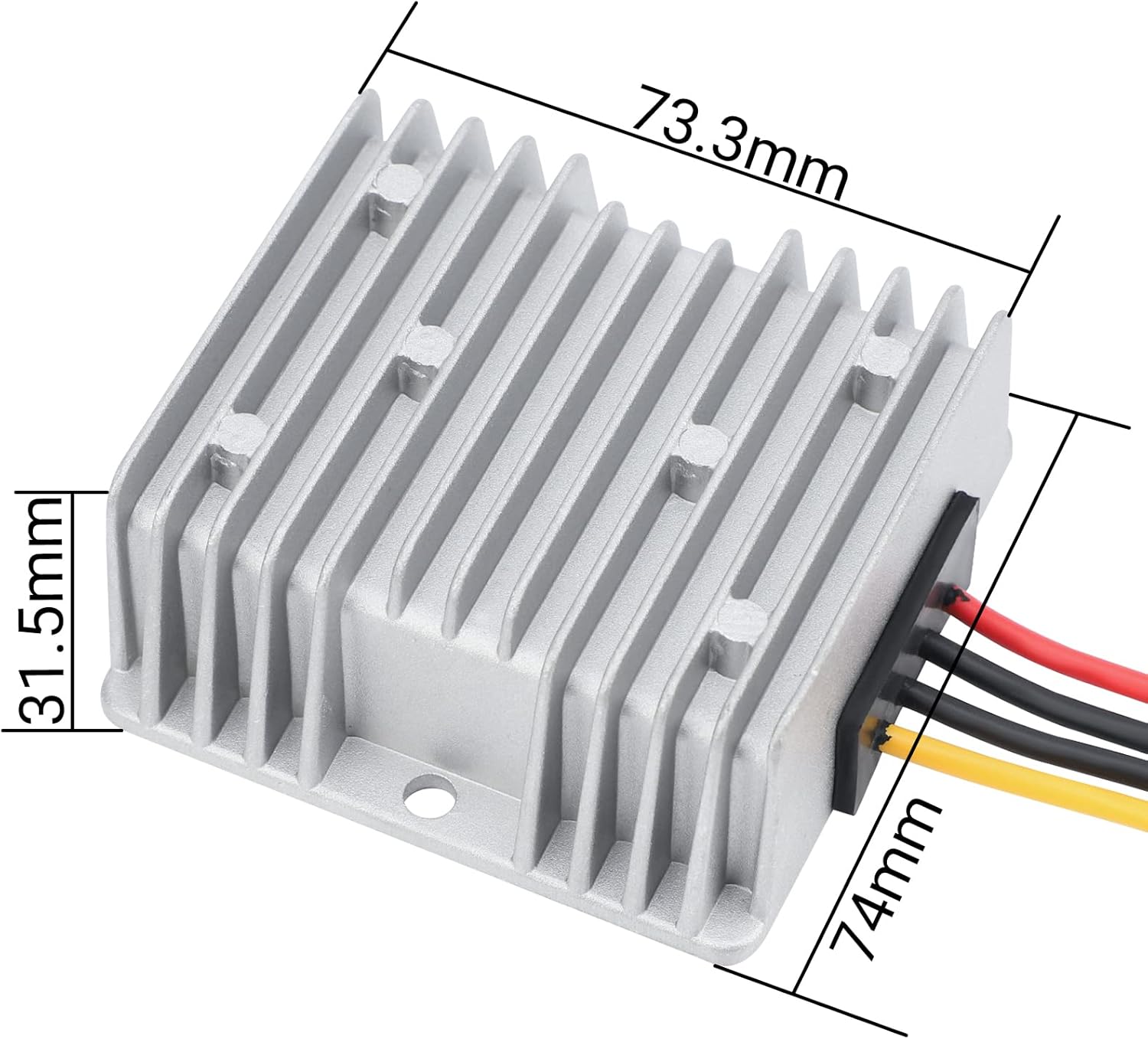

Image: Converter dimensions for installation planning.

Características do produto

• Volume de entrada amplotage Faixa: Accepts DC 5-11V, converting to a stable 12V output.
• Saída de alta potência: Delivers up to 10A current and 120W power.
• Alta eficiência de conversão: Achieves over 93% power transfer efficiency, minimizing energy loss.
• Construção durável: Features a waterproof, dustproof, moisture-proof, and shockproof design, making it suitable for harsh working environments.
• Invólucro de alumínio: O robusto alumínio casing provides superior heat dissipation and structural integrity compared to plastic enclosures.
• Proteção integrada: Includes essential safety features such as over-current protection, overheat protection, and instant high voltage protection for safe and reliable operation.

Configurar

Proper wiring is crucial for the safe and effective operation of the converter. Follow the instructions below carefully:

1. Conexão de entrada: Conecte o Fio vermelho to the positive (+) terminal of your DC 5-11V power source. Connect the Fio preto (from the input side) to the negative (-) terminal of your DC 5-11V power source.
2. Conexão de saída: Conecte o Fio amarelo to the positive (+) terminal of your 12V DC load. Connect the Fio preto (from the output side) to the negative (-) terminal of your 12V DC load.

Ensure all connections are secure and that polarity is correct before applying power. Incorrect wiring can damage the converter and connected devices.

Image: The converter showing input (IN) and output (OUT) wiring terminals. Red and black wires for input, yellow and black wires for output.

Instruções de operação

Once properly installed, the DROK 5V to 12V Step Up Converter operates automatically. Observe the following guidelines for optimal performance:

• Ligar: After making all connections, apply power to the input side. The converter will automatically boost the voltage to a stable 12V DC.
• Gerenciamento de carga: Ensure that the total current draw of your connected 12V devices does not exceed the converter's maximum output current of 10A or power of 120W. Exceeding these limits may trigger the built-in protection mechanisms.
• Condições ambientais: The converter is designed to operate in a wide temperature range (-40 to +85 ℃) and is waterproof. However, avoid submerging it for extended periods or exposing it to corrosive liquids.
• Aplicações: Este volumetage regulator module is suitable for various applications such as car audio systems, radio equipment, walkie-talkie monitoring, electric fans, solar panels, photovoltaic panels, motors, and other industrial equipment requiring a stable 12V supply from a lower voltage fonte.

Manutenção

The DROK 5V to 12V Step Up Converter is designed for low maintenance. Adhering to these simple practices will help ensure its longevity:

• Inspeção de conexão: Periodically inspect all wiring connections to ensure they remain secure and free from corrosion or damage. Loose connections can lead to poor performance or overheating.
• Limpeza: While the device is dustproof, keeping the exterior clean from excessive dirt or debris can help maintain optimal heat dissipation. Use a dry, soft cloth for cleaning.
• Proteção Física: Although shockproof, avoid exposing the converter to severe physical impacts that could compromise its internal components or waterproof seal.
• Verificações ambientais: Ensure the operating environment remains within the specified temperature range.

Solução de problemas

If you encounter issues with your DROK 5V to 12V Step Up Converter, refer to the following troubleshooting steps:

• Sem Volume de Saídatage:
  • Verifique se o volume de entradatage está dentro da faixa especificada de 5-11 V CC.
  • Check all wiring connections for proper polarity (Red to +, Black to - for input; Yellow to +, Black to - for output) and ensure they are securely fastened.
  • The converter features over-current protection. If the connected load exceeds 10A or 120W, the device may shut off the output to prevent damage. Disconnect the input power briefly and then reconnect it to reset the protection. Reduce the load if this was the cause.
• Superaquecimento:
  • Ensure there is adequate airflow around the converter. Although its aluminum shell aids in heat dissipation, prolonged operation at maximum load in confined or poorly ventilated spaces can lead to excessive heat.
  • Confirm that the connected load does not exceed the converter's maximum specifications.
• Unstable Output Voltage:
  • Check the stability of your input power source. Fluctuations in input voltage can sometimes affect output stability.
  • Ensure connections are solid and free from intermittent contact.

Garantia e Suporte

DROK is committed to providing high-quality products and customer satisfaction. This product comes with a one-year service period a partir da data da compra.

• Cobertura da garantia: If you experience any quality issues with your DROK 5V to 12V Step Up Converter within the one-year service period, you may be eligible for a brand new replacement.
• Suporte ao cliente: For detailed warranty claims, technical assistance, or any other inquiries, please visit the official Loja DROK na Amazon ou entre em contato diretamente com nossa equipe de atendimento ao cliente.
