Introdução
This manual provides instructions for the assembly, operation, and maintenance of your GIANTEX 4-Panel Rolling Room Divider, Model MY43056. This product is designed to offer flexible space division and privacy in various indoor environments. Please read these instructions carefully before assembly and use to ensure safe and proper operation.
Instruções de segurança
- Verifique se todas as peças estão presentes e sem danos antes da montagem. Não utilize o produto se alguma peça estiver faltando ou quebrada.
- Assemble the room divider on a soft, clean surface to prevent scratches.
- Mantenha crianças e animais de estimação afastados durante a montagem. Peças pequenas podem representar risco de asfixia.
- Do not climb on or hang from the room divider. This product is not designed to support human weight.
- Always lock the wheels when the divider is in its desired position to prevent accidental movement.
- Evite colocar o divisor em áreas de grande circulação, onde ele possa ser facilmente derrubado.
- Do not expose the product to extreme temperatures or direct sunlight for prolonged periods, as this may damage the fabric or frame.
Conteúdo da embalagem
Verifique se todos os componentes listados abaixo estão incluídos em seu pacote:
- 4 x Fabric Panels
- Metal Frame Components (Vertical and Horizontal bars)
- 10 x Universal Wheels (with brakes)
- Connecting Buckles (for panel articulation)
- Ferragens de montagem (parafusos, chave inglesa)
- Manual de instruções
Instruções de montagem
Follow these steps to assemble your GIANTEX 4-Panel Rolling Room Divider:
- Descompacte os componentes: Retire cuidadosamente todas as peças da embalagem e disponha-as sobre uma superfície limpa e plana. Identifique cada componente utilizando a lista de peças.
- Assemble Panel Frames: For each panel, connect the vertical and horizontal metal frame components. Ensure all connections are secure.
- Attach Fabric Panels: Slide the polyester fabric panels onto the assembled frames. Ensure the fabric is taut and evenly distributed.
- Painéis de conexão: Use the provided connecting buckles to join the individual panels. These buckles allow for 360-degree rotation, offering flexible arrangement options.
- Instale as rodas: Attach the 10 universal wheels to the bottom of the frame bases. Ensure all wheels are securely fastened. Each wheel is equipped with a brake mechanism.
Figure 1: Detail of the 360-degree rotating connect buckle and folding options.
Figure 2: The room divider with its 10 lockable casters.
Instruções de operação
- Moving the Divider: To move the room divider, unlock all 10 wheels by flipping their brake levers to the 'unlocked' position. Gently push or pull the divider to its desired location.
- Fixando o divisor: Once the divider is in place, lock all 10 wheels by flipping their brake levers to the 'locked' position. This prevents unintended movement and ensures stability.
- Folding and Configuration: The panels are connected with 360-degree rotating buckles, allowing for various configurations such as L-shape, W-shape, or C-shape. To fold for storage, simply collapse the panels together.
Manutenção
- Limpeza do tecido: The polyester fabric can be spot cleaned with a damp cloth and mild detergent. Avoid harsh chemicals or abrasive cleaners. Allow to air dry completely.
- Limpando a moldura: Limpe a estrutura metálica com um pano macio e seco.amp pano. Seque imediatamente para evitar ferrugem.
- Inspeção regular: Periodically check all screws and connections to ensure they are tight. Re-tighten if necessary, especially after frequent movement.
Figure 3: Details of the durable polyester fabric, reinforced metal frame, and stable bottom base.
Solução de problemas
| Problema | Possível causa | Solução |
|---|---|---|
| O divisor está instável ou bambo. | Parafusos soltos ou piso irregular. | Check and tighten all assembly screws. Ensure the divider is on a flat, level surface. |
| Difficulty moving the divider. | As rodas estão travadas ou obstruídas. | Ensure all wheel brakes are in the 'unlocked' position. Check for any debris obstructing the wheels. |
| Panels do not fold smoothly. | Connecting buckles are stiff or misaligned. | Gently manipulate the buckles to ensure they rotate freely. Apply a small amount of silicone spray if necessary (avoiding fabric). |
Especificações
- Modelo: MY43056
- Marca: GIANTEX
- Dimensions (Fully Extended): Approximately 225 cm (Length) x 173 cm (Height) x 0.03 cm (Panel Thickness)
- Peso: 8.86 kg
- Número de painéis: 4
- Material: Powder-coated Metal Frame, Polyester Fabric
- Características: Foldable, Rollable, 360-degree Rotating Connecting Buckles, 10 Lockable Universal Wheels
- Cor: Bege

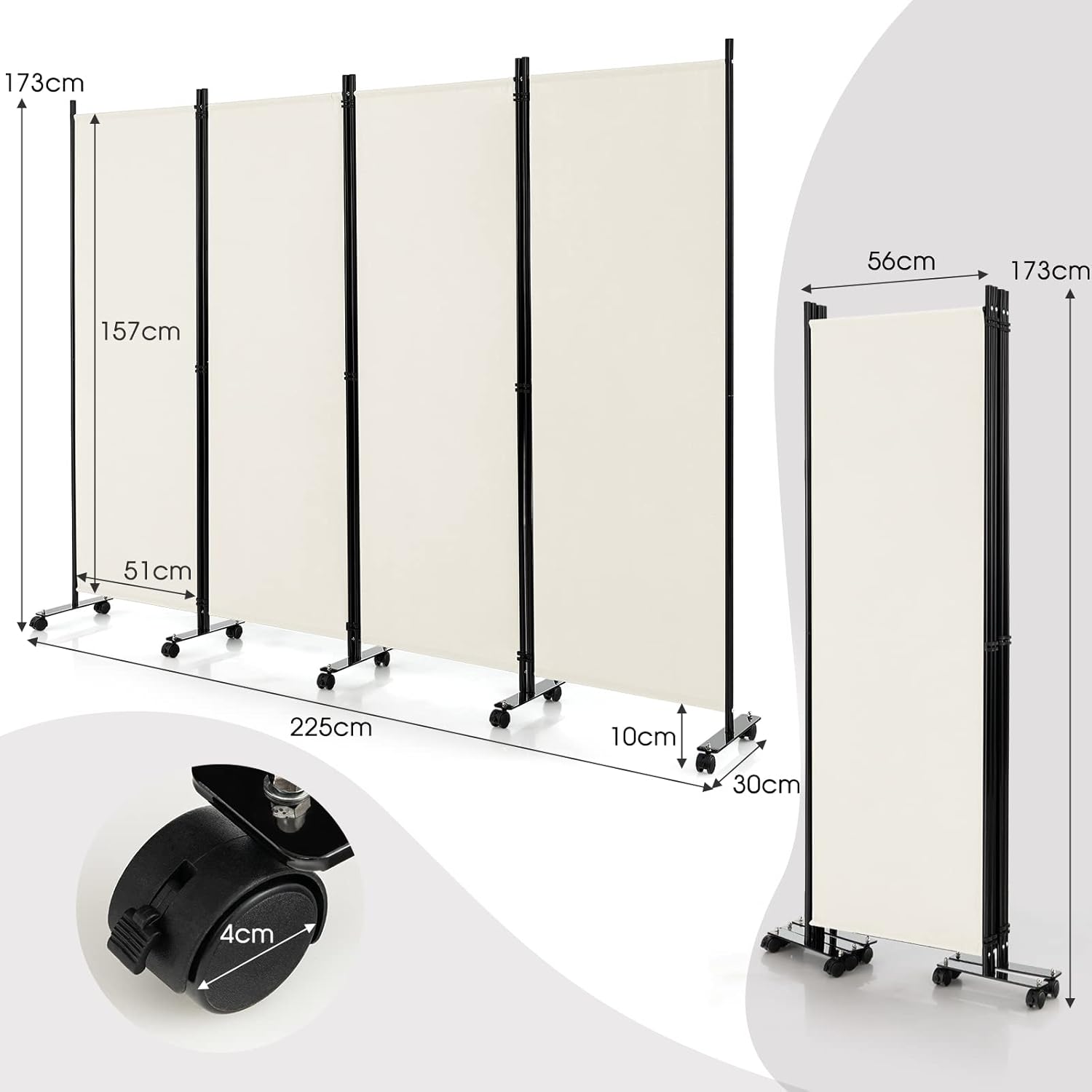

Figura 4: Dimensional sobreview of the room divider.
Garantia e Suporte
For warranty information or technical support, please refer to the documentation included with your purchase or contact GIANTEX customer service directly. Contact details can typically be found on the product packaging or the official GIANTEX website.
