1. Introdução
This manual provides essential information for the safe and effective installation, operation, and maintenance of the LiftMaster C48D06F21 3/4 HP Garage Door Opener Motor. This motor is a commercial replacement part designed for specific LiftMaster garage door opener systems. Please read this manual thoroughly before proceeding with any installation or service.
2. Informações de segurança
AVISO: Risco de choque elétrico ou ferimentos.
- Always disconnect power to the garage door opener system before attempting any installation, maintenance, or repair.
- Installation should only be performed by qualified personnel familiar with electrical systems and garage door opener mechanics.
- Utilize equipamento de proteção individual adequado, incluindo óculos de segurança e luvas.
- Be aware of moving parts during operation and avoid contact.
- Certifique-se de que todas as conexões elétricas estejam seguras e em conformidade com as normas elétricas locais.
3. Especificações do produto
The LiftMaster C48D06F21 motor is a robust component designed for commercial garage door opener applications. Key specifications are detailed below:
- Potência (HP): 3 / 4 HP
- Volumetage: 115-208 / 230V
- Revoluções por minuto (RPM): 1725 RPM
- Quadro: 56Y
- Material: Liga de aço
- Peso do item: Approximately 5.51 pounds (2500 Grams)
- Números de peça: C48D06F21, K20-1075B-2LP, 20-1075B-2LP, EMN-016604
- Compatible Operators: Logic 3, Logic 4, Logic 5.0 Operators (e.g., J751L5, H751L5, HJ751L5)
- Recurso: Instant Reverse capability
Image 1: The LiftMaster C48D06F21 3/4 HP Garage Door Opener Motor, showing its main body, wiring, and shaft.

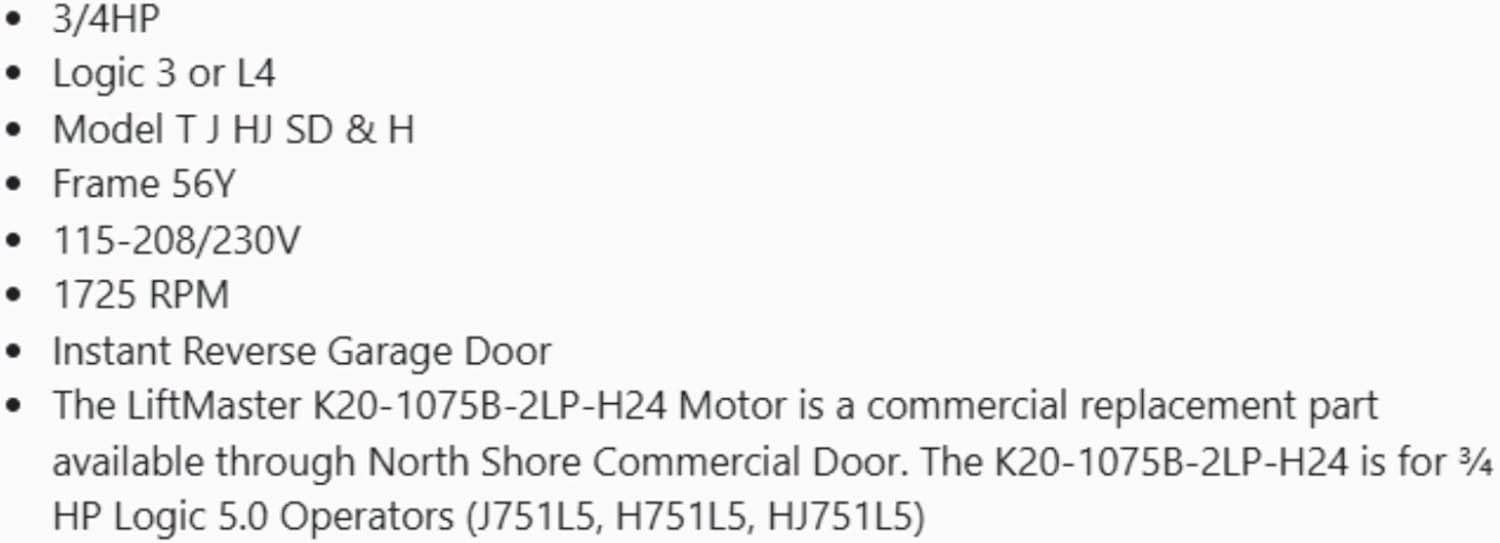

Image 2: A visual representation of key specifications for the LiftMaster K20-1075B-2LP motor, including horsepower, logic compatibility, frame type, voltage, e RPM.
4. Configuração e instalação
This motor is a replacement component. Refer to the specific installation manual for your existing LiftMaster garage door opener system for detailed instructions. The following are general steps:
- Desconexão de energia: Ensure the main power supply to the garage door opener is completely disconnected at the circuit breaker.
- Acesso ao motor: Carefully open the housing of your garage door opener to access the existing motor.
- Desconecte a fiação: Document and carefully disconnect all wiring from the old motor. Pay close attention to wire colors and terminal locations.
- Remova o motor antigo: Unbolt and remove the old motor from its mounting brackets.
- Instalar novo motor: Position the new C48D06F21 motor into the mounting brackets and secure it with appropriate fasteners.
- Conectar a fiação: Reconnect all wiring to the new motor, matching the connections documented from the old motor. Ensure all connections are tight and secure.
- Remontar e testar: Close the opener housing. Restore power and follow your garage door opener's manual for initial setup and testing procedures, including limit switch adjustments and safety reversal tests.
5. Instruções de operação
The C48D06F21 motor functions as an integral part of your LiftMaster garage door opener system. Its operation is controlled by the main opener unit and its associated accessories (e.g., wall control, remote controls, safety sensors).
- Refer to the instruction manual provided with your specific LiftMaster garage door opener model for detailed operating procedures.
- Ensure all safety features, such as photo-electric sensors, are correctly installed and functioning before operating the garage door.
- The motor's instant reverse feature is designed to enhance safety by reversing the door's direction if an obstruction is detected during closing.
6. Manutenção
Regular maintenance helps ensure the longevity and reliable performance of your garage door opener motor.
- Inspeção anual: Annually inspect the motor for any signs of wear, damage, or loose connections.
- Limpeza: Keep the motor and surrounding area free from dust, debris, and obstructions. Use a dry cloth or compressed air for cleaning.
- Conexões elétricas: Periodically check that all electrical connections to the motor are secure and free from corrosion.
- Serviço profissional: For any complex maintenance or if unusual noises or performance issues arise, consult a qualified garage door technician.
7. Solução De Problemas
If you experience issues with your garage door opener after motor replacement, consider the following troubleshooting steps:
| Sintoma | Possível causa | Solução |
|---|---|---|
| O motor não funciona | No power, loose wiring, faulty control board | Check power supply, circuit breaker. Verify all wiring connections. Consult opener manual for control board diagnostics. |
| Ruídos incomuns vindos do motor | Worn bearings, internal damage, obstruction | Disconnect power and inspect for obstructions. If noise persists, professional inspection is recommended. |
| Motor superaquece | Excessive use, improper voltage, mechanical binding in door system | Allow motor to cool. Check for proper voltage supply. Inspect garage door for smooth operation; lubricate moving parts if necessary. |
| A porta inverte o sentido inesperadamente. | Safety sensors misaligned, obstruction, force settings too high | Check and align safety sensors. Clear any obstructions. Refer to opener manual for adjusting force settings. |
For issues not resolved by these steps, it is advisable to contact a certified LiftMaster service technician.
8. Garantia e Suporte
For warranty information regarding the LiftMaster C48D06F21 motor, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty terms typically cover manufacturing defects for a specified period.
For technical support or service inquiries, please contact LiftMaster customer service or an authorized LiftMaster dealer. You may also visit the official LiftMaster Store para obter informações adicionais sobre produtos e recursos.
