Introdução
The Chipolino Quick Fold 2-in-1 Tricycle is designed to grow with your child, offering versatility as both a parent-pushed ride and an independent tricycle. It is suitable for children from 18 months up to a maximum weight of 25 kg. This manual provides essential information for safe assembly, operation, and maintenance of your tricycle. Please read it thoroughly before use and retain it for future reference.
Informações de segurança
- Supervisão de um adulto necessária: Always supervise your child when using the tricycle.
- Limite de peso: Não exceda o limite de peso máximo de 25 kg.
- Recomendação de idade: Suitable for children aged 18 months and older.
- Equipamento de proteção: Ensure your child wears appropriate protective gear, such as a helmet, when riding independently.
- Conscientização sobre os riscos: Do not use near stairs, on steep slopes, near roads, or in areas with heavy traffic.
- Utilização do arnês: Always secure your child with the 5-point safety harness when using the parent-push mode.
- Freios: Ensure the rear wheel brakes are engaged when parking the tricycle.
- Conjunto: Certifique-se de que todas as peças estejam montadas corretamente e firmemente fixadas antes de cada utilização.
- Manutenção: Regularly check for loose parts, damage, or wear. Do not use if any part is damaged.
Conteúdo da embalagem
Please check that all components are present and undamaged upon opening the package.
- Tricycle Frame with Seat
- Front Wheel with Deactivatable Pedals
- Rodas Traseiras (2)
- Push Handle (Height-Adjustable)
- Foldable Canopy
- Front Safety Bar
- Cesta Dianteira
- Cesta traseira
- Manual do usuário (este documento)
Configuração e montagem
The Chipolino Quick Fold Tricycle features a convenient click system for easy assembly. Follow these steps to set up your tricycle.
- Desdobrando a moldura: Carefully unfold the main tricycle frame until it locks into place. Ensure all locking mechanisms are engaged.
- Anexando rodas traseiras: Insert the rear wheels into their respective axles until you hear a "click," indicating they are securely fastened. The quick-release mechanism allows for easy removal later.
- Fixação da roda dianteira: Slide the front wheel assembly into the fork until it clicks into place. Ensure the wheel cover is correctly positioned to prevent feet from getting caught.
- Installing Push Handle: Insert the height-adjustable push handle into the designated slot at the rear of the tricycle. Adjust to a comfortable height and secure it.
- Mounting Front Safety Bar: Attach the front safety bar to the sides of the seat. Ensure it is securely latched.
- Fixação da cobertura: Fix the foldable canopy to the designated points above the seat.
- Installing Baskets: Attach the front and rear baskets to their respective positions.
Image: Fully assembled Chipolino Quick Fold 2-in-1 Tricycle, showcasing its design with canopy, push handle, and baskets.
Image: A collage of four images demonstrating various seat and canopy adjustments, including different recline positions and canopy angles.
Instruções de operação
1. Parent-Push Mode (18+ months)
- Orientação do assento: The seat can be set to face forward or parent-facing. To change the orientation, locate the release mechanism under the seat, rotate the seat, and ensure it locks securely in place.
- Reclinação do assento: Adjust the backrest to a comfortable position for your child. In parent-facing mode, the seat can be reclined to a lying position.
- Pedal Deactivation: To prevent your child's feet from interfering while you push, deactivate the front wheel pedals. This allows the pedals to spin freely without moving the wheel.
- Aproveitar: Always secure your child with the 5-point safety harness.
- Marquise: Adjust the foldable canopy to provide shade as needed.
- Alavanca de empurrar: Adjust the height of the push handle for comfortable steering. The handlebar can also be tilted.
2. Independent Tricycle Mode (Child-Driven)
Once your child is old enough and capable of pedaling independently, you can convert the tricycle.
- Remover componentes: Detach the push handle, front safety bar, and canopy. These components are designed for easy removal using the click system.
- Activate Pedals: Engage the front wheel pedals so they drive the wheel when pedaled.
- Ajustar o assento: Ensure the seat is in a forward-facing position and adjusted for your child's comfort and reach to the pedals.
Imagem: Detalhada view of the front wheel, highlighting the pedals and the protective wheel cover designed to prevent small feet from getting caught.
3. Folding for Storage/Transport
The tricycle is designed to fold compactly for easy storage and transport.
- Ensure the seat is in the forward-facing position.
- Collapse the canopy.
- Follow the folding mechanism instructions (refer to visual guides if available) to fold the frame.

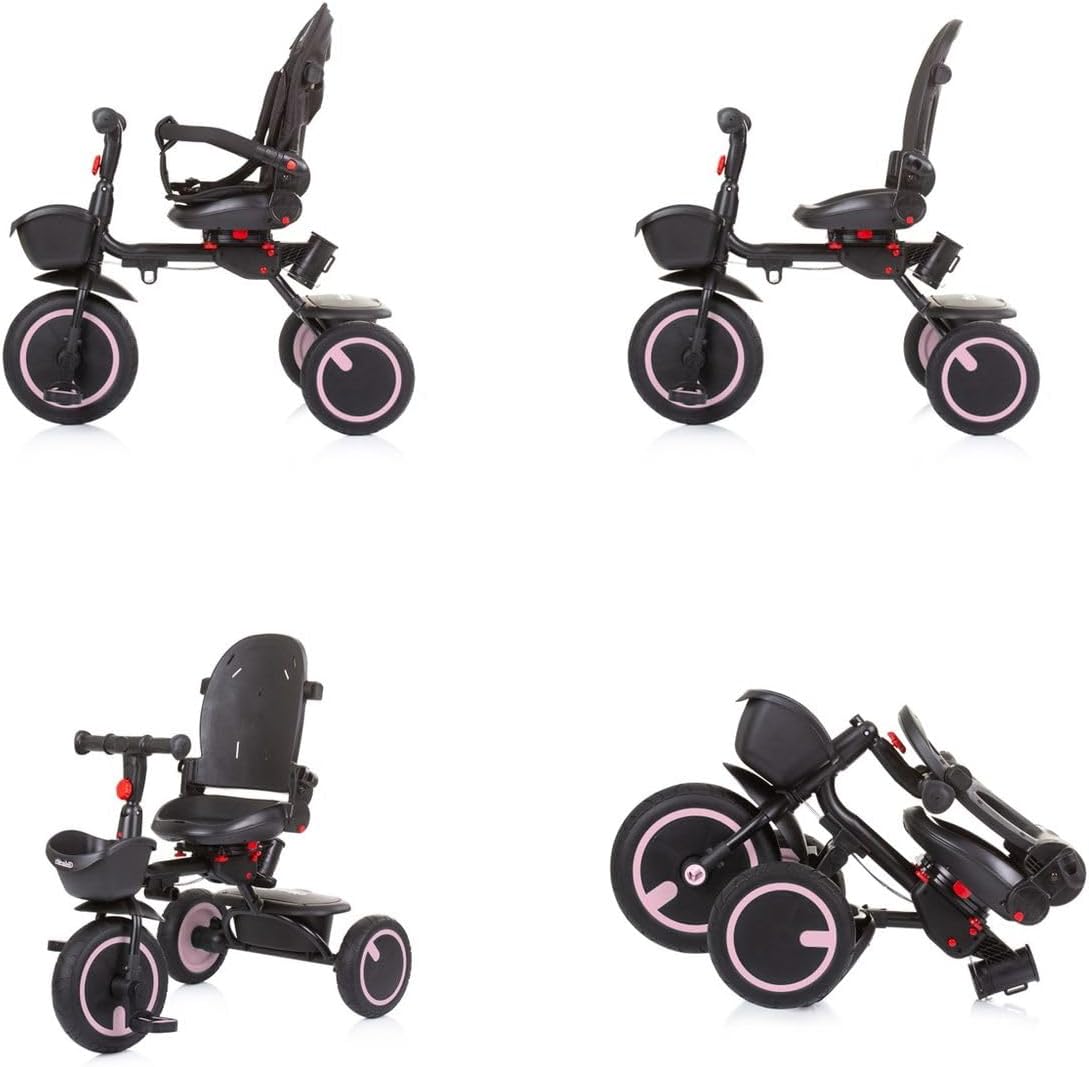

Image: A sequence of images illustrating the transformation of the tricycle from parent-push mode to an independent tricycle, and finally its compact folded state for storage or transport.
4. Using Brakes
The tricycle is equipped with brake pedals on the rear wheels. Press down on these pedals to engage the brakes and ensure the tricycle remains stationary. Always engage the brakes when parking or when the child is getting on or off.
Imagem: Traseira view of the tricycle, clearly showing the two rear wheels and the brake pedals located above them.
Manutenção
- Limpeza: Limpe o triciclo regularmente com um produto de limpeza.amp cloth and mild soap. Do not use abrasive cleaners. The textile seat can be wiped clean.
- Inspeção: Periodically check all screws, bolts, and locking mechanisms to ensure they are tight and secure.
- Rodas: Inspect the polyurethane wheels for wear or damage.
- Armazenar: Store the tricycle in a dry place, away from direct sunlight and extreme temperatures, to prolong its lifespan.
- Cuidados com o tecido: The seat fabric is 100% polyester. Refer to any specific care labels if present.
Solução de problemas
| Problema | Possível causa | Solução |
|---|---|---|
| Tricycle does not fold correctly. | Seat not in correct position; locking mechanism obstructed. | Ensure the seat is forward-facing. Check for any obstructions in the folding mechanism. Refer to folding instructions. |
| Pedals not engaging/disengaging. | Pedal activation/deactivation switch not fully engaged. | Ensure the pedal switch on the front wheel is fully pushed into the desired position (active or deactivated). |
| Wheels feel loose or wobbly. | Wheels not fully clicked into place; axle nut loose. | Press wheels firmly until they click. Check for any loose nuts or bolts on the axles. Do not use if wheels are not secure. |
| Push handle is unstable. | Handle not fully inserted or secured. | Ensure the push handle is fully inserted into its slot and the locking mechanism is engaged. |
Especificações
- Modelo: TRKQF025RW
- Idade recomendada: 18 meses ou mais
- Capacidade Máxima de Peso: 25 kg
- Dimensões do produto (desdobrado): 102 cm (C) x 51 cm (L) x 98 cm (A)
- Dimensões do produto (dobrado): 70 cm (C) x 51 cm (L) x 50 cm (A)
- Peso do produto: 8.4 kg
- Materiais principais: Plastic, Metal, 100% Polyester (fabric)
- Material da roda: Poliuretano
- Tipo de arnês: 5 ponto
- Montagem necessária: Sim
Garantia e Suporte
Information regarding specific warranty terms is not provided in this document. Please refer to your purchase receipt or contact the retailer where you purchased the Chipolino Quick Fold 2-in-1 Tricycle for warranty details.
For further assistance, technical support, or to inquire about spare parts, please contact Chipolino customer service or the authorized distributor in your region. Contact information can typically be found on the product packaging or the official Chipolino website.
