1. Produto acabadoview
The MELLCOM Louvered Pergola is designed to enhance your outdoor living space with its durable aluminum construction and realistic wood-grain finish. It features an adjustable louvered roof, integrated water drainage, and includes waterproof curtains and nets for versatile use and protection.
Image: The MELLCOM Louvered Pergola, 12x20, with its wood-grain finish and curtains, set up in an outdoor patio area.
2. Informações importantes de segurança
Leia e compreenda todas as instruções de segurança antes da montagem e utilização. O não cumprimento destas instruções pode resultar em ferimentos ou danos ao produto.
- Take caution during assembly.
- Certifique-se de que todas as peças estejam bem fixadas.
- Multiple people may be needed to safely move and position the pergola.
- Securely anchor the pergola to a stable, level foundation to prevent tipping or collapse.
3. Especificações do produto
| Atributo | Valor |
|---|---|
| Marca | MELLCOM |
| Material | Alumínio |
| Estilo | Moderno |
| Dimensões do produto (C x L x A) | 227"C x 141"L x 88"A |
| Peso do item | 526 libras |
| Material da estrutura | Alloy Steel, Aluminum, Wood |
| Nível de resistência à água | Impermeável |
| Forma | Quadrado |
| Proteção contra raios ultravioleta | Verdadeiro |
| Montagem necessária | Sim |
| Ocupação | 16 Pessoas |
| Cor | Textura de madeira |
4. Configuração e montagem
4.1 Conteúdo da embalagem
Your MELLCOM Louvered Pergola will be shipped in 6 separate boxes. Due to logistics, these boxes may arrive on different days.
4.2 Assembly Requirements
Assembly is estimated to take 2-4 hours and requires a minimum of 3 people for safe and efficient setup.
Image: Detailed dimensions of the 12x20 pergola, indicating 6 boxes, 3-person assembly, and 2-4 hours estimated time.
4.3 Anchoring the Pergola
It is crucial to securely anchor the pergola to a stable and level foundation using the provided expansion screws. This prevents movement and ensures stability in various weather conditions.
Imagem: Um close-up view of the sturdy anchoring plate at the base of a pergola post, showing where expansion screws are inserted for secure installation.
5. Instruções de operação
5.1 Teto com venezianas ajustáveis
The louvered roof features 4 independently controlled sections, allowing you to customize your shade and weather protection. You can adjust the louvers to achieve an open, sunbathe, closed, or sheltered position.
Image: Visual representation of the louvered roof in open, sunbathe, closed, and shelter positions, demonstrating its adjustability.
To adjust the louvers, use the durable crank handles. These mechanisms are designed for longevity and ease of use, withstanding over 100,000 turns.
Image: A hand operating the crank handle mechanism used to adjust the louvered roof slats.
5.2 Curtains and Nets
The pergola is equipped with detachable curtains and nets. These provide protection against insects, rain, and offer enhanced privacy. The curtains and nets feature upper, middle, and lower straps near the posts to prevent them from flying in strong winds.
Image: The pergola with its curtains and nets deployed, showcasing their protective and privacy features.
Image: Diagram illustrating the versatile uses of the pergola: unobstructed views, insect protection with filtered light, and full protection from elements with enhanced privacy.
6. Manutenção
6.1 Concealed Drainage System
The pergola features a concealed drainage system. Rainwater is collected in purposefully designed channels within the legs and efficiently drains out at the base, dispersing naturally into the ground. This design ensures a drip-free area beneath the pergola.

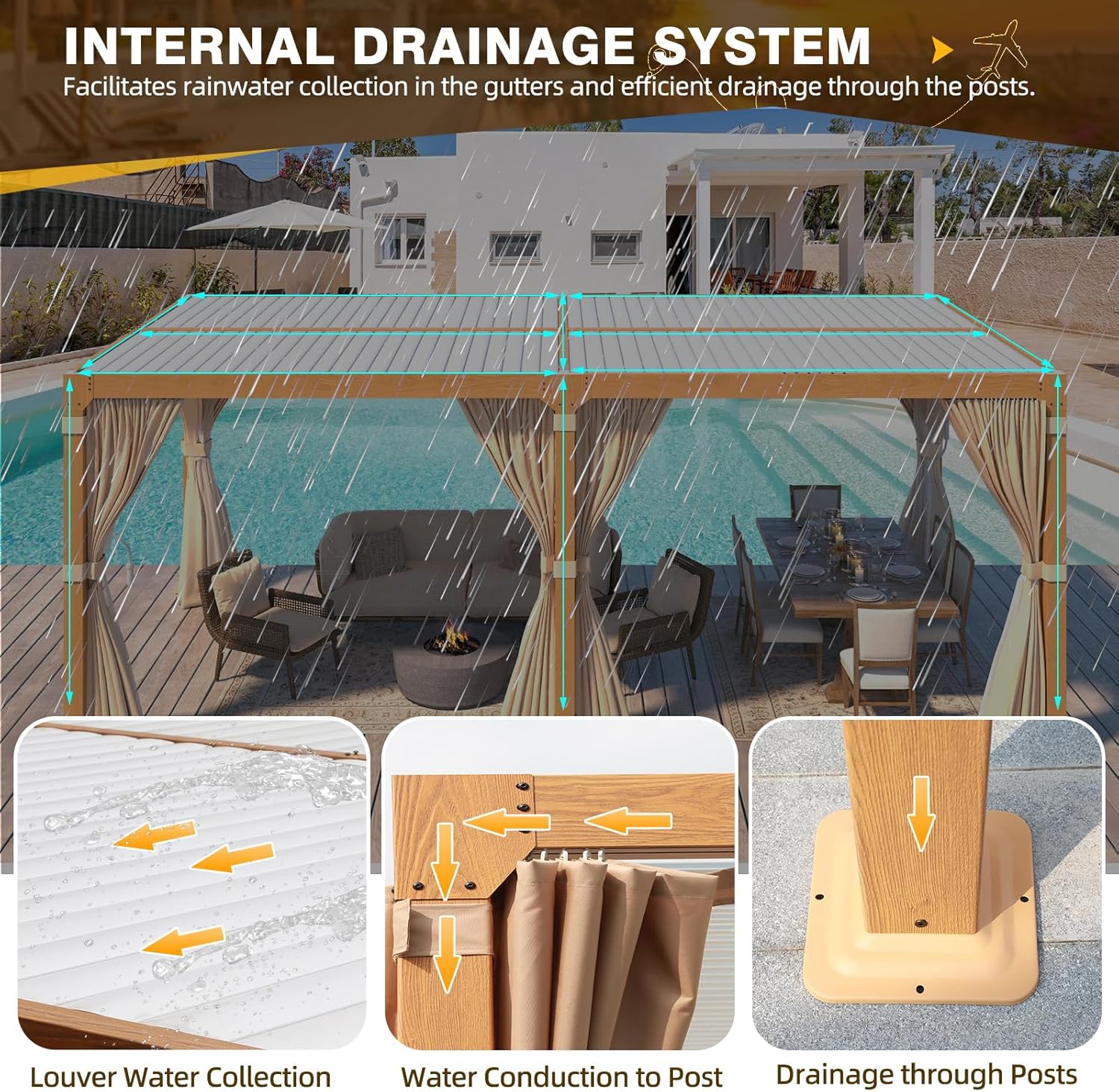

Image: Diagram illustrating the internal drainage system, showing water collection in louvers, conduction through posts, and drainage at the base.
6.2 Cuidados com o Material
The pergola's aluminum frame with a wood-looking finish is designed for low maintenance. It resists rust, corrosion, and UV radiation, ensuring enduring beauty without the worries of warping, rot, or decay.
Image: A comparison showing the realistic wood-grain finish of the MELLCOM pergola's aluminum exterior versus ordinary aluminum/wood materials.
7. Solução De Problemas
While this manual provides general guidance, specific troubleshooting steps for all potential issues are not exhaustive. For common issues or concerns not addressed here, please refer to the detailed assembly guide included with your product or contact customer support.
8. Garantia e Suporte
For detailed warranty information, product support, or to inquire about replacement parts, please contact MELLCOM directly through their official channels or refer to your purchase documentation. You can also visit the official MELLCOM store for more information:
