Introdução
The Nilight 6 Gang Switch Panel is a universal circuit control relay system designed to manage up to six auxiliary electrical devices in various vehicles, including off-road vehicles, ATVs, UTVs, trucks, cars, SUVs, boats, and RVs. This all-in-one system simplifies wiring and provides a centralized control point for your accessories, featuring integrated relays, fuses, and automatic dimmable LED backlighting.
Principais características
- 6-Gang Control: Manages up to six independent 12V DC accessories with a maximum output power of 720 Watts and a maximum input current of 60A.
- Automatic Dimmable Backlight: The switch panel's backlight adjusts automatically based on ambient light conditions, ensuring optimal visibility without glare.
- Etiquetas personalizáveis: Includes 50 reusable stickers to personalize each switch function.
- Recursos de segurança integrados: Equipado com sobrevolumetage, over-current, overheat, and reverse polarity protection for enhanced safety.
- Fácil instalação: Features a plug-and-play wiring harness with an extension cable and two mounting options for flexible setup.
- Design tudo em um: Combines the switch panel, circuit control relay system, fuses, and wiring harness into a compact unit.
Conteúdo da embalagem
Verifique se todos os componentes estão presentes no seu pacote:
- Painel de comutação de 6 gangues
- Circuit Control Box with Relay System
- Wiring Harness with Extension Cable
- Assorted Auto Fuses
- 50 Reusable Switch Labels
- Double-sided Tape for Mounting
- Suporte de montagem ajustável
- Mounting Hardware (Screws, Nuts, Washers, Allen Keys)
Image: All components included in the Nilight 6 Gang Switch Panel package.
Especificações
| Recurso | Especificação |
|---|---|
| Vol de entradatage | 12 V CC |
| Potência Máxima de Saída | 720 W |
| Corrente de entrada máx. | 60A |
| Switch Panel Size | 3.74" x 2.65" |
| Circuit Control Box Size | 6.26" x 3.52" x 3.27" |
| Temperatura de operação | -40°C a +105°C |
| Proteção | Sobre-Voltage, Over-Current, Overheat, Reverse Polarity |
| Classificação IP | IP65 |
| Número do modelo | 90285F |
Configuração e instalação
1. Diagrama de fiação acimaview
The system is designed for straightforward installation. The main components include the switch panel, the circuit control box (containing relays and fuses), and the wiring harness. Ensure your vehicle's battery is disconnected before beginning installation.

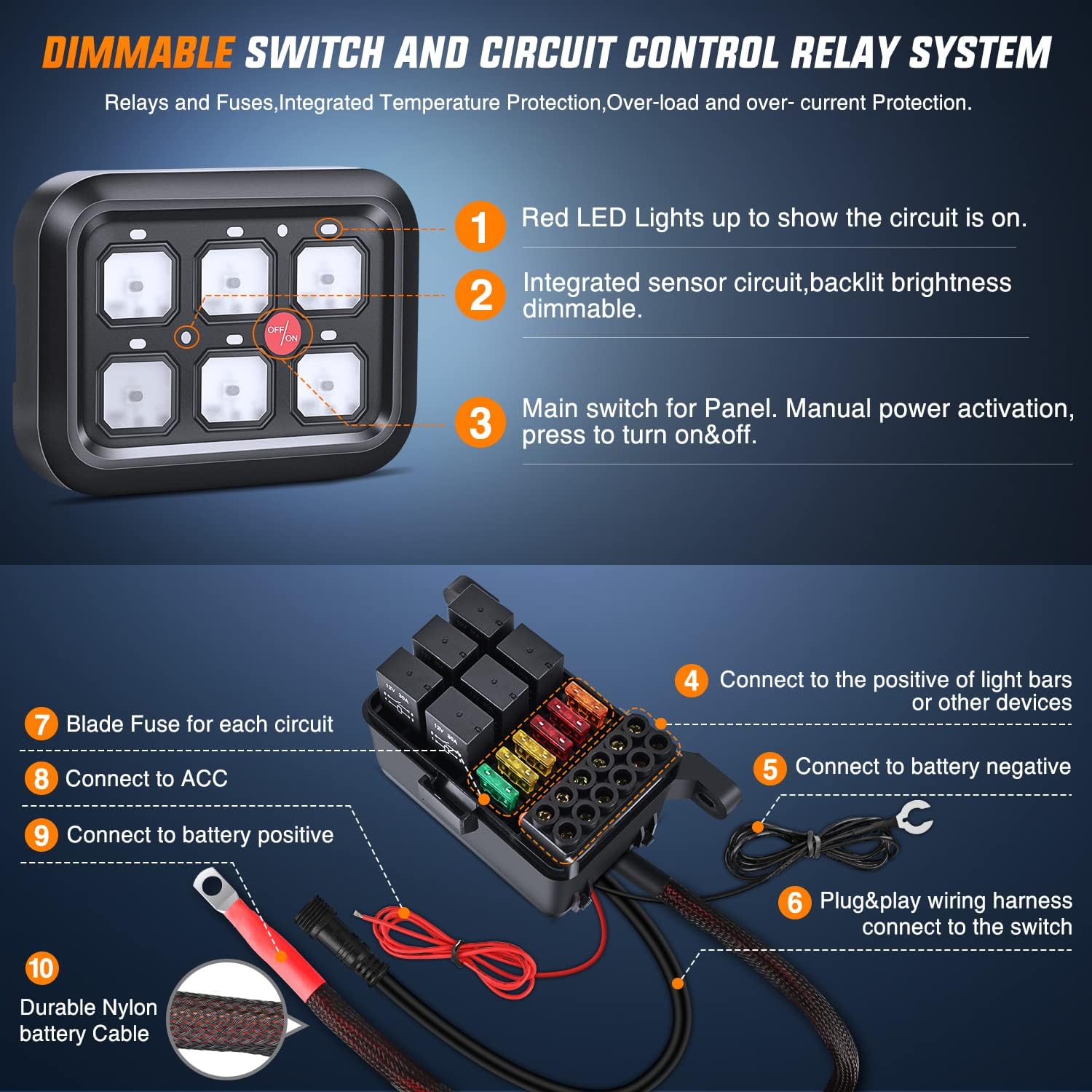

Image: Wiring connections for the switch panel and control box.
The diagram illustrates how to connect the control box to your vehicle's battery (positive and negative terminals) and an ACC (Accessory) power source. Each of the six outputs from the control box connects to a separate accessory (e.g., light bars, fog lights). The switch panel then connects to the control box via a single plug-and-play cable.
Vídeo: Um excessoview of the Nilight 6 Gang Switch Controller Circuit Control System, demonstrating its components and basic wiring setup.
2. Mounting the Switch Panel
Two primary mounting options are provided for the switch panel:
- Fita adesiva dupla face: For a flush, low-profile installation on flat surfaces. Ensure the surface is clean and dry before applying.
- Suporte de montagem ajustável: For more flexible positioning, allowing the panel to be angled or mounted on uneven surfaces.
Image: Illustration of the double-sided tape and adjustable bracket mounting methods.
Video: Demonstrates the mounting process of the 6-gang switch panel using double-sided tape and applying custom labels.
3. Conectando acessórios
Each of the six output terminals on the circuit control box is designed to connect to a specific accessory. Ensure that the total wattage of connected accessories does not exceed the system's maximum output power of 720W.

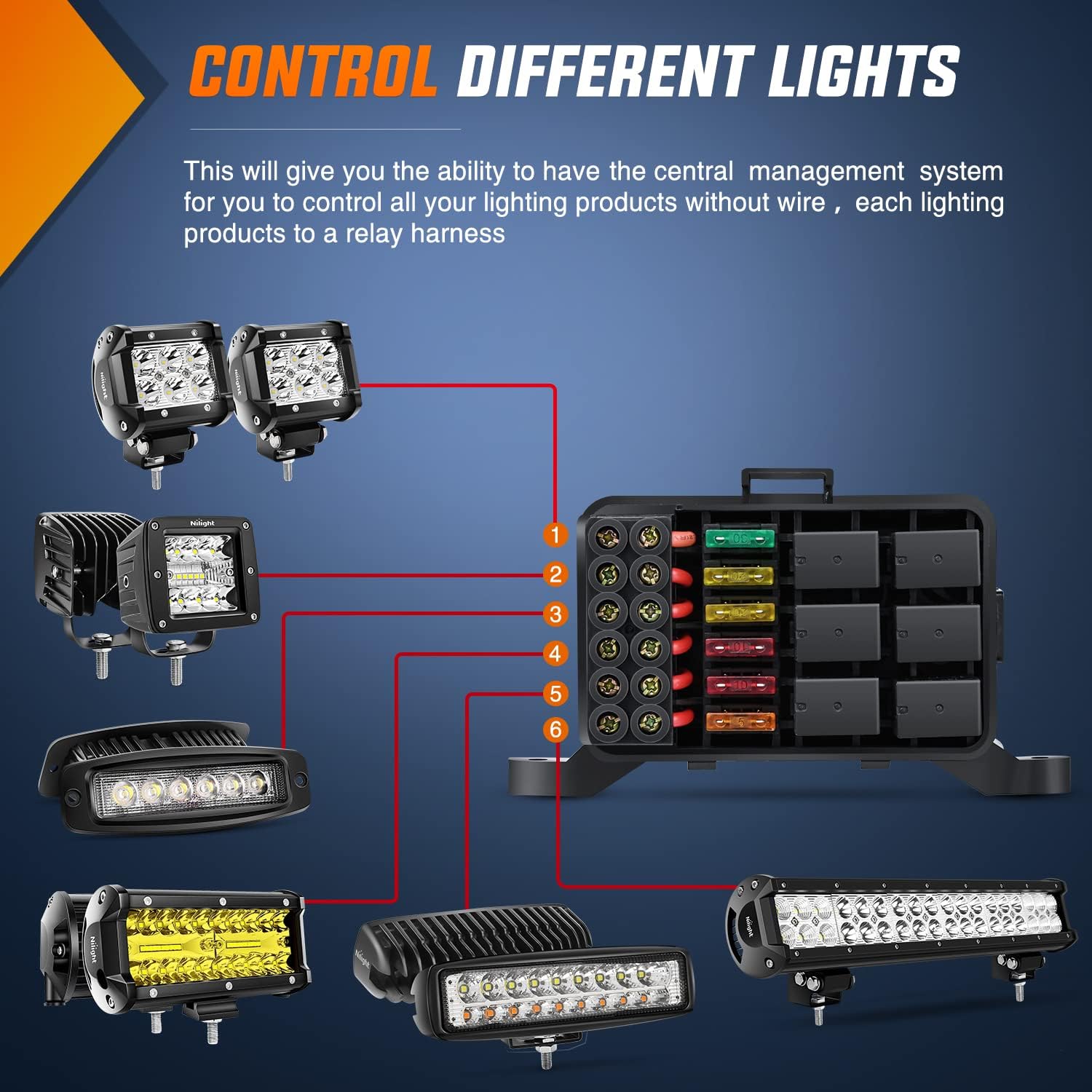

Imagem: Example connections of different lighting products to the relay harness.
Instruções de operação
1. Main Switch Operation
The switch panel features a central 'OFF/ON' button. Press this button to activate or deactivate the entire switch panel system. Individual accessory switches will only function when the main switch is in the 'ON' position.
2. Dimmable Backlight Function
The switch panel's backlight automatically adjusts its brightness based on the surrounding environment. This feature ensures comfortable visibility during both daytime and nighttime driving conditions, preventing the backlight from being too bright or too dim.
Image: The switch panel's dimmable backlight adjusts for daytime and nighttime visibility.
3. Customizing Switch Labels
The kit includes 50 reusable labels to clearly identify the function of each switch. Simply peel and apply the appropriate label to the desired switch button.
Image: A selection of 50 reusable labels for personalizing the switch panel.
Video: Instructions on how to configure buttons for momentary action on the Nilight switch panel.
Manutenção
- Inspeção regular: Verifique periodicamente se todas as conexões da fiação estão bem apertadas e se apresentam sinais de desgaste ou corrosão.
- Limpeza: Wipe the switch panel and control box with a soft, damp pano. Evite usar produtos químicos agressivos ou produtos de limpeza abrasivos.
- Substituição de fusíveis: If an accessory stops working, check the corresponding fuse in the control box. Replace blown fuses with new ones of the same ampavaliação erage.
Solução de problemas
- Panel Not Powering On: Check the main power connection to the battery and the ACC wire. Ensure the main 'OFF/ON' switch is engaged.
- Individual Accessory Not Working: Verify the specific switch is pressed. Check the fuse for that circuit in the control box. Inspect the wiring connection from the control box to the accessory.
- Problemas com a luz de fundo: If the backlight is too dim or too bright, ensure the integrated sensor is not obstructed. The dimming is automatic based on ambient light.
- Botões sem resposta: Ensure all connections are secure. If the issue persists, refer to the momentary mode setting instructions if applicable.
Garantia e Suporte
For warranty information, please refer to the documentation included with your purchase or contact Nilight customer support directly. Keep your proof of purchase for any warranty claims. For technical assistance or further inquiries, visit the official Nilight website ou entre em contato com o departamento de atendimento ao cliente.
