VINGLI LMC0W1D 16-Inch LED Lighted Medicine Cabinet User Manual

1. Introdução e maisview

The VINGLI 16-inch LED Lighted Medicine Cabinet is a wall-mounted storage solution designed for bathrooms. It features a sleek, modern appearance with a single mirrored door, touch-sensitive controls, and integrated LED lighting. This cabinet combines functionality with contemporary aesthetics to enhance your bathroom space.

Principais características:

• Iluminação LED integrada: Features three color LED lights (warm, neutral, cool) to suit various lighting needs. Brightness is adjustable via a sensitive touch button, with a memory function to recall preferred settings.
• Construção Premium: Manufactured from ENF environmental grade wood and equipped with a safety shatter-proof mirror. The IP44 dustproof and waterproof rating ensures durability and easy maintenance in humid environments.
• Amparmazenamento: Includes two adjustable shelves behind the single door, offering versatile storage for toiletries, cosmetics, and medications.
• Design inteligente: Features metal buffer hinges for smooth and quiet door operation, and a clear tempered glass mirror for an unobstructed reflection.

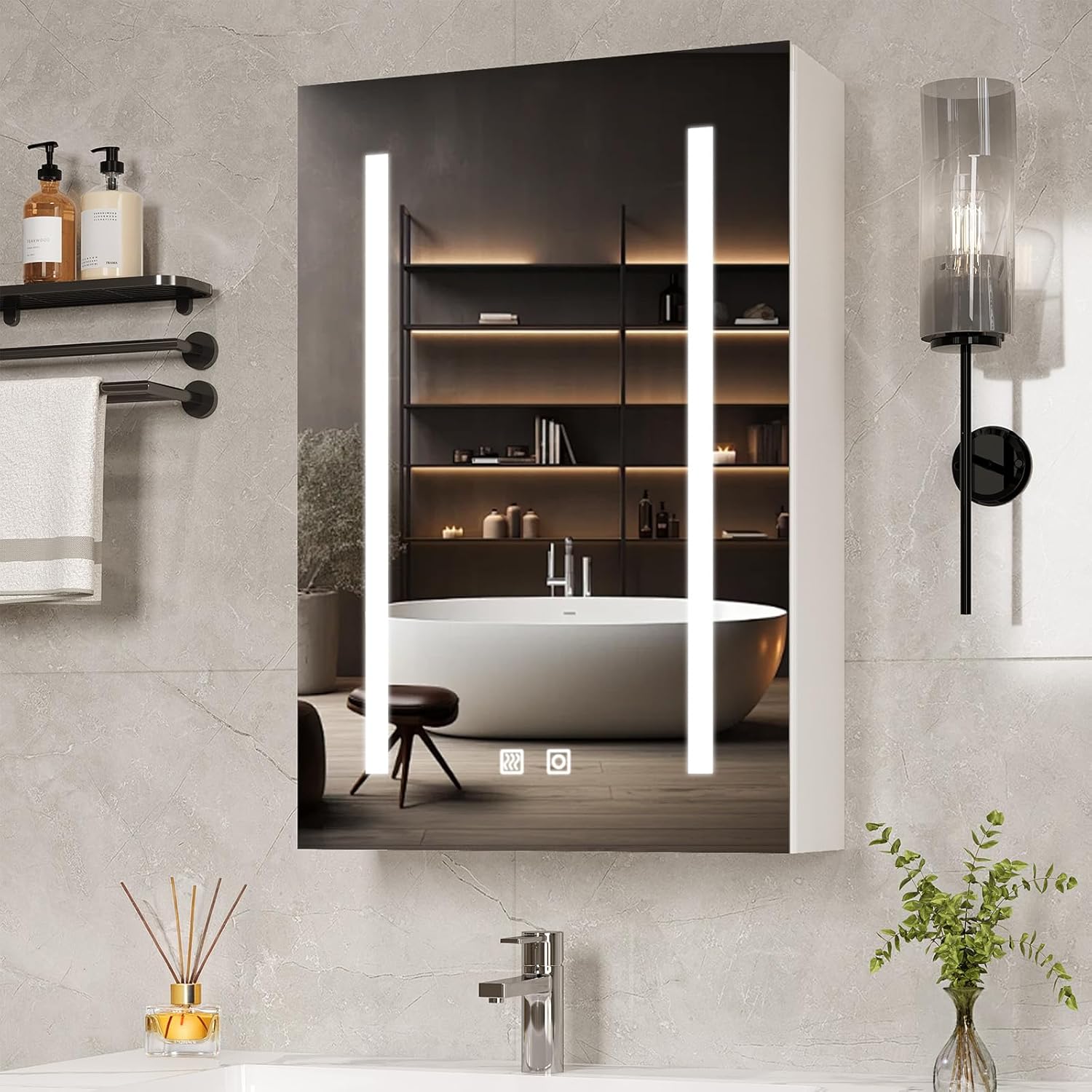

Figure 1: VINGLI 16-Inch LED Lighted Medicine Cabinet

2. Informações de segurança

WARNING: To reduce the risk of electric shock, fire, or injury, read all instructions before proceeding with installation or operation.

• Always unplug the cabinet from the power source before installation, cleaning, or maintenance.
• Use appropriate safety gear, such as gloves and eye protection, when handling glass components.
• Certifique-se de que o armário esteja firmemente fixado a uma estrutura de parede resistente para evitar que tombe ou caia.
• Keep the area around the cabinet clear of obstructions to avoid potential hazards.
• Do not expose electrical components to excessive moisture beyond the IP44 rating.

3. Conteúdo da embalagem

Verify that all components are present before beginning assembly. Refer to the included installation manual for a detailed parts list. Typically, the package includes:

• Medicine Cabinet Frame
• Mirrored Door with Integrated LED Lights
• Prateleiras ajustáveis ​​(2)
• Suspension Fittings (Left and Right)
• Metal Wall Mounting Sheets
• Hinges (Soft-close)
• Screws, Anchors, and other Fasteners
• Cabo de alimentação
• Manual de instalação

4. Configuração e instalação

Carefully follow these steps for proper assembly and wall mounting. It is recommended to have two people for installation.

4.1. Suspension Fitting Metal Sheet Installation

This video demonstrates how to install the metal sheets that the cabinet will hang on. Ensure you select the appropriate hardware for your wall type (solid wall vs. cavity wall).

4.2. Hinge Installation and Adjustment

Proper hinge installation and adjustment are crucial for the smooth operation of the cabinet door.

4.3. Cabinet Assembly (3-in-1 Connector & Wooden Dowel)

Assemble the cabinet frame using the provided connectors and dowels. Pay attention to the orientation of components as shown in the instructions.

4.4. Dimensões do produto

Ensure the chosen installation location accommodates the cabinet's dimensions.

Figura 2: Dimensões do produto (5.9"D x 16.1"L x 24"A)

Figure 3: Cabinet suitability for 16"-30" bathroom vanities.

5. Instruções de operação

The VINGLI medicine cabinet features touch-sensitive controls for its LED lighting and defogging functions.

5.1. Controle de luz LED

The mirror is equipped with three color LED lights (warm, neutral, and cool) and adjustable brightness.

• Alterar temperatura da cor: Short press the light control button to cycle through warm light (3000K), natural light (4000K), and cold light (6000K).
• Ajustar brilho: Long press the light control button to adjust the brightness from 10% to 100%.
• Função de memória: The cabinet remembers your last used brightness and color temperature settings.

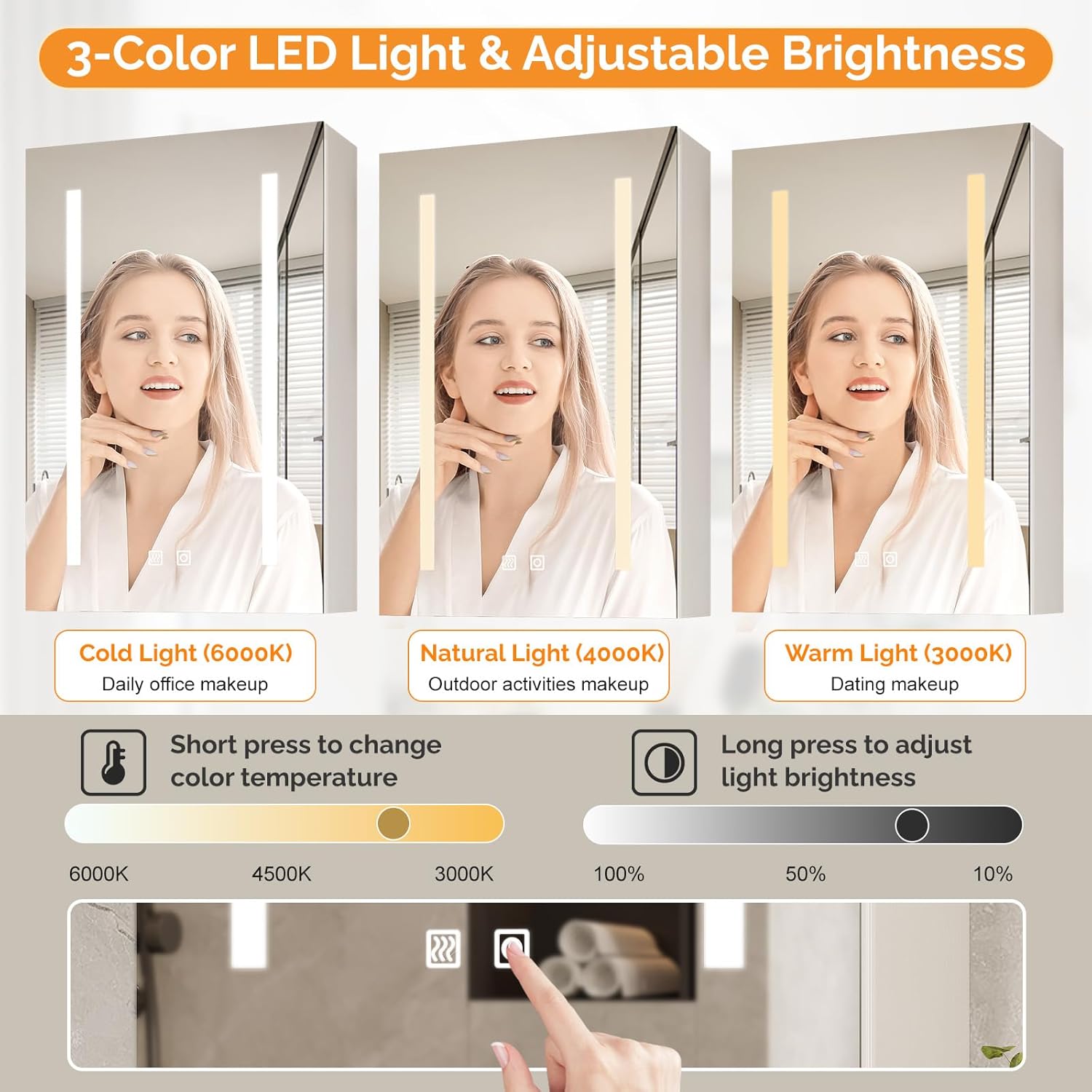

Figure 4: LED Light and Brightness Controls

5.2. Defogging Function

Activate the defogging function to maintain a clear mirror reflection, especially after a shower.

6. Manutenção

A manutenção regular garantirá a longevidade e o desempenho ideal do seu armário de medicamentos.

• Limpando o espelho: Use um pano macio e macioamp cloth and a mild glass cleaner. Avoid abrasive cleaners or harsh chemicals that may damage the mirror surface or LED components.
• Limpando o Gabinete: Wipe the wooden surfaces with a soft, dry or slightly damp cloth. Do not use excessive water or harsh cleaning agents.
• Componentes elétricos: Ensure the cabinet is unplugged before cleaning any electrical parts. Do not spray water directly onto the LED strips or wiring.
• Verificação das dobradiças: Periodically check the door hinges for tightness. If the door becomes misaligned, refer to the hinge adjustment instructions in Section 4.2.

7. Solução De Problemas

If you encounter issues with your VINGLI medicine cabinet, refer to the following common troubleshooting tips:

• Luzes LED não funcionam:
  • Verifique se o cabo de alimentação está firmemente conectado a uma tomada em funcionamento.
  • Ensure the wall switch (if applicable) is in the ON position.
  • Verify that the touch control button is functioning correctly by gently pressing it.
• Defogger Not Activating:
  • Confirm the power supply is connected.
  • Press the defogger touch button firmly to activate.
• Desalinhamento da porta:
  • Refer to Section 4.2 (Hinge Installation and Adjustment) for detailed instructions on adjusting the hinges to correct door alignment.
• Cabinet Feels Loose on Wall:
  • Ensure all mounting screws and suspension fittings are securely tightened. Do not overtighten.
  • If using hollow-wall anchors, ensure they are properly expanded and seated.

Caso essas etapas não resolvam o problema, entre em contato com o suporte ao cliente da VINGLI para obter mais assistência.

8. Especificações

9. Garantia e Suporte

For warranty information or technical support, please refer to the contact details provided in the original product packaging or visit the official VINGLI webGuarde o comprovante de compra para eventuais solicitações de garantia.
