1. Produto acabadoview
The Vertiv Liebert EXS is a compact, monolithic uninterruptible power system (UPS) designed to provide continuous, conditioned, and regulated output voltage. It utilizes true on-line, double-conversion technology, making it suitable for protecting sensitive equipment such as computers, servers, networking devices, and other IT infrastructure. This UPS delivers economical, efficient, and reliable three-phase power for critical loads up to 20kVA.
Os principais recursos incluem:
- Energia trifásica confiável: Offers a high level of power protection for critical systems.
- Dupla Conversão Online: Ensures high availability of IT systems by continuously conditioning power.
- Alta eficiência operacional: Achieves over 93% efficiency in double conversion mode and up to 99% in eco mode, contributing to energy savings.
- Monitoramento avançado da bateria: Capable of monitoring battery capacity, temperature, humidity, access, and leaks.
- 1.0 Fator de Potência de Saída: Delivers maximum usable power to connected loads.

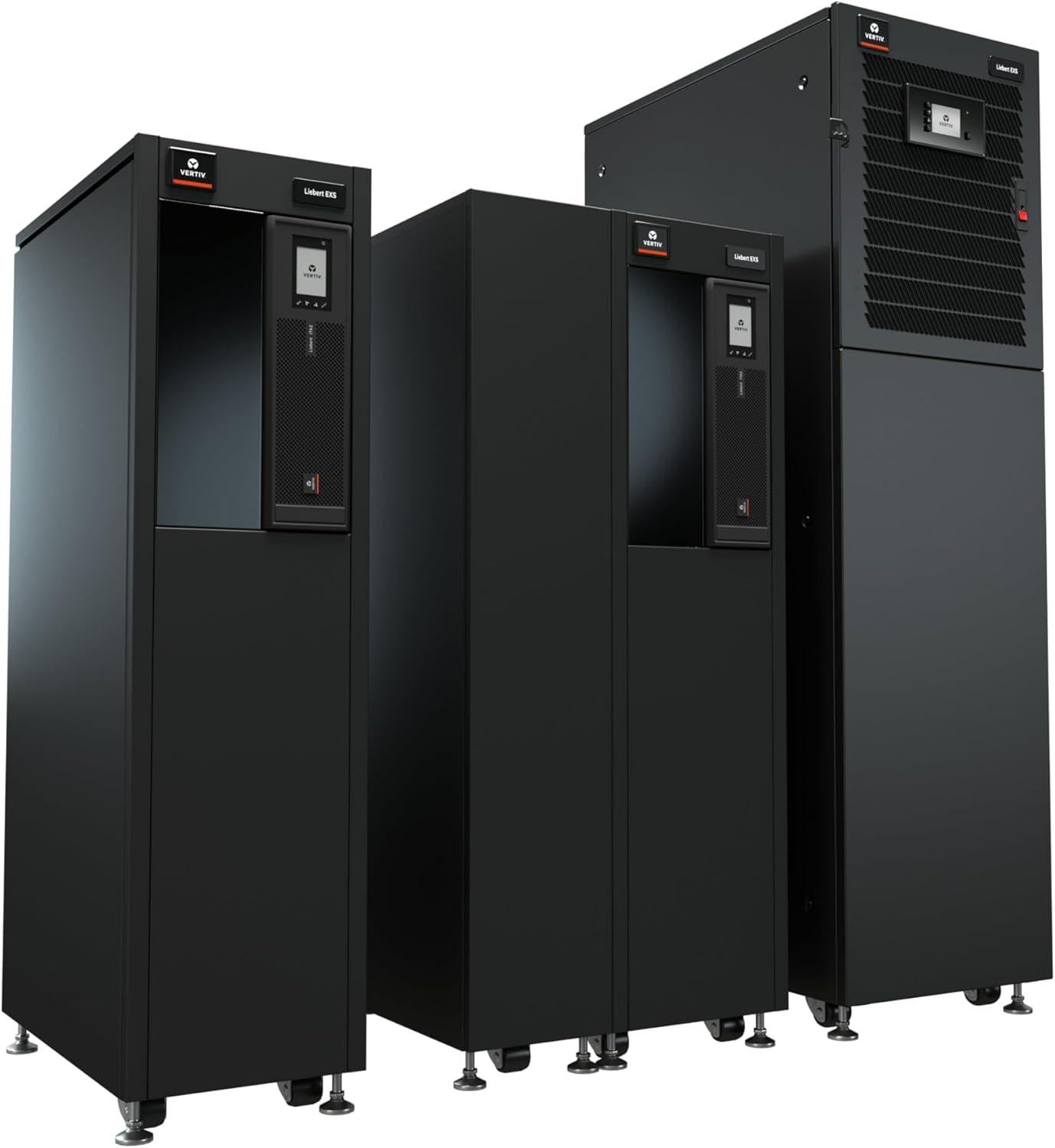

Figure 1: Vertiv Liebert EXS UPS units, showcasing different capacities.
2. Configuração e instalação
The Liebert EXS UPS is designed for straightforward installation. It features an optimized design with flexible power distribution and battery arrangements to meet specific capacity and runtime requirements.
2.1 Identificação do Componente
Figura 2: interno view and port layout of the Liebert EXS UPS, highlighting USB port, programmable dry contacts, Liebert IntelliSlot ports, ventilation holes, and flexible PDU power distribution.
Refer to Figure 2 for the location of key components and ports:
- Porta USB: For local communication and configuration.
- Programmable Dry Contacts: Provides 2 input and 2 output contacts for external system integration.
- Liebert IntelliSlot Ports: Two ports are standard for simultaneous use of Unity and Relay cards, enabling advanced monitoring and communication.
- Orifícios de ventilação: Ensure proper airflow for cooling the UPS and batteries.
- Flexible PDU Power Distribution: Supports one PDU for 10kVA models and up to two for 15kVA and 20kVA models.
2.2 Etapas de Configuração Inicial
- Desembalagem e colocação: Carefully unpack the UPS. Ensure the installation location meets environmental requirements (temperature, humidity) and has adequate space for ventilation and maintenance access.
- Conexões elétricas: Connect the UPS to the facility's power supply and connect critical loads to the UPS output. All electrical work should be performed by qualified personnel.
- Conexão da bateria: Connect the internal or external battery cabinets as per the specific model's instructions. The UPS features internal battery cabinets with auto-detection for accurate runtime reporting.
- Configuração de comunicação: Install the Liebert IS-UNITY DP communication card (factory installed) for remote management. Connect necessary network cables to the IntelliSlot ports for monitoring.
- Ligar: Follow the specific power-on sequence detailed in the full product manual to energize the UPS and bring it online.
3. Instruções de operação
Once installed and powered on, the Liebert EXS UPS operates automatically to protect connected equipment. The front panel display provides status information and allows for basic configuration.
3.1 Monitoramento e Controle
The UPS is integrated with the Liebert monitoring platform, supporting SNMP, Modbus, and relay communication protocols. This allows for comprehensive remote monitoring and management of the UPS status and performance.
Vídeo 1: Acabouview of the Liebert Uninterruptible Power Supply - EXS Series, demonstrating its features and benefits.
Vertiv Power Insight Management Software (available for download from Vertiv.com) can be used for advanced monitoring and management capabilities.
4. Manutenção
Regular maintenance ensures the longevity and optimal performance of your Liebert EXS UPS.
4.1 Desvio de Manutenção Integrado
The UPS includes an integrated maintenance bypass cabinet. This feature allows for UPS maintenance or replacement without requiring a shutdown of the connected critical loads, ensuring continuous operation.
4.2 Cuidados com a bateria
The advanced battery monitoring system helps in maintaining battery health. Periodically inspect batteries for any signs of damage or leakage. Follow manufacturer guidelines for battery replacement intervals.
4.3 Manutenção Geral
- Mantenha as aberturas de ventilação desobstruídas para evitar o superaquecimento.
- Regularly check all cable connections for tightness and integrity.
- Consult the full user manual for detailed maintenance schedules and procedures.
Figure 3: Key features of the Liebert EXS UPS, including the Internal Maintenance Bypass Cabinet and Factory Installed Network Card.
5. Solução De Problemas
This section provides general guidance for common issues. For specific error codes and advanced troubleshooting, refer to the comprehensive product manual.
5.1 Problemas e soluções comuns
- O nobreak não liga: Verify that the input power cable is securely connected and that the facility's power supply is active. Check the main circuit breaker.
- Sons de alarme: An alarm indicates a system event or fault. Check the UPS front panel display for specific error messages or status indicators. Consult the manual for the meaning of the alarm code.
- Autonomia reduzida da bateria: This may indicate aging batteries or an excessive load. Check battery health via the monitoring system and ensure the load does not exceed the UPS capacity.
- Equipamentos conectados não estão recebendo energia: Verify that the UPS is online and that output circuit breakers are not tripped. Check connections to the critical loads.
If an issue persists after attempting these basic troubleshooting steps, contact Vertiv technical support.
6. Especificações
| Especificação | Valor |
|---|---|
| Número do modelo | EXS20KXRN |
| Classificação de potência | 20 kVA / 20 kW |
| Vol de entrada / saídatage | 208/120VAC (220/127VAC) |
| Fase | Trifásico, 3 fios |
| Dimensões do produto (P x L x A) | 29.5 x 17.3 x 62.9 polegadas (74.9 x 43.9 x 159.8 cm) |
| Peso do item | 1042 libras (472.6 kg) |
| Composição da célula da bateria | Chumbo ácido |
| Integrated Card | Liebert Intellislot Card (is-Unity-DP) |
| Tempo de execução | 15-Min Extended Runtime |
| Cor | Preto |
7. Garantia e Suporte
7.1 Garantia do Produto
The Vertiv Liebert EXS UPS comes with comprehensive warranty coverage. A standard 1-year warranty is included, with an option to extend to a 3-year warranty. Please refer to your purchase documentation for specific terms and conditions.
7.2 Suporte Técnico
For technical assistance, troubleshooting beyond basic steps, or warranty claims, please contact Vertiv customer support. Contact information can typically be found on the Vertiv official website ou na embalagem do seu produto.
