1. Introdução
Thank you for choosing the VASAGLE EKHO LJB097B01 360° Swivel Bar Stools. This manual provides essential information for the safe assembly, operation, and maintenance of your new bar stools. Please read these instructions carefully before use and retain them for future reference.
These bar stools are designed to offer comfort and versatility, featuring a 360° swivel function, height adjustment, and a sturdy construction suitable for various home environments such as kitchens and home bars.
Image 1.1: VASAGLE EKHO LJB097B01 Bar Stools in a kitchen setting.
2. Informações de segurança
- Capacidade máxima de carga: Do not exceed the maximum static load capacity of 120 kg (264 lbs) per stool. Exceeding this limit may cause damage to the product or personal injury.
- Conjunto: Ensure all parts are correctly assembled and tightened before use. Regularly check all screws and bolts to ensure they remain secure.
- Estabilidade: Use sempre o banquinho em uma superfície plana e estável. Evite ficar em pé no banquinho.
- Crianças: Keep children away from the assembly area. Small parts can be a choking hazard. Supervise children when they are using the stools.
- Movimento: When moving the stool, lift it rather than dragging it to prevent damage to the base or floor.
3. Componentes do produto
Before assembly, verify that all components are present and undamaged. Refer to the assembly diagram (not provided in this document, typically found in the packaging) for a visual representation of parts. Common components include:
- Seat with backrest (Upholstered in PU faux leather)
- Cilindro de elevação a gás
- Placa base
- Anel de apoio para os pés
- Mounting hardware (screws, washers, Allen key)
Image 3.1: Product Dimensions and Load Capacity.
4. Instruções de montagem
Assembly of the VASAGLE EKHO LJB097B01 bar stools is designed to be straightforward. Please follow these general steps. For detailed diagrams, refer to the separate assembly sheet included in your product packaging.
- Descompacte os componentes: Retire cuidadosamente todas as peças da embalagem e disponha-as sobre uma superfície limpa e macia para evitar arranhões.
- Attach Footrest to Gas Lift: Slide the footrest ring onto the gas lift cylinder. Ensure it is oriented correctly.
- Insira o pistão a gás na base: Place the large base plate on the floor. Insert the wider end of the gas lift cylinder into the central hole of the base plate.
- Fixar o assento ao pistão a gás: Alinhe a placa de montagem sob o assento com a parte superior do cilindro do pistão a gás. Fixe o assento ao pistão a gás usando os parafusos e a chave Allen fornecidos. Certifique-se de que todos os parafusos estejam bem apertados, mas não os aperte em excesso.
- Estabilidade do teste: Once assembled, gently test the stool's stability before full use.
5. Instruções de operação
5.1 Ajuste de Altura
The bar stool features a pneumatic gas lift for smooth height adjustment.
- Criar: Em pé, puxe a alavanca localizada embaixo do assento para cima. O assento subirá automaticamente. Solte a alavanca quando atingir a altura desejada.
- Abaixar: Sentado(a), puxe a alavanca localizada sob o assento para cima. O assento irá baixar com o seu peso. Solte a alavanca quando atingir a altura desejada.
Image 5.1: Height Adjustment Lever and Footrest.
5.2 Função de rotação de 360°
The seat of the bar stool can rotate a full 360 degrees, providing flexibility and ease of movement.
- Simply turn the seat in any direction to swivel. No lever or button is required for this function.
Image 5.2: 360° Swivel and Height Adjustment.
5.3 Recursos de conforto
The stools are designed with comfort in mind, featuring highly elastic 28D foam padding and an ergonomic backrest.

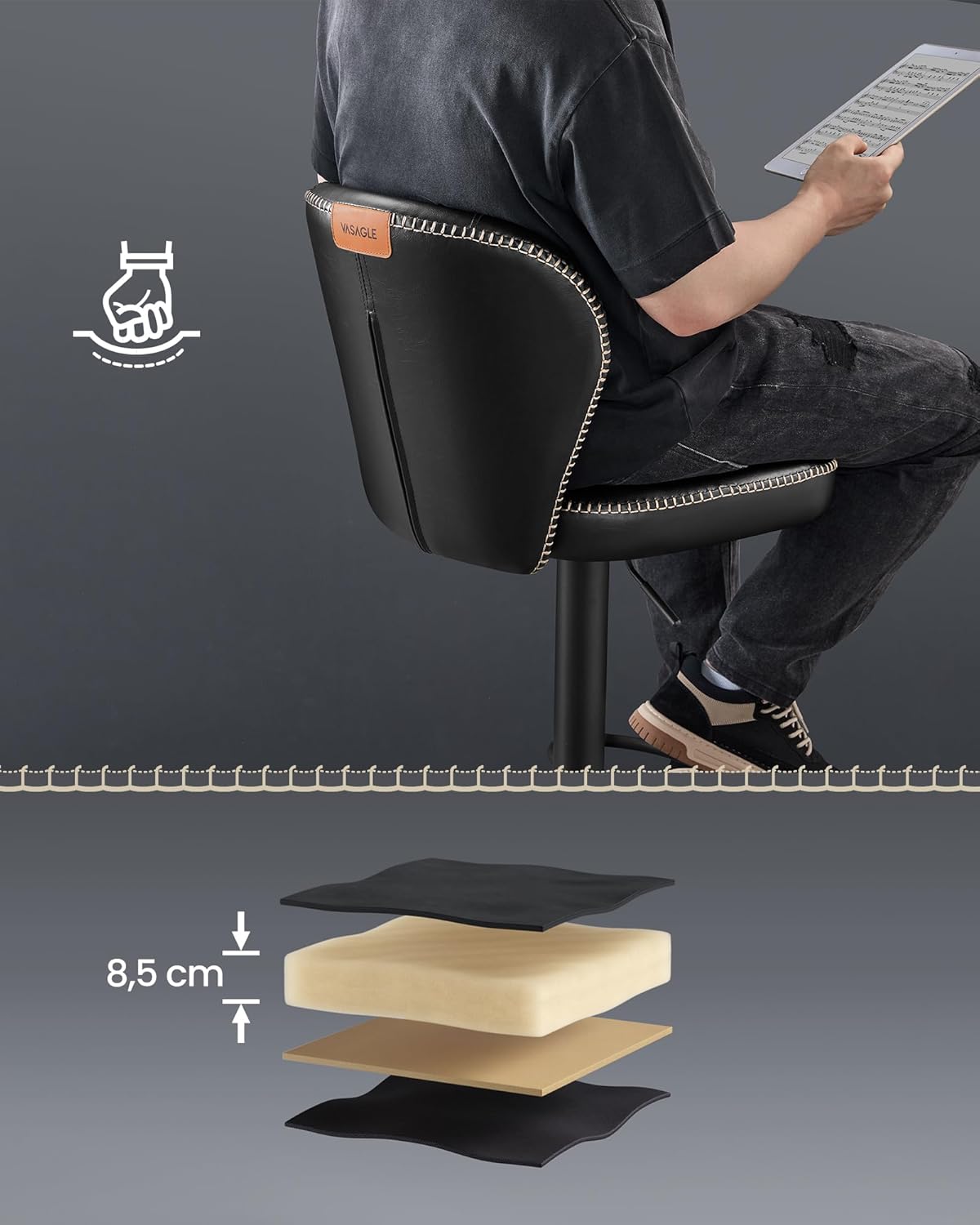

Image 5.3: Seat Padding Layers for Comfort.
Image 5.4: Base Diameter Comparison for Stability.
6. Manutenção
6.1 Limpeza
The PU faux leather upholstery is designed for easy cleaning.
- Para limpeza diária: Limpe a superfície com um pano macio, damp pano.
- Em caso de derrames: Immediately blot any spills with a clean, dry cloth. For stubborn stains, use a mild soap solution and wipe gently, then dry thoroughly.
- Avoid using harsh chemicals, abrasive cleaners, or solvents, as these can damage the faux leather and frame finish.
Image 6.1: Easy-to-Clean Faux Leather Surface.
6.2 Cuidados Gerais
- Cuidados com a moldura: The powder-coated steel frame is resistant to rust and dirt. Wipe with a damp pano conforme necessário.
- Evite luz solar direta: A exposição prolongada à luz solar direta pode fazer com que o couro sintético desbote ou rache.
- Verificações regulares: Verifique periodicamente todos os parafusos e conexões para garantir que estejam bem apertados. Reaperte-os, se necessário.
7. Solução De Problemas
If you encounter any issues with your bar stools, please refer to the following common troubleshooting tips:
- O banco está bambo:
- Certifique-se de que todos os parafusos de montagem estejam bem apertados.
- Verify the stool is on a flat, even surface.
- Dificuldade em ajustar a altura:
- Check if the gas lift lever is fully engaged when attempting to adjust.
- Ensure there are no obstructions around the gas lift mechanism.
- If the gas lift is completely unresponsive, it may require replacement. Contact customer support.
- Ruídos de rangido:
- Aperte todos os parafusos.
- Apply a small amount of silicone lubricant to moving parts if the noise persists (avoid contact with upholstery).
8. Especificações
| Recurso | Especificação |
|---|---|
| Marca | VASÁGUA |
| Número do modelo | LJB097B01 |
| Cor | Tinta preta |
| Dimensões do produto (L x P x A) | 42 x 49 x 94-115 cm (16.5 x 19.3 x 37-45.3 polegadas) |
| Faixa de altura do assento | 62-84 cm (24.4-33.1 polegadas) |
| Diâmetro da base | 45 cm (17.7 polegadas) |
| Weight (per stool) | 16.8 kg (37 libras) |
| Material | Steel, highly elastic 28D foam, PU faux leather (polyurethane), plywood |
| Características especiais | 360° Swivel, Height Adjustable, Ergonomic Backrest |
| Max. Static Load Capacity | 120 kg (264 libras) por banqueta |
9. Garantia e Suporte
VASAGLE products are manufactured with quality and durability in mind. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official VASAGLE website.
If you have any questions, require assistance with assembly, or need to report a missing or damaged part, please contact our customer support team. You can typically find contact information on the VASAGLE website ou através dos canais de suporte do seu revendedor.
- Suporte online: Visit the VASAGLE official website for FAQs and support contact forms.
- Suporte por e-mail: Consulte a documentação da sua compra para obter o endereço de e-mail do serviço de atendimento ao cliente.
