PURPLE LEAF 12' x 14' Sunroom Hardtop Gazebo Solarium

PURPLE LEAF 12' x 14' Sunroom Hardtop Gazebo Solarium Instruction Manual

Model: 12' x 14' Sunroom Hardtop Gazebo Solarium

1. Introdução

Thank you for choosing the PURPLE LEAF 12' x 14' Sunroom Hardtop Gazebo Solarium. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

2. Informações de segurança

Precauções importantes de segurança:

  • Always assemble and disassemble the gazebo with caution to avoid injury.
  • Ensure the gazebo is securely anchored to a stable foundation to prevent it from being blown over in strong winds.
  • Regularly inspect the gazebo for any signs of damage or wear.
  • Maintain the gazebo according to the manufacturer's instructions to ensure its longevity and safety.
  • Mantenha crianças e animais de estimação afastados da área de montagem.
  • Do not use open flames or heating devices too close to the gazebo materials.

3. Lista de peças

Before beginning assembly, verify that all parts listed in the packaging are present and undamaged. Refer to the detailed parts list provided in your product packaging for specific component identification. If any parts are missing or damaged, contact customer service for assistance.

4. Configuração e montagem

Assembly of this gazebo requires at least two adults. Follow the step-by-step instructions provided in your product packaging. Ensure all connections are secure before use.

4.1. Montagem da estrutura

Begin by assembling the aluminum frame components. Ensure all bolts and screws are tightened according to the instructions to establish a sturdy base.

Assembled aluminum frame of the gazebo

Figure 1: Assembled aluminum frame of the gazebo.

4.2. Instalação do Telhado

The galvanized steel double roof provides enhanced weather protection and ventilation. Carefully attach the roof panels to the assembled frame, ensuring proper alignment and secure fastening. The double-layer design allows for better heat insulation and air circulation.

Close-up of the galvanized steel double roof with ventilation arrows

Figure 2: Detail of the galvanized steel double roof, highlighting its UV resistant, heat resistant, and air ventilation features.

4.3. Sliding Doors and Screens

Install the double sliding doors and the tea-colored PC screens. The PC screens offer privacy and protection from UV, wind, and rain. The mesh screens are designed to allow sunlight and ventilation while keeping insects out. The PC screens are removable and can be stored on the provided shelves.

Close-up of magnetic double sliding doors with door handle and double-layered rails

Figure 3: Magnetic double sliding doors for convenient access.

PC screen and mesh with icons for anti-mosquito, privacy protect, and air ventilation

Figure 4: Detachable PC screens and mesh for privacy, UV protection, and ventilation.

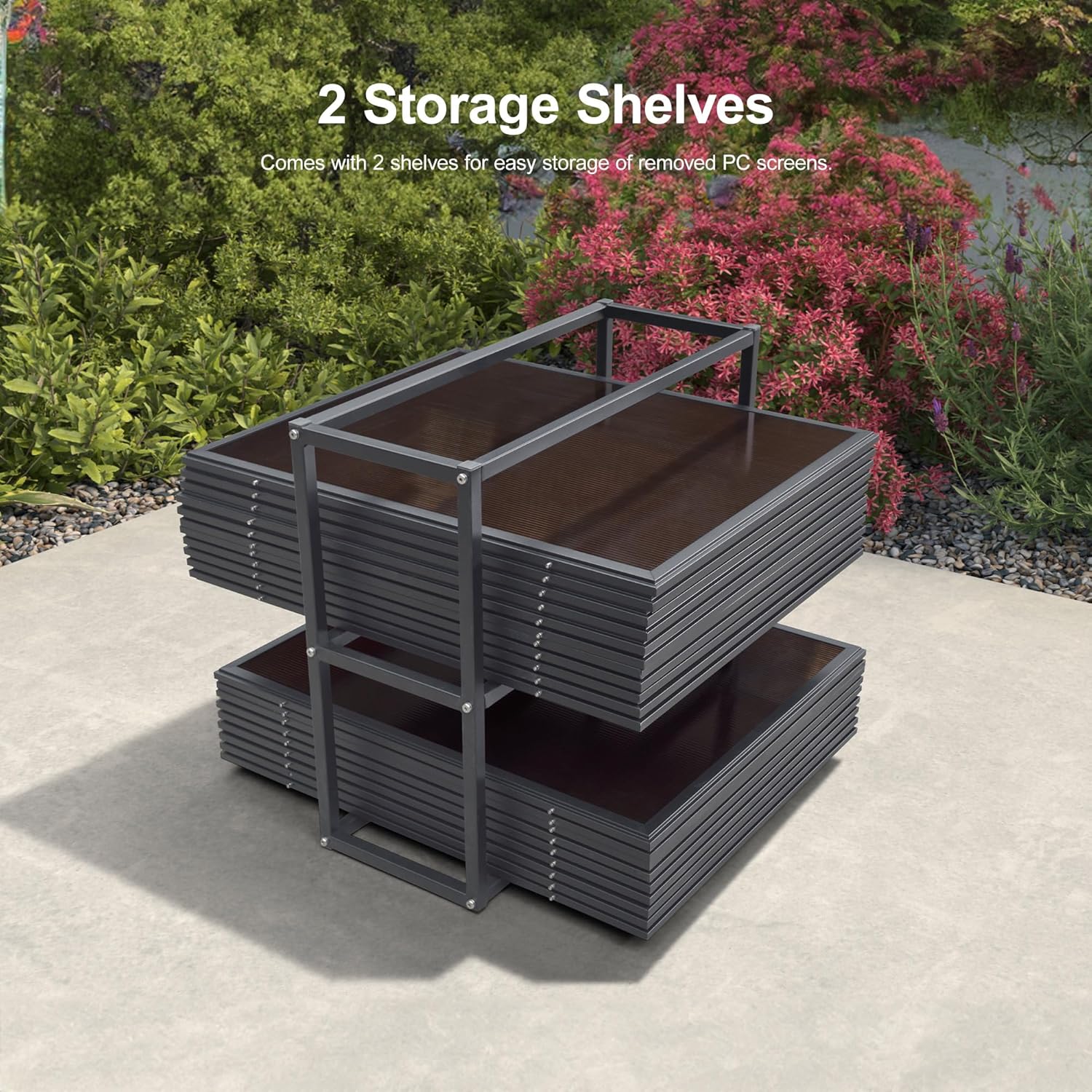

Two storage shelves for removed PC screens

Figure 5: Storage shelves for convenient placement of removed PC screens.

4.4. Integrated Lighting

This model includes integrated lights. Follow the specific wiring and installation instructions provided in your manual to ensure safe and proper functionality of the lighting system.

Close-up of the integrated lights

Figure 6: Integrated lighting for evening use.

4.5. Terminada a montagemview Vídeo

Vídeo 1: Acabouview of the PURPLE LEAF Solarium Sunroom, demonstrating its features and overall appearance.

5. Instruções de operação

5.1. Sliding Doors

The gazebo features double sliding doors for easy entry and exit. Gently slide the doors along their tracks. The magnetic strips ensure the doors remain securely closed when not in use.

5.2. PC Screens and Mesh Screens

The tea-colored PC screens can be easily removed or installed as needed. When removed, they can be stored on the designated shelves. The mesh screens provide insect protection and airflow. Ensure all screens are properly secured to prevent gaps.

5.3. Sistema de Iluminação

Operate the integrated lights using the designated switch or control mechanism. Refer to the electrical section of your product manual for detailed instructions on power connection and usage.

6. Manutenção

A manutenção regular prolongará a vida útil e a beleza do seu gazebo.

  • Limpeza: Clean the aluminum frame and galvanized steel roof with mild soap and water. Rinse thoroughly. Clean PC screens and mesh with a soft cloth and mild detergent. Avoid abrasive cleaners.
  • Inspeção: Periodically check all bolts, screws, and connections to ensure they remain tight. Inspect the roof and screens for any signs of wear, tears, or damage.
  • Ancoragem: Ensure the gazebo remains securely anchored to the ground, especially before anticipated strong winds or severe weather.
  • Cuidados sazonais: In areas with heavy snowfall, it is recommended to clear snow from the roof to prevent excessive weight accumulation. Consider disassembling and storing screens during extreme weather conditions.

7. Solução De Problemas

If you encounter any issues with your gazebo, refer to the following common problems and solutions:

  • Conexões soltas: If the frame feels unstable, check all bolts and screws and tighten them as necessary.
  • Telhado com goteiras: Ensure all roof panels are correctly installed and sealed. Check for any gaps or damaged sections.
  • Sticking Sliding Doors: Clean the door tracks to remove any debris. Apply a silicone-based lubricant if needed.
  • Damaged Screens: Replace any torn or heavily damaged PC or mesh screens.

For issues not covered here, please contact PURPLE LEAF customer support.

8. Especificações

RecursoDetalhe
MarcaFOLHA ROXA
MaterialTela de alumínio e PC
Dimensões do produto167.32"C x 143.7"L x 121.26"A
Peso do item526.2 libras
Material da estruturaAlumínio
Nível de resistência à águaResistente à água
FormaRetangular
Proteção contra raios ultravioletaResistente a UV
Montagem necessáriaSim
Corw/ Brown Screen and Lights

9. Garantia e Suporte

For warranty information, product support, or to purchase replacement parts, please refer to the official PURPLE LEAF website or contact their customer service department directly. Contact details are typically found on the product packaging or the manufacturer's website.
