mopio Sophie 4-in-1 Convertible Sleeper Chair Bed Instruction Manual

1. Introdução

Thank you for choosing the mopio Sophie 4-in-1 Convertible Sleeper Chair Bed. This versatile furniture piece is designed to adapt to your needs, functioning as an accent chair, chaise lounge, or a pull-out sofa bed. This manual provides detailed instructions for assembly, operation, maintenance, and troubleshooting to ensure optimal use and longevity of your product.

The mopio Sophie 4-in-1 Convertible Sleeper Chair Bed in its standard accent chair configuration, featuring a pearl white boucle fabric.

2. Instruções de segurança

• Verifique se todas as peças estão presentes e sem danos antes da montagem. Não utilize o produto se alguma peça estiver faltando ou quebrada.
• Assemble the product on a soft, clean surface to prevent scratches or damage.
• Do not use power tools for assembly as this may overtighten or damage components. Hand-tighten all bolts.
• Mantenha crianças e animais de estimação afastados durante a montagem.
• The maximum weight recommendation for this product is 300 pounds. Do not exceed this limit.
• Verifique periodicamente todos os fixadores para garantir que permaneçam apertados.
• Avoid standing on the chair or bed.
• Do not allow children to play with the conversion mechanisms.

3. Conteúdo da embalagem

Your mopio Sophie Sleeper Chair is shipped in two packages. Please verify that all components listed below are present before beginning assembly.

This diagram details the contents of the two shipping boxes for the Sophie Sleeper Chair, including panel numbers, hardware, and their respective weights and dimensions, to assist with assembly preparation.

Box 1 Contents:

• Panel No. (2) - 1 pc
• Panel No. (3) - 1 pc
• Bolts (A) - 20 pcs
• Angle 1 (C) - 4 pcs
• Angle 2 (D) - 4 pcs
• Allen Key (G) - 1 pc

Box 2 Contents:

• Panel No. (1) - 1 pc
• Panel No. (4) - 1 pc
• Panel No. (5) - 1 pc
• Panel No. (6) - 1 pc
• Bolts (B) - 4 pcs
• Lock Rod (E) - 2 pcs
• Latch (F) - 2 pcs
• Legs (7) - 4 pcs

4. Instruções de montagem

Assembly is estimated to take approximately 20 minutes. Follow these steps carefully.

Guia passo a passo:

1. Preparar os componentes: Lay out all panels and hardware on a protected surface. Ensure you have Panel No. (2), (3), Bolts (A), Angle 1 (C), Angle 2 (D), and Allen Key (G).
2. Attach Angle Brackets to Panels (2) and (3): Attach Angle 2 (D) onto Panel (2) using Bolts (A) and tighten with Allen Key (G). Repeat this for Panel (3). Then, attach Angle 1 (C) onto Panels (2) and (3) using Bolts (A) and tighten with Allen Key (G).
3. Instalar pernas: Install Legs (7) to the bottom of Panel (2) and Panel (3).
4. Conecte os painéis laterais: Attach Panel (4) onto Panel (3) using Bolts (B) and tighten with Allen Key (G). Repeat this process for the other side, attaching Panel (5) to Panel (2) using Bolts (A).
5. Encosto seguro: Slide Panel (1) (the backrest) onto the main assembly unit, ensuring it slots securely into the designated tracks.
6. Install Leg Rest: Lift the leg rest up to install Panel (6). Align and slide Panel (6) into the main assembly unit. Insert Lock Rod (E) after sliding Panel (6) in, then secure Latch (F) to hold it in place.
7. Ajuste Final: Lift and push the leg rest back underneath the chair to return it to the accent chair position.

5. Instruções de operação

The mopio Sophie Sleeper Chair offers 4-in-1 versatility, allowing transformation between an accent chair, chaise lounge, and a sofa bed.

This series of images showcases the chair's adaptability, transforming from an accent chair for relaxing, to a chaise lounge for reading or watching, and finally to a sofa bed for napping, accommodating various user needs.

5.1. Converting to Chaise Lounge:

1. Locate the fabric pull tab at the front base of the chair.
2. Gently pull the tab outwards to extend the hidden leg rest. The leg rest will slide out and lift into position.
3. Ensure the leg rest is fully extended and stable before use.

5.2. Converting to Sofa Bed:

1. First, convert the chair to the chaise lounge position as described above.
2. Adjust the backrest by pushing it forward slightly and then reclining it backward. The backrest has 4 adjustable positions: 112°, 140°, 160°, and 180° (fully flat).
3. Select the desired recline angle, with the 180° position creating a flat sleeping surface.

A visual guide demonstrating the four adjustable backrest positions (112°, 140°, 160°, and 180° flat) and the extendable pull-out footrest mechanism of the Sophie Sleeper Chair.

5.3. Returning to Accent Chair:

1. If in sofa bed mode, lift the backrest to its upright position (90°).
2. Lift the extended leg rest slightly and push it back underneath the main chair unit until it is fully retracted.

6. Manutenção

6.1. Fabric Care (Spill-resistant Boucle):

• The boucle fabric is designed to be spill-resistant. For liquid spills, act quickly.
• Gently blot the spill with a clean, dry cloth. Avoid rubbing, as this can spread the liquid and push it deeper into the fabric.
• For tougher stains, use a mild soap solution and a damp cloth. Test on an inconspicuous area first.
• Allow the fabric to air dry completely.
• Regular vacuuming with an upholstery attachment can help maintain the fabric's appearance and remove dust.

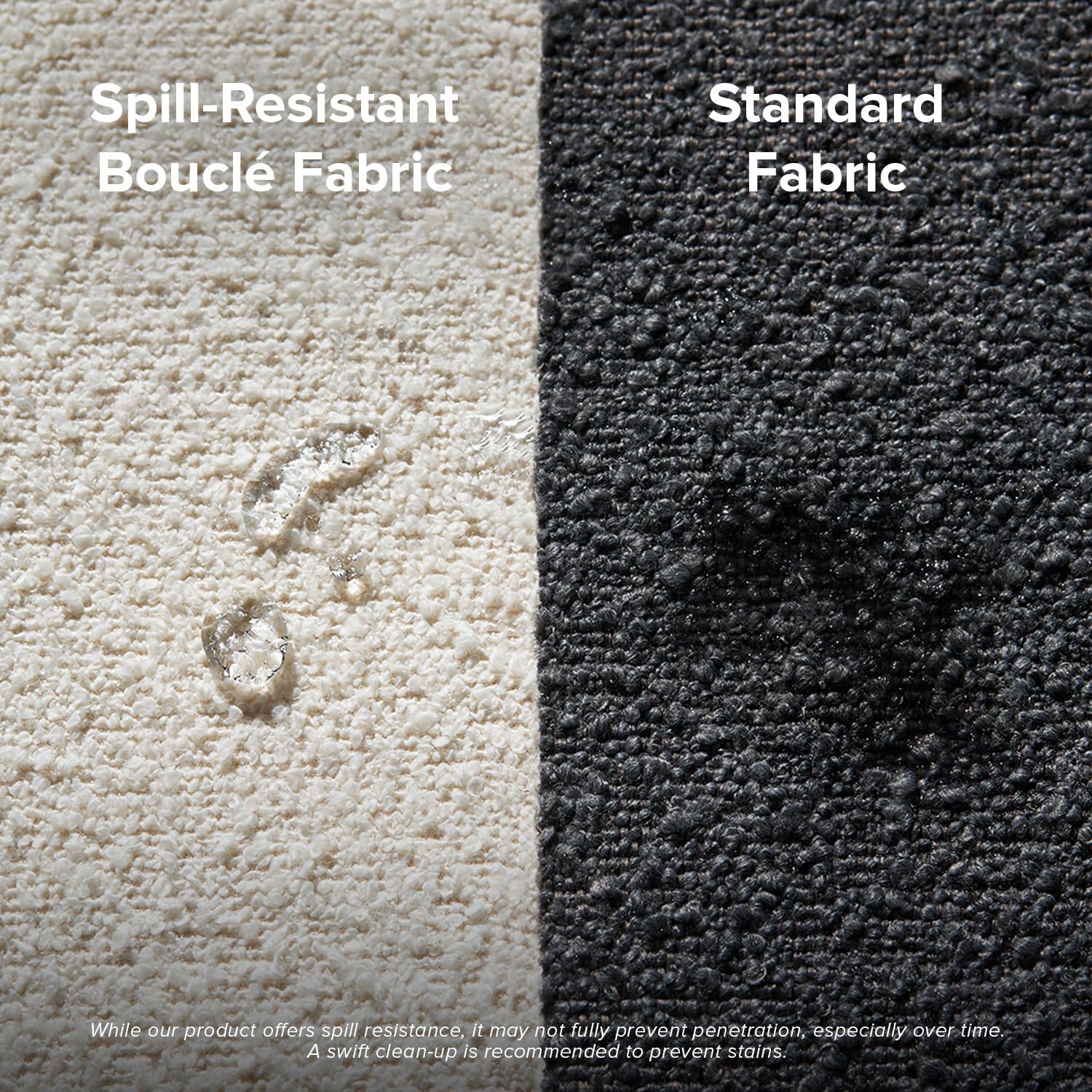

This image demonstrates the spill-resistant properties of the boucle fabric used on the Sophie Sleeper Chair, showing how liquids bead on the surface compared to a standard fabric, making cleanup easier.

6.2. Cuidados com a estrutura:

• Wipe the metal frame components with a soft, dry cloth to remove dust.
• Evite usar produtos químicos agressivos ou produtos de limpeza abrasivos, pois estes podem danificar o acabamento.

7. Solução De Problemas

7.1. Chair feels unstable:

• Ensure all bolts and fasteners are securely tightened. Refer to the assembly instructions.
• Verify that the chair is placed on a flat, even surface.

7.2. Difficulty converting the chair:

• Ensure there are no obstructions around or underneath the chair.
• Apply gentle, even pressure when pulling out the leg rest or adjusting the backrest. Avoid forcing the mechanism.
• Check if the lock rods (E) and latches (F) are correctly engaged or disengaged during conversion.

7.3. Fabric appears stained or dirty:

• Refer to the '6.1. Fabric Care' section for detailed cleaning instructions.
• Promptly address spills to prevent permanent staining.

8. Especificações

Detailed dimensions of the Sophie Sleeper Chair, showing measurements for both the chair and extended chaise lounge positions. Maximum load capacity is 300 lbs, and cushion size is 12.2 (W) x 22.4 (H) inches.

9. Garantia e Suporte

The mopio Sophie 4-in-1 Convertible Sleeper Chair Bed comes with a 1-year warranty from the date of purchase, covering manufacturing defects. For warranty claims or technical support, please contact the manufacturer, Mopio, directly.

Additional protection plans may be available through your retailer. Please refer to your purchase documentation for details on any extended protection plans.
