1. Introdução
Thank you for choosing the Midea WQP15WU7633GSS Dishwasher. This manual provides essential information for the safe and efficient use of your appliance. Please read it thoroughly before installation and operation, and keep it for future reference.
2. Informações de segurança
AVISO: Para reduzir o risco de incêndio, choque elétrico ou ferimentos, siga estas precauções básicas:
- Leia todas as instruções antes de usar a máquina de lavar louça.
- Conecte somente a uma tomada devidamente aterrada.
- Não opere um aparelho danificado.
- Keep children away from the dishwasher, especially when open.
- Utilize apenas detergentes e abrilhantadores recomendados para máquinas de lavar louça automáticas.
- Do not store or use flammable materials near the appliance.
- Sempre desconecte a energia antes de fazer manutenção.
3. Produto acabadoview
The Midea WQP15WU7633GSS is a freestanding dishwasher designed for efficient dish cleaning. It features a stainless steel finish, touch controls, and a spacious interior with 3 racks.

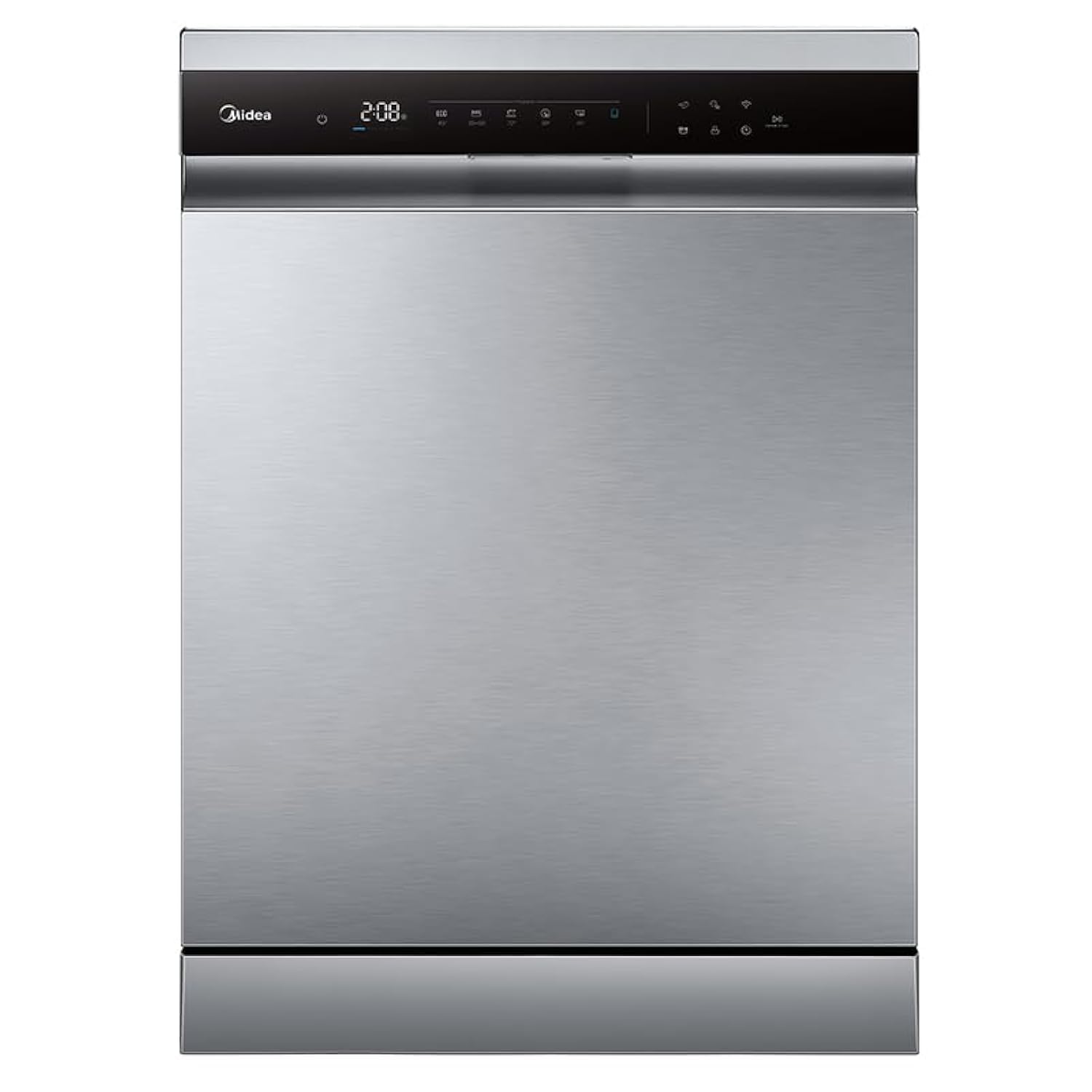

Figura 3.1: Frente view of the Midea WQP15WU7633GSS Dishwasher.

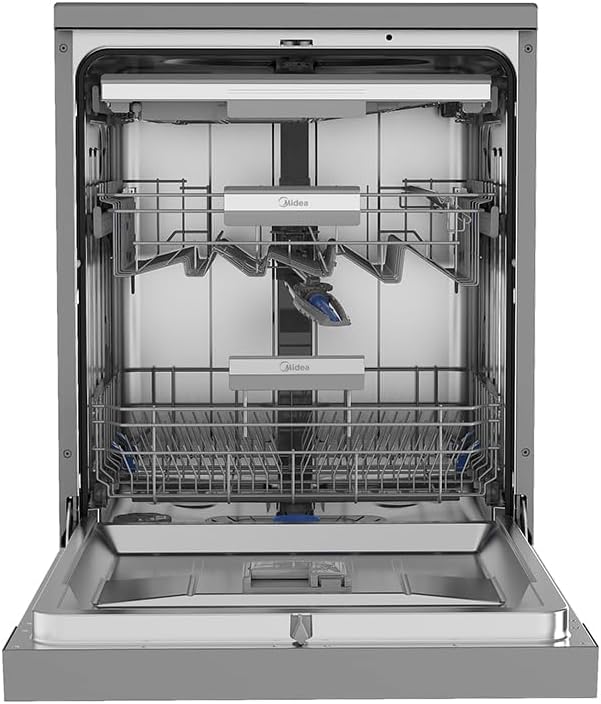

Figura 3.2: Interior view of the dishwasher with the door open, showing the racks.
Figure 3.3: Dishwasher interior with upper and lower racks extended for loading.
4. Configuração e instalação
4.1 Desembalagem
Carefully remove all packaging materials. Inspect the dishwasher for any shipping damage. Keep packaging materials away from children.
4.2 Posicionamento
Place the dishwasher on a level, stable surface. Ensure there is adequate clearance around the appliance for proper ventilation and door opening. The dishwasher is designed as a freestanding unit.
4.3 Conexão de Água
- Entrada de água: Connect the water inlet hose to a cold water supply with a minimum pressure of 0.04 MPa and a maximum of 1 MPa. Ensure connections are tight to prevent leaks.
- Mangueira de drenagem: Connect the drain hose to a suitable drain pipe or sink trap, ensuring it is securely fastened and positioned to prevent backflow.
4.4 Conexão elétrica
Connect the dishwasher to a dedicated, grounded 240 Volt electrical outlet. Do not use extension cords or adapters. Ensure the electrical supply meets the specifications of the appliance.
4.5 Preparação para o primeiro uso
- Dispensador de sal: Fill the salt dispenser with dishwasher salt to soften water, if required in your area.
- Distribuidor de abrilhantador: Fill the rinse aid dispenser to ensure streak-free drying.
- Dispensador de detergente: Add an appropriate amount of dishwasher detergent.
5. Instruções de operação
5.1 Painel de controle sobreview
The dishwasher features a touch control panel with an LCD display. Buttons typically include Power, Program Selection, Delay Start, Start/Pause, and Wi-Fi functions. Refer to the specific icons on your appliance for detailed functions.
5.2 Carregando a máquina de lavar louça
Proper loading is crucial for optimal cleaning. Ensure dishes do not block the spray arms. The dishwasher has 3 racks and a capacity for 15 place settings.
- Place larger items in the lower rack.
- Coloque copos, xícaras e tigelas menores na prateleira superior.
- Use the cutlery basket or third rack for forks, knives, and spoons.
- Evite aglomerações para permitir que a água alcance todas as superfícies.
5.3 Adição de detergente, abrilhantador e sal
- Detergente: Add detergent to the dispenser before each wash cycle.
- Abrilhantador: Refill the rinse aid dispenser when the indicator light illuminates.
- Sal para lava-louças: Refill the salt dispenser when the indicator light illuminates.
5.4 Seleção do Programa
This dishwasher offers 9 wash programs. Select the appropriate program based on the soil level and type of dishes. Common programs include:
- Intensive: For heavily soiled items.
- Normal: For regularly soiled dishes.
- Eco: Energy-saving program for normal soil.
- Quick: For lightly soiled items with a shorter wash time.
- Glass: Gentle wash for delicate glassware.
5.5 Iniciando um ciclo
Close the dishwasher door firmly. Select your desired program using the touch controls. Press the Start/Pause button to begin the cycle. The LCD display will show the remaining time.
5.6 Conectividade Wi-Fi
Your dishwasher supports Wi-Fi connectivity for smart control and monitoring via a compatible mobile application. Refer to the separate Wi-Fi setup guide for detailed instructions on connecting your appliance to your home network and using smart features.
6. Manutenção e Cuidados
A manutenção regular garante o desempenho ideal e prolonga a vida útil da sua máquina de lavar louça.
6.1 Limpeza de filtros
The filter system should be checked and cleaned regularly (e.g., weekly) to prevent blockages and ensure effective cleaning. Remove the coarse filter, fine filter, and main filter, rinse them under running water, and reassemble them correctly.
6.2 Braços de pulverização para limpeza
Verifique se os bicos dos braços aspersores estão obstruídos. Se necessário, remova os braços aspersores e limpe os orifícios com um objeto fino, como um palito de dente. Certifique-se de que girem livremente após a reinstalação.
6.3 Limpeza Exterior e Interior
- Exterior: Limpe as superfícies exteriores com um pano macio, damp pano. Para aço inoxidável, use um produto de limpeza específico para aço inoxidável.
- Interior: Periodicamente, execute um ciclo de limpeza na máquina de lavar louça com um produto de limpeza específico para remover o acúmulo de gordura e calcário.
6.4 Winterização
If the dishwasher is to be left in an unheated location during winter, it must be drained and protected from freezing. Consult a qualified technician for proper winterization procedures.
7. Solução De Problemas
Antes de entrar em contato com o serviço de assistência técnica, consulte a tabela a seguir para obter informações sobre problemas comuns e suas soluções:
| Problema | Possível causa | Solução |
|---|---|---|
| A máquina de lavar louça não liga | Cabo de alimentação não conectado; porta não fechada corretamente; fusível queimado. | Verifique a ligação elétrica; certifique-se de que a porta está trancada; verifique o disjuntor/fusível da residência. |
| Resultados de limpeza ruins | Improper loading; clogged spray arms; insufficient detergent; clogged filters. | Recarregue os pratos corretamente; limpe os braços aspersores; adicione mais detergente; limpe os filtros. |
| Água não drena | Clogged drain hose; clogged filter; drain pump malfunction. | Verifique e desobstrua a mangueira de drenagem; limpe os filtros; entre em contato com a assistência técnica se a bomba estiver com defeito. |
| Vazamentos na máquina de lavar louça | Improperly installed hoses; excessive suds; damaged door seal. | Check hose connections; use less detergent; inspect and replace door seal if damaged. |
8. Especificações
| Recurso | Detalhe |
|---|---|
| Marca | Midea |
| Nome do modelo | WQP15WU7633GSS |
| Tipo de instalação | Freestanding |
| Capacidade | 15 talheres |
| Número de programas de lavagem | 9 |
| Tipo de controle | Tocar |
| Tipo de exibição | LCD |
| Características especiais | Smart and customizable wash cycles, Wi-Fi connectivity |
| Material | Aço inoxidável |
| Cor | Aço inoxidável |
| Volumetage | 240 Volts |
| Nível de ruído | 47 decibéis |
| Dimensões do produto (C x L x A) | 60 x 60 x 85 cm |
| Peso do item | 51 quilos |
| Componentes incluídos | Máquina de lavar louça |
| Spare Part Availability (EU) | 10 anos |
9. Garantia e Suporte
Your Midea WQP15WU7633GSS Dishwasher comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. The availability of spare parts in the EU is guaranteed for 10 years.
For technical support, service, or warranty claims, please contact Midea customer service through their official website ou as informações de contato fornecidas na documentação da sua compra.
