Introdução
The Symphony Duet-i is a personal kitchen cooling fan designed to provide a comfortable environment in various spaces, including kitchens and offices. This manual outlines the necessary steps for safe and efficient use, from initial setup to routine maintenance and troubleshooting.
Image: The Symphony Duet-i Personal Kitchen Cooling Fan in a kitchen setting, providing focused airflow without disturbing the stove flame.
Características do produto
- Design compacto e portátil: Lightweight and easy to carry, allowing flexible placement.
- Arrefecimento Eficiente: Utilizes a high-efficiency honeycomb cooling pad for effective air humidification and cooling.
- Controle de tela sensível ao toque: Intuitive digital touchscreen for easy operation.
- Baixo consumo de energia: Operates at 60 watts, contributing to energy efficiency.
- Reservatório de água de 6 litros: Features a transparent water level indicator for convenient monitoring and refilling.
- Optional Ice Water Chamber: Dedicated chamber for adding ice to enhance cooling performance.
- Função oscilante: Provides 180-degree auto-rotation for wide air distribution.
- Iluminação ambiente: Integrated mood lighting feature to enhance ambiance.
- Características de segurança: Shock-resistant body and bladeless design for safe use in homes with children and pets.
- Operação de baixo ruído: Projetado para um funcionamento silencioso.
Imagem: Detalhada view of the Symphony Duet-i's swivel action, water level indicator, and touchscreen control panel.
Configurar
- Desembalagem: Carefully remove the cooling fan from its packaging. Ensure all components are present: the main unit and power cord.
- Colocação: Place the unit on a stable, flat surface such as a kitchen countertop or office table. Ensure there is adequate space around the unit for proper airflow.
- Enchimento de água:
- Locate the water filling port, typically at the back or side of the unit.
- Pull open the "ICE. WATER PULL TO OPEN" tray.
- Fill the 6-liter water tank with clean water. Do not exceed the "MAX" indicator line visible on the front of the unit.
- For enhanced cooling, add ice cubes to the dedicated ice chamber before closing the tray.
- Conexão de energia: Ligue o cabo de alimentação a uma tomada elétrica padrão (230 Volts).

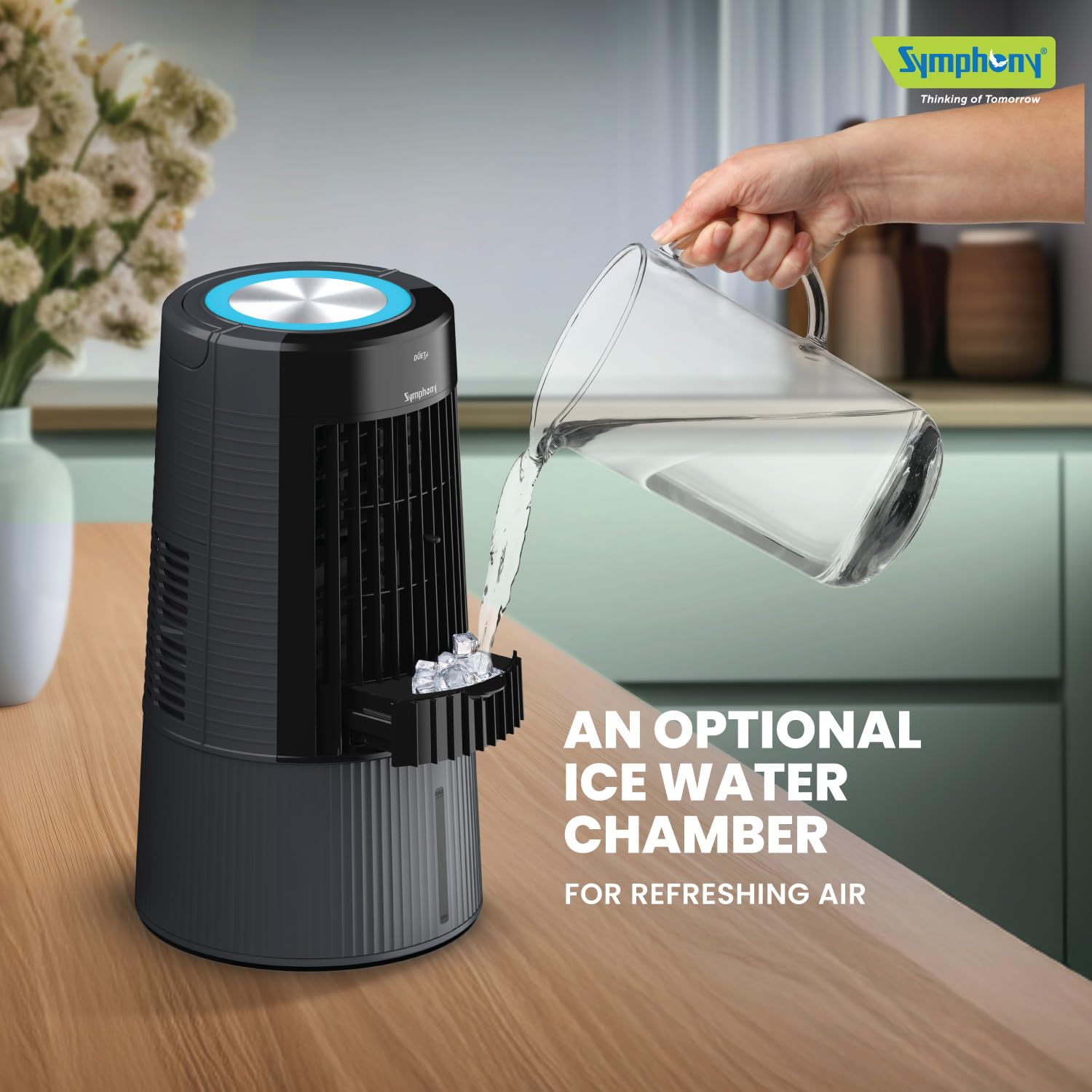

Image: Demonstrating how to fill the ice water chamber of the Symphony Duet-i for refreshing air.
Operação
- Ligar/desligar: Press the power symbol on the touchscreen control panel to turn the unit on or off.
- Ajuste de velocidade do ventilador: The unit offers 3 fan speeds. Press the fan speed icon on the touchscreen to cycle through low, medium, and high settings.
- Oscillation/Swing Function: Press the oscillation icon on the touchscreen to activate or deactivate the 180-degree auto-rotation feature, which distributes air across a wider area.
- Modo de resfriamento: Ensure the water tank is filled. The unit will automatically engage the cooling function using the honeycomb pads.
- Controle de iluminação ambiente: Press the mood light icon to turn the ambient lighting on or off.
Video: A short demonstration of the Symphony Duet-i Personal Kitchen Cooling Fan's features, including water filling, touchscreen controls, and its use in various settings.
Manutenção
Regular maintenance ensures optimal performance and longevity of your Symphony Duet-i cooling fan.
- Limpeza do tanque de água:
- Desligue a unidade antes de limpá-la.
- Drene toda a água restante do tanque.
- Clean the water tank with a soft cloth and mild detergent. Rinse thoroughly to remove any residue.
- Allow the tank to air dry completely before refilling.
- Honeycomb Pad Cleaning:
- Refer to the product diagram to locate and carefully remove the honeycomb cooling pad.
- Rinse the pad under running water to remove dust and mineral deposits. Do not use harsh chemicals.
- Allow the pad to dry completely before reinserting it into the unit.
- Replace the honeycomb pad annually or as needed, depending on usage and water quality.
- Limpeza externa: Limpe as superfícies externas da unidade com um pano macio e seco.amp pano. Evite usar produtos de limpeza abrasivos ou solventes.
Solução de problemas
| Problema | Possível causa | Solução |
|---|---|---|
| A unidade não liga. | Sem fonte de alimentação; cabo de alimentação mal conectado. | Check if the unit is plugged into a working outlet. Ensure the power cord is securely connected. |
| Sem efeito refrescante. | Water tank is empty; honeycomb pad is dry or clogged. | Fill the water tank. Clean or replace the honeycomb pad. |
| Baixo fluxo de ar. | Air inlet/outlet blocked; fan speed set too low. | Ensure air inlets and outlets are clear of obstructions. Increase the fan speed setting. |
| Ruído incomum durante a operação. | A unidade não está sobre uma superfície plana; objeto estranho no interior. | Place the unit on a stable, flat surface. Unplug and inspect for any foreign objects. |
Especificações
| Recurso | Detalhe |
|---|---|
| Marca | Sinfonia |
| Nome do modelo | ACOPE487 |
| Material | Plástico |
| Tipo de montagem | Freestanding |
| Cor | Cinza |
| Capacidade de fluxo de ar | 10 pés cúbicos por minuto |
| Tipo de controle | Tocar |
| Capacidade do Reservatório | 6 litros |
| Cobertura da área útil | 110 pés quadrados |
| Peso do item | 5.8 quilos |
| Usos recomendados | Resfriamento |
| Fator de forma | Pessoal |
| O quetage | 60 Watts |
| Número de velocidades | 3 |
| Volumetage | 230 Volts |
| Dimensões do item (P x L x A) | 26 cm de profundidade x 26 cm de largura x 47 cm de altura |
| Componentes incluídos | 1 Duet-i Fan |
Garantia e Suporte
The Symphony Duet-i Personal Kitchen Cooling Fan comes with a limited warranty. The warranty is valid for 12 months from the date of purchase or invoice, provided the product is operated according to the recommendations mentioned in this manual.
For any service requests or support, please contact Symphony Limited customer service. Contact information can typically be found on the product packaging or the official Symphony website.
