Introdução
This manual provides detailed instructions for the installation, operation, and maintenance of your Hertz DP 1.500 D-Class Mono Bass Amplifier. Designed for optimal audio performance in a compact form factor, this amplifier delivers powerful bass output for your car audio system. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Figura 1: Vista superior frontal view of the Hertz DP 1.500 D-Class Mono Bass Ampmais vivo.
Características
The Hertz DP 1.500 amplifier incorporates advanced technology to provide high-quality audio performance:
- Maximum Power in Compact Size: Advanced Class-D (ADC) technology ensures 2Ω stable power output in a small and compact design.
- Design atraente: Features an elegant status LED, solid machined terminal blocks, and a removable top panel to protect controls and connections.
- Compatibilidade Universal: Operates with a supply voltage from 6.5 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms, including an integrated Universal Speaker Simulator (USS).
- High-Noise Rejection: Pre-in and Speaker-in inputs feature balanced input circuitry for clear sound.
- Full Set of Controls: Adjustable input levels, high/low-pass crossover filters (50-4000Hz 12dB/Oct.), and bass boost allow fine-tuning of the sound.
Figure 2: Hi-Res Audio Certified for superior sound quality.
Configuração e instalação
A instalação correta é crucial para o desempenho e a longevidade do seu produto. ampAmplificador. Recomenda-se que a instalação seja realizada por um profissional qualificado.
Precauções de segurança
- Sempre desconecte o terminal negativo da bateria do veículo antes de iniciar qualquer trabalho elétrico.
- Ensure all wiring is correctly sized and fused according to the amplifier's specifications and local regulations.
- Monte o ampInstale o amplificador em um local que permita ventilação adequada e esteja protegido da umidade e do calor excessivo.
Conexões de fiação
O amplifier features clearly labeled terminals for power, ground, remote, and speaker outputs, as well as RCA and speaker-level inputs.
Figura 3: Traseira view do amplifier with power and speaker terminals.
- Potência (BATT): Connect to the positive terminal of the vehicle's battery using appropriate gauge wire and an inline fuse.
- Terra (GND): Connect to a clean, unpainted metal point on the vehicle chassis, as close to the amplifier as possible, using the same gauge wire as the power cable.
- Remoto (REM): Connect to the remote turn-on lead from your head unit.
- Speaker Output (SPEAKER OUT): Connect your subwoofer(s) to these terminals. Ensure correct polarity (+ to + and - to -).
- Input (RCA or SPK IN): Use RCA cables for line-level inputs from your head unit or speaker-level inputs (SPK IN) for direct connection to factory head units.

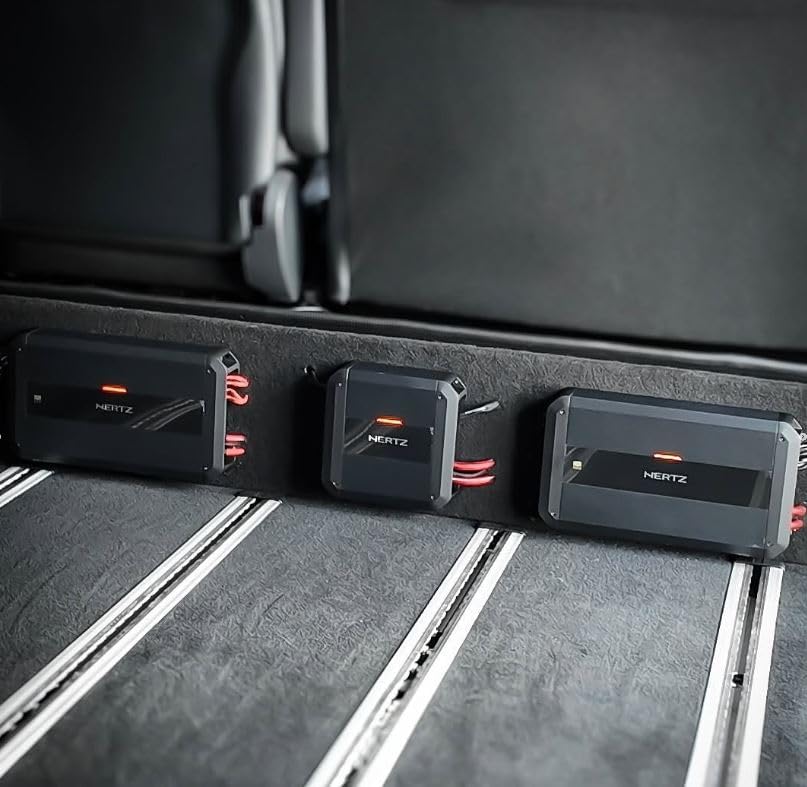

Figura 4: Example of multiple Hertz amplifiers installed, showcasing compact design.
Instruções de operação
The Hertz DP 1.500 amplifier offers a range of controls to fine-tune your audio experience.
Figura 5: Frente view do amplifier with control panel.
- Input Level (LO/HI): Select the appropriate input level switch based on whether you are using line-level (RCA) or speaker-level inputs.
- Controle de Ganho: Adjust the gain knob to match the output voltage da sua unidade principal. Comece com o ganho no mínimo e aumente gradualmente até atingir o volume desejado sem distorção.
- LP Filter (Low Pass Filter): This control sets the upper frequency limit for the subwoofer. Adjust between 50-4000Hz (12dB/Oct.) to blend the subwoofer with your main speakers.
- Reforço de graves: Provides an adjustable bass enhancement (0-9 dB) at 50 Hz. Use sparingly to avoid distortion.
- Controle de fase (0°/180°): Adjust this switch to match the phase of the subwoofer with the main speakers for optimal bass impact.
- Controle remoto de graves: An optional remote bass control (sold separately) can be connected for convenient adjustment of the subwoofer level from the driver's seat.
Manutenção
A manutenção regular garante a longevidade e o desempenho ideal do seu equipamento. ampmais vivo.
- Limpeza: Mantenha o amplifier clean and free of dust and debris. Use a soft, dry cloth for cleaning. Avoid using harsh chemicals or abrasive cleaners.
- Ventilação: Assegurar que o amplifier's cooling fins are not obstructed to prevent overheating.
- Conexões: Periodically check all power, ground, remote, and speaker connections to ensure they are secure and free from corrosion.
- Fusíveis: O amplifier uses 30A fuses. If a fuse blows, replace it only with a fuse of the same type and rating. Never use a higher rated fuse, as this can cause damage to the ampAmplificador ou sistema elétrico do veículo.
Solução de problemas
Se você tiver problemas com seu ampPara solucionar problemas com o amplificador, consulte as seguintes etapas comuns:
- Sem energia: Check the main power fuse, the amplifier's fuses, and all power and ground connections. Ensure the remote turn-on wire is receiving 12V when the head unit is on.
- Sem som: Verify all input and output connections. Check the head unit's volume and settings. Ensure the input level switch (LO/HI) is correctly set. Adjust the gain control.
- Distorção: Reduce the gain setting. Check for proper input signal level. Ensure speaker impedance matches the amplifier's capabilities. Check for damaged speaker wires or speakers.
- Overheating (Protection Mode): Garanta ventilação adequada ao redor do amplifier. Check speaker impedance to ensure it's not too low. Reduce the gain setting.
- Ruído/Zumbido: Check for proper grounding of the amplifier and head unit. Ensure RCA cables are not routed near power wires.
If the problem persists after performing these checks, consult a qualified car audio technician.
Especificações
| Especificação | Valor |
|---|---|
| Peso do item | 3.57 libras |
| Dimensões do produto | 7.48 x 6.54 x 1.97 polegadas |
| Número do modelo do item | DP-1.500-FBA |
| ASIN | B0DC59R5DC |
| Data da primeira disponibilidade | 13 de agosto de 2024 |
Garantia e Suporte
Your Hertz DP 1.500 D-Class Mono Bass AmpO lificador vem com um Garantia do fabricante de 1 anos. For warranty claims, technical support, or any questions not covered in this manual, please contact HERTZ customer service or visit their official website.
Guarde sempre o comprovante de compra para fins de garantia.
