1. Produto acabadoview
The SENIX X6 3 Amp Battery Charger (Model CHX6-L) is designed for use with SENIX 60 Volt Max* Lithium-ion Batteries. This charger provides rapid charging capabilities and features an Intelligent Battery Control System to monitor cell charge and temperature, ensuring efficient recharging. A fan-cooled charging system helps prevent overheating of both the battery and charger. Indicator lights provide real-time charging status. The charger is compatible with all SENIX X6 60V Max, B30X6, B40X6, B60X6, B80X6, and B120X6 batteries.
Principais características
- Carregamento rápido: Charges SENIX 60 Volt Max* batteries in under 75 minutes for minimal downtime.
- Intelligent Battery Control System: Monitors each cell’s charge and temperature for optimal and efficient recharging.
- Fan-Cooled Charging System: Helps prevent the battery and charger from overheating during operation.
- Luzes indicadoras: Provides clear visual feedback on the current charging status of the battery.
- Ampla compatibilidade: Compatible with all SENIX X6 60V Max, B30X6, B40X6, B60X6, B80X6, and B120X6 batteries.
- Wall Mounting Capable: Includes a mounting hole for convenient storage and access.

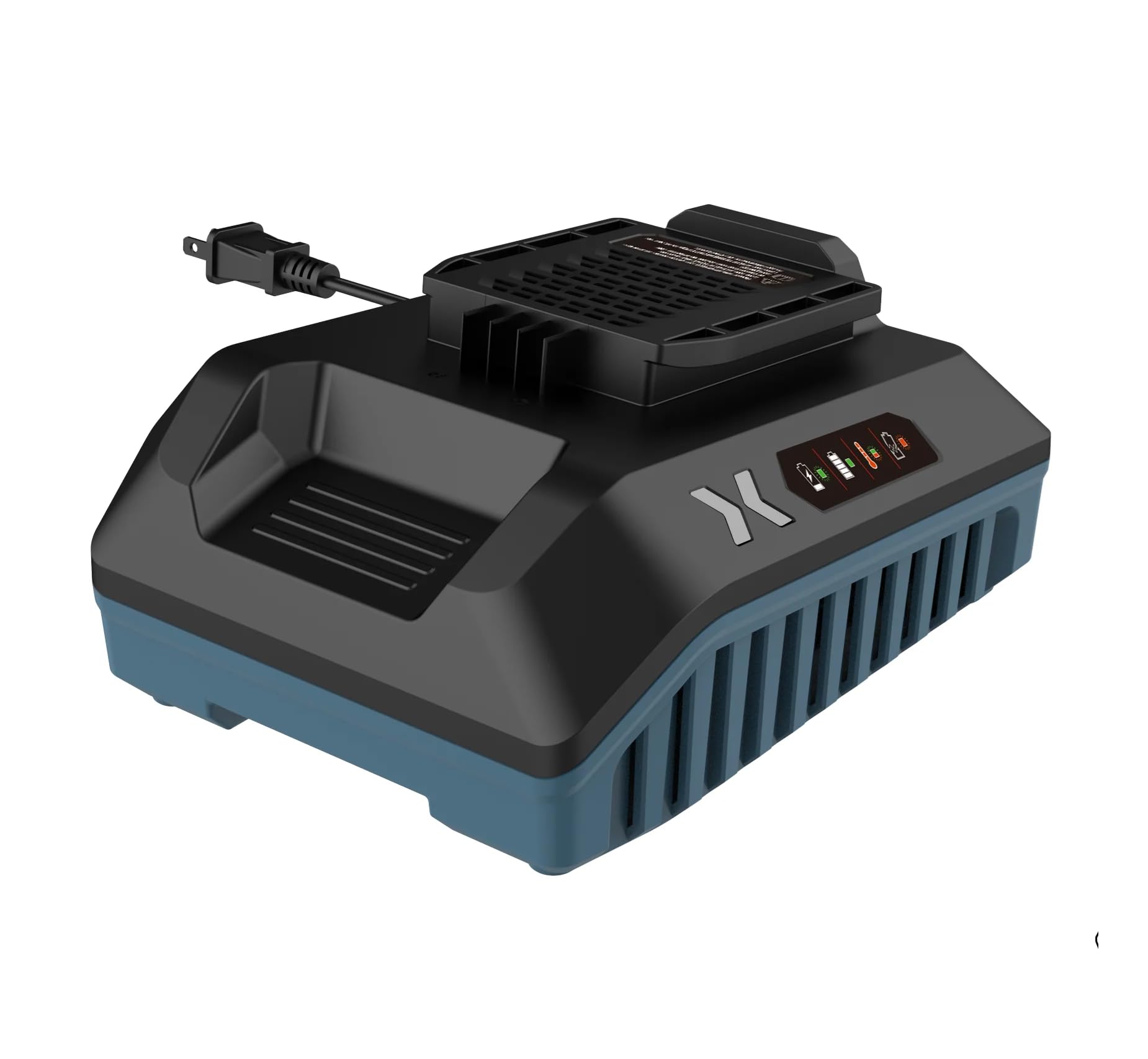

Figure 1: SENIX X6 60V Lithium-Ion Battery Charger (Model CHX6-L)
Figure 2: SENIX X6 60V Lithium-Ion Battery Power System with compatible tools.
Figure 3: SENIX X6 60V Lawn Mower, Chainsaw, and Blower.
2. Informações importantes de segurança
Leia todos os avisos de segurança, instruções, ilustrações e especificações fornecidas com esta ferramenta elétrica. Não seguir todas as instruções listadas abaixo pode resultar em choque elétrico, incêndio e/ou ferimentos graves.
- Always ensure the charger is connected to a power source with the correct voltage.
- Não carregue as baterias em modo de espera.amp ou condições úmidas.
- Use only SENIX X6 60V Max Lithium-ion batteries with this charger. Using other batteries may cause injury or damage.
- Do not attempt to disassemble the charger or battery. Contact qualified service personnel for repairs.
- Mantenha o carregador longe de fontes de calor e da luz solar direta.
- Garanta ventilação adequada durante o carregamento para evitar superaquecimento.
- Desconecte o carregador da tomada quando não estiver em uso ou antes de limpá-lo.
- Não opere o carregador se o cabo ou plugue estiver danificado.
3. Configuração
Desembalando
Carefully remove the charger and any accessories from the packaging. Inspect the unit for any signs of damage during transit. Retain the packaging for future storage or if the product needs to be returned.
Montagem na parede
The SENIX X6 Battery Charger is designed with a mounting hole for convenient wall installation. This allows for easy storage and access to your charger and batteries, keeping your workspace organized.
- Select a suitable location for mounting, ensuring it is near a power outlet and away from moisture or excessive heat.
- Use appropriate fasteners (screws, anchors) for your wall type. The mounting holes are designed to accommodate standard screw heads.
- Securely attach the charger to the wall using the designated mounting hole on the back of the unit.
Figura 4: Traseira view of SENIX X6 charger illustrating wall mounting holes.
4. Operação
Carregando uma bateria
- Plug the charger into a standard electrical outlet. The charger's indicator light may briefly illuminate.
- Align the SENIX 60 Volt Max* Lithium-ion battery with the charging port on the charger.
- Slide the battery onto the charger until it clicks securely into place.
- The charger's indicator lights will show the charging status. A blinking green light typically indicates that the battery is actively charging.
- Once fully charged, the indicator light will turn solid green. Remove the battery from the charger by pressing the release button and sliding it off.
Luzes indicadoras de bateria
The SENIX X6 Charging Station features indicator lights that provide visual feedback on the battery's charge status and any potential issues:
- Verde piscando: A bateria está carregando ativamente.
- Verde sólido: A bateria está totalmente carregada.
- Vermelho piscando: Battery or charger temperature is outside the optimal charging range. Charging will resume automatically once the temperature normalizes.
- Vermelho sólido: Indicates a fault with the battery or charger. Disconnect and re-insert the battery. If the issue persists, contact customer support.
Figure 5: SENIX X6 3 Amp Battery Charger with a 60V battery inserted, showing indicator lights.
Figure 6: Close-up of SENIX X6 60V battery with power indicator button to check charge level.
5. Manutenção
- Limpeza: Regularly clean the charger and battery contacts with a dry, clean cloth. Do not use liquids or solvents.
- Armazenar: Store the charger and batteries in a cool, dry place, away from direct sunlight and extreme temperatures. Ensure batteries are partially charged (not fully depleted or fully charged) for long-term storage.
- Inspeção: Periodically inspect the charger cord and plug for any damage. Do not use if damaged.
6. Solução De Problemas
| Problema | Possível causa | Solução |
|---|---|---|
| Battery not charging (no indicator light) | Charger not plugged in, power outlet fault, damaged charger. | Check power connection. Try a different outlet. Inspect charger for damage. |
| Blinking Red Indicator | Battery or charger is too hot or too cold. | Move the charger and battery to a room temperature environment (10°C to 40°C or 50°F to 104°F) and allow them to cool down or warm up. Charging will resume automatically. |
| Solid Red Indicator | Battery fault or charger fault. | Remove the battery, wait a few seconds, and re-insert. If the light remains solid red, the battery or charger may be defective. Contact customer support. |
7. Especificações
| Recurso | Detalhe |
|---|---|
| Número do modelo | CHX6-L |
| Vol de entradatage | Standard AC (as per region) |
| Volume de saídatage | 60 Volts |
| Corrente de carga | 3 Amp |
| Baterias Compatíveis | SENIX X6 60V Max Lithium-ion (B30X6, B40X6, B60X6, B80X6, B120X6) |
| Approx. Charge Time (60V Max*) | Menos de 75 minutos |
| Dimensões do produto | 8.75 x 8.75 x 6.25 polegadas |
| Peso do item | 1.83 libras |
| Fabricante | SENIX |
8. Informações de garantia
SENIX offers a limited warranty for its products. Please refer to the specific warranty terms provided with your product for full details. Generally, SENIX X6 tools come with a 5-year limited warranty, and SENIX X6 batteries come with a 3-year limited warranty.
Figure 7: SENIX Limited Warranty details.
9. Suporte ao cliente
For technical assistance, warranty claims, or general inquiries, please contact SENIX customer support. Refer to the official SENIX webPara obter as informações de contato mais recentes, consulte o site ou a embalagem do produto.
Website: Visit the SENIX Store on Amazon
