1. Introdução
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Goodman 5 Ton 13.8 SEER2 R-32 AC Only System. This system comprises the GLXS4BA6010 condenser and the CHPTA6030D3 horizontal coil. Please read this manual thoroughly before installation or use and retain it for future reference. Proper installation and maintenance are crucial for optimal performance and longevity.
2. Produto acabadoview
The Goodman 5 Ton 13.8 SEER2 R-32 AC Only System is designed to provide efficient cooling for your home. This system is certified by AHRI under certificate number 214860140. Note that this is an AC-only system and requires a furnace or blower for a complete HVAC setup.
Componentes do sistema
- GLXS4BA6010 Condenser: A 5 Ton 13.8 SEER2 single-stage AC unit. It features service valves, gauge ports, and inspection points for ease of use and maintenance. The unit is pre-charged for 15 feet of tubing and includes a factory-installed filter drier.
- CHPTA6030D3 Horizontal Coil: Constructed with corrosion-resistant aluminum and grooved tubing for enhanced heat transfer. This coil is rigorously tested for quality and designed for versatile, long-standing cooling needs. Its horizontal design optimizes airflow.
Fim visualview
Figura 1: Overview of the Goodman 5 Ton AC System, showing both the outdoor condenser unit and the indoor horizontal coil.
Figura 2: Close view of the Goodman GLXS4BA6010 outdoor condenser unit, highlighting its robust construction.

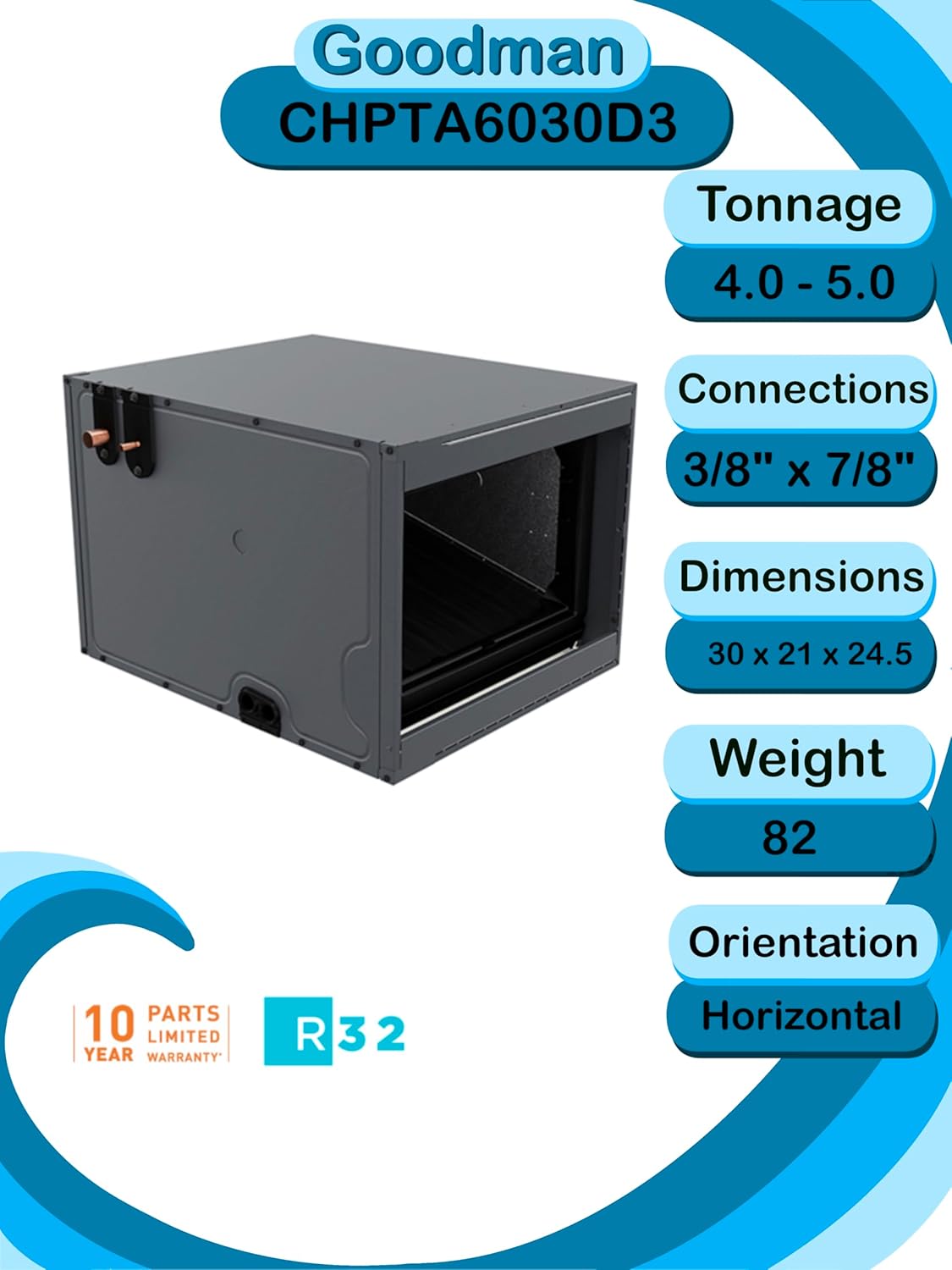

Figure 3: Detailed image of the Goodman CHPTA6030D3 horizontal coil, designed for efficient heat transfer.
Figure 4: EnergyGuide label for the Goodman GLXS4BA6010A model, indicating an efficiency rating of 13.80 SEER2.
Vídeos informativos
Video 1: This video from Superior Home Supplies provides an overview of condenser and coil combinations, explaining their function within an HVAC system.
Video 2: This video from Superior Home Supplies explains different types of HVAC systems, helping users understand their specific setup.
3. Configuração e instalação
Installation of this Goodman AC system requires specialized knowledge and tools. It is strongly recommended that installation be performed by a qualified HVAC technician. Improper installation can lead to system malfunction, safety hazards, and voiding of the warranty.
Principais considerações de instalação:
- Refrigerante: The condenser unit is pre-charged with R-32 refrigerant for 15 feet of tubing. Additional refrigerant may be required depending on the line set length.
- Correspondência de bobina: Ensure the CHPTA6030D3 horizontal coil is correctly matched and installed with your existing or new furnace/blower unit.
- Conexões elétricas: Toda a fiação elétrica deve estar em conformidade com as normas elétricas locais e nacionais.
- Canalização: Proper ductwork sizing and sealing are essential for efficient airflow and system performance.
- R-32 Safety: As R-32 refrigerant is mildly flammable, a compatible R-32 leak detection system is required, especially when paired with a furnace, to ensure safe operation.
4. Instruções de operação
Once installed by a professional, your Goodman AC system is designed for straightforward operation. Control the system using your thermostat.
Operação básica:
- Ligar: Ensure the system's power disconnect switch (usually located near the outdoor unit) is in the 'ON' position.
- Configurações do termostato: Set your thermostat to 'COOL' mode.
- Ajuste de temperatura: Adjust the desired temperature setting on your thermostat. The system will automatically cycle on and off to maintain this temperature.
- Operação do ventilador: The fan can typically be set to 'AUTO' (runs only when cooling) or 'ON' (runs continuously). 'AUTO' is generally recommended for energy efficiency.
For detailed programming and advanced features, refer to your specific thermostat's user manual.
5. Manutenção
Regular maintenance is vital to ensure the efficiency, reliability, and longevity of your Goodman AC system. Some tasks can be performed by the homeowner, while others require a qualified technician.
Manutenção do Proprietário:
- Substituição do filtro de ar: Check and replace the air filter in your furnace or air handler every 1-3 months, or more frequently if you have pets or allergies. A dirty filter restricts airflow and reduces efficiency.
- Limpeza da unidade externa: Keep the area around the outdoor condenser unit clear of debris, leaves, and vegetation. Periodically rinse the outdoor coil fins with a garden hose to remove dirt buildup. Ensure power is off before cleaning.
- Verificação da linha de drenagem: Periodically check the condensate drain line for blockages. A clogged drain can lead to water leaks.
Manutenção Profissional:
It is recommended to have a qualified HVAC technician perform annual maintenance on your system. This typically includes:
- Verificação dos níveis e da pressão do fluido refrigerante.
- Inspecting electrical components and connections.
- Cleaning indoor and outdoor coils.
- Lubricating moving parts.
- Verificação da calibração do termostato.
- Inspecionar a tubulação de ar em busca de vazamentos.
6. Solução De Problemas
Antes de solicitar assistência técnica, verifique estes problemas comuns:
| Problema | Possível causa | Solução |
|---|---|---|
| Sistema não está refrigerando | Thermostat set incorrectly, dirty air filter, tripped circuit breaker, outdoor unit blocked. | Check thermostat settings, replace filter, reset breaker, clear debris from outdoor unit. |
| Sem fluxo de ar | Dirty air filter, fan motor issue, blocked vents. | Replace filter, check for obstructions in vents. Contact technician if fan motor is faulty. |
| Ruídos incomuns | Loose parts, fan motor issues, refrigerant issues. | Turn off unit and inspect for loose panels. Contact technician for internal component issues. |
| Vazamento de água | Tubulação de drenagem de condensado entupida, serpentina do evaporador congelada. | Clear drain line. If coil is frozen, turn off AC and let it thaw, then check airflow. Contact technician if problem persists. |
If these steps do not resolve the issue, contact a qualified HVAC technician for diagnosis and repair.
7. Especificações
| Recurso | Especificação |
|---|---|
| Marca | Bom homem |
| Modelo Condensador | GLXS4BA6010 |
| Modelo de bobina | CHPTA6030D3 |
| Capacidade | 5 toneladas |
| Classificação SEER2 | 13.8 |
| Tipo de refrigerante | R-32 |
| Volumetage | 230 Volts |
| Nível de ruído | 76 decibéis |
| Tipo de instalação | Sistema Dividido |
| Condenser Weight | 346 libras |
| Coil Orientation | Horizontal |
| Recurso especial | Resfriamento rápido |
8. Important R-32 Refrigerant Information
This system utilizes R-32 refrigerant, a modern and more environmentally friendly alternative to older refrigerants like R-410A. R-32 offers improved energy efficiency and a significantly lower Global Warming Potential (GWP).
Key Points about R-32:
- Eficiência Energética: R-32 is more energy-efficient, potentially leading to lower electricity bills.
- Impacto Ambiental: It has a GWP of 675, which is substantially lower than R-410A's GWP of 2088, contributing to reduced global warming.
- Inflamabilidade: R-32 is mildly flammable. Therefore, specific safety precautions and equipment are required during installation and servicing, including an R-32 leak detection system when used with a furnace.
- Compatibilidade: R-32 systems are not backward compatible with R-410A systems. If replacing a component, both the condenser and coil must be compatible with R-32.
Informational Videos on R-32 and SEER2 Regulations
Video 3: This video from MRO Next Day explains why R-32 refrigerant is becoming the future of air conditioning, highlighting its benefits.
Video 4: This video from Superior Home Supplies provides important information regarding refrigerant regulations and their impact on HVAC systems.
Video 5: This video from Superior Home Supplies discusses R-32 refrigerant, separating facts from common misconceptions.
Video 6: This video from Superior Home Supplies explains the SEER2 regulations, which impact the energy efficiency standards for HVAC equipment.
9. Garantia e Suporte
The Goodman 5 Ton 13.8 SEER2 R-32 AC Only System comes with a reassuring 10-year parts warranty. For specific warranty terms and conditions, please refer to the documentation provided with your product or contact Goodman customer support.
Suporte ao cliente:
For technical assistance, warranty claims, or to locate a certified service provider, please visit the official Goodman webVocê pode visitar o site ou entrar em contato com o departamento de atendimento ao cliente. Você também pode visitar o Goodman Store on Amazon para obter informações e recursos adicionais.
