SK-120 Buck Boost Power Converter User Manual

1. Introdução e maisview

The AUGUESLD SK-120 is a compact and versatile 120W Buck Boost Power Converter designed for various DC power applications. It features a full-view VA color LCD screen for clear display of real-time voltage, current, and power values. This module offers adjustable output voltage from 0-36V and current up to 6A, with an input voltage range of 6.0-36V. It incorporates multiple protection functions to ensure safe and reliable operation.

Figure 1: Front and internal view of the SK-120 Buck Boost Power Converter, showcasing its display and internal components.

2. Recursos do Produto

• Wide Input/Output Range: Input DC 6.0-36V, Output DC 0-36V, Max Output Current 6A, Max Output Power 120W.
• Tela LCD colorida VA: Completo-view display for clear and intuitive viewing of voltage, corrente e potência.
• Proteção abrangente: Includes anti-reverse connection, anti-reverse current, under-voltage proteção, over-voltage protection, over-current protection, over-temperature protection, and over-power protection.
• Aplicação versátil: Suitable for use as a desktop small power supply, solar charging controller, and various DIY electronic projects.
• Funcionalidade MPPT: Supports MPPT solar charging when an external temperature probe is connected.

Figura 2: Detalhado view of the SK-120's control panel, highlighting the VSET, SW, ISET, Encoder, and Power buttons, along with display sections for voltage, corrente e potência.

Figure 3: Internal layout of the SK-120, showing high-quality solid-state capacitors, intelligent temperature-controlled fan, dual inductance design, and input/output terminals.

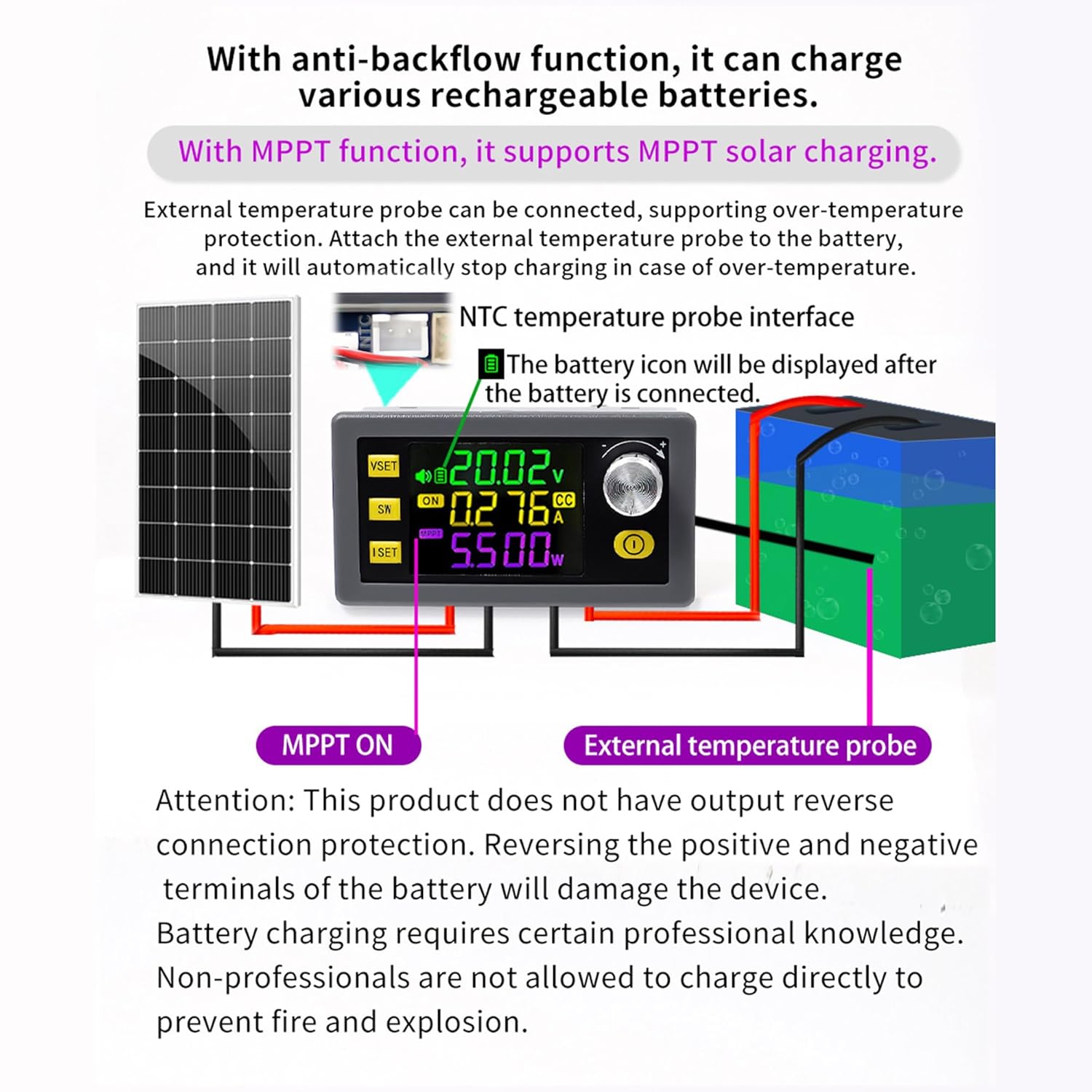

Figure 4: Illustration of the SK-120's anti-backflow function for battery charging and support for MPPT solar charging with an external NTC temperature probe. Importante: This product does not have output reverse connection protection. Reversing positive and negative terminals of the battery will damage the device. Battery charging requires professional knowledge.

3. Conteúdo da embalagem

Ao abrir a embalagem, você deverá encontrar o seguinte item:

• 1 x DC Buck Boost Power Converter (SK120)

4. Configuração e instalação

The SK-120 is designed for easy integration into various projects. Ensure proper wiring and observe polarity to prevent damage.

4.1 Conexões de Fiação

Connect your input power source to the IN+ and IN- terminals and your load to the OUT+ and OUT- terminals. Refer to Figure 3 for a visual guide on wiring.

4.2 Dimensões Físicas e Montagem

Consider the product dimensions for proper enclosure or mounting. The module measures approximately 79mm (W) x 43mm (H) x 50mm (D) and weighs 108g. A suggested opening size for panel mounting is 71.3mm x 39mm.

Figure 5: Dimensions of the SK-120 module and recommended panel opening size for installation.

4.3 Terminal Upgrade

The module features upgraded plug-and-pull terminals for easy disassembly and replacement, simplifying installation and maintenance.

Figura 6: Close view of the built-in buzzer and the convenient plug-and-pull terminals for easy wiring.

5. Instruções de operação

The SK-120 features an intuitive interface for setting and monitoring parameters.

5.1 Configuração do Voltage e atual

Para definir o vol de saídatage ou atual:

1. On the main UI, briefly press the VSET botão para definir o volumetage. The LCD will display "SET" in the lower row, and "CV" will flash, indicating the voltage setting position is selected and blinking.
2. Pressione brevemente o SW button or rotate the encoder to shift between digits.
3. Rotate the encoder to adjust the value.
4. After setting is complete, briefly press the VSET button again to exit and save.
5. To set the current, briefly press the ISET button. The setting steps are the same as for voltage.

Figure 7: Visual guide for setting the output voltage (CV) and current (CC) using the VSET, SW, and ISET buttons, and the encoder.

5.2 Quick Setting of Voltage ou atual

For quick adjustments, you can set the parameter FET to CV (Constant Voltage) or CC (Constant Current) in the system parameter settings UI. Then, rotate the encoder on the main UI to directly enter the voltage or current setting UI and quickly adjust the value.

5.3 Input/Output Voltage display

On the main UI, briefly press the SW button to switch between displaying input voltage (IN) and output voltage (OUT).

5.4 Checking Power, Capacity, Energy, Time, and Temperature

On the main UI, briefly press the encoder button to cycle through displaying power (W), capacity (Ah), energy (Wh), time (h), and temperature (°C) in rotation.

5.5 Função de bloqueio de teclas

To prevent accidental changes, you can lock the set voltage and current. Press and hold the encoder button for 2 seconds to lock the operation. A lock symbol will appear on the display. To unlock, press and hold the encoder button for another 2 seconds.

Figure 8: Instructions for quick setting of voltage/current, toggling input/output display, and using the key lock feature.

Figure 9: Guide on how to cycle through displaying power, capacity, energy, time, and temperature, and how to activate/deactivate the key lock.

5.6 Vídeo de Demonstração Operacional

Watch this video for a visual demonstration of the SK-120 Buck Boost Converter's key operational features, including power-on, setting voltage and current, and navigating display modes.

6. Manutenção

To ensure the longevity and optimal performance of your SK-120 Buck Boost Power Converter, follow these general maintenance guidelines:

• Mantenha o dispositivo limpo e livre de poeira e detritos. Use um pano macio e seco para a limpeza.
• Ensure adequate ventilation around the module, especially for the intelligent temperature-controlled fan, to prevent overheating.
• Evite expor o dispositivo a temperaturas extremas, umidade ou ambientes corrosivos.
• Regularly check all wiring connections to ensure they are secure and free from damage.

7. Solução De Problemas

The SK-120 is equipped with multiple protection features to safeguard the device and connected equipment. If the module stops functioning or displays an error, check the following:

• Sub-voltage Proteção (UVP): Se o volume de entradatage drops below the set threshold (default 5.5V), the output may shut off. Verify your input power source.
• Volume excessivotage Proteção (OVP): Se o volume de saídatage exceeds the set threshold (default 38V), the output will be disabled. Check your voltage settings and load.
• Proteção contra sobrecorrente (OCP): If the output current exceeds the set threshold (default 6.2A), the output will be disabled. Reduce the load or check for short circuits.
• Proteção contra superaquecimento (OTP): If the internal temperature exceeds the set threshold (default 95°C), the output will shut off. Ensure proper ventilation and reduce load if necessary.
• Over-power Protection (OPP): If the output power exceeds the set threshold (default 125W), the output will be disabled. Reduce the load.
• Anti-reverse Connection: The module has protection against reverse input polarity. However, ensure correct polarity for output connections, especially when charging batteries, as output reverse connection protection is not present.

If issues persist after checking these points, refer to the contact information in the Support section.

8. Especificações

Detailed technical specifications for the SK-120 Buck Boost Power Converter:

Figure 10: Comprehensive table outlining the electrical and physical specifications of the SK-120 module.

9. Garantia e Suporte

AUGUESLD is committed to customer satisfaction. We offer 7*24 Hours After-sales Service to address any questions or quality issues you may encounter with your product.

For support, please contact us through the platform where you purchased the product or refer to the contact information provided with your purchase. Please have your model number (SK120) and purchase details ready when contacting support.
