Cecotec Proclean 3110 Flatbed Microwave Oven Instruction Manual

1. Introdução

Thank you for choosing the Cecotec Proclean 3110 Flatbed Microwave Oven. This manual provides essential information for the safe and efficient use of your appliance. Please read these instructions carefully before use and keep them for future reference.

The Cecotec Proclean 3110 Flatbed Microwave Oven features a 20-liter capacity, 700W microwave power, an 800W grill, and 3DWave technology for even cooking. Its flat cavity design accommodates larger dishes and simplifies cleaning.

2. Instruções de segurança

To prevent potential hazards and ensure proper operation, always follow these basic safety precautions:

• Do not operate the microwave oven if the door is damaged, or if the seals or interior are compromised.
• Ensure proper ventilation around the appliance. Do not block air vents.
• Never heat liquids or food in sealed containers, as they may explode.
• Do not use metal utensils, foil, or dishes with metallic trim in the microwave mode.
• Always supervise food being heated, especially when using high power settings.
• Do not attempt to service or repair the appliance yourself. Contact qualified personnel.
• Keep the interior clean to prevent grease buildup, which can be a fire hazard.
• Este aparelho não se destina ao uso por pessoas (incluindo crianças) com capacidades físicas, sensoriais ou mentais reduzidas, ou com falta de experiência e conhecimento, a menos que tenham recebido supervisão ou instruções sobre o uso do aparelho de uma pessoa responsável pela sua segurança.

3. Produto acabadoview

3.1 Componentes

• Unidade de forno de micro-ondas
• Rack de grelha
• Manual de instruções

3.2 Painel de controle e recursos

The microwave features two rotary dials for easy control of time and cooking functions.

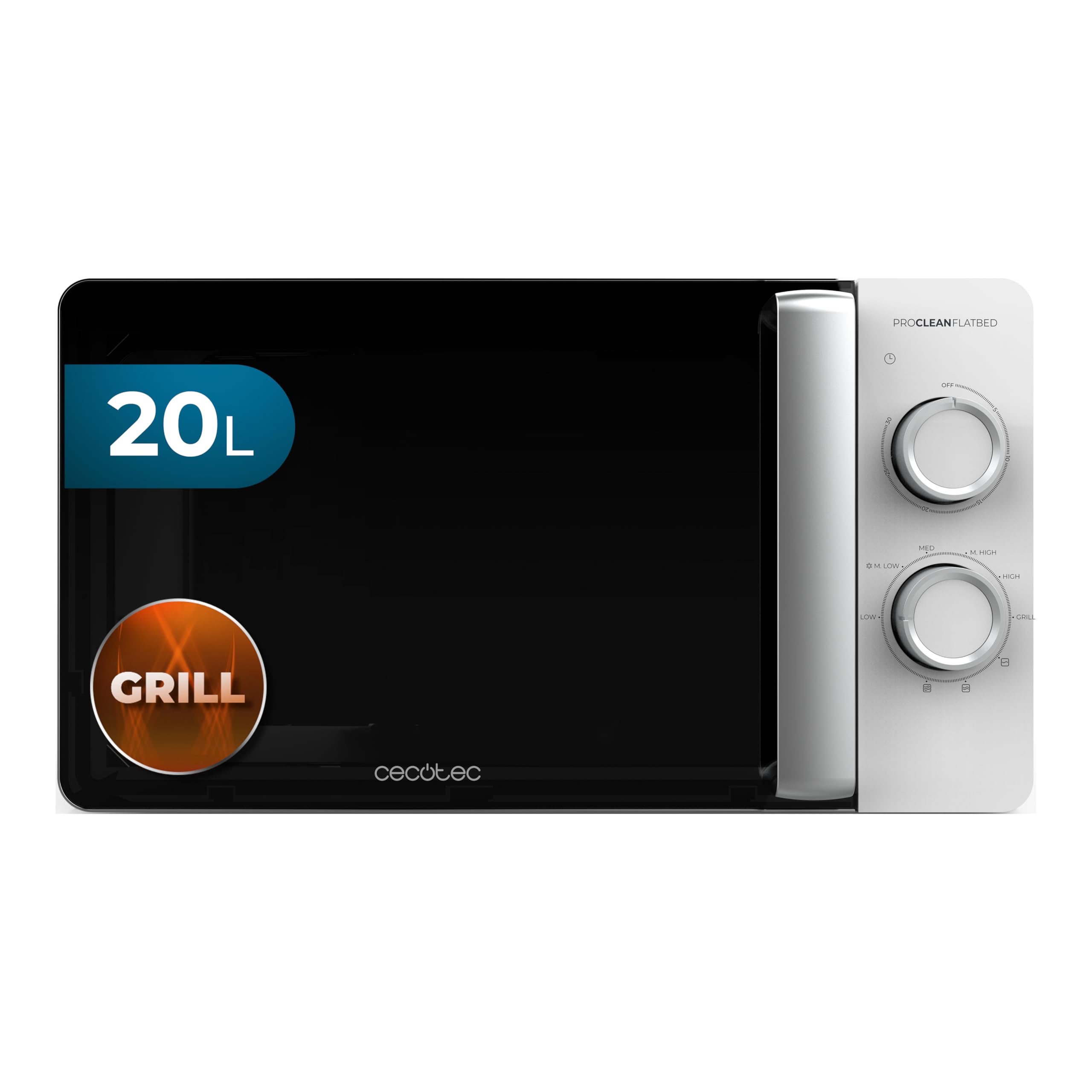

This image focuses on the two rotary dials of the microwave: the upper dial for setting the timer and the lower dial for selecting power levels and cooking functions like grill and defrost.

• Mostrador do temporizador: Located at the top, used to set cooking time up to 30 minutes.
• Power/Function Dial: Located at the bottom, used to select microwave power levels (Low, M. Low, Med, M. High, High), as well as Grill and Defrost functions.
• Flat Cavity: The absence of a turntable provides more usable space and simplifies cleaning.
• Tecnologia 3DWave: Ensures uniform distribution of microwaves for even heating and cooking.

4. Configuração

4.1 Desembalagem

Carefully remove the microwave oven and all packaging materials. Inspect the appliance for any damage. If damage is present, do not operate the microwave and contact customer service.

4.2 Posicionamento

• Coloque o micro-ondas sobre uma superfície plana e estável que suporte seu peso.
• Ensure there is adequate space for ventilation: at least 20 cm above, 10 cm at the rear, and 5 cm on each side. Do not place it in an enclosed cabinet.
• Mantenha o aparelho de micro-ondas longe de fontes de calor, campos magnéticos fortes e áreas com alta umidade.

4.3 Limpeza Inicial

Antes da primeira utilização, limpe as superfícies internas e externas com um pano umedecido.amp cloth. Ensure the appliance is completely dry before plugging it in.

4.4 Conexão de Energia

Plug the microwave oven into a grounded electrical outlet (230 Volts). Ensure the power cord is not pinched or damaged.

This image shows the Cecotec Proclean 3110 Flatbed Microwave Oven in a modern kitchen setting, highlighting its compact design and open door.

5. Instruções de operação

5.1 Cozinhar no Microondas

1. Place food in a microwave-safe container directly onto the flat ceramic base.
2. Feche bem a porta do micro-ondas.
3. Vire o Power/Function Dial to select the desired microwave power level (Low, M. Low, Med, M. High, High).
4. Vire o Dial de cronômetro to set the cooking time. The maximum cooking time is 30 minutes.
5. The microwave will start automatically. A bell will sound when the cooking time is complete.

A dish of food inside the microwave with a visual representation of waves, indicating the 3DWave technology distributing heat uniformly.

5.2 Função Grelhador

A função grill é ideal para dourar e deixar os alimentos crocantes.

1. Place food on the provided grill rack. For best results, place the rack directly on the flat ceramic base.
2. Feche bem a porta do micro-ondas.
3. Vire o Power/Function Dial para a configuração 'Grelha'.
4. Vire o Dial de cronômetro Para definir o tempo de grelha desejado.
5. Monitor food closely to prevent burning. You may need to turn food halfway through grilling.

A glass dish containing a roasted chicken and potatoes is placed inside the microwave, illustrating the capacity of the flatbed design.

5.3 Função de descongelamento

The defrost function allows for efficient thawing of frozen foods while preserving texture and flavor.

1. Place frozen food in a microwave-safe container on the flat ceramic base.
2. Feche bem a porta do micro-ondas.
3. Vire o Power/Function Dial to the 'Defrost' setting.
4. Vire o Dial de cronômetro to set the defrosting time. Defrosting time varies based on food type and weight.
5. Check food periodically and turn it over if necessary to ensure even defrosting.

The microwave unit is shown with a small circular inset displaying a piece of salmon on ice, highlighting the defrost function.

5.4 níveis de poder

The microwave offers 6 adjustable power levels to suit various cooking needs:

• Baixo: For softening butter, thawing delicate foods.
• M. Low: For simmering, slow cooking.
• Médio: For reheating, cooking denser foods.
• M. High: Para uso geral no preparo de alimentos e para reaquecer alimentos.
• Alto: Para cozinhar e ferver líquidos rapidamente.
• Grade: Para dourar e deixar crocante.

6. Manutenção e Limpeza

A limpeza regular ajuda a manter o desempenho e a prolongar a vida útil do seu forno de micro-ondas.

6.1 Limpeza Interior

The ceramic interior of the Proclean 3110 Flatbed Microwave Oven is designed for easy cleaning.

• Após cada utilização, limpe o interior com um pano úmido.amp cloth and mild detergent to remove food splatters and spills.
• For stubborn stains, place a bowl of water with lemon slices inside and microwave on high for 2-3 minutes. The steam will loosen the grime, making it easier to wipe away.
• Do not use abrasive cleaners, scouring pads, or sharp objects, as these can damage the ceramic surface.

This image demonstrates the ease of cleaning the microwave's flat ceramic interior, with a hand wiping away a spill.

6.2 Limpeza Externa

Limpe as superfícies exteriores com um pano macio, damp pano. Evite usar produtos químicos agressivos ou materiais abrasivos que possam danificar o acabamento.

6.3 Door and Seals

Regularly clean the door, door seals, and the surfaces around the door opening to ensure proper closure and prevent microwave leakage.

7. Solução De Problemas

Se você tiver problemas com seu forno de micro-ondas, consulte os problemas comuns e suas soluções a seguir:

Se o problema persistir após tentar essas soluções, entre em contato com o suporte ao cliente da Cecotec.

8. Especificações

9. Garantia e Suporte

Cecotec offers a 10-year availability for spare parts for this product. For warranty claims, technical support, or any questions not covered in this manual, please contact Cecotec customer service through their official website ou seu revendedor.

Guarde o comprovante de compra para fins de garantia.
