VINGLI 24-Inch Laundry Sink with Cabinet and Faucet Instruction Manual

1. Introdução

Welcome and thank you for choosing the VINGLI 24-Inch Laundry Sink with Cabinet and Faucet. This manual provides important information for the safe and efficient installation, operation, and maintenance of your new utility sink. Please read all instructions carefully before assembly and use. Keep this manual for future reference.

2. Informações de segurança

Observe as seguintes precauções de segurança para evitar ferimentos ou danos ao produto.

• Ensure all water supply and drain connections are secure to prevent leaks.
• Do not overload the sink or cabinet.
• Use appropriate tools for assembly as specified in the assembly guide.
• If opting for wall mounting, ensure the wall structure can adequately support the weight of the unit when filled.
• Keep children and pets away from the product during assembly and operation.
• Feche o registro geral de água antes de iniciar qualquer trabalho de encanamento.

3. Conteúdo da embalagem

Verifique se todos os componentes estão presentes e sem danos antes de iniciar a montagem. Caso alguma peça esteja faltando ou danificada, entre em contato com o suporte ao cliente.

• Box 1 of 2: Cabinet with hardware and assembly manual
• Box 2 of 2: Stainless steel sink with pull-out sprayer faucet and drainer

Image showing the VINGLI 24-Inch Laundry Sink with Cabinet and Faucet, displaying overall dimensions: 33.5 inches height, 23.6 inches width, and 19.7 inches depth. The image also highlights the 10-inch leg height and 4-inch toe kick.

4. Especificações

Image of the VINGLI 24-Inch Laundry Sink with Cabinet and Faucet, showcasing its brown cabinet and stainless steel sink with a pull-out faucet. The cabinet features two doors and a top drawer-like panel.

Close-up image highlighting the 304 Food-grade Stainless Steel sink, indicating 18 Gauge (1.2mm) thickness and its brushed crafted finish, designed to be rust-resistant.

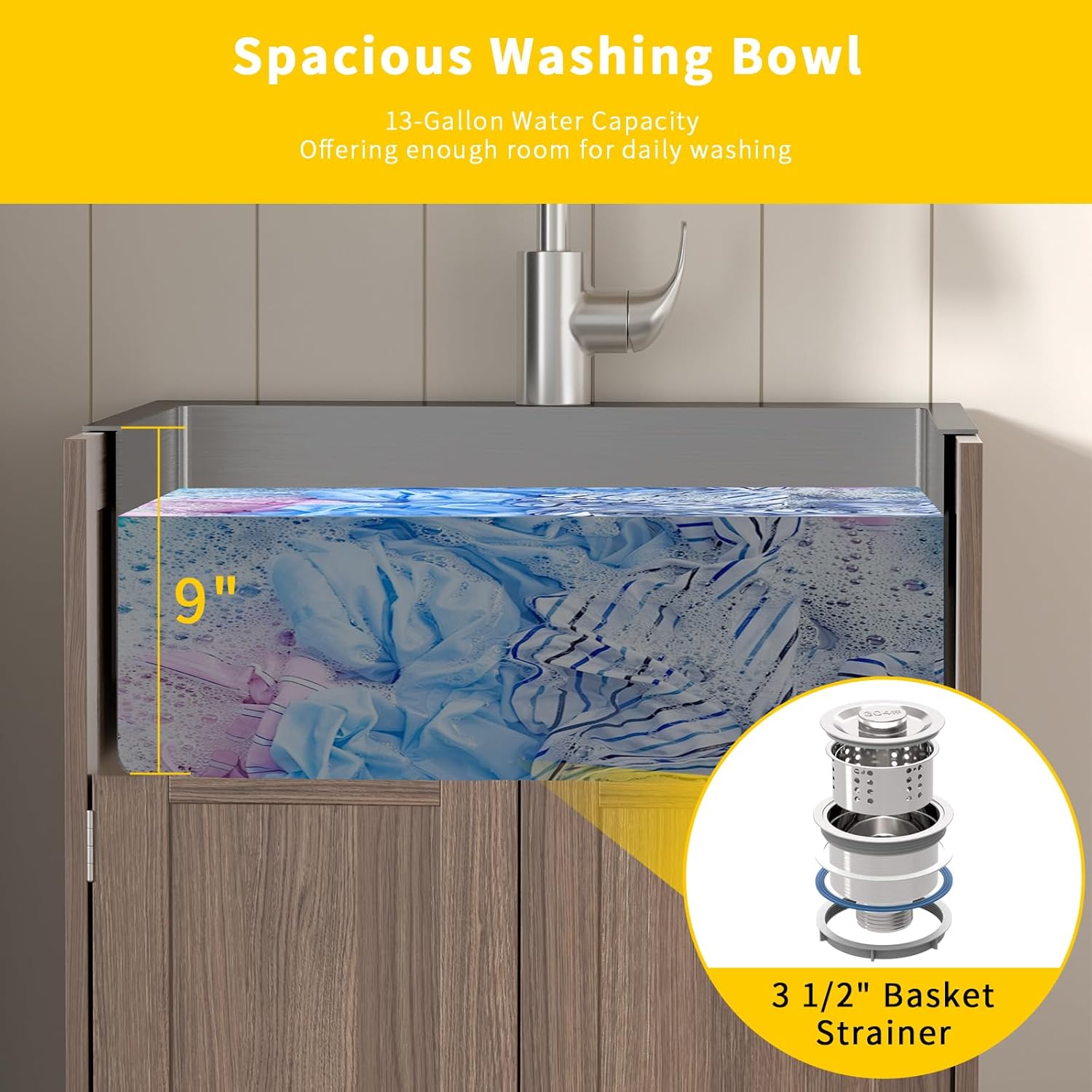

Image illustrating the spacious washing bowl of the sink, showing a 9-inch depth and a 13-gallon water capacity. An inset graphic displays the 3 1/2 inch basket strainer.

5. Configuração e instalação

5.1. Antes de começar

• Leia todas as instruções cuidadosamente antes de começar.
• Gather necessary tools: screwdriver, adjustable wrench, level, drill (if wall mounting).
• Ensure adequate space for installation, referring to the product dimensions.
• Feche o registro geral de água da área de instalação.

5.2. Montagem do Armário

Follow the step-by-step instructions provided in the separate assembly manual included with Box 1. The P2 Grade MDF panels are labeled to facilitate easy identification and assembly.

5.3. Sink and Faucet Installation

1. Carefully place the stainless steel sink into the designated opening on the assembled cabinet.
2. Install the pull-out sprayer faucet onto the sink. Secure it according to the faucet's specific instructions, ensuring all washers and gaskets are correctly positioned.
3. Connect the hot and cold water supply lines from your plumbing to the corresponding faucet inlets. Hand-tighten, then use an adjustable wrench for a final quarter-turn, being careful not to overtighten.
4. Install the drainer and connect the drain hose to your household plumbing system. Ensure all drain connections are sealed properly to prevent leaks.

5.4. Montagem na parede (opcional)

For enhanced stability, especially in active environments, wall mounting screws are provided. Locate wall studs and secure the cabinet to the wall using appropriate fasteners. Ensure the cabinet is level before marking and drilling.

Image of the VINGLI laundry sink with cabinet installed in a laundry room next to a washing machine, demonstrating its freestanding placement and overall aesthetic.

Close-up image showing the flexible hot and cold water supply lines and the corrugated drain pipe connected underneath the sink.

Close-up image of the stainless steel basket strainer installed in the sink, with its removable cover.

6. Instruções de operação

6.1. Faucet Operation

The pull-out sprayer faucet features a single handle for controlling both water volume and temperature.

• Volume de água: Lift the handle to increase water flow. Push down to decrease or turn off.
• Temperatura da água: Deslize a alavanca para a esquerda para obter água quente e para a direita para obter água fria.
• Modos de pulverização: The faucet nozzle offers two spray modes (spray and stream). Press the button on the nozzle to switch between modes.

6.2. Uso da pia

The 9-inch deep sink is suitable for a variety of utility tasks, including washing clothes, cleaning tools, or bathing small pets. The spacious design and durable stainless steel construction ensure versatility and longevity.

7. Manutenção

7.1. Limpeza da pia

• Clean the stainless steel sink regularly with a mild detergent and a soft cloth or sponge.
• Avoid abrasive cleaners, steel wool, or scouring pads, which can scratch the surface and damage the finish.
• Rinse thoroughly after cleaning and dry with a soft cloth to prevent water spots and maintain shine.
• The R10° interior angle design facilitates easier cleaning and prevents debris accumulation.

7.2. Limpando o armário

• Wipe the P2 MDF cabinet surfaces with a damp pano e um limpador suave e não abrasivo.
• Avoid excessive moisture or harsh chemicals, which can damage the wood material and finish.
• Seque imediatamente após a limpeza.

7.3. Faucet Maintenance

• Periodically check all faucet connections for any signs of leaks. Tighten if necessary.
• Clean the faucet nozzle and aerator regularly to remove mineral buildup, which can affect water flow and spray patterns.

8. Solução De Problemas

9. Garantia e Suporte

VINGLI is committed to product quality and customer satisfaction. Your VINGLI laundry sink with cabinet is covered by the following guarantees:

• Garantia de 36 meses: Free replacement for installation problems, damaged, or missing parts within 36 months from the date of purchase.
• Resposta em 24 horas: Customer support inquiries will receive a response within 24 hours.

For warranty claims, technical assistance, or any questions regarding your product, please contact VINGLI customer service. Refer to your purchase documentation or the VINGLI official website para informações de contato atualizadas.
