ATOTOZONE CA-AEC122DL Compact Car AmpManual de Instruções do lifier

1. Introdução

The ATOTOZONE CA-AEC122DL is a compact Class D 4-channel car amplifier designed to enhance your car audio experience. It delivers up to 4x60W RMS power and features a TI TPA3221 chip for reliable sound quality. This amplifier offers customizable EQ settings and comprehensive protection features, ensuring secure operation and improved audio performance in your vehicle.

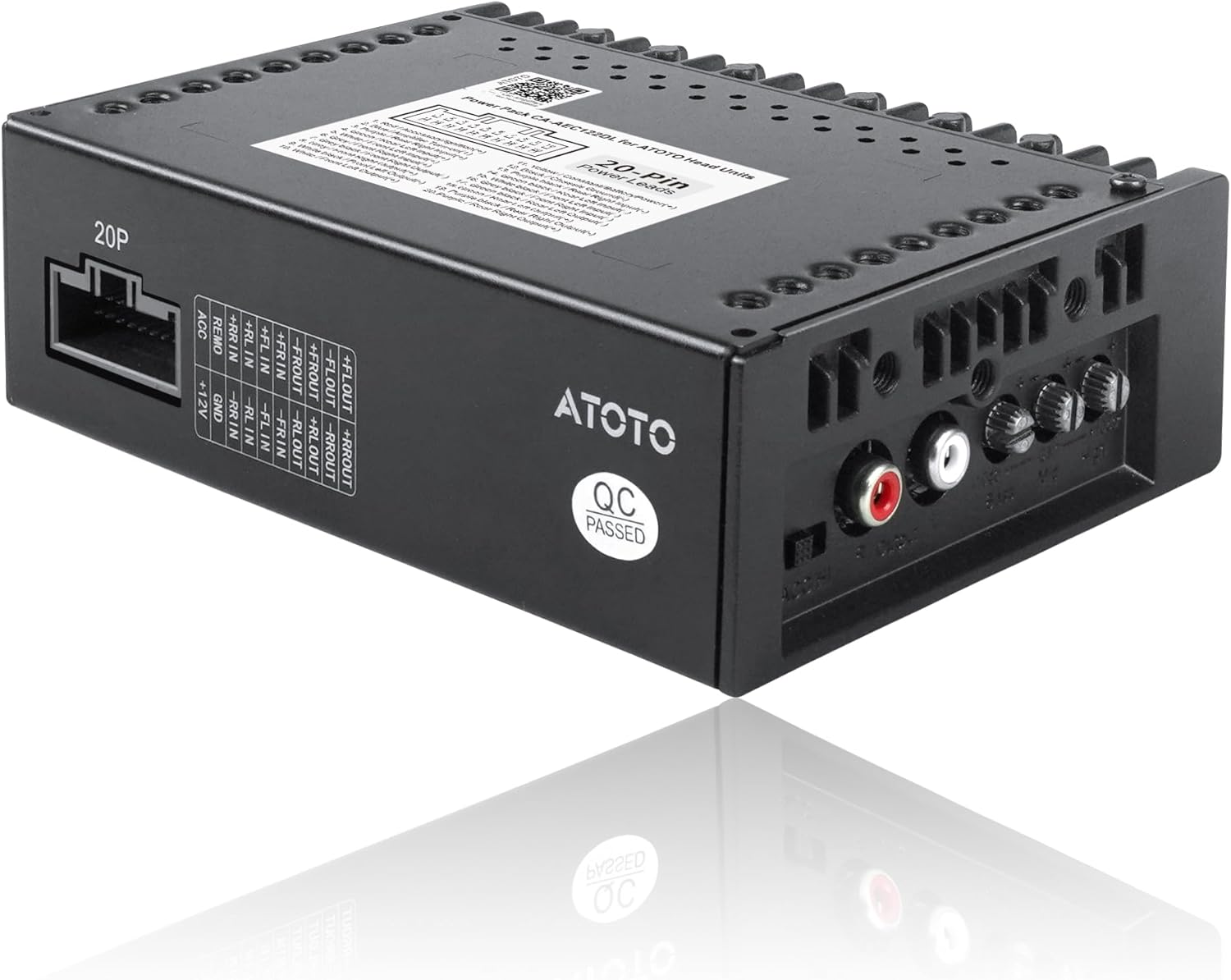

Image: The ATOTOZONE CA-AEC122DL Compact Car Ampamplificador, showcasing its sleek design and compact size.

2. Conteúdo da embalagem

Verifique se todos os itens estão presentes na embalagem:

• Carro Amplifier (CA-AEC122DL)
• 6.5ft/2m Power Cable
• Chicote de fios
• 16Pin-to-20Pin Adapter Cable

Imagem: Uma representação visual de amplifier and its included accessories: power cable, wire harness, and adapter cable.

3. Características

• Instalação Plug and Play: Designed for easy connection with specific harnesses, requiring no professional skills. The upgraded 6.5ft/2m power cable allows flexible placement.
• Saída de potência impressionante: Delivers up to 4x60W RMS (THD=1%, 4Ω) and 4x125W RMS (THD=1%, 2Ω), providing significant power enhancement over typical car stereo amplificadores.
• Reliable Sound Quality: Features a 4-channel balanced input design that minimizes noise and distortion, utilizing a TI TPA3221 Class D chip for optimal sound performance.
• Design compacto: Small enough to fit in a storage box, this efficient Class D amplifier generates less heat and installs seamlessly in short chassis and single-DIN systems, saving space.
• Configurações de equalização personalizáveis: Tailor your audio experience with adjustable BASS, MID, and HIGH settings for the front sound stage, while maintaining balanced rear audio with preset EQ.
• Recursos de proteção abrangentes: Equipped with multiple protections including over/under voltage, short-circuit, and overheating safeguards, plus dual 15A fuses to ensure secure operation.
• Amp-Speaker Pairing: Perfectly matches ATOTOZONE CS-651DC speakers (not included), delivering optimized performance with RMS power between 60-70W. Avoid damaging underpowered stock speakers.

Imagem: A amplifier's compact size and key power output specifications.

Image: Illustrates the pure power and clean sound delivered by the amplifier, highlighting S/N Ratio and Frequency Response.

Image: Demonstrates the adjustable BASS, MID, and HIGH settings for audio customization.

Image: Shows the recommended pairing of the CA-AEC122DL amplifier with ATOTOZONE CS-651DC speakers for optimal performance.

Image: Icons representing the various built-in protection features: Over Voltage, sob Voltage, Short-circuit, Overheating, and Dual 15A Fuse Design.

4. Guia de instalação

The ATOTOZONE CA-AEC122DL amplifier is designed for a straightforward plug-and-play installation. Follow these steps for proper setup:

1. Step 1: Connect Power Cable to Ampmais vivo. Connect the 20-pin end of the 6.5ft/2m power cable to the ampmais vivo.
2. Step 2: Connect Wire Harness. Plug the wire harness into port 1, then connect the loose ends to the vehicle's original interfaces.
3. Step 3: Connect to Car Stereo.
   • For ATOTOZONE Car Stereos with 16-PIN Power Socket: Insert port 2 into the 16-pin power port of your ATOTO car stereo.
   • For ATOTOZONE Car Stereos with 20-PIN Power Socket: Connect port 2 to the 16-pin end of the 16Pin-to-20Pin Adapter Cable, then plug the adapter's 20-pin end into your ATOTO car stereo.
4. Step 4: Secure the Ampmais vivo. Proteja o amplifier in a hidden location, such as the glove compartment or under the seat, to save space and maintain aesthetics.

Image: Visual guide detailing the connection steps for the amplifier and its placement options.

5. Instruções de operação

5.1. Customizable EQ Settings

O amplifier features a 3-band EQ adjustment (Bass, Mid, High) with 4-step gain adjustment (18dB, 24dB, 30dB, 34dB). Use these controls to fine-tune the audio output to your preference and suit different music genres. These adjustments primarily affect the front sound stage, while rear audio maintains a balanced preset EQ.

5.2. Dual Trigger Systems

O amplifier supports two trigger modes for power management:

• Modo ACC: Potencia o amplifier on/off automatically with the vehicle's ignition key.
• HI Mode (High-Level Input): Auto-triggers via detection of speaker output signals from the head unit.

5.3. Saídas RCA

O amplifier includes two RCA outputs (R Output, L Output) allowing you to connect additional amplifiers or an active subwoofer for further audio system expansion.

Imagem: Close-up de amplifier's Bass, Mid, and High gain adjustment knobs.

6. Compatibilidade

The CA-AEC122DL amplifier is compatible with specific ATOTOZONE head units:

• Double-DIN short chassis models: A6, F7, A5L, S8, and X10 Series.
• Single-DIN telescopic long chassis models: A6, F7, A5L, S8, and X10 Series.

Nota importante: Esse amplifier é não compatível with double-DIN long chassis ATOTOZONE head units.

Image: Displays various ATOTOZONE head unit series (F7, S8, A6, A5L, X10) that are compatible with the ampmais vivo.

7. Especificações

8. Segurança e Proteção

The ATOTOZONE CA-AEC122DL amplifier incorporates multiple safety features to protect both the device and your vehicle's electrical system:

• Sobre-Voltage Proteção (OVP): Medidas de segurança contra volumes excessivostage entrada.
• Sub-Voltage Proteção (UVP): Protege contra volumes insuficientestage, which can cause damage.
• Short-Circuit Protection (SCP): Prevents damage from short circuits in the wiring.
• Over-Temperature Protection (OTP): Monitors internal temperature and reduces output or shuts down to prevent overheating.
• Clipping Detection: Helps prevent speaker damage by detecting and managing signal clipping.
• Dual 15A Fuses: Provides an additional layer of protection against current surges.

Important: Avoid prolonged operation at full volume (e.g., 36-40/40) to prevent fuse burnout and potential damage to the amplifier ou alto-falantes.

Image: Icons representing various protection features for the ampmais vivo.

9. Manutenção

To ensure the longevity and optimal performance of your ATOTOZONE CA-AEC122DL ampAmplificador, siga estas orientações de manutenção:

• Mantenha limpo: Limpe regularmente o exterior do amplifier with a soft, dry cloth. Avoid using harsh chemicals or abrasive cleaners.
• Garanta a ventilação: Certifique-se de que o amplifier's cooling fins are not obstructed. Proper airflow is crucial to prevent overheating.
• Verifique as conexões: Inspecione periodicamente todas as conexões de fiação para garantir que estejam seguras e livres de corrosão. Conexões soltas podem levar a um desempenho ruim ou danos.
• Evite umidade: Proteja o amplifier from water and excessive moisture. Install it in a dry location within your vehicle.

10. Solução De Problemas

If you encounter issues with your ATOTOZONE CA-AEC122DL ampPara solucionar problemas com o amplificador, consulte as seguintes etapas comuns:

• Sem energia:
  • Check the power cable connection to both the amplifier and the vehicle's power source.
  • Verify the vehicle's ignition is on if using ACC mode.
  • Inspect the dual 15A fuses on the amplifier. Replace if blown.
• Sem som:
  • Ensure all speaker wires are correctly connected to the ampamplificador e alto-falantes.
  • Check the input signal from your car stereo to the ampmais vivo.
  • Verify the volume levels on both the car stereo and the ampmais vivo.
• Som distorcido:
  • Reduce the gain settings on the ampmais vivo.
  • Check speaker impedance compatibility (4Ω or 2Ω).
  • Ensure speaker wires are not short-circuited or touching each other.
• Superaquecimento:
  • Garantir o amplifier has adequate ventilation and is not covered.
  • Reduce the volume or gain settings.
  • Verify speaker impedance matches the ampcapacidades do lifier.

If these steps do not resolve the issue, please contact ATOTOZONE customer support for further assistance.

11. Garantia e Suporte

The ATOTOZONE CA-AEC122DL amplifier comes with a standard Garantia de 12 meses para o produto from the date of purchase. You can extend this coverage by an additional 6 months by contacting ATOTOZONE customer care.

Our customer care team is available to provide support and assistance. Details on how to contact them can be found in the product packaging. They generally respond promptly during workdays.

Image: Illustration of the 12-month standard product care plus an additional 6 months available upon registration or contact.
