Introdução
The AquaMiracle USB Rechargeable Aquarium Air Pump (Model CY-101) is a versatile and portable aerator designed to provide essential oxygenation for various aquatic environments. Featuring a powerful lithium battery and an automatic AC/DC switch, this pump ensures continuous operation during power outages or for mobile applications like outdoor fishing and fish transportation. Its compact design and quiet operation make it suitable for both freshwater and marine setups up to 60 gallons.
Sobreview of the AquaMiracle USB & Battery Powered Aquarium Air Pump, highlighting its key features: oxygen supply, super quiet operation, and long battery life.
O que está na caixa
- 1 x AquaMiracle USB Rechargeable Aquarium Air Pump (Model CY-101)
- 1 x tubo de companhia aérea
- 1 x Pedra do Ar
- 1 x Válvula de retenção
The complete set of accessories included with your AquaMiracle air pump: air stone, check valve, and airline tubing.
Especificações
| Nome do modelo | CY-101 |
| Poder | 2 Watts |
| Volumetage | 5V (USB) |
| Capacidade de fluxo de ar | 1.5 litros por minuto (24 galões por hora) |
| Pressão Máxima | 0.015 MPa |
| Tamanho de tanque recomendado | Até 60 galões |
| Capacidade da bateria | Bateria de lítio de 2200mAh |
| Duração da bateria (contínua) | 24-30 horas |
| Battery Life (Periodical Mode) | 36-42 horas |
| Fonte de energia | AC/DC (Automatic Switch) |
| Modo de operação | Continuous / Periodical (15s on/15s off) |
| Material | Plástico |
| Dimensões do produto (CxLxA) | 4.33" x 2.76" x 1.57" |
| Peso do item | 0.25 quilos |
Configurar
- Conectar componentes: Attach the airline tubing to the air pump's outlet. Insert the check valve into the airline tubing, ensuring the arrow on the valve points towards the air stone. Connect the air stone to the other end of the tubing.
- Colocação: Position the air pump in a stable location. The pump features rubber feet to minimize vibration and noise. For aquariums, place the air stone at the bottom of the tank. The pump also has a clip for fixation to the side of a bucket or tank.
- Carregamento: Before first use, fully charge the pump using the provided USB cable. Connect the USB cable to the pump's charging port and a compatible USB charger, power bank, or laptop. The battery indicator lights will show the charging status.
The AquaMiracle air pump in operation, providing aeration to a planted aquarium. Note the air stone producing bubbles and the pump's compact design.

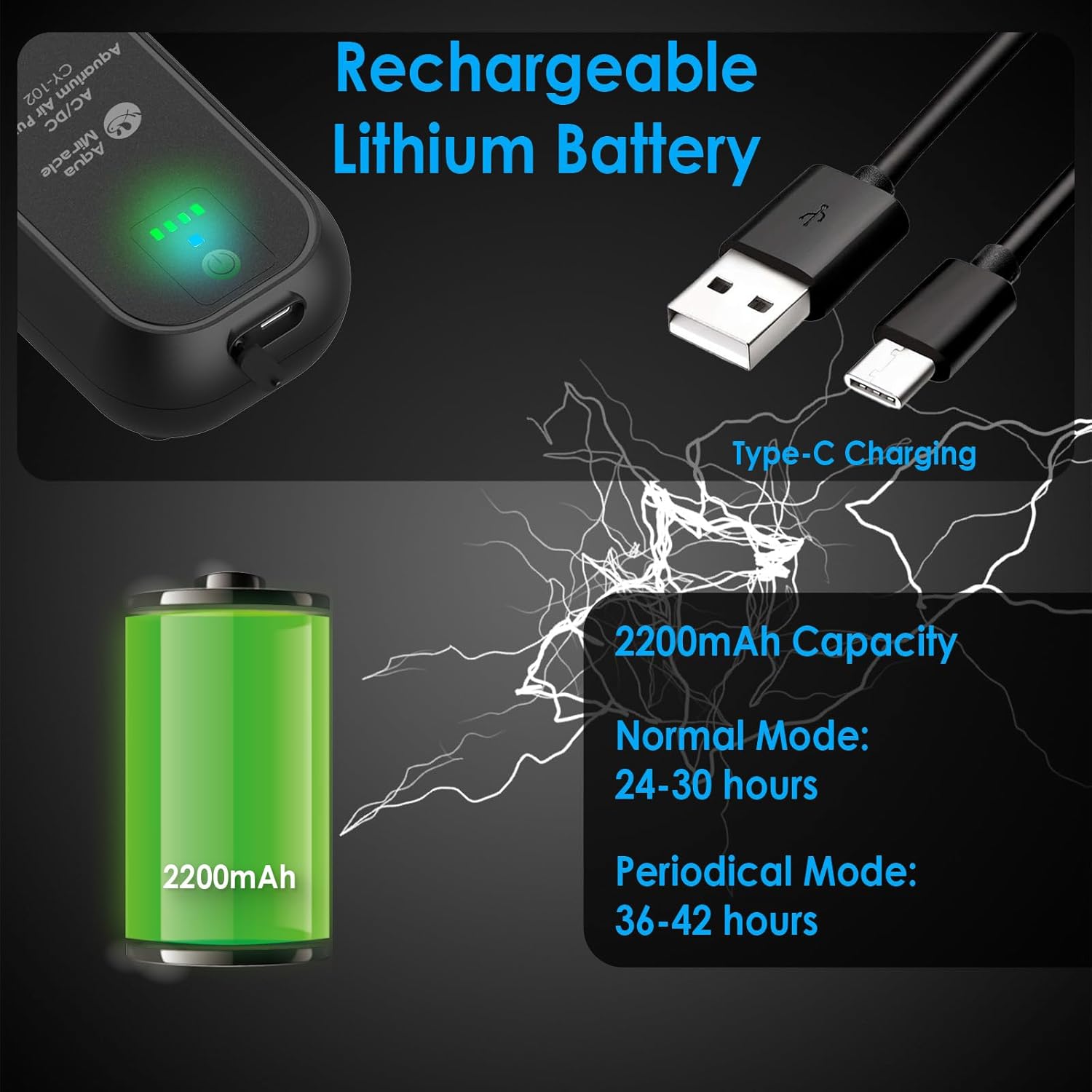

Detalhado view of the pump's Type-C charging port and information on its 2200mAh lithium battery, offering 24-30 hours in normal mode and 36-42 hours in periodical mode.
Instruções de operação
Ligar/desligar e seleção de modo
- Ligar: Press the power button once to turn the pump on. It will start in continuous operation mode.
- Periodical Mode: Press the power button a second time to activate periodical operation. In this mode, the pump runs for 15 seconds and then pauses for 15 seconds, extending battery life. The periodical indicator light will illuminate.
- Desligar: Press the power button a third time to turn the pump off.
Indicador de bateria
The pump features a battery indicator with four LED lights, each representing approximately 25% of the battery charge. All four lights indicate a full charge.
AC/DC Automatic Switch
When connected to an AC power supply, the pump operates as a standard air pump. In the event of a power outage, it automatically switches to DC power, drawing from its internal lithium battery to ensure continuous aeration.
Operação silenciosa
The pump is designed for quiet operation, making it suitable for various environments without causing disturbance. Its denoising rubber feet further reduce vibrations.

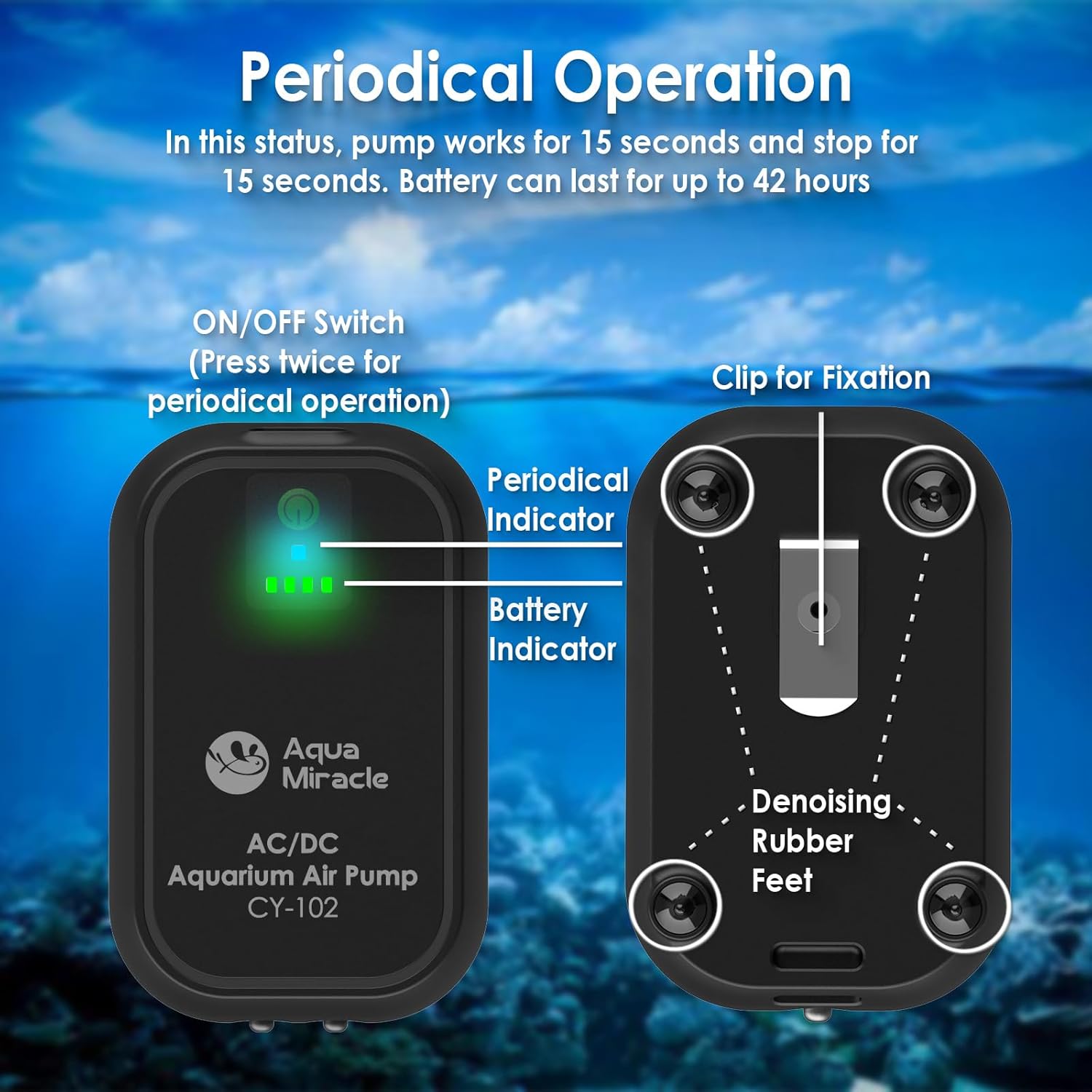

Detalhado view of the pump's controls and features, including the ON/OFF switch, periodical indicator, battery indicator, clip for fixation, and denoising rubber feet.
The pump's super silent operation is highlighted, showing it produces noise levels comparable to a flower blossom, significantly quieter than human conversation or a fan.
Multifaceted Uses
This air pump is suitable for a variety of applications:
- Aquarium Aeration: Provides essential oxygen for fish and aquatic life in home aquariums.
- Backup de emergência: Acts as a reliable aerator during power outages to protect your aquatic inhabitants.
- Outdoor Fishing: Ideal for keeping bait fish alive and healthy in bait buckets.
- Fish Transportation: Ensures adequate oxygen levels when transporting fish.
Visual representation of the pump's diverse applications, including use in an aquarium, for outdoor fishing with a bait bucket, and during fish transportation.
Manutenção
- Pedra do Ar: Periodically check the air stone for blockages. If bubbles decrease, clean or replace the air stone to maintain optimal airflow.
- Airline Tubing: Inspect the airline tubing for kinks, cracks, or blockages. Ensure a clear path for air to flow.
- Exterior da bomba: Limpe a parte externa da bomba com um pano macio e seco.amp cloth to keep it clean. Do not submerge the pump in water.
- Porta de carregamento: Keep the USB charging port clean and dry to prevent damage.
Solução de problemas
- No Air Output:
- Check if the pump is powered on and the battery is charged.
- Ensure the airline tubing is not kinked or blocked.
- Verify the air stone is not clogged.
- Check the check valve for proper installation and function (arrow pointing towards the air stone).
- Baixa saída de ar:
- Limpe ou substitua a pedra difusora de ar.
- Inspect tubing for leaks or partial blockages.
- Certifique-se de que a bateria esteja suficientemente carregada.
- Bateria não carregando:
- Verify the USB cable is securely connected to both the pump and the power source.
- Experimente um cabo USB ou adaptador de alimentação diferente.
- Certifique-se de que a porta de carregamento esteja livre de detritos.
Garantia e Suporte
The AquaMiracle USB Rechargeable Aquarium Air Pump (Model CY-101) comes with a Garantia de 1 anos. For any product inquiries, technical support, or warranty claims, please refer to the contact information provided with your product packaging or visit the official AquaMiracle website para obter assistência.
