FOHERE 1000W Commercial Cotton Candy Machine User Manual

1. Introdução

Thank you for choosing the FOHERE 1000W Commercial Cotton Candy Machine. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read this manual thoroughly before first use and retain it for future reference.

Figure 1: FOHERE 1000W Commercial Cotton Candy Machine

This image displays the FOHERE 1000W Commercial Cotton Candy Machine, featuring its red base, control panel, large 20-inch stainless steel bowl, and an included sugar scoop. Two cotton candy flosses, one blue and one pink, are visible in the foreground, along with a jar of colorful candies.

2. Instruções importantes de segurança

AVISO: Para reduzir o risco de incêndio, choque elétrico ou ferimentos, siga sempre as precauções básicas de segurança ao usar aparelhos elétricos.

• Leia todas as instruções antes de operar a máquina.
• Não toque em superfícies quentes. Use alças ou botões.
• To protect against electrical hazards, do not immerse cord, plugs, or the machine base in water or other liquid.
• É necessária supervisão rigorosa quando qualquer aparelho for usado por crianças ou perto delas.
• Desligue da tomada quando não estiver em uso e antes de limpar. Deixe esfriar antes de colocar ou retirar peças e antes de limpar o aparelho.
• Não opere nenhum aparelho com o cabo ou plugue danificado, ou após o aparelho apresentar mau funcionamento ou ter sido danificado de qualquer forma.
• O uso de acessórios não recomendados pelo fabricante do aparelho pode causar ferimentos.
• Não utilize ao ar livre.
• Não deixe o cabo pendurado na borda da mesa ou do balcão, nem toque em superfícies quentes.
• Não coloque sobre ou perto de um queimador a gás ou elétrico quente, nem em um forno aquecido.
• Deve-se ter extremo cuidado ao mover um aparelho que contenha óleo quente ou outros líquidos quentes.
• Sempre conecte primeiro o plugue ao aparelho e, em seguida, ligue o cabo na tomada. Para desconectar, gire qualquer controle para a posição "desligado" e, em seguida, retire o plugue da tomada.
• Não utilize o aparelho para outro fim que não o pretendido.
• Certifique-se de que a máquina esteja colocada em uma superfície estável, nivelada e resistente ao calor.
• Keep hands and foreign objects away from the spinning head during operation.

3. Conteúdo da embalagem

Ao desembalar, verifique se todos os itens listados abaixo estão presentes e em boas condições:

• Cotton Candy Machine Base
• 20-inch Stainless Steel Bowl
• Colher de Açúcar
• Cabo de alimentação
• Manual do usuário (este documento)

4. Identificação das peças

Familiarize yourself with the components of your cotton candy machine:

• Machine Base: Contém o motor, o elemento de aquecimento e o painel de controle.
• Tigela de aço inoxidável: Large 20-inch bowl where cotton candy is collected. Attaches to the machine base with locking clips.
• Spinning Head (Rotor): Central component that heats and spins sugar into floss.
• Painel de controle:
  • Voltmeter Display: Mostra o volume atualtage.
  • Botão de controle de temperatura: Adjusts the heating temperature (Min to Max).
  • Chave ON / OFF: Liga ou desliga a máquina.
• Sugar Scoop: Used for measuring and pouring sugar into the spinning head.

Figure 2: Control Panel Details

Esta imagem fornece detalhes. view of the control panel, highlighting the voltmeter display, the temperature control knob with 'OFF', 'Min', and 'Max' settings, and the red ON/OFF switch. The FOHERE brand logo and "Cotton Candy Machine" text are also visible.

Figura 3: Dimensões do produto

This image illustrates the dimensions of the FOHERE Cotton Candy Machine, showing a width of 20 inches (51 cm) for the bowl, a height of 16.34 inches (41.5 cm), and a base depth of 20.39 inches (51.8 cm).

5. Configuração

Follow these steps to set up your cotton candy machine:

1. Descompacte: Remova cuidadosamente todos os componentes da embalagem.
2. Limpar: Before first use, wipe down the stainless steel bowl and spinning head with a damp cloth. Ensure all parts are completely dry.
3. Montagem da tigela: Place the 20-inch stainless steel bowl onto the machine base. Ensure it is securely fastened using the locking clips.
4. Posição: Place the assembled machine on a stable, level, and heat-resistant surface, away from flammable materials. Ensure adequate ventilation.
5. Conecte a energia: Conecte o cabo de alimentação a uma tomada elétrica adequada.

6. Instruções de operação

Making cotton candy is a simple process with your FOHERE machine:

1. Ligar: Turn the ON/OFF switch to the "ON" position. The voltmeter display will illuminate.
2. Temperatura definida: Rotate the Temperature Control Knob to the "Max" position to allow the machine to preheat.
3. Pré-aqueça: Allow the machine to preheat for 2-3 minutes. The spinning head will begin to rotate.
4. Adicionar açúcar: Once preheated, carefully pour one scoop of cotton candy sugar (floss sugar) directly into the center of the spinning head. Do not overfill.
5. Collect Floss: As the sugar melts and spins, fine strands of cotton candy will begin to emerge from the spinning head. Use a paper cone or stick to collect the floss by rotating it around the inside of the bowl, just above the spinning head.
6. Repita: Continue adding sugar and collecting floss as desired.
7. Desligar: When finished, turn the ON/OFF switch to the "OFF" position and unplug the machine. Allow it to cool completely before cleaning.

Figure 4: Operation Steps Visual Guide

This image visually demonstrates the four key steps for operating the cotton candy machine: turning on power and adjusting temperature, pouring sugar into the spinning head, rotating to roll up the cotton candy, and finally, enjoying the delicious cotton candy.

7. Manutenção e Limpeza

Regular cleaning ensures optimal performance and longevity of your machine:

1. Esfriar: Always allow the machine to cool completely before cleaning.
2. Bowl Removal: Detach the stainless steel bowl from the machine base by releasing the locking clips.
3. Limpeza da bacia: Wash the stainless steel bowl with warm, soapy water. Rinse thoroughly and dry completely. The bowl is not dishwasher safe.
4. Spinning Head Cleaning (Important):
   • For best results, clean the spinning head while the machine is still warm (but not hot).
   • With the machine running (and unplugged from the wall for safety, if possible, or with extreme caution if still plugged in and running for this specific step as per manufacturer's suggestion), pour a small amount of water into the rotor. The rotor will shake off the water slowly, helping to dissolve residual sugar.
   • Alternatively, once cooled, carefully remove the spinning head if detachable (refer to specific model instructions if applicable) and soak it in warm water to dissolve hardened sugar. Use a soft brush if necessary.
   • Wipe the exterior of the spinning head with a damp cloth. Ensure it is completely dry before reassembly or storage.
5. Limpeza básica: Limpe a base da máquina com um panoamp pano. Não mergulhe a base em água ou qualquer outro líquido.
6. Armazenar: Store the clean and dry machine in a cool, dry place.

Figure 5: Easy Cleaning Steps

This image illustrates the two main steps for cleaning the cotton candy machine: first, keeping the machine running and pouring a small amount of water into the inlet to clean the rotor, and second, turning off the switch, unplugging the power cord, and cleaning the machine with a soft cloth.

Figure 6: Detachable Bowl for Cleaning

This image shows the cotton candy machine with its stainless steel bowl detached from the base, illustrating how the bowl can be easily removed and washed separately under a faucet for convenient cleaning.

8. Solução De Problemas

If you encounter issues with your cotton candy machine, refer to the following table for common problems and solutions:

Se o problema persistir após tentar essas soluções, entre em contato com o suporte ao cliente.

9. Especificações

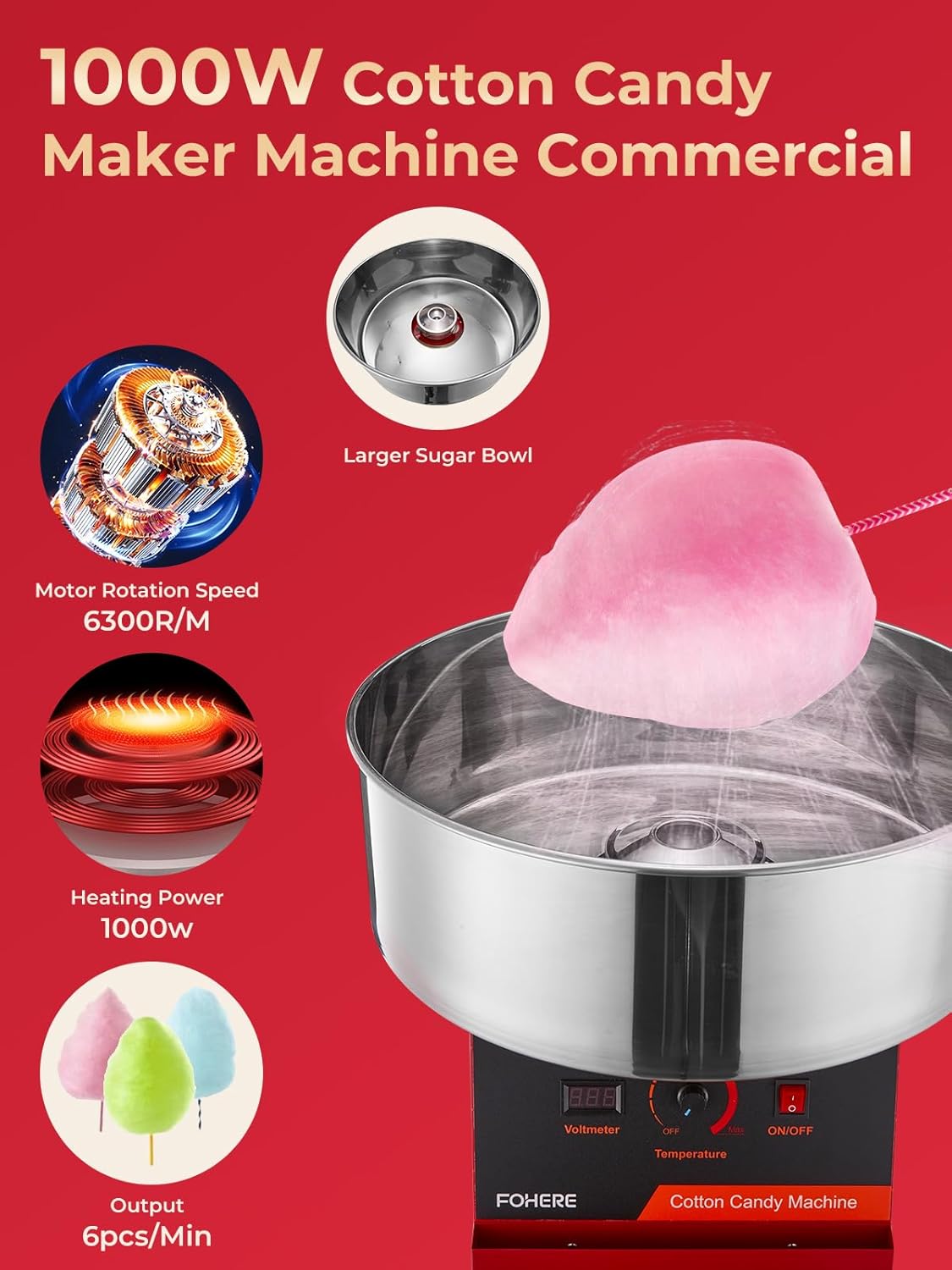

Figure 7: Key Performance Features

This image highlights the key performance features of the 1000W cotton candy machine, including a larger sugar bowl, a motor rotation speed of 6300 R/M, 1000W heating power, and an output of 6 pieces per minute.

10. Garantia e Suporte ao Cliente

FOHERE provides a two-year warranty for this cotton candy machine. This warranty covers defects in materials and workmanship under normal use.

For technical support, warranty claims, or any questions regarding your product, please contact our customer service team. Please have your model number (MHTJXM01H) and purchase information ready when contacting support.

Informações de contato:

• Refer to your purchase documentation or the FOHERE official webPara obter as informações de contato mais atualizadas, acesse o site.
