DEWENWILS PTM01 24-Hour Mechanical Timer Switch User Manual

1. Introdução e maisview

The DEWENWILS PTM01 is a heavy-duty 24-hour mechanical timer switch designed for automatic control of various electrical appliances. It features a robust metal enclosure, is weatherproof, and is suitable for both indoor and outdoor applications. This timer is ideal for managing devices such as pool pumps, water heaters, lights, and fans, offering reliable scheduling with its mechanical dial.

Os principais recursos incluem:

• Automatic 24-hour control with up to two ON/OFF programs daily.
• High power load capacity: Max 40A, 120V, 2HP motor.
• Simplified wiring for easier installation.
• Weatherproof NEMA-3R metal enclosure with IP44 rating.
• Certificado pela ETL para segurança e confiabilidade.

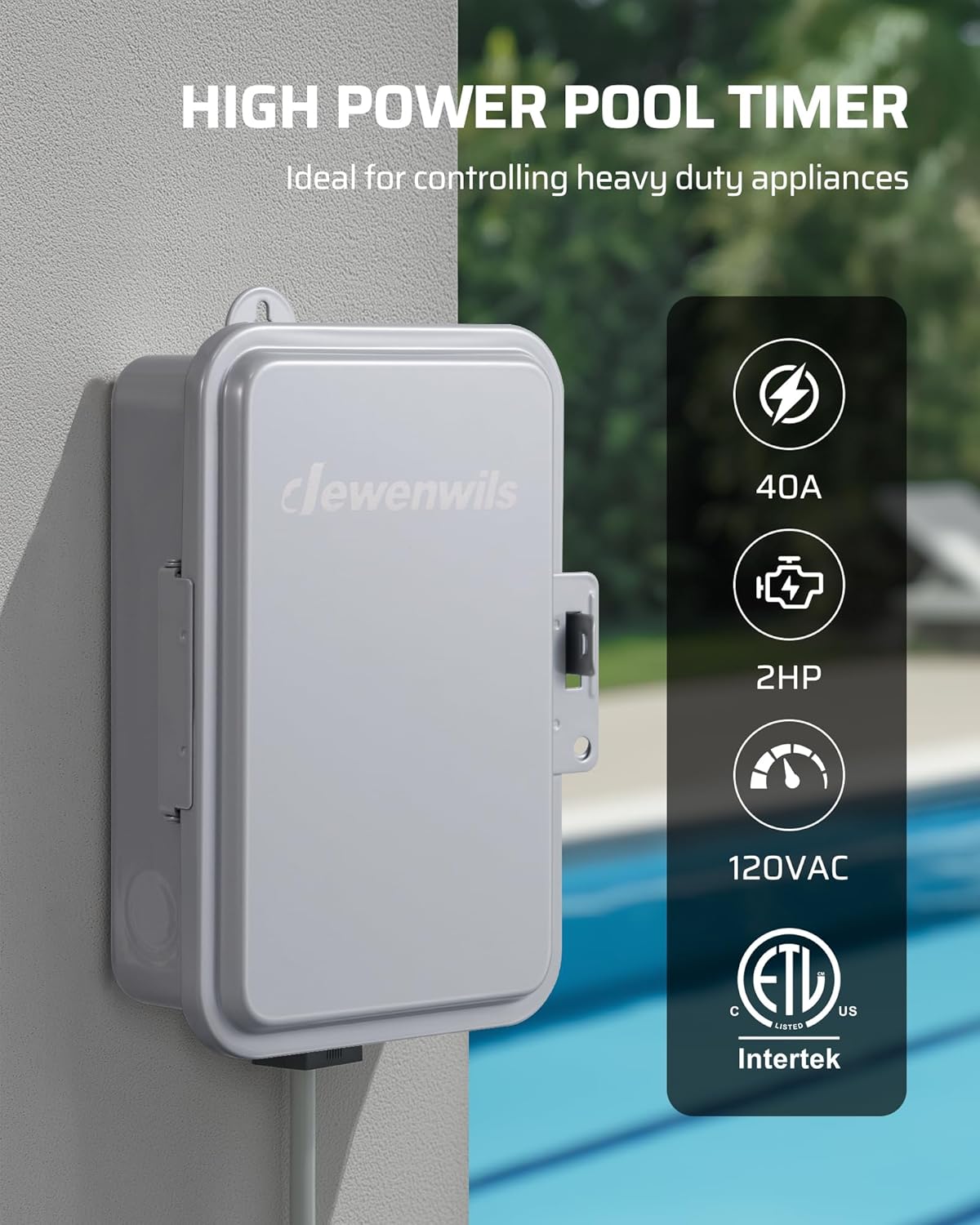

Image 1.1: The DEWENWILS PTM01 Mechanical Timer Switch, showcasing its robust design and suitability for heavy-duty applications.

2. Informações de segurança

Please read and understand all instructions before installing or operating this device. Failure to follow these instructions may result in electric shock, fire, or serious injury.

• AVISO: Risk of electric shock. Installation should be performed by a qualified electrician or service personnel.
• Desligue sempre a energia no disjuntor ou na caixa de fusíveis antes de instalar ou realizar manutenção no temporizador.
• Certifique-se de que todas as conexões elétricas estejam seguras e em conformidade com as normas elétricas locais.
• Do not exceed the maximum load ratings of 40A, 120VAC, 2HP.
• This timer is designed for 120VAC applications only. Do not use with 240VAC systems.
• Keep the enclosure door closed and latched to maintain its weatherproof rating.
• Utilize somente condutores de cobre.

3. Conteúdo da embalagem

Verifique se todos os componentes estão presentes antes de iniciar a instalação:

• DEWENWILS PTM01 Mechanical Timer Switch Unit
• Manual de instalação (este documento)
• Acessórios de montagem (parafusos, buchas)
• ON/OFF Trippers (pre-installed or included separately)

4. Recursos do Produto

• 24-Hour Mechanical Dial: Allows for setting up to two ON/OFF cycles within a 24-hour period, which repeat daily.
• Capacidade para serviço pesado: Supports a maximum load of 40 Amps at 120 Volts AC, suitable for motors up to 2 Horsepower.
• Weatherproof Enclosure: Constructed with a NEMA-3R rated metal enclosure and IP44 waterproof protection, ensuring durability in harsh outdoor conditions (operating temperature range: -40°F to 140°F).
• Interruptor de cancelamento manual: Provides immediate ON/OFF control without affecting the programmed schedule.
• Fiação fácil: Designed with clear internal layout and wiring guides to simplify installation.
• Certificado ETL: Ensures the product meets recognized safety standards.

Image 4.1: The timer's weatherproof design, suitable for outdoor installation in various weather conditions.

5. Especificações

6. Instalação

IMPORTANTE: All wiring must comply with national and local electrical codes. Installation should be performed by a qualified electrician. Ensure power is disconnected at the main panel before beginning installation.

6.1 Mounting the Timer Box

1. Choose a suitable location for mounting the timer box. It should be easily accessible and protected from direct impact.
2. Use the provided mounting hardware to securely attach the timer box to a wall or sturdy surface. Ensure the box is level.

6.2 Instruções de Fiação

The PTM01 timer box is designed for straightforward wiring. Refer to the internal wiring diagram and the images below for guidance. This timer supports controlling one or two 120VAC loads simultaneously.

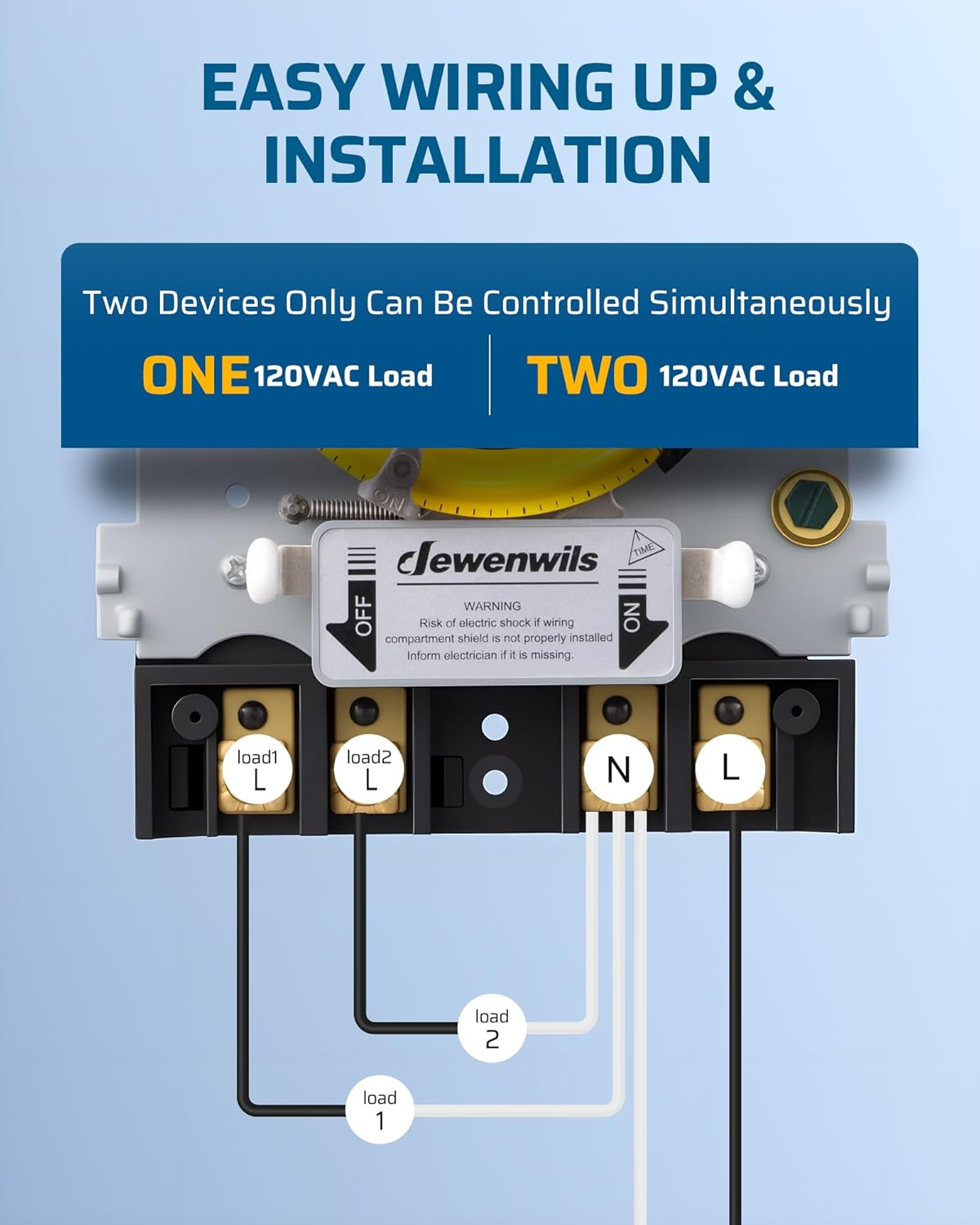

Image 6.1: Simplified wiring diagram for connecting one or two 120VAC loads to the timer switch.

Imagem 6.2: Interna view of the timer box, showing the mechanical dial, manual override switch, and clearly labeled wiring terminals.

• Entrada de energia: Connect the incoming 120VAC Line (L) and Neutral (N) wires to the designated "Power L" and "Power N" terminals.
• Load Output (One Device):
  • Connect the load's Line wire to the "Load L" terminal.
  • Connect the load's Neutral wire to the "Load N" terminal.
• Load Output (Two Devices):
  • For Load 1: Connect its Line wire to "Load1 L" and its Neutral wire to "Load1 N".
  • For Load 2: Connect its Line wire to "Load2 L" and its Neutral wire to "Load2 N".
• Certifique-se de que todas as conexões estejam firmes e seguras.
• After wiring, close and latch the enclosure door to maintain its weatherproof integrity.

7. Instruções de operação

7.1 Ajustando a hora atual

1. Open the timer box door.
2. Gently rotate the yellow mechanical dial clockwise until the current time aligns with the "TIME" arrow indicator on the inner housing. The dial is marked with 24 hours (1-12 AM, 1-12 PM).
3. No tools are required for this adjustment.

Imagem 7.1: Detalhada view of the mechanical dial, showing the current time indicator and the ON/OFF trippers.

7.2 Programação de ciclos LIGADO/DESLIGADO

The timer comes with two sets of trippers: a white tripper for ON and a black tripper for OFF. These trippers are inserted into the slots around the edge of the yellow dial.

1. Definir horário de ativação: Insert a white tripper into the slot corresponding to the desired ON time.
2. Definir horário de desligamento: Insert a black tripper into the slot corresponding to the desired OFF time.
3. You can set up to two ON/OFF cycles per 24-hour period. Ensure that an ON tripper is followed by an OFF tripper for each cycle.
4. Once set, the timer will automatically repeat these cycles daily.

Imagem 7.2: Exemplo visualample of setting ON/OFF times for a fountain, illustrating the daily cycle.

7.3 Substituição Manual

The timer features a manual override switch located below the dial. This switch allows you to temporarily turn the connected device ON or OFF without altering the programmed schedule.

• Slide the switch to "ON" to keep the device continuously ON, overriding the schedule.
• Slide the switch to "OFF" to keep the device continuously OFF, overriding the schedule.
• Slide the switch to "AUTO" (center position) to resume the programmed schedule.

Image 7.3: Explanation of the manual override switch positions and their functions.

8. Manutenção

• Limpeza: Periodically wipe the exterior of the timer box with a damp cloth. Do not use abrasive cleaners or solvents. Ensure the door seal is free of debris.
• Inspeção: Regularly check the timer box for any signs of damage, corrosion, or loose connections. Ensure the door latch is functioning correctly to maintain weatherproof integrity.
• Nenhuma peça que possa ser reparada pelo usuário: The internal mechanism of the timer is not user-serviceable. Do not attempt to open or repair the internal components.

9. Solução De Problemas

10. Vídeo oficial do produto

11. Garantia e Suporte

For warranty information or technical support, please refer to the warranty card included with your product or contact DEWENWILS customer service directly. Contact details can typically be found on the manufacturer's official website ou na embalagem do produto.
