COWSAR 2.65 Cu.ft Wine Fridge Instruction Manual

1. Produto acabadoview

The COWSAR 2.65 Cu.ft Wine Fridge is an ETL approved beverage refrigerator designed for quiet operation and precise temperature control. It features a clear front glass door and adjustable shelves, making it suitable for various beverage storage needs in home bars or other settings.

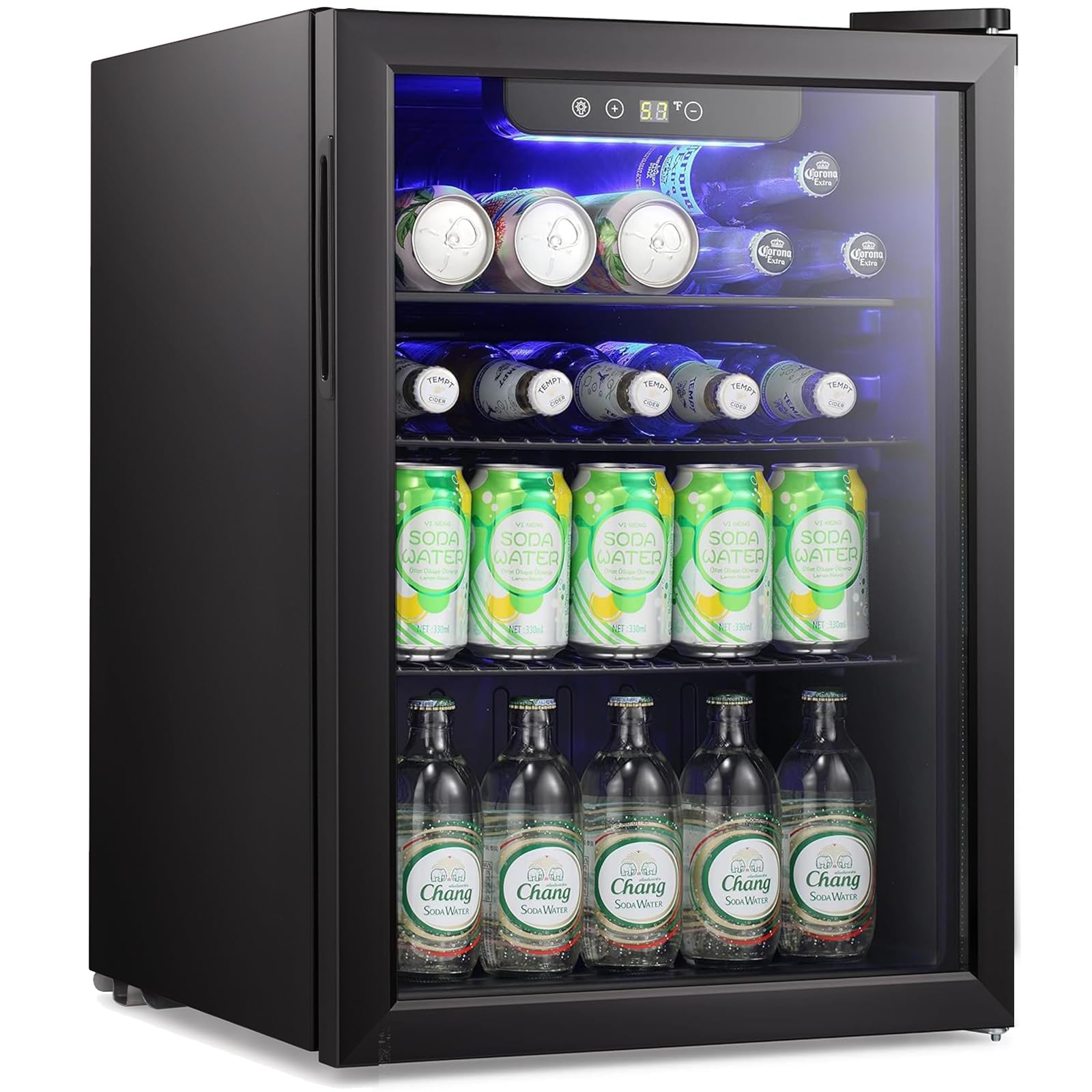

Imagem: Frente view of the COWSAR 2.65 Cu.ft Wine Fridge, showcasing its sleek design and internal blue LED lighting with various beverages stored inside.

Principais características:

• Armazenamento espaçoso: 2.65 Cu.Ft capacity, capable of storing up to 95 cans.
• Flexible Storage Design: Adjustable shelves accommodate various bottle and can sizes.
• Operação silenciosa: Advanced cooling system ensures minimal noise disruption.
• Controle de temperatura personalizável: Adjustable settings from 40°F to 61°F with an LED display.
• Porta de vidro duplo colorido: Provides superior insulation, UV protection, and clear visibility.

Image: Diagram illustrating the dimensions (19"W x 17.5"D x 25.1"H) and capacity (22 bottles or 95 cans) of the 2.6 Cu.Ft COWSAR Beverage Refrigerator.

Image: The COWSAR 2.6 Cu.Ft Beverage Refrigerator integrated into a modern kitchen, highlighting its aesthetic appeal and function as a cooling home for beverages.

2. Instruções de configuração

1. Desembalagem: Carefully remove all packaging materials. Ensure no parts are left inside the unit.
2. Colocação: Place the refrigerator on a flat, stable surface away from direct sunlight and heat sources. Allow at least 5 inches of space around the unit for proper ventilation. This is a freestanding unit and should not be built-in unless specified by the manufacturer.
3. Nivelamento: The unit is equipped with adjustable leveling legs. Rotate the legs to ensure the refrigerator is perfectly level. This is crucial for proper operation and door alignment.
4. Inicialização do sistema: After placement, wait at least 2-4 hours before plugging the unit into a power outlet. This allows the refrigerant to settle. Once plugged in, allow the unit to cool for several hours (e.g., 6 hours) before loading beverages.

Imagem: Um close-up view of an adjustable leveling foot, demonstrating how to stabilize the refrigerator on uneven surfaces.

3. Instruções de operação

Painel de controle:

The control panel is located at the top of the interior, featuring touch-sensitive buttons and an LED display.

Imagem: Uma imagem detalhada view of the touch screen control panel, showing buttons for LED light, temperature adjustment (+/-), and the digital temperature display.

• Ajuste de temperatura: Use o + e - buttons to set your desired temperature between 40°F and 61°F. The LED display will show the current temperature.
• Luz LED Interna: Press the light bulb icon button to turn the internal blue LED light on or off. This enhances visibility and presentation of your beverages.
• Bloqueio do painel de controle: Some models may feature a lock function to prevent accidental changes to settings. Refer to your specific model's manual for details.

Image: The interior of the COWSAR Wine Fridge, highlighting its removable shelves, digital temperature control, blue LED interior lighting, and adjustable leveling legs for user convenience.

Prateleiras:

• The wire shelves are removable and adjustable to accommodate different sizes of bottles and cans. To adjust, simply lift the shelf and reposition it to the desired height.

Porta:

• The tinted double-pane tempered glass door provides insulation and UV protection, helping to maintain a stable internal temperature.
• The door hinges are reversible, allowing you to change the door's opening direction to suit your space. Refer to the detailed installation guide for instructions on reversing the door.

Image: A diagram illustrating the features of the double reinforced glass door, including its airtight seal, UV ray blocking capability, and ability to keep beverages cool.

Image: A visual guide displaying optimal serving temperatures for different types of wine (Dry White, Semi-Dry White, Sweet, Dry Red, Semi-Dry Red, Semi-Sweet, Sparkling) and carbonated drinks.

4. Manutenção

Limpeza:

• Interior: Unplug the unit before cleaning. Wash the interior with a mild detergent and warm water. Rinse thoroughly and dry. Remove shelves for easier cleaning.
• Exterior: Clean the exterior with a soft cloth and mild detergent. Avoid abrasive cleaners or solvents.
• Porta de vidro: Use a glass cleaner to clean the door. Do not spray directly onto the control panel.

Descongelação:

• This unit features manual defrost. Frost buildup on the interior back wall is normal. When frost becomes excessive (about 1/4 inch thick), unplug the unit and allow the frost to melt naturally. Place a towel at the bottom to absorb water.

5. Solução De Problemas

• Unidade não operacional: Certifique-se de que o cabo de alimentação esteja firmemente conectado a uma tomada funcional. Verifique o disjuntor.
• Temperature Not Cold Enough: Verify the temperature setting is appropriate. Ensure the door is closed properly and not opened frequently. Check for proper ventilation around the unit. Avoid placing hot items inside.
• Ruído excessivo: Ensure the unit is level. Check if any objects are touching the back or sides of the refrigerator. Normal operating sounds include a gentle hum from the compressor and occasional gurgling from refrigerant flow.
• Condensation/Frost Buildup: This is normal for manual defrost units. Ensure the door seal is intact and the door is not left open for extended periods. Defrost the unit as needed.

6. Especificações

7. Garantia e Suporte

For warranty information and customer support, please refer to the documentation included with your product or contact COWSAR customer service directly. Protection plans may be available for purchase separately.
