Introdução
Thank you for choosing the Amazon Basics Single Outlet Hose Watering Timer. This device is designed to simplify your garden irrigation by providing flexible and automated watering schedules. Please read this manual carefully before installation and use to ensure proper operation and longevity of your product.
Características do produto
- Smart Watering Timer: Program flexible watering schedules from 1 minute to 3 hours 59 minutes for hassle-free garden irrigation.
- Controles intuitivos: Activate manual watering with customizable duration when needed. The program can be paused for 24, 48, or 72 hours.
- Angled Screen Design: The 45% adjustable tilted screen ensures optimal visibility from any angle, displaying time, program, and battery status.
- Leak-Free Connection: Rubber gaskets ensure a tight seal and prevent water waste. Standard 1.9cm BSP thread. Operates on 2 AA alkaline batteries (not included).
Figura 1: Frente view of the Amazon Basics Single Outlet Hose Watering Timer, showing the digital display and control buttons.
Conteúdo da embalagem
Seu pacote deve conter os seguintes itens:
- 1 x Amazon Basics Single Outlet Hose Watering Timer
- 1 x Manual do Usuário
- Rubber gaskets (pre-installed or included for leak-free connection)
Note: 2 AA alkaline batteries are required and are NOT included in the package.
Configurar
1. Instalação da bateria
- Localize o compartimento da bateria na parte traseira do temporizador.
- Abra a tampa do compartimento da bateria.
- Insira 2 pilhas alcalinas AA novas, certificando-se da polaridade correta (+/-).
- Feche bem a tampa do compartimento da bateria para manter a resistência à água.
Figure 2: Top connection of the timer, showing the filter and threaded inlet. Ensure rubber gaskets are in place for a leak-free seal.
2. Connecting to the Faucet
- Ensure the faucet is clean and free of debris.
- Check that the rubber gasket is properly seated inside the timer's inlet connector.
- Screw the timer onto your standard 1.9cm (3/4 inch) outdoor faucet by hand until it is snug. Do not overtighten.
- Connect your garden hose to the outlet of the timer.
- Slowly turn on the faucet. Check for any leaks. If leaks occur, tighten the connections slightly or adjust the rubber gaskets.
Instruções de operação
1. Ajustando a hora atual
Refer to the angled screen for clear visibility of settings.
- Press the "SET" button to enter time setting mode.
- Use the "+" and "-" buttons to adjust the hour. Press "SET" to confirm.
- Use the "+" and "-" buttons to adjust the minute. Press "SET" to confirm.
2. Programming a Watering Schedule
The timer allows flexible schedules from 1 minute to 3 hours 59 minutes.
- Press the "PROG" button to enter program setting mode.
- Set the START TIME: Use "+" and "-" to adjust the hour and minute, pressing "PROG" to confirm each.
- Set the WATERING DURATION: Use "+" and "-" to adjust the duration (minutes/hours), pressing "PROG" to confirm.
- Set the WATERING FREQUENCY: Use "+" and "-" to select how often the timer should water (e.g., every 12 hours, every 24 hours, specific days). Press "PROG" to confirm.
- Once all settings are confirmed, the timer will display the next scheduled watering time.
3. Rega manual
To water manually outside of the programmed schedule:
- Press the "MANUAL" button.
- Use "+" and "-" buttons to set the desired manual watering duration.
- Press "MANUAL" again to start manual watering. The timer will automatically stop after the set duration.
4. Pause Function (Rain Delay)
If it rains or you don't need to water for a few days, you can pause the program:
- Press the "DELAY" button.
- Use "+" and "-" buttons to select the pause duration (24, 48, or 72 hours).
- Press "DELAY" again to confirm. The timer will resume its programmed schedule after the delay period.
Figure 3: Visual representation of the timer's main features, including flexible schedules, manual watering, and secure sealing.
Manutenção
- Substituição da bateria: Substitua as pilhas quando o indicador de bateria fraca aparecer no visor para garantir o funcionamento contínuo.
- Limpeza do filtro: Periodically check and clean the filter located in the inlet connector to prevent blockages and maintain water flow.
- Armazenamento de inverno: During freezing temperatures, remove the timer from the faucet, drain any remaining water, and store it indoors to prevent damage.
- Limpeza geral: Limpe o cronômetro com um pano macio e damp pano. Não use produtos de limpeza abrasivos ou solventes.
Solução de problemas
| Problema | Possível causa | Solução |
|---|---|---|
| Timer not watering. | Low batteries, incorrect program, faucet off, water pressure too low. | Check battery status and replace if needed. Verify program settings. Ensure faucet is fully open. Check water supply. |
| Vazamento de água nas conexões. | Loose connection, damaged gasket, missing gasket. | Tighten connections. Check and replace rubber gaskets if damaged or missing. |
| A tela está em branco ou com brilho reduzido. | Baterias mortas ou fracas. | Substitua as pilhas por novas pilhas alcalinas AA. |
Especificações
- Número do modelo: AMZ622617EU
- Dimensões: 8.2cm x 13.7cm x 18.5cm (Length x Width x Height)
- Peso: 383.4 g
- Tipo de rosca: Standard 1.9cm (3/4 inch) BSP
- Fonte de energia: 2 pilhas alcalinas AA (não incluídas)
- Duração da rega: 1 minuto a 3 horas e 59 minutos
- Função de pausa: 24, 48 ou 72 horas
- Cor: Grey, Black, Blue
- País de origem: China

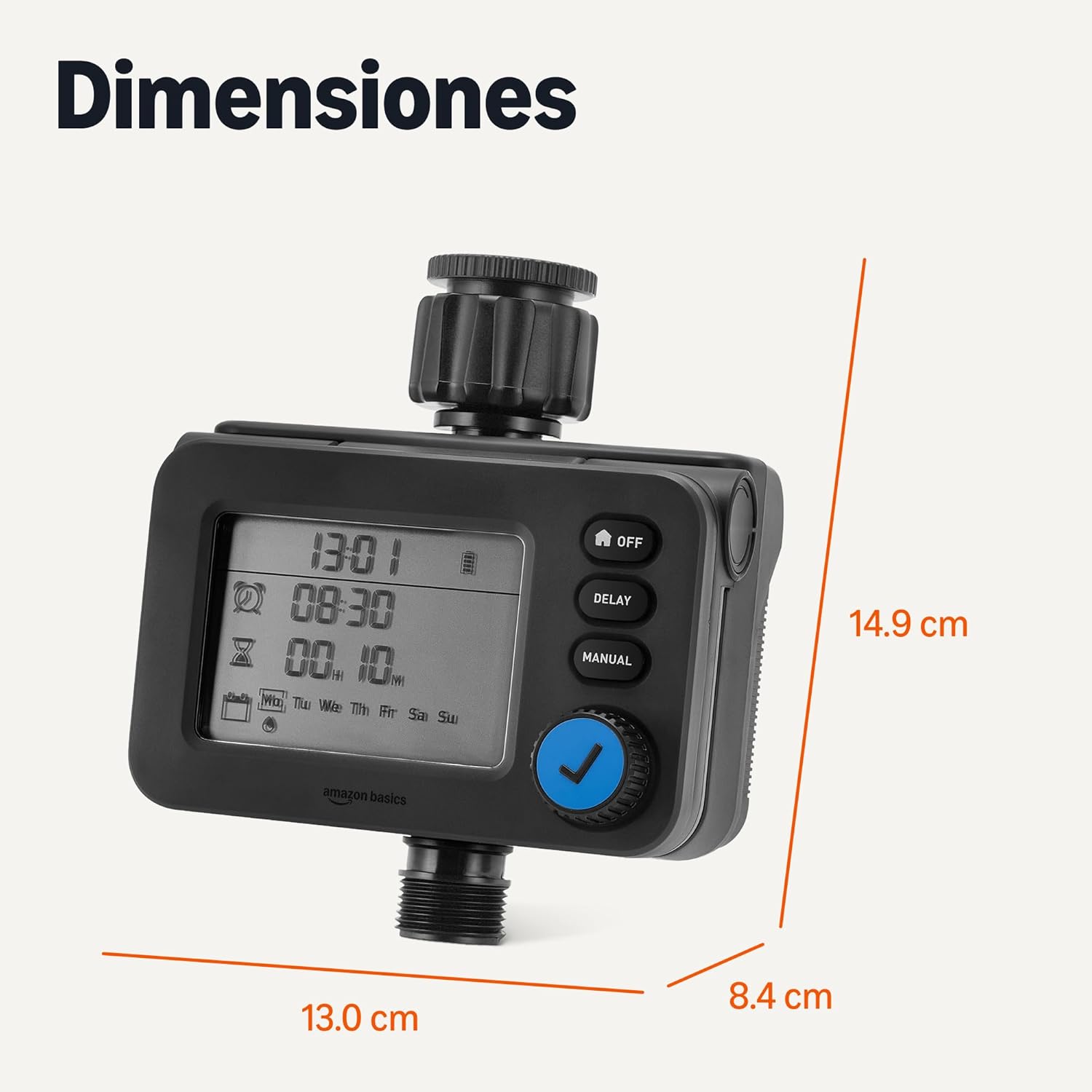

Figura 4: Dimensões do produto para planejamento de instalação.
Garantia e Suporte
Para informações sobre garantia e suporte ao cliente, consulte a documentação incluída na sua compra ou visite o site oficial da Amazon Basics. website.
