LAMTTO 10.25 Inch Wireless CarPlay & Android Auto Display User Manual

1. Introdução

This manual provides detailed instructions for the installation, operation, and maintenance of your LAMTTO 10.25 Inch Wireless CarPlay & Android Auto Display. Please read this manual thoroughly before using the device to ensure proper functionality and safety. Keep this manual for future reference.

2. Produto acabadoview

The LAMTTO 10.25-inch display is designed to integrate wireless Apple CarPlay and Android Auto into your vehicle, enhancing your driving experience with navigation, communication, and entertainment features. It includes built-in streaming applications and supports various audio output methods.

Image: The LAMTTO 10.25-inch display mounted on a car dashboard, showing a split screen with navigation on one side and a video streaming app on the other. Various feature icons are displayed below the main screen.

Principais características:

• CarPlay e Android Auto sem fio: Seamless integration with your smartphone for navigation, calls, messages, and music.
• Aplicativos de streaming integrados: Access Net-flix, YouTube, and other popular video applications directly from the device (requires phone hotspot connection).
• Traseira View Câmera: Includes a waterproof HD rear camera with night vision for enhanced safety during reversing.
• Dual-Band WiFi & Split-Screen: Stable wireless connection and the ability to display two applications simultaneously.
• High-Resolution In-Cell Display: 10.25-inch ultra-thin screen with 1920x720P clarity and responsive touch control.
• Personalização: Personalize boot logos and wallpapers via SD card.
• Atualizações OTA: Receive over-the-air software updates for continuous improvement.
• Múltiplas opções de saída de áudio: Built-in speakers, Bluetooth, FM transmission, and AUX connection.

3. Configuração

3.1 Desembalagem e componentes

Desembale cuidadosamente todos os itens da caixa. Certifique-se de que todos os componentes estejam presentes antes de prosseguir com a instalação.

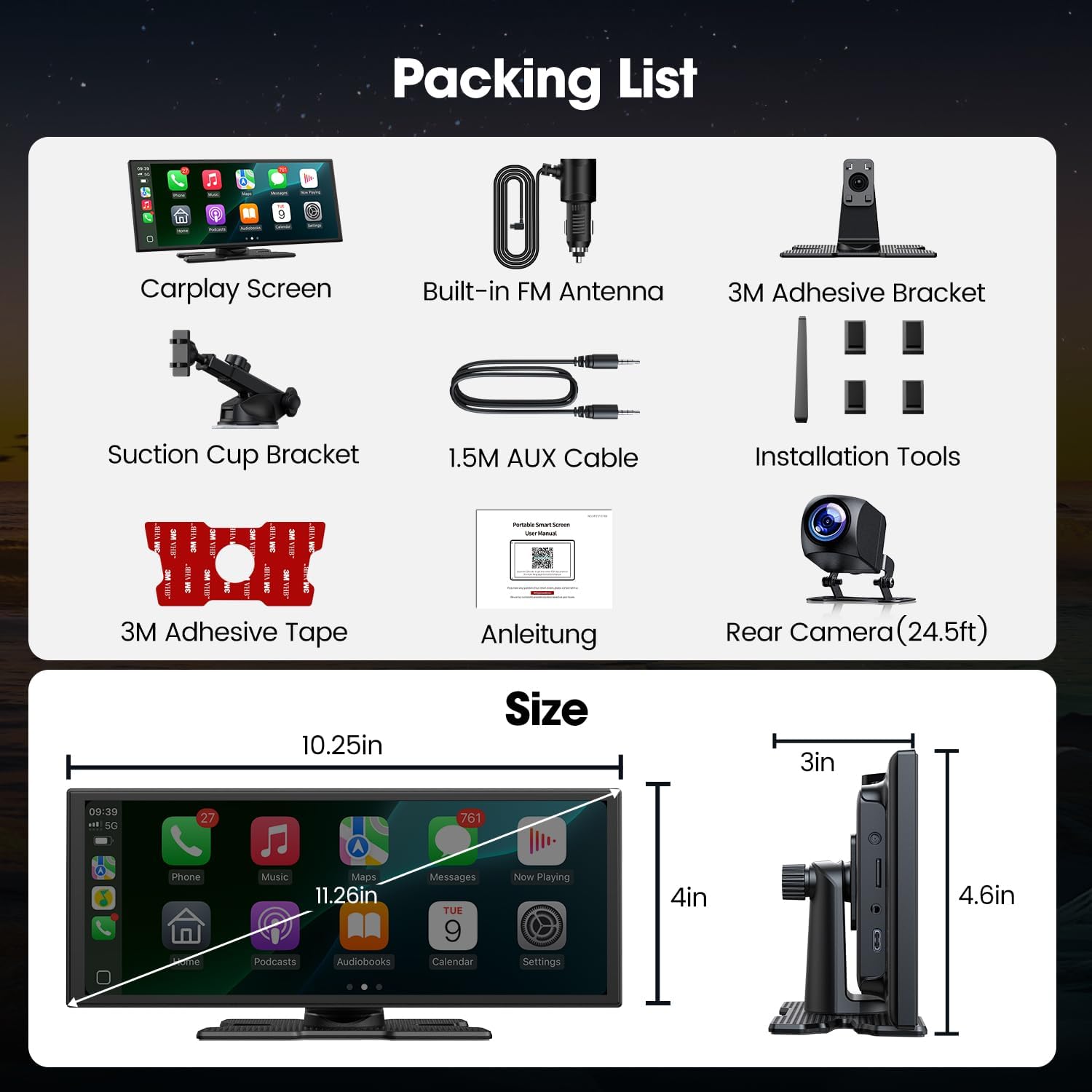

Image: A flat lay of all components included in the package: the Carplay screen, built-in FM antenna, 3M adhesive bracket, suction cup bracket, 1.5M AUX cable, installation tools, 3M adhesive tape, user manual, and rear camera (24.5ft cable).

3.2 Montagem do monitor

The display offers two primary installation methods: using the 3M adhesive bracket or the suction cup bracket. Choose the method that best suits your vehicle's dashboard and ensures a stable, clear view without obstructing driving.

Image: A visual guide illustrating the two installation methods for the display, showing how the screen attaches to both an adhesive base and a suction cup mount.

3.3 Connecting Power and Rear Camera

Connect the power cable to your vehicle's 12V power outlet. If installing the rear camera, route the camera cable to the rear of the vehicle and connect it to the display. Ensure all connections are secure.

4. Instruções de operação

4.1 Ligar/Desligar

The device will power on automatically when your vehicle starts. To power off, disconnect the power cable or use the designated power button if available.

4.2 Connecting to Wireless CarPlay / Android Auto

Para conectar seu smartphone:

1. Certifique-se de que o Bluetooth e o Wi-Fi estejam ativados no seu telefone.
2. On the LAMTTO display, navigate to the CarPlay or Android Auto section.
3. Procurar the device's Bluetooth name (e.g., "T88-XXXX") on your phone and pair.
4. Confirm the connection prompt on both your phone and the display.
5. For Android Auto, ensure you have the latest Android Auto application installed on your phone.

Image: The LAMTTO display showing the Apple CarPlay interface, featuring common applications for communication, navigation, and entertainment.

4.3 Using Navigation and Voice Control

Once connected to CarPlay or Android Auto, you can use your preferred navigation apps. Activate voice control (Siri or Google Assistant) by pressing the voice command button on the screen or your steering wheel (if supported) to get directions, make calls, or play music hands-free.

4.4 Entretenimento por Streaming

The device supports built-in applications like Net-flix and YouTube. Connect the display to your phone's hotspot to access these streaming services. The split-screen feature allows passengers to watch videos while the driver uses navigation.

Image: A car dashboard display showcasing a variety of application icons, including popular streaming services like Netflix and YouTube, indicating entertainment capabilities.

4.5 Opções de saída de áudio

The LAMTTO display offers four audio output methods:

• Alto-falantes embutidos: Para saída de áudio direta do dispositivo.
• Bluetooth: Connect wirelessly to your car's audio system for high-quality sound.
• Transmissão FM: Transmita áudio para o rádio FM do seu carro sintonizando uma frequência específica.
• Conexão AUX: Use the provided AUX cable for a direct, lossless audio connection to your car's AUX input.

Image: The LAMTTO display highlighting its dual-band WiFi and Bluetooth 5.3 capabilities, emphasizing stable connection and high-speed data transfer for various functions.

4.6 Customizing Wallpapers and Boot Logos

You can personalize the display by uploading custom wallpapers and boot logos via an SD card (not included). Refer to the device settings for options to change these visual elements.

5. Manutenção

To ensure the longevity and optimal performance of your LAMTTO display:

• Limpe a tela regularmente com um pano macio e sem fiapos. Evite produtos de limpeza abrasivos.
• Mantenha o dispositivo longe de temperaturas extremas e da luz solar direta por períodos prolongados.
• Certifique-se de que todos os cabos estejam firmemente conectados e não estejam presos ou danificados.
• Regularly check for and install OTA software updates to benefit from new features and bug fixes.

6. Solução De Problemas

6.1 Sem energia

• Check if the power cable is securely plugged into the vehicle's 12V outlet.
• Certifique-se de que a ignição do veículo esteja ligada.
• Verify the vehicle's 12V outlet is functioning correctly.

6.2 CarPlay/Android Auto não conecta

• Ensure Bluetooth and Wi-Fi are active on your smartphone.
• Esqueça o dispositivo nas configurações de Bluetooth do seu telefone e tente emparelhar novamente.
• Restart both your phone and the LAMTTO display.
• For Android Auto, confirm the app is updated to the latest version.

6.3 Sem saída de áudio

• Check the audio output settings on the display and ensure the correct method (Built-in Speaker, Bluetooth, FM, AUX) is selected.
• If using Bluetooth, ensure your phone is connected to the display and your car's audio system.
• If using FM transmission, verify the display and your car radio are tuned to the same clear FM frequency.
• If using AUX, ensure the cable is properly connected to both the display and your car's AUX input.

6.4 Câmera traseira não exibe imagem

• Check the camera cable connection to the display.
• Ensure the vehicle is in reverse gear to activate the camera display.
• Verify the camera lens is clean and free from obstructions.

Image: The LAMTTO display showing the view from the rear camera, complete with adjustable parking assist lines, providing a clear perspective for safe reversing.

7. Especificações

Image: Icons representing different vehicle types (Automobile, SUV, CRV, Truck, Pickup, Total Truck) indicating the universal 12V-24V compatibility of the device.

8. Garantia e Suporte

LAMTTO provides professional after-sales support for its products. If you encounter any issues with compatibility, operation, or connection, please contact our customer service team. We offer 24/7 customer support and a 30-day hassle-free return policy. Our technical experts aim to respond within 24 hours.

• Atendimento ao Cliente: Available 24/7 for professional assistance.
• Política de devolução: 30-day hassle-free returns.
• Suporte técnico: Expert responses within 24 hours.
