Freego X2Pro Electric Motorcycle Instruction Manual

1. Introdução

This manual provides essential information for the safe operation, maintenance, and troubleshooting of your Freego X2Pro Electric Motorcycle. Please read this manual thoroughly before operating the vehicle to ensure proper use and to prevent injury or damage.

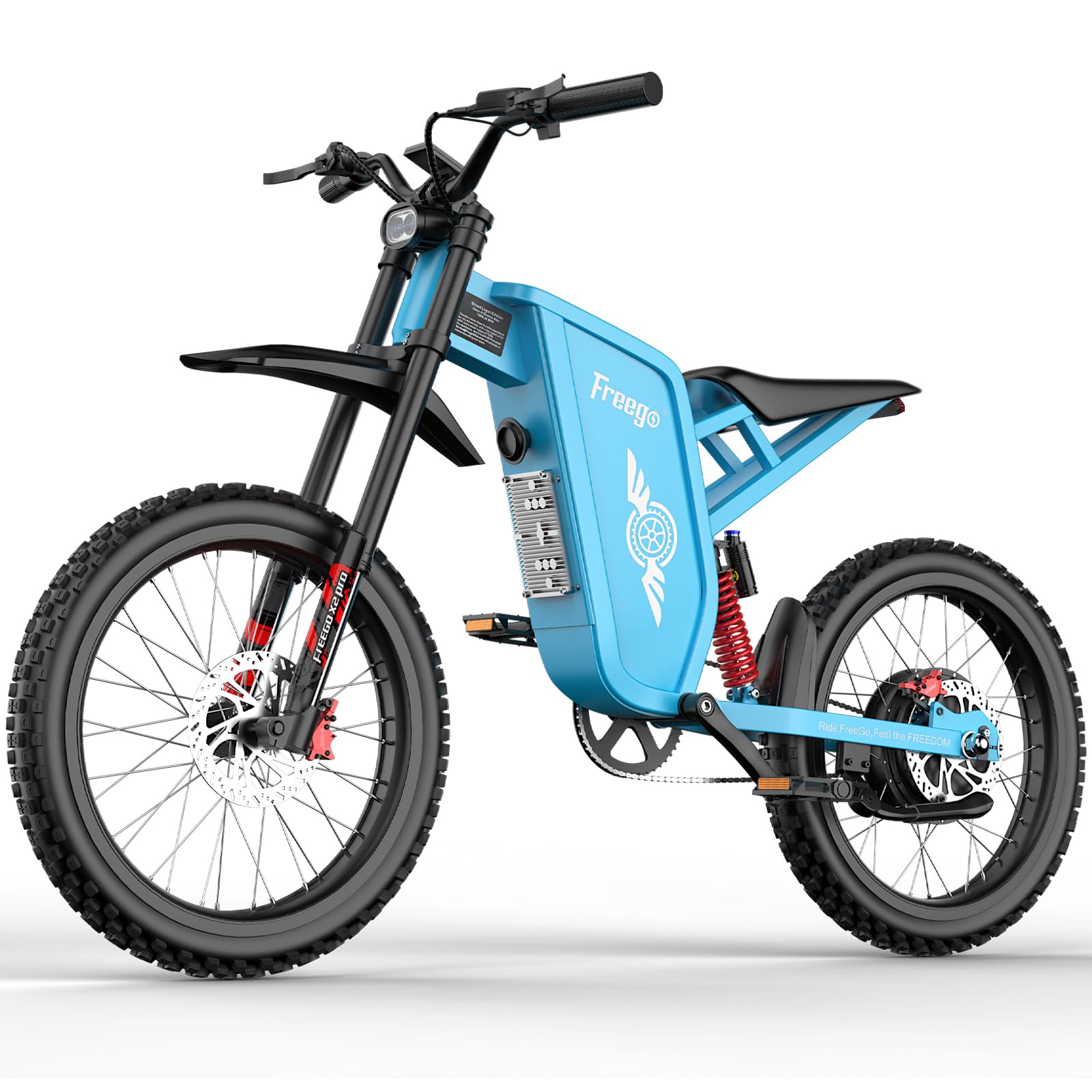

Figure 1: Freego X2Pro Electric Motorcycle

The Freego X2Pro is a high-performance electric motorcycle designed for adults and teens, featuring a powerful 6000W (peak) motor, 1800Wh battery, and full suspension for off-road capabilities. It is UL 2849 Certified, ensuring safety and reliability.

2. Informações de segurança

Your safety is paramount. Always wear a helmet and appropriate protective gear when riding. Familiarize yourself with local laws and regulations regarding electric bicycle operation. Perform pre-ride checks to ensure all components are in good working order.

• Always wear a certified helmet and protective clothing.
• Verifique se os freios estão funcionando corretamente antes de cada uso.
• Check tire pressure and tread condition regularly.
• Não conduza a motocicleta sob a influência de álcool ou drogas.
• Esteja ciente do que está ao seu redor e ande defensivamente.

3. Conteúdo da embalagem

Ao desembalar, verifique se todos os itens listados abaixo estão presentes e sem danos:

• Freego X2 Pro Electric Motorcycle
• E Bike Accessory Kit
• Carregador
• Kit de ferramentas

4. Configuração

4.1 Montagem

The Freego X2Pro requires some assembly. This typically includes installing the front wheel, handlebars, headlight, and front brake caliper. Use the provided tool kit for assembly. Ensure all bolts are tightened securely.

For detailed visual instructions on assembly, please refer to the video below:

4.2 Carga inicial da bateria

Before your first ride, fully charge the 60V, 30Ah (1800Wh) lithium battery. Connect the charger to the charging port on the motorcycle and then to a power outlet. The charging indicator on the charger will change when fully charged.

5. Componentes Sobreview

5.1 Motor and Battery

The Freego X2Pro is equipped with a 3000W nominal motor, capable of reaching 6000W peak power. It is powered by a 60V, 30Ah (1800Wh) removable lithium-ion battery, providing ample power and range.

Figure 2: Motor Power and Performance

5.2 Frame and Suspension

The X2Pro features a high-tensile steel frame, offering enhanced toughness and flexibility compared to aluminum structures. It boasts a dual full suspension system with adjustable front forks and a rear shock absorber, designed to provide a smooth ride over varied terrain.

Figure 3: Full Suspension System

5.3 Sistema de freios

For superior stopping power, the X2Pro is equipped with advanced four-piston hydraulic brakes and 203mm rotors. This system ensures reliable and responsive braking in all conditions.

Figure 4: Four-Piston Hydraulic Brake System

5.4 Pneus

The motorcycle is fitted with 19-inch x 2.0 fat tires, designed for adaptability across various terrains, including snow, mountain trails, beaches, and city roads.

Figure 5: All-Terrain Fat Tires

5.5 Visor e controles

The modern M5 digital screen provides real-time data such as velocity, battery percentage, and mileage. Handlebar controls include a headlight button, a loud horn, and power mode selectors.

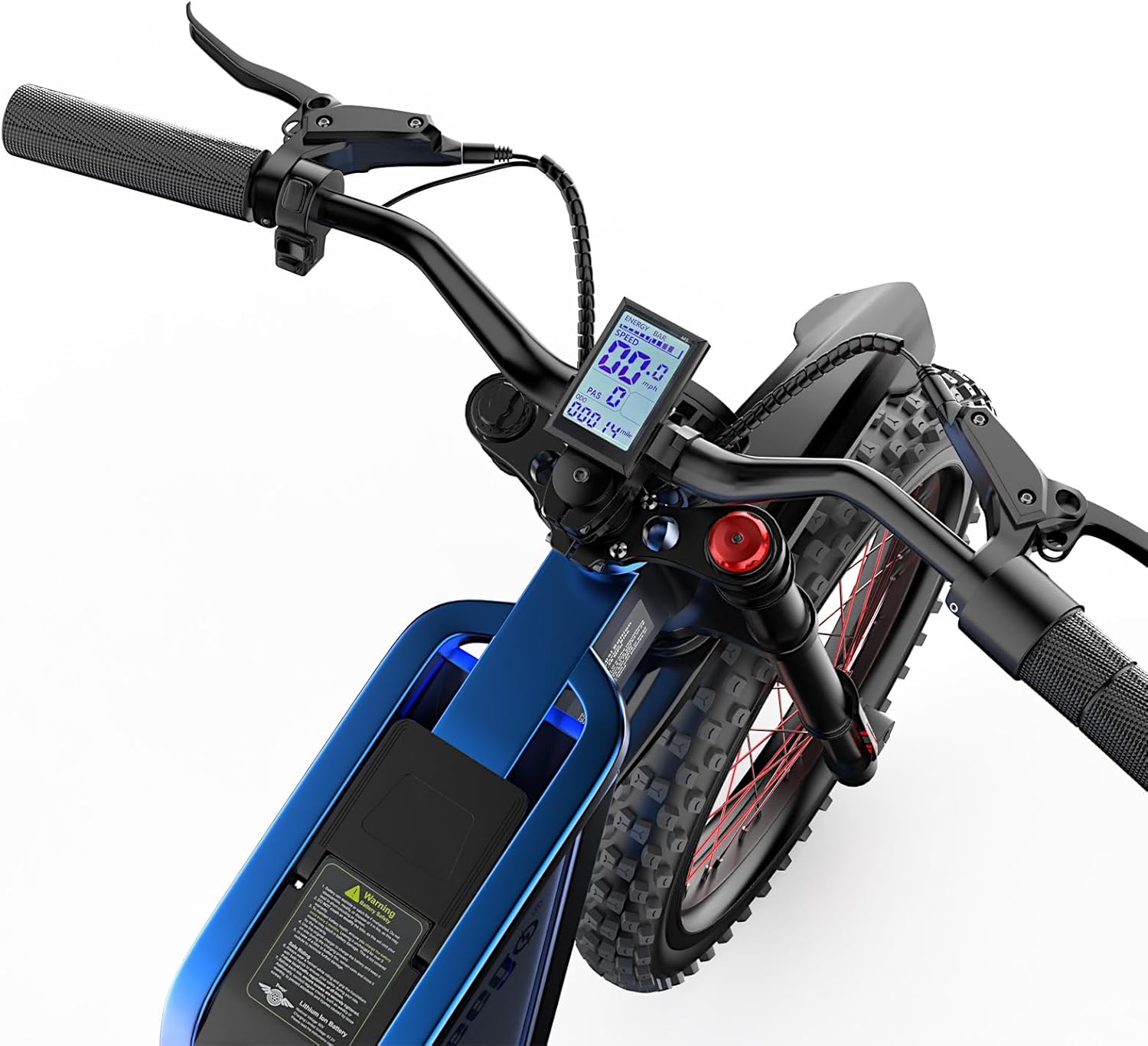

Figure 6: Handlebar Controls and M5 Display

5.6 Pedals and Throttle

The X2Pro features magnetic pedal-assist technology, activating the motor with pedal movement. It also includes a half-twist throttle for powered acceleration.

6. Instruções de operação

6.1 Ligar/Desligar

To power on the motorcycle, ensure the battery is securely in place and the main power switch (if applicable) is on. Then, use the display's power button or NFC card to activate the system. To power off, reverse the process or hold down the power button.

6.2 Modos de Condução

The X2Pro offers different riding modes. The 'Eco' mode provides extended range and moderate power, while the 'Powerful' mode (Off-Road mode) delivers maximum acceleration and speed up to 50 MPH. Select the appropriate mode using the handlebar controls.

Figure 7: Riding Modes

6.3 Throttle and Pedal Assist

Engage the half-twist throttle for electric power. For assisted riding, simply pedal, and the magnetic pedal-assist sensor will activate the motor, providing a boost to your pedaling effort.

6.4 Luzes e Buzina

Use the dedicated buttons on the handlebars to activate the bright headlights and rear taillights for improved visibility. The horn can be used to alert others to your presence.

7. Manutenção

Regular maintenance ensures the longevity and safe operation of your Freego X2Pro.

• Limpeza: Regularly clean the motorcycle with a damp pano. Evite lavar com alta pressão diretamente sobre componentes elétricos.
• Inspeção dos freios: Check brake pads and rotors for wear. Ensure brake levers provide firm and responsive braking. Adjust as needed.
• Pressão dos pneus: Maintain recommended tire pressure for optimal performance and safety. Refer to the tire sidewall for specific pressure ranges.
• Suspensão: Periodically check suspension components for any signs of damage or leaks. Adjust the front forks and rear shock according to your riding preference and weight.
• Cuidados com a bateria: Store the battery in a cool, dry place. Avoid fully discharging the battery for extended periods.

8. Solução De Problemas

• Atrito dos freios: If you experience brake rub after assembly or during use, check the alignment of the brake caliper and rotor. Minor adjustments may be needed to center the caliper over the rotor.
• Display Unit (km/h vs. mph): The display may default to kilometers per hour. Consult the user manual for specific button combinations or settings to switch to miles per hour if desired.
• Loss of Power/Range: Ensure the battery is fully charged and properly seated. Check for any loose connections. If issues persist, contact customer support.

9. Especificações

10. Garantia e Suporte

The Freego X2Pro Electric Motorcycle comes with a 12-month limited warranty. For any questions, problems, or instant support, please contact us via Amazon Messages or email us at simailongamzi@163.com.
