EMEET C60E 4K Webcam and HS50 Wired Headset User Manual

Introdução

Este manual fornece instruções detalhadas para a configuração, operação e manutenção do seu EMEET C60E 4K. Webcam and EMEET HS50 Wired Headset. Please read this manual thoroughly before using the devices to ensure optimal performance and longevity.

Produto acimaview

EMEET C60E 4K Webcâmera

The EMEET C60E is a high-performance 4K webcam designed for clear video communication. It features advanced imaging and audio capabilities for professional and personal use.

• Resolução 4K Ultra HD: Delivers crisp 3840x2160 video at 30 frames per second.
• PDAF Autofocus: Ensures sharp focus even with movement.
• Correção automática de luz: Adjusts to various lighting conditions for optimal image quality.
• Microfones duplos com cancelamento de ruído: Captures clear audio up to 8 feet, reducing background noise.
• 73° Campo de View (FOV): Provides a balanced perspective for individual or small group use.
• USB Plug & Play: Não são necessários drivers para a instalação.
• Cobertura de privacidade: Integrated cover for enhanced privacy when not in use.

Image: The EMEET C60E 4K Webcam provides superior image quality, as shown by the clear 4K resolution compared to a blurred standard image.

Image: A user on a video call demonstrating the effectiveness of the dual noise-cancelling microphones on the EMEET C60E webcam, showing a waveform before and after noise cancellation.

EMEET HS50 Wired Headset

The EMEET HS50 is a comfortable and versatile wired headset designed for extended use in various communication environments.

• Design leve: Weighs approximately 0.27 lb for all-day comfort.
• Adjustable Headband and Earpads: Customizable fit for various head sizes with 10° earpad adjustment.
• 270° Flexible Microphone: Allows for precise positioning and can be rotated out of the way.
• Controles em linha: Easy access to volume adjustment, microphone mute, and speaker mute.
• Conectividade USB: Conexão simples, do tipo "plug-and-play".

Image: The EMEET HS50 Wired Headset, highlighting its lightweight and comfortable design with feather illustrations.

Imagem: Detalhada view of the EMEET HS50 headset's adjustable headband and the 10-degree swivel capability of its earpads for a customized fit.

Image: The EMEET HS50 headset's microphone demonstrating its 270-degree flexible rotation for optimal positioning.

Guia de configuração

EMEET C60E 4K Webconfiguração da câmera

1. Conecte o Webcâmera: Plug the USB-A cable from the EMEET C60E webcam em uma porta USB disponível em seu computador.
2. Instalação automática: O webcam is plug-and-play. Your operating system (Windows, macOS) will automatically detect and install the necessary drivers. No manual driver installation is typically required.
3. Posicione o Webcâmera: Monte o webcam securely on top of your monitor or place it on a flat surface. Adjust the angle as needed.
4. Verifique a conexão: Open a video conferencing application (e.g., Zoom, Skype, Google Meet) or your computer's camera application to confirm the webA câmera foi reconhecida e está exibindo vídeo.
5. Adjust Resolution (Optional): The default video resolution may be 1080P. To switch to 4K, use your built-in camera software or applications like PotPlayer/OBS.

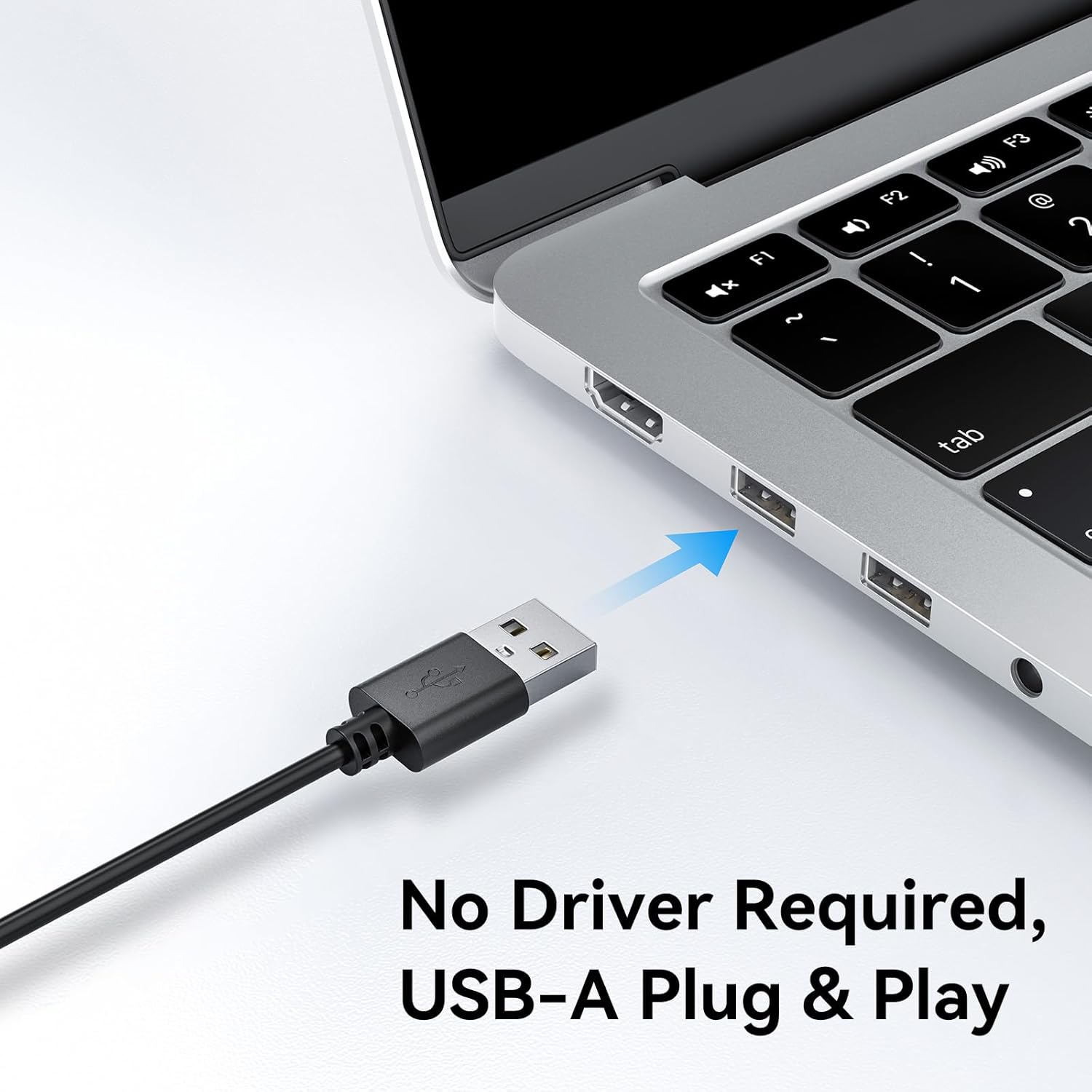

Image: The EMEET C60E webcam's USB-A cable being connected to a laptop, illustrating its plug-and-play functionality.

EMEET HS50 Wired Headset Setup

1. Conecte o fone de ouvido: Plug the USB cable from the EMEET HS50 headset into an available USB port on your computer.
2. Instalação automática: The headset is plug-and-play. Your operating system will automatically detect and configure the audio device.
3. Ajuste para conforto:
   • Ajuste a faixa de cabeça para caber confortavelmente em sua cabeça.
   • Rotate the earpads up to 10° to ensure a snug fit over your ears.
4. Posicione o microfone: Rotate the flexible microphone boom to position the microphone near your mouth for optimal voice pickup. It can rotate 270° to be used on either side or moved out of the way when not needed.
5. Verifique as configurações de áudio: In your computer's sound settings or communication application, ensure the EMEET HS50 is selected as the input (microphone) and output (speaker) device.

Instruções de operação

EMEET C60E 4K WebOperação da câmera

• Usando com aplicativos: Select the EMEET C60E as your video and audio device within your preferred video conferencing software (e.g., Zoom, Microsoft Teams, Google Meet, Skype).
• EMEETLINK Software: Download and install the EMEETLINK software from the official EMEET website for advanced settings. This software allows you to:
  • Adjust brightness, contrast, and saturation.
  • Activate backlight compensation for improved visibility in challenging lighting.
  • Atualizar firmware.
• Cobertura de privacidade: Slide the integrated privacy cover over the lens when the webcam is not in use to ensure your privacy.

EMEET HS50 Wired Headset Operation

The HS50 headset features convenient in-line controls for managing your audio during calls or media playback.

Image: Close-up of the EMEET HS50 headset's in-line control unit, showing buttons for microphone mute, volume up/down, and speaker on/off, along with LED indicators.

• Controle de volume: Use o + e - buttons on the in-line control unit to adjust the speaker volume.
• Microfone mudo: Pressione o ícone de microfone button to mute or unmute your microphone. An LED indicator will show the mute status.
• Speaker Mute/On-Off: Pressione o ícone de alto-falante button to turn the speaker audio on or off. An LED indicator will show the speaker status.
• Posicionamento do microfone: Adjust the 270° flexible microphone boom to ensure the microphone is optimally positioned for your voice.

Manutenção

• Limpeza: Use a soft, dry cloth to clean the exterior surfaces of both the webcam and headset. For the webcam lens, use a lens cleaning cloth.
• Evite líquidos: Não utilize produtos de limpeza líquidos ou aerossóis diretamente nos dispositivos.
• Armazenar: When not in use, store the devices in a clean, dry place away from extreme temperatures.
• Cuidados com os cabos: Evite dobras acentuadas ou puxões excessivos nos cabos USB para evitar danos.

Solução de problemas

Webcam Troubleshooting

• WebCâmera não detectada:
  • Certifique-se de que o cabo USB esteja firmemente conectado a ambas as portas. webcâmera e seu computador.
  • Tente conectar o webcam em uma porta USB diferente.
  • Reinicie o seu computador.
  • Verifique o gerenciador de dispositivos do seu sistema operacional para ver se o webA câmera está listada.
• Sem vídeo ou com qualidade de vídeo ruim:
  • Certifique-se de que a tampa de privacidade esteja aberta.
  • Check lighting conditions; ensure adequate front lighting.
  • Verifique se o correto webcam is selected in your application's settings.
  • Use EMEETLINK software to adjust video settings like brightness and contrast.
  • Ensure your computer meets the system requirements for 4K video streaming.
• No Audio from Webcam Microphones:
  • Ensure the EMEET C60E is selected as the microphone input device in your computer's sound settings and your application.
  • Check application-specific mute settings.

Headset Troubleshooting

• Headset Not Detected:
  • Ensure the USB cable is securely connected to both the headset and your computer.
  • Tente conectar o fone de ouvido em uma porta USB diferente.
  • Reinicie o seu computador.
• No Audio from Headset Speakers:
  • Check the in-line control unit to ensure the speaker is not muted and volume is turned up.
  • Verify that the EMEET HS50 is selected as the audio output device in your computer's sound settings and your application.
  • Adjust the volume on your computer.
• Microphone Not Working on Headset:
  • Check the in-line control unit to ensure the microphone is not muted.
  • Verify that the EMEET HS50 is selected as the microphone input device in your computer's sound settings and your application.
  • Certifique-se de que a haste do microfone esteja posicionada corretamente.

Especificações

EMEET C60E 4K Webcâmera

EMEET HS50 Wired Headset

Garantia e Suporte

EMEET products are designed for reliability and performance. For detailed warranty information, please refer to the warranty card included with your product or visit the official EMEET website. If you encounter any issues or require technical assistance, please contact EMEET customer support through their official channels. You can typically find support contact information on the EMEET website ou dentro da embalagem do seu produto.

Official EMEET Website: www.emeet.com
