Lenovo Legion Pro 5 16IAX10 Gaming Laptop User Manual

1. Introdução

This manual provides essential information for the safe and efficient use of your Lenovo Legion Pro 5 16IAX10 gaming laptop. Please read this manual thoroughly before operating your device and retain it for future reference.

2. Configuração

2.1 Desembalagem e Inspeção Inicial

Carefully remove the laptop and all accessories from the packaging. Inspect for any signs of damage. If any components are missing or damaged, contact your retailer immediately.

2.2 Conexão de energia

1. Connect the power cord to the 245W AC adapter.
2. Plug the AC adapter into the power input port on your laptop.
3. Conecte a outra extremidade do cabo de alimentação a uma tomada elétrica aterrada.

Recomenda-se carregar totalmente a bateria antes da primeira utilização.

Image: The Lenovo Legion Pro 5 16IAX10 laptop, open and powered on, showcasing its display and RGB backlit keyboard.

2.3 Primeira inicialização e configuração do sistema operacional

Press the power button to turn on your laptop. The device comes pre-installed with Windows 11 Home. Follow the on-screen instructions to complete the initial Windows setup, including language selection, network connection, and user account creation.

3. Operação

3.1 Recursos de exibição

Your laptop features a 16-inch WQXGA (2560 x 1600) IPS Anti-Glare display with a 165Hz refresh rate. It supports Dolby Vision and G-SYNC for enhanced visual performance. Adjust display settings via Windows Display Settings or NVIDIA Control Panel for optimal experience.

3.2 Teclado e entrada

The full-size keyboard includes a numeric keypad and 24-Zone RGB backlighting. Customize RGB lighting effects through the pre-installed Lenovo software (e.g., Lenovo Vantage)

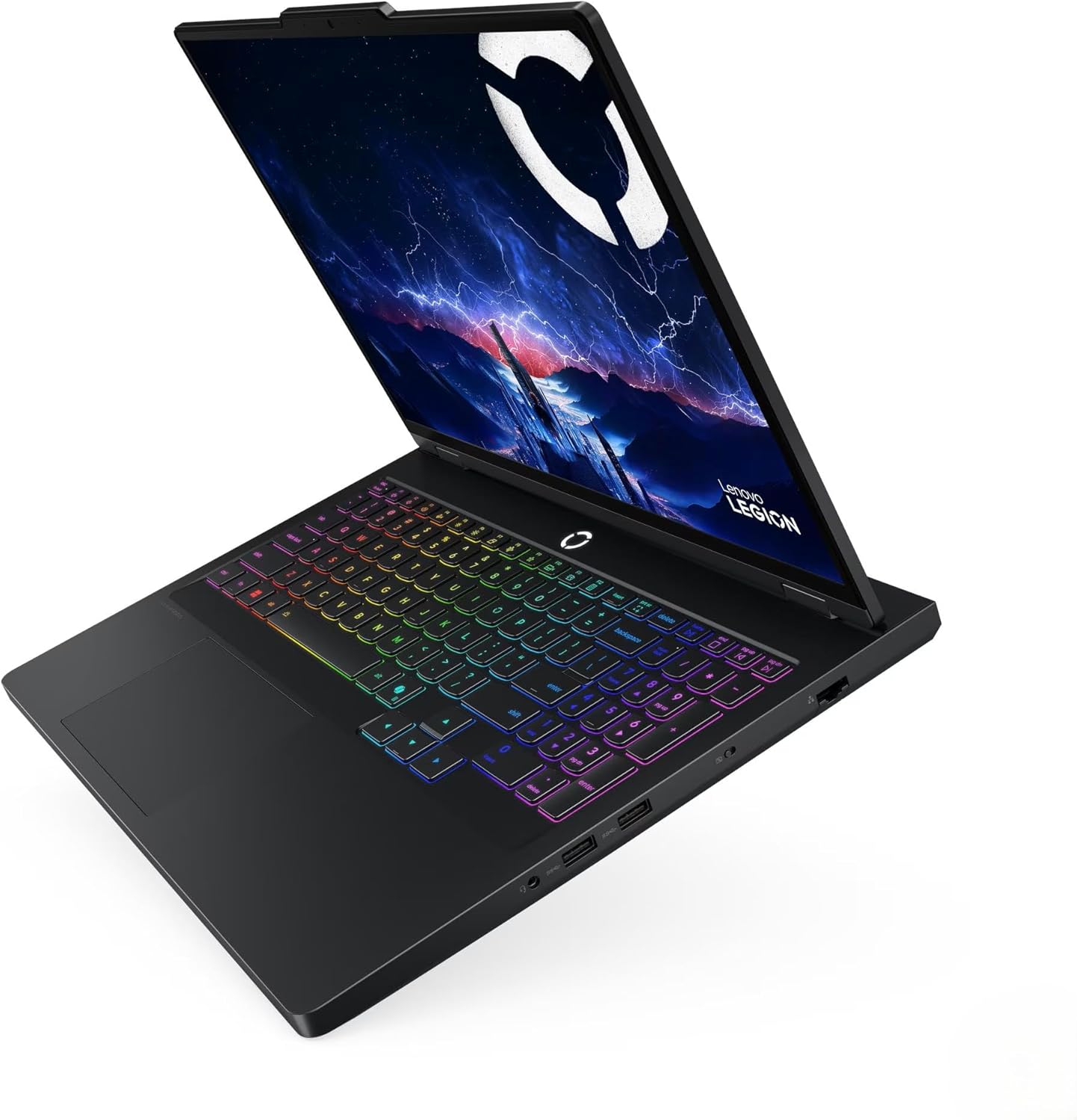

Imagem: Uma imagem detalhada view of the laptop's keyboard, highlighting the RGB backlighting and numeric keypad.

3.3 Sistema de áudio

Equipped with stereo speakers (2W x2) optimized with Nahimic Audio, providing immersive sound. Adjust audio settings and profiles using the Nahimic Audio software.

3.4 Conectividade

• Sem fio: MediaTek Wi-Fi 7 MT7925 (2x2) for high-speed internet and Bluetooth 5.4 for peripheral connections.
• wired: 10/100/1000Mbps LAN port for stable wired network connections.

3.5 Portas e Conectores

The laptop offers a variety of ports for connecting external devices:

• 1 x USB Thunderbolt 4 / USB4 40Gbps Type-C (supports DisplayPort)
• 1 x USB 3.2 Gen 2 Type-C (supports DisplayPort / 10Gbps)
• 1 x USB 3.2 Gen 2 Type-A (supports Always On / 10Gbps)
• 2 x USB 3.2 Gen 1 Tipo A (5 Gbps)
• 1 x Conector Combinado para Fone de Ouvido/Microfone
• 1 x HDMI v2.1
• 1 x RJ-45 (Ethernet)

Image: The left side of the laptop, displaying the USB-C ports and headphone jack.

Image: The right side of the laptop, showing the USB-A ports.

4. Manutenção

4.1 Cuidados e limpeza gerais

• Use a soft, lint-free cloth to clean the screen and chassis. Avoid abrasive cleaners.
• Mantenha as aberturas de ventilação livres de poeira e detritos para garantir um fluxo de ar adequado.
• Evite expor o laptop a temperaturas extremas, luz solar direta ou líquidos.

4.2 Atualizações de Software

Regularly update your Windows operating system, graphics drivers (NVIDIA GeForce RTX 5070), and Lenovo-specific software to ensure optimal performance and security. You can typically find driver updates on the official Lenovo support website.

4.3 Cuidados com a bateria

To prolong battery life (4 Cell 80 Wh, up to 6 hours average usage), avoid constantly discharging it to 0% or keeping it at 100% for extended periods. Utilize power management settings in Windows to optimize battery usage.

4.4 Gerenciamento de armazenamento

Your laptop is equipped with a 2TB NVMe M.2 SSD. Regularly manage your storage by deleting unnecessary files and uninstalling unused applications to maintain performance. The included MST 32GB USB Drive can be used for data backup or system recovery purposes.

5. Solução De Problemas

Esta seção aborda problemas comuns que você pode encontrar. Para problemas mais complexos, consulte o suporte da Lenovo. website ou entre em contato com o suporte técnico.

5.1 Problemas de energia

• Meu laptop não liga: Certifique-se de que o adaptador CA esteja firmemente conectado tanto ao laptop quanto a uma tomada elétrica em funcionamento. Verifique se a luz indicadora de energia está acesa.
• A bateria não carrega: Verify the AC adapter connection. Try a different power outlet. If the issue persists, the battery or adapter may require service.

5.2 Problemas de exibição

• Nenhuma imagem na tela: Connect an external monitor to the HDMI port to check if the issue is with the laptop's internal display. Ensure the display brightness is not set to minimum.
• Imagem tremeluzente ou distorcida: Update your NVIDIA graphics drivers. Check display cable connections if using an external monitor.

5.3 Problemas de conectividade de rede

• A conexão Wi-Fi não está funcionando: Ensure Wi-Fi is enabled in Windows settings. Restart your router and laptop. Check for updated Wi-Fi 7 drivers.
• A rede LAN com fio não está funcionando: Verify the Ethernet cable connection. Check network adapter settings in Windows.

6. Especificações

7. Garantia e Suporte

7.1 Garantia do Produto

Your Lenovo Legion Pro 5 16IAX10 laptop is covered by a manufacturer's warranty. Please refer to the warranty documentation included with your product or visit the official Lenovo webConsulte o site para obter os termos e condições detalhados referentes à cobertura e duração da garantia.

7.2 Suporte Técnico

Para obter assistência técnica, baixar drivers ou solucionar outros problemas, visite o site oficial de suporte da Lenovo. website. You will need your product's serial number (typically found on a label on the bottom of the laptop) to access specific support resources.

Official Lenovo Support: https://support.lenovo.com/
