Introdução
Thank you for choosing the Acedeck L01 Super Loud Alarm Clock. This device is designed to provide a reliable and powerful wake-up experience, especially for heavy sleepers, with its 115dB dual alarms and adjustable features. This manual will guide you through the setup, operation, and maintenance of your new alarm clock.

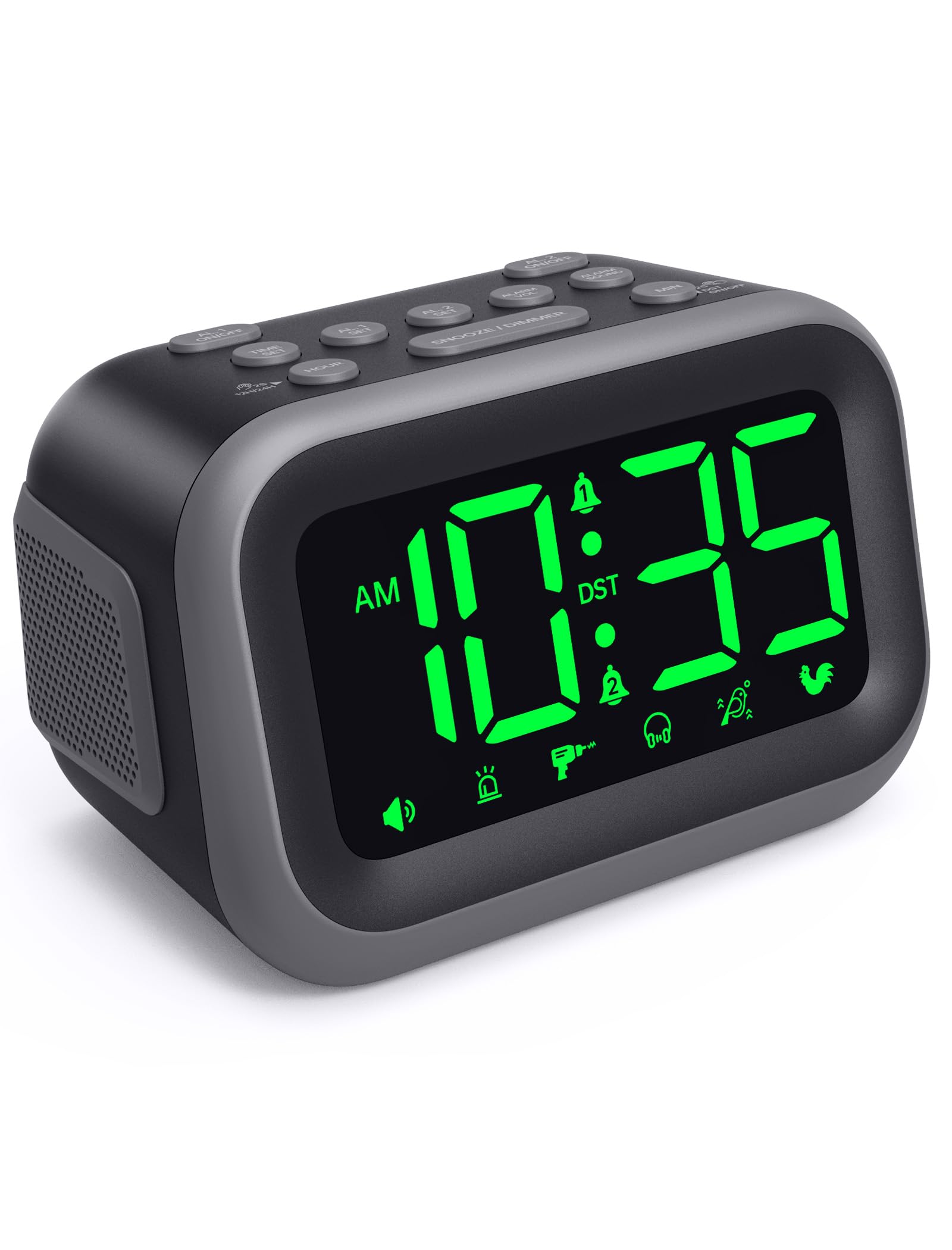

Figure 1: Acedeck L01 Super Loud Alarm Clock with green digits.
Configurar
1. Conexão de energia
Connect the provided AC adapter to the DC 5V port on the back of the alarm clock and plug it into a standard wall outlet. The display will light up, indicating the clock is powered on.
2. Bateria de reserva (opcional)
Para operação contínua durante a falta de energiatages, insert 3 AAA batteries (not included) into the battery compartment on the bottom of the clock. The battery backup system retains time and alarm settings and will activate the alarm function during a power loss, though the display will turn off to conserve power.
Figure 2: Power connection and battery backup functionality.
3. Definição da hora
- Pressione o HORÁRIO DEFINIDO botão. Os dígitos das horas piscarão.
- Use o HORA button to adjust the hour. Press and hold for faster adjustment.
- Pressione o MÍNIMO button to adjust the minutes. Press and hold for faster adjustment.
- Imprensa HORÁRIO DEFINIDO Novamente, para confirmar e sair do modo de configuração de hora.
To toggle between 12-hour and 24-hour format, press the 12H/24H button during time setting.
Figure 3: Switching between 12-hour and 24-hour display.
4. Horário de verão (DST)
Pressione o DST ON / OFF button to activate or deactivate Daylight Saving Time. The clock will adjust automatically.
5. Button Overview
Figure 4: Labeled buttons for clear function and fast setup.
Video: Setting the Time
This video demonstrates how to set the current time on your Acedeck L01 alarm clock, including toggling between 12-hour and 24-hour formats.
Instruções de operação
1. Setting Alarms (Dual Alarms)
The Acedeck L01 features two independent alarms (AL1 and AL2). This allows you to set different wake-up times for different schedules.
- Pressione o Conjunto AL1 or Conjunto AL2 button. The hour digits for the selected alarm will flash.
- Use o HORA botão para ajustar a hora do alarme.
- Use o MÍNIMO botão para ajustar os minutos do alarme.
- Pressione o respectivo CONJUNTO AL Pressione o botão novamente para confirmar a hora do alarme.
- Para ativar ou desativar um alarme, pressione o AL1 LIGADO/DESLIGADO or AL2 LIGADO/DESLIGADO button. An alarm icon will appear on the display when an alarm is active.
Figure 5: Dual alarm functionality for flexible scheduling.
2. Sons de alarme
Choose from 6 distinct alarm sounds to suit your preference. While setting the alarm, press the ALARME SONORO button to cycle through the available sounds: Beep, Siren, Jackhammer, Music, Bird Song, and Rooster.
Figure 6: Selection of 6 unique alarm sounds.
3. Volume do Alarme
The Acedeck L01 features an extra-loud 115dB alarm, ideal for heavy sleepers. You can adjust the alarm volume through 6 levels. Press the ALARM VOL button to cycle through the volume settings. The default volume is set to maximum, so adjust to a comfortable level before first use.
Figure 7: Adjustable volume levels for the alarm.
4. Função soneca
Quando o alarme tocar, pressione o botão grande. SNOOZE / DIMMER button to temporarily silence the alarm for a few minutes. The alarm will sound again after the snooze period ends.
Figure 8: Using the snooze function.
5. Brilho ajustável
The 4.2-inch LED display offers 5 levels of adjustable brightness. Press the SNOOZE / DIMMER button (when the alarm is not sounding) to cycle through the brightness levels, from brightest to completely off. This allows for comfortable viewing day or night without disturbing sleep.
Figure 9: Adjusting the display brightness.
6. Porta de carregamento USB
A built-in USB port on the back of the clock allows you to charge your smartphone or other USB-powered devices overnight. This feature is active when the clock is connected to AC power.
Figure 10: USB charging port in use.
Video: Setting the Alarm
This video demonstrates how to set and activate the dual alarms on your Acedeck L01 alarm clock.
Video: Product Features Overview
This video provides a detailed demonstration of the Acedeck L01 alarm clock's features, including alarm sounds, volume, and brightness settings.
Manutenção
To ensure the longevity and optimal performance of your Acedeck L01 alarm clock, follow these simple maintenance guidelines:
- Limpeza: Wipe the clock with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
- Substituição da bateria: If using battery backup, replace the AAA batteries annually or when the battery indicator suggests low power to ensure continuous functionality during power outage.
- Colocação: Coloque o relógio em uma superfície plana e estável, longe da luz solar direta, calor excessivo ou umidade.
Solução de problemas
| Problema | Solução |
|---|---|
| O visor do relógio está desligado. | Ensure the AC adapter is securely plugged into both the clock and a working power outlet. If using battery backup, the display turns off to save power, but the alarm function remains active. |
| O alarme não dispara. | Check if the alarm (AL1 or AL2) is activated (icon visible on display). Verify the alarm time is set correctly. Ensure the alarm volume is not set to zero. If running on battery backup, ensure batteries are fresh. |
| O horário está incorreto. | Re-set the time following the 'Setting the Time' instructions. Check for power interruptions; if frequent, ensure battery backup is installed and functional. |
| O carregamento USB não está funcionando. | Ensure the alarm clock is connected to AC power. The USB charging port does not function when the clock is running on battery power. Check the USB cable and the device being charged. |
Especificações
- Marca: Acedeck
- Modelo: L01
- Tipo de exibição: LED digital
- Cor da tela: Dígitos Verdes
- Volume do alarme: Até 115dB
- Sons de alarme: 6 unique sounds
- Níveis de brilho: 5 níveis ajustáveis
- Fonte de energia: Elétrico com fio (CA 100-240V)
- Bateria de reserva: 3 pilhas AAA (não incluídas)
- Porta de carregamento USB: Sim (para dispositivos externos)
- Dimensões do produto: 4.8"L x 3.15"A
- Peso do item: 11 onças
- Material: Plástico
Figura 11: Dimensões do produto.
Garantia e Suporte
Your Acedeck L01 Super Loud Alarm Clock comes with an 18-month warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use.
For technical support, troubleshooting assistance, or warranty claims, please contact Acedeck customer service through the retailer where you purchased the product or visit the official Acedeck website para informações de contato.
